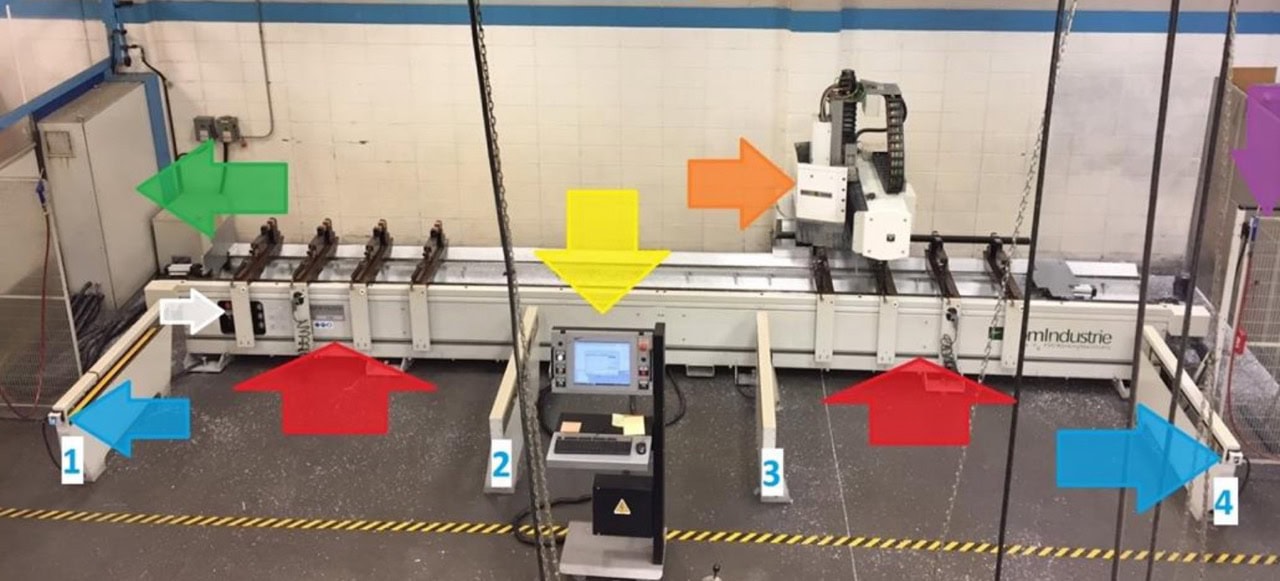

FOM FLEN Profile Machining Center, 2014

X Axis: Longitudinal Travel Mm 7.030
Y Axis: Transversal Travel Mm 940
Z Axis: Vertical Travel Mm 625
A Axis: Electrospindle Rotation -15°/195°
Work Capacity
X Axis Longitudinal Travel: Mm 6.830 90° Mm 500 90°/180 Mm 500 0°/90° Mm 390
Y Axis Transversal Travel With Electrospindle: 0°/180° Mm 390 90° Mm 300 90°/180 Mm 250 0°/90° Mm 250
Z Axis Vertical Travel With Electrospindle: 0°/180° Mm 250 Axis Movement Rapid Traverse M/1’ 100
X Axis Acceleration: M/S 2 2,5 Rapid Traverse M/1’ 60
Y Axis Acceleration: M/S 2 3 Rapid Traverse M/1’ 60
Z Axis Acceleration: M/S 2 3 A Axis Speed 180°/Sec
Machine Accuracy Positioning Accuracy: ± 0,13 Repeatability Accuracy ± 0,07

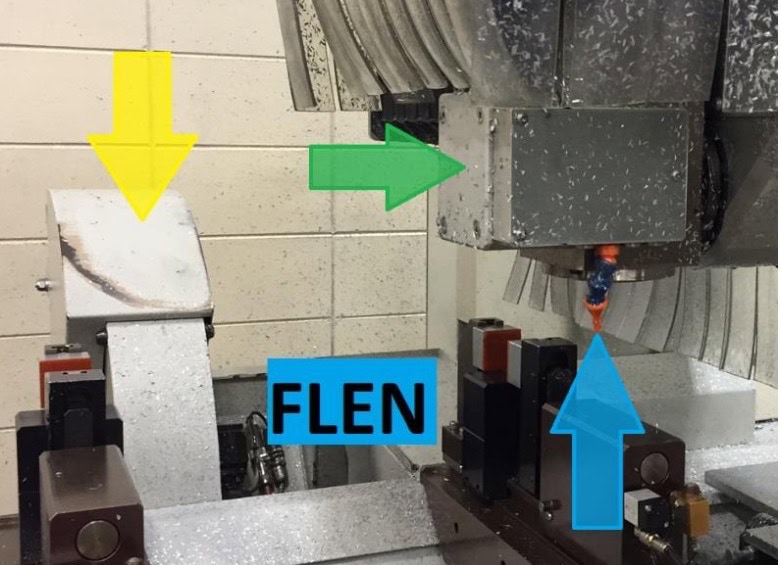

Electrospindle Cone: Iso 30 Din 69871
Max. Torque: Nm 6,5
Power: 4 Kw Max.
Rotation Speed Rpm: 12.000
Tool Magazine
Tool Replacement Time Sec:. 8
Number Of Tools: N° 12
Maximum Tool Weight: Kg. 6
Maximum Tool Length: Mm 124
Maximum Tool Diameter: Mm 220
