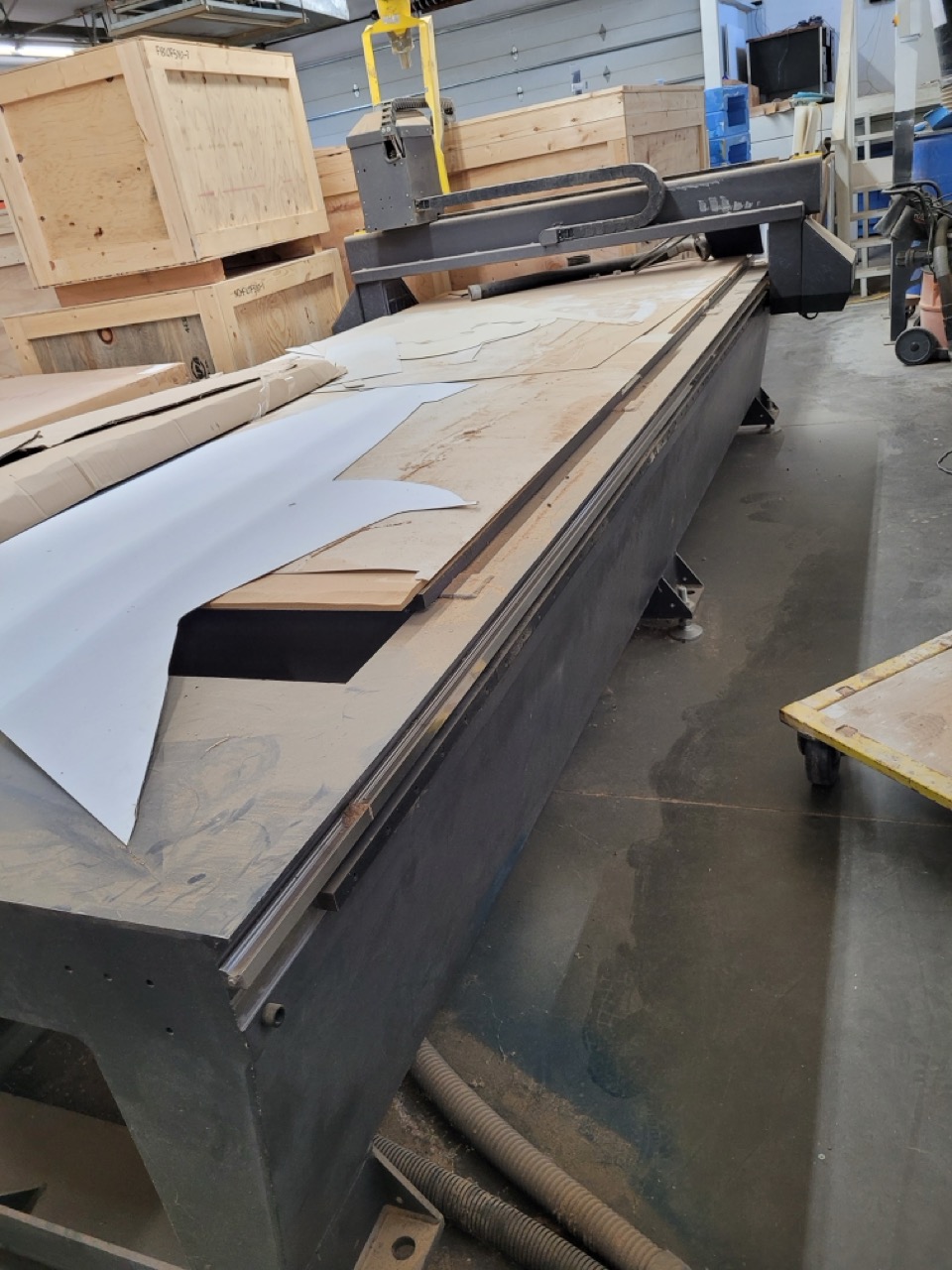

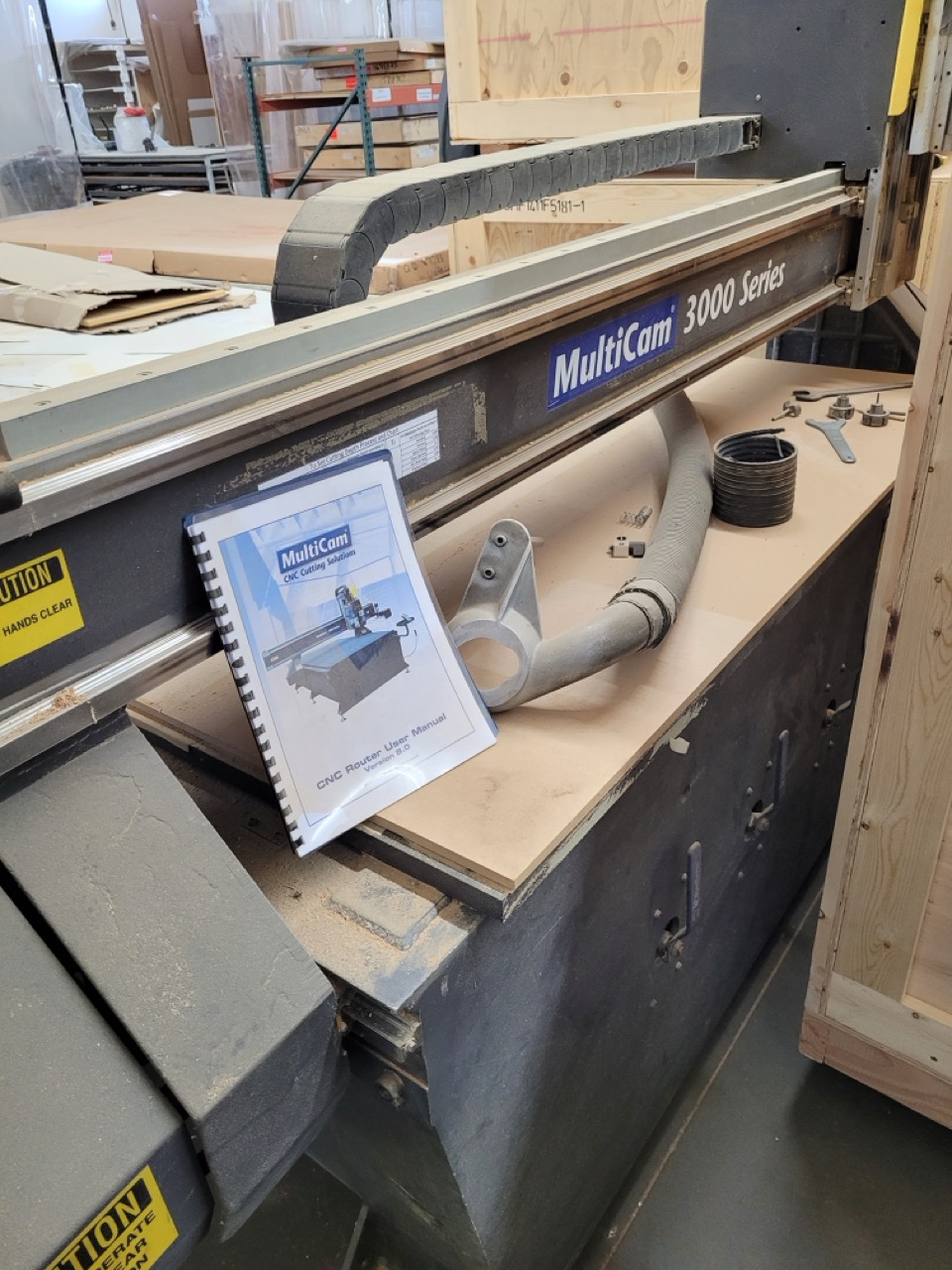

5' x 12' MultiCam 3000 Series CNC Router, 2008 - Dust Collector, Vacuum Table

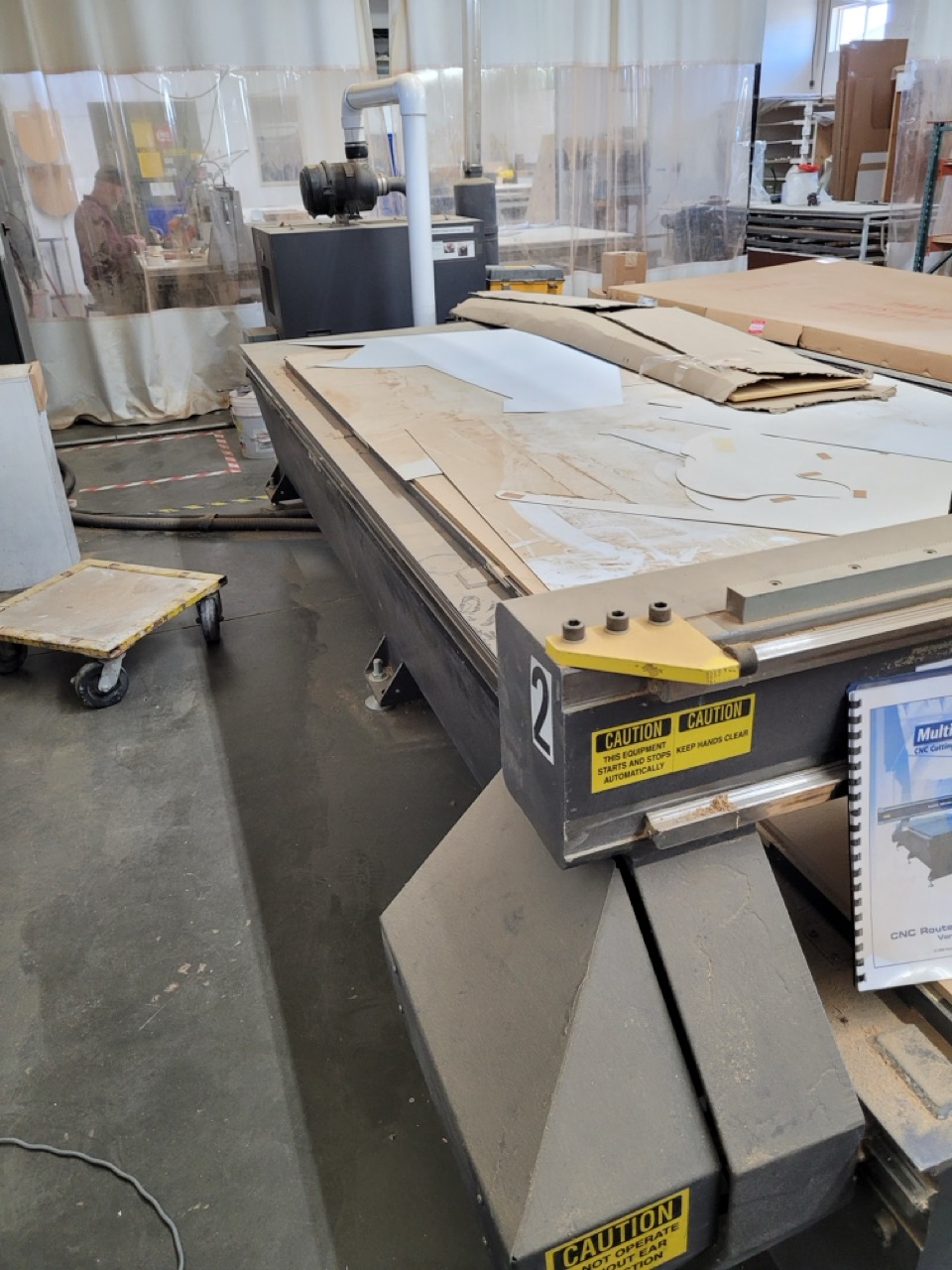

5' x 12' MultiCam 3000 Series CNC Router, 2008 - Dust Collector, Vacuum Table - Image 2

5' x 12' MultiCam 3000 Series CNC Router, 2008 - Dust Collector, Vacuum Table - Image 3

5' x 12' MultiCam 3000 Series CNC Router, 2008 - Dust Collector, Vacuum Table - Image 4

5' x 12' MultiCam 3000 Series CNC Router, 2008 - Dust Collector, Vacuum Table - Image 5

5' x 12' MultiCam 3000 Series CNC Router, 2008 - Dust Collector, Vacuum Table - Image 6

36604760105

5′ x 12′ MultiCam 3000 Series CNC Router, 2008 – Dust Collector, Vacuum Table

Name: 5' x 12' MultiCam 3000 Series CNC Router, 2008 - Dust Collector, Vacuum Table
SKU: 36604760105
Availability: InStock

$14,900.00

Add to Wishlist

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Routers
Make: MultiCam
Model: 3000 Series
Year: 2008
Machine Location: Idaho
Stock #: 760105

Work Area: 5′ x 12′ (60″ x 144″)
Z-Axis Clearance: 4″
Z-Axis Travel: 6″
Drive System: Rack and Pinion (X, Y), Lead Screw (Z)
Rapid Traverse Speed: 1800 IPM*
Spindle Power: 7.5 HP
Spindle Speed: 24,000 RPM
Repeatability: +/- 0.001″
Positional Displacement Accuracy: +/- 0.005″ over 10′
Maximum Cutting Speed: 1000 IPM*

Equipped With

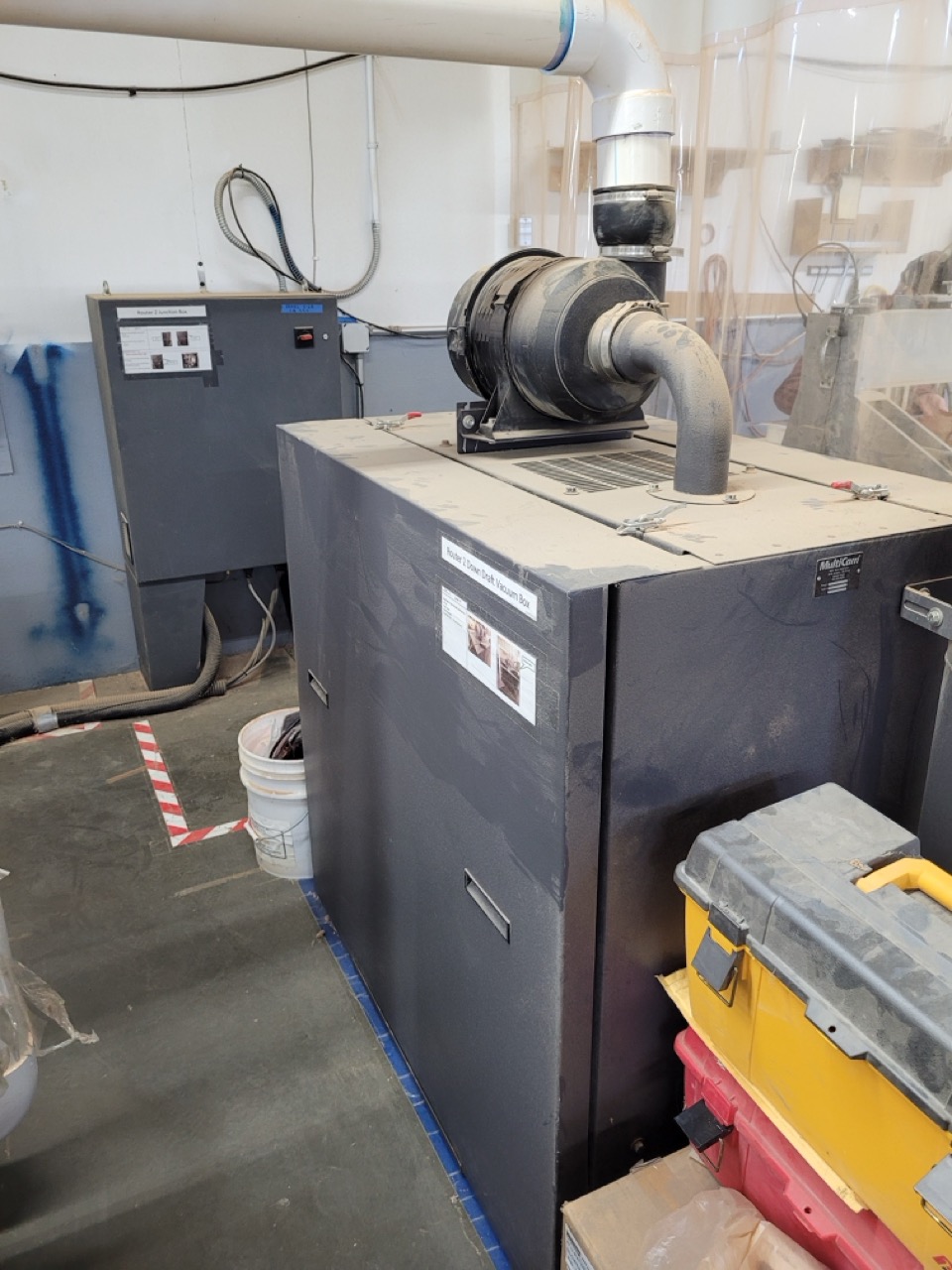

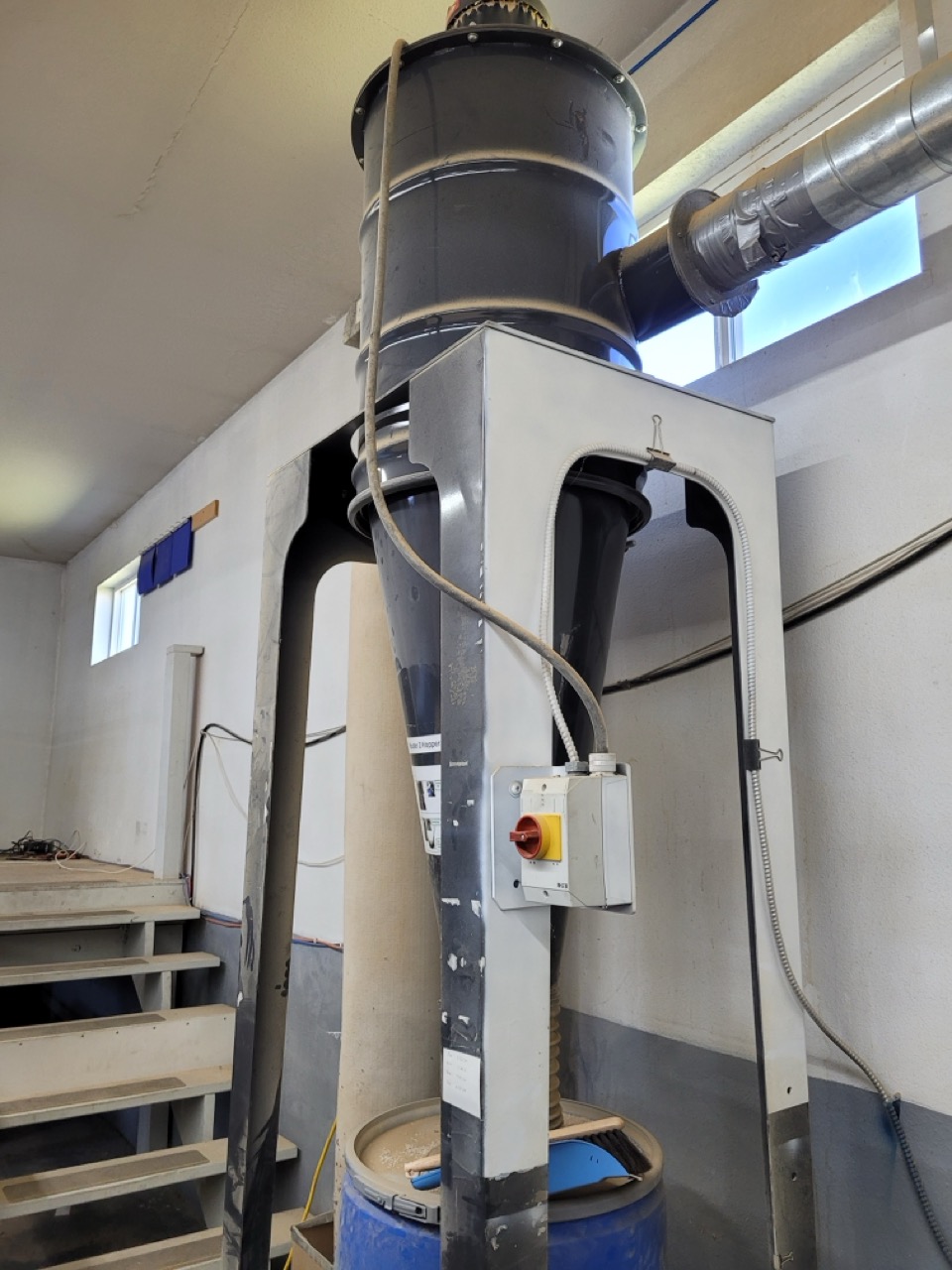

Dust Collector

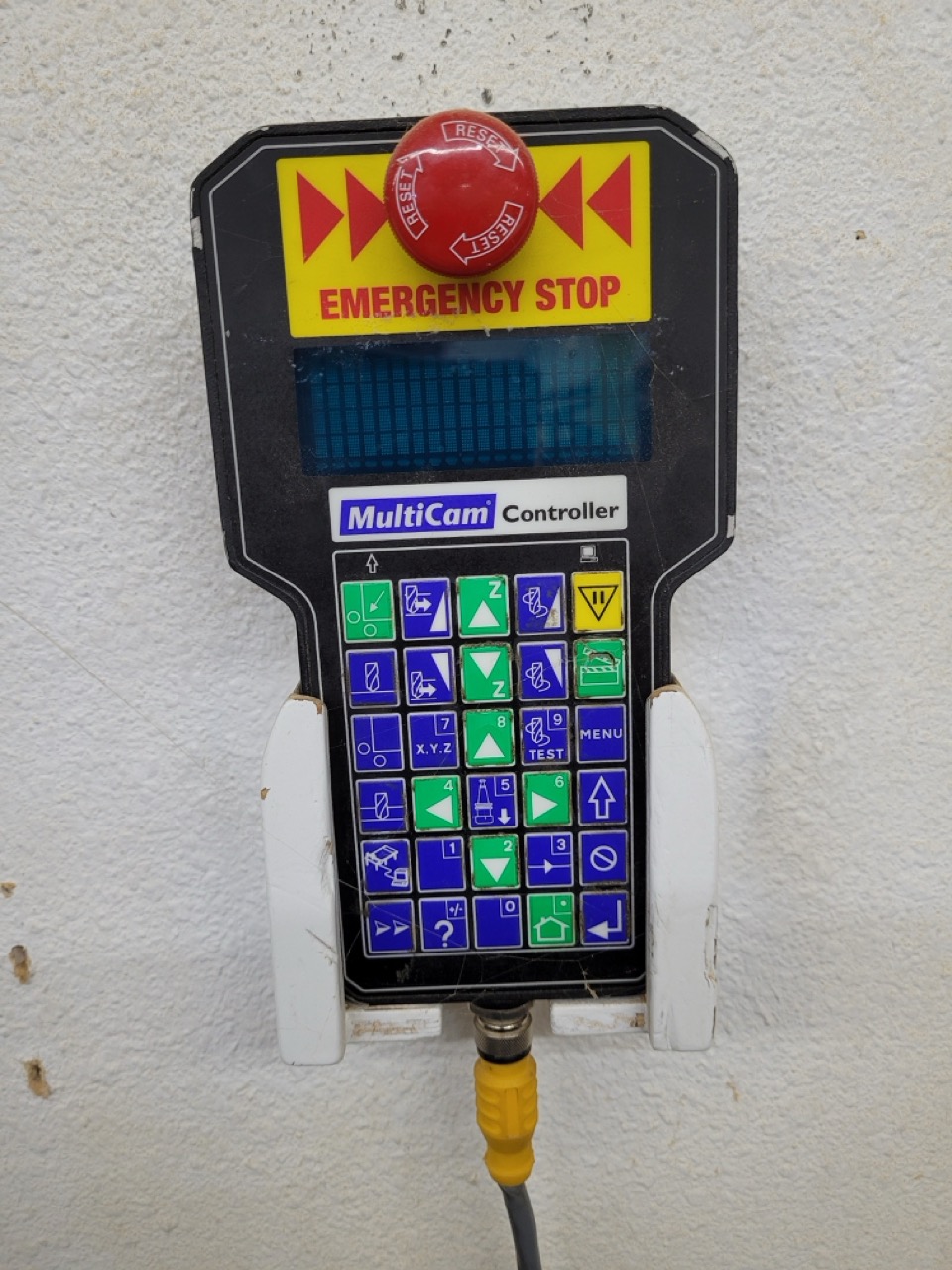

Handheld Control
Traveling Gantry Style
Vacuum Table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
