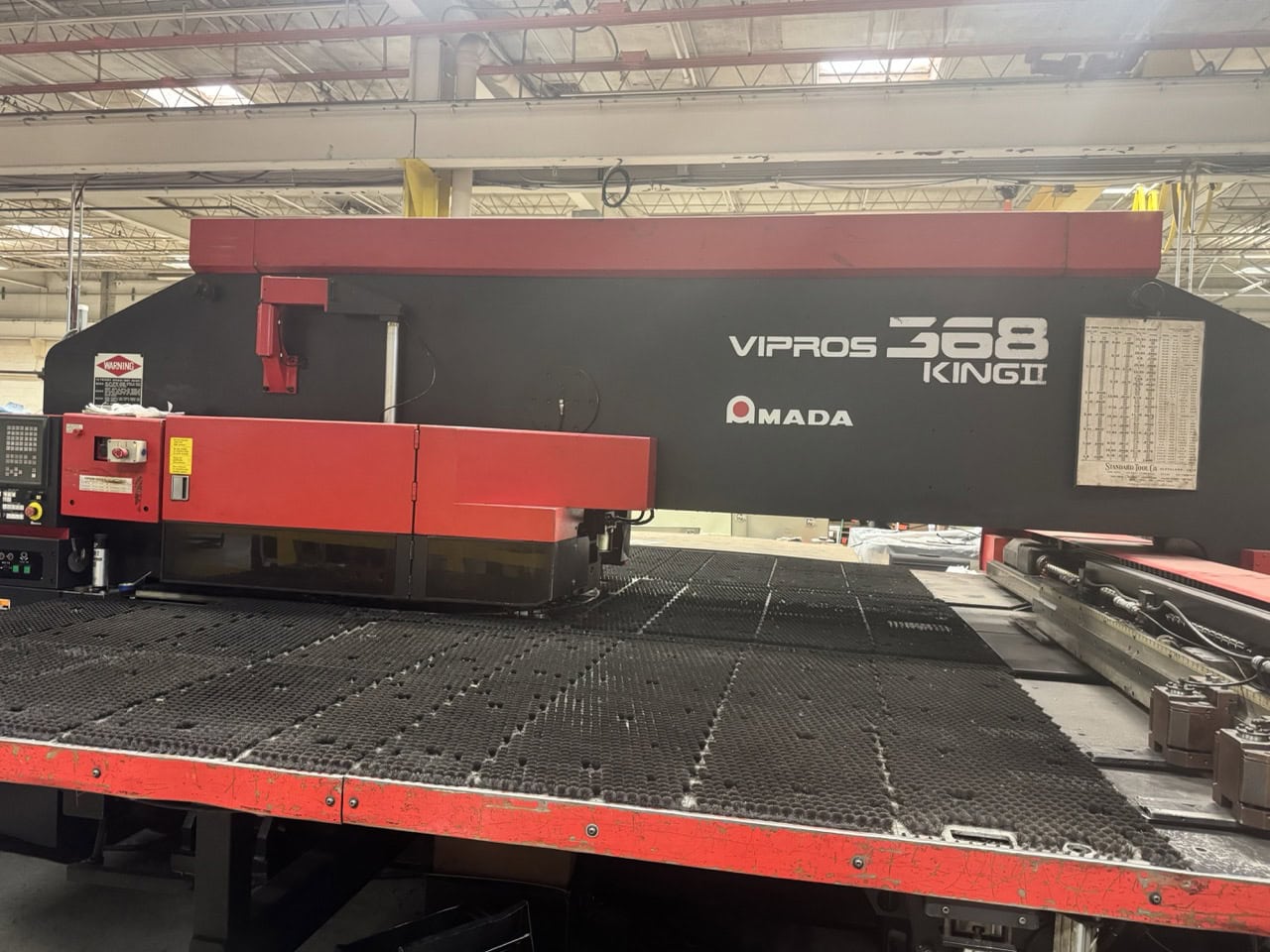

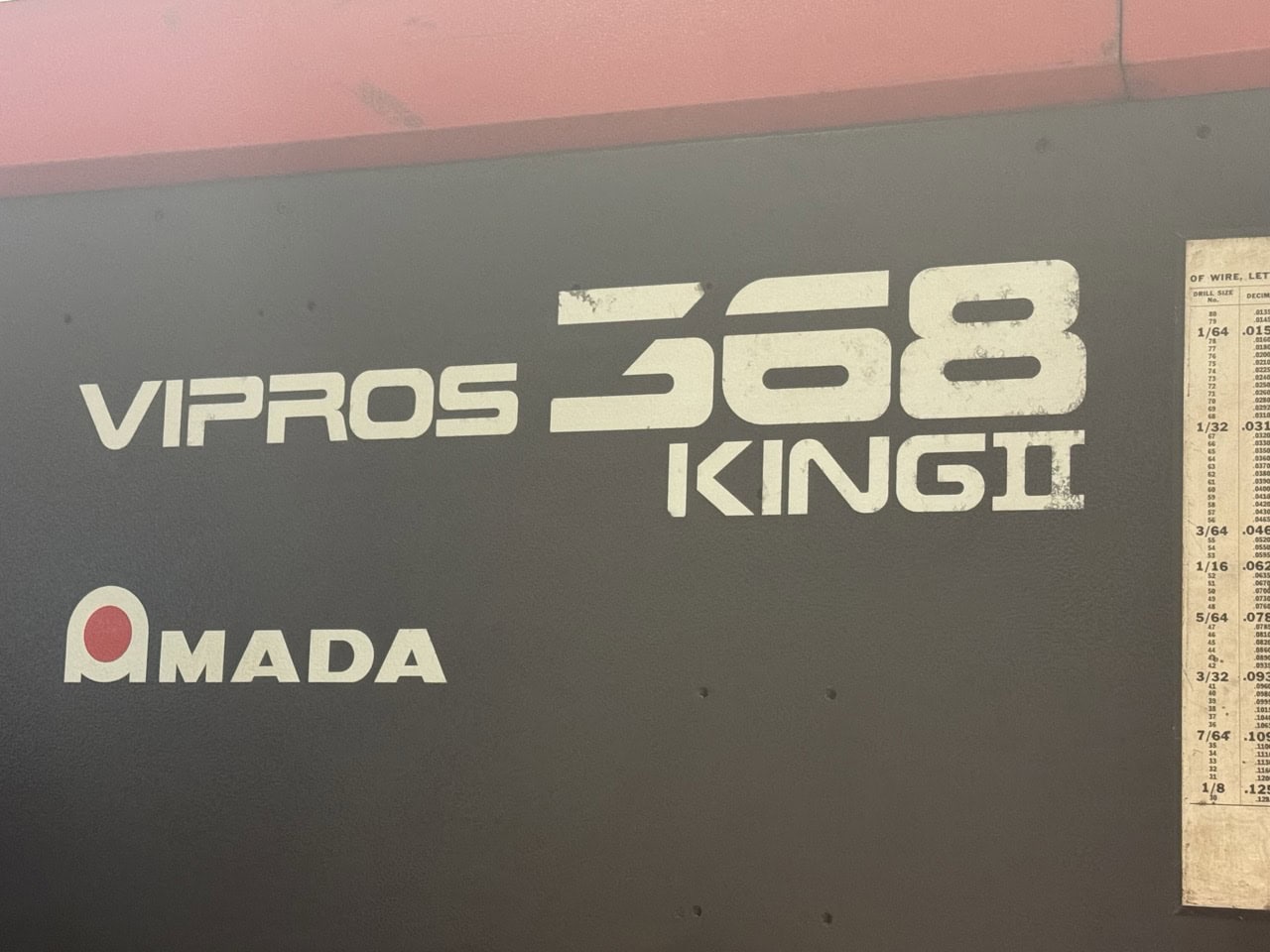

33 Ton Amada Vipros 368 King II Turret Punch, 1999 – Fanuc Control

Tonnage Capacity: 33 Tons
Maximum Sheet Size: 60″ (Y) x 157.50″ (X) with repositioning
Maximum Axis Travel: 60″ (Y) x 78.74″ (X)
Max. Linear Table Speed: 3150″ per min.
Punching Accuracy: +/-0.004″ Hole to Hole
Maximum Sheet Thickness: 0.125″
Maximum Material Weight: 132 lb.
Press Stroke: 1.575″
Maximum Hole Diameter: 4.5″
Tool Type: Amada Thick Turret
Turret Rotation Speed: 30 RPM

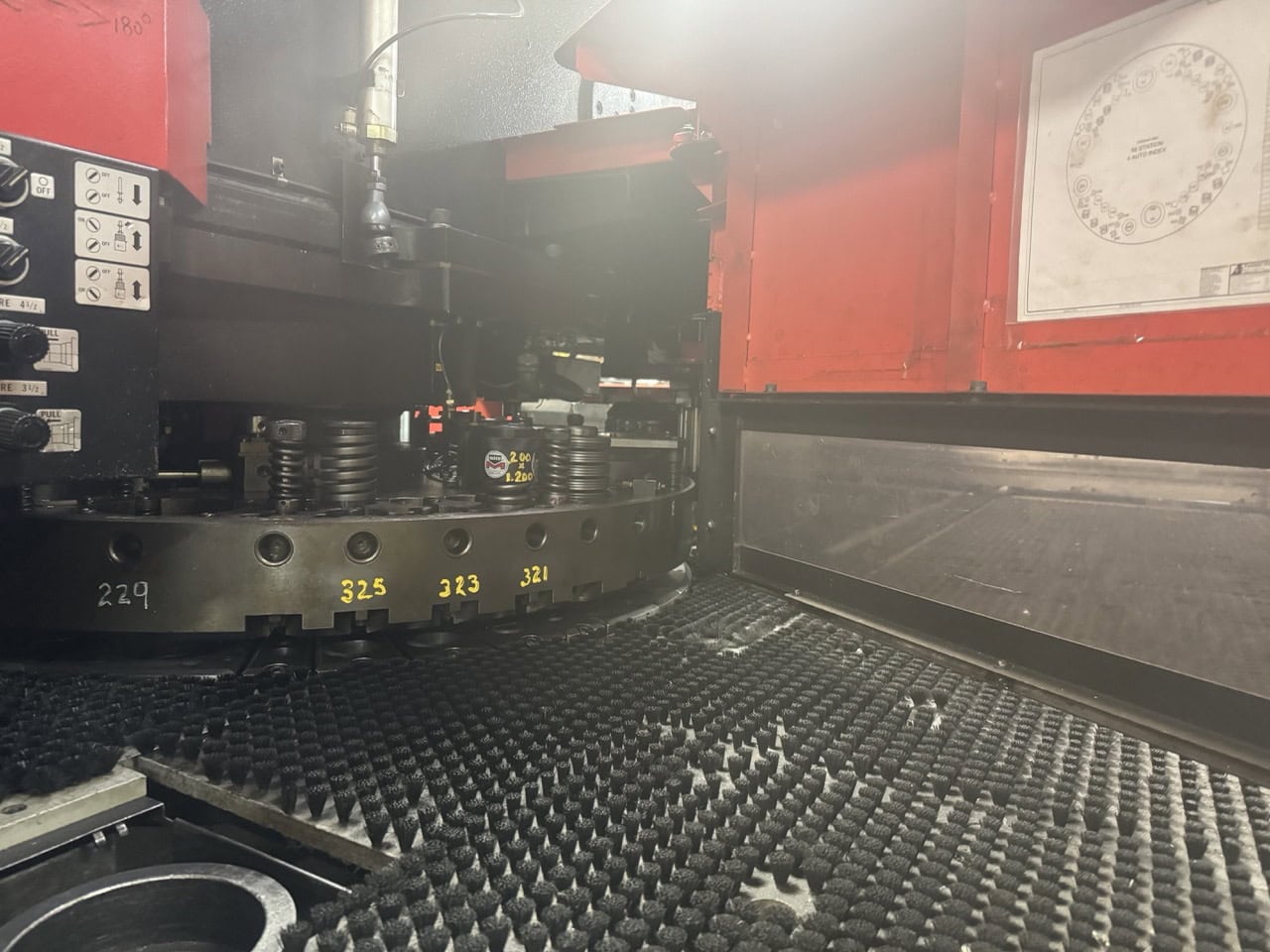

Turret Capacity: 58 Stations (4 auto-index)
Minimum Command Unit: 0.001″ (X, Y)
Minimum Travel Unit: 0.001″ (X, Y)

Equipped With:

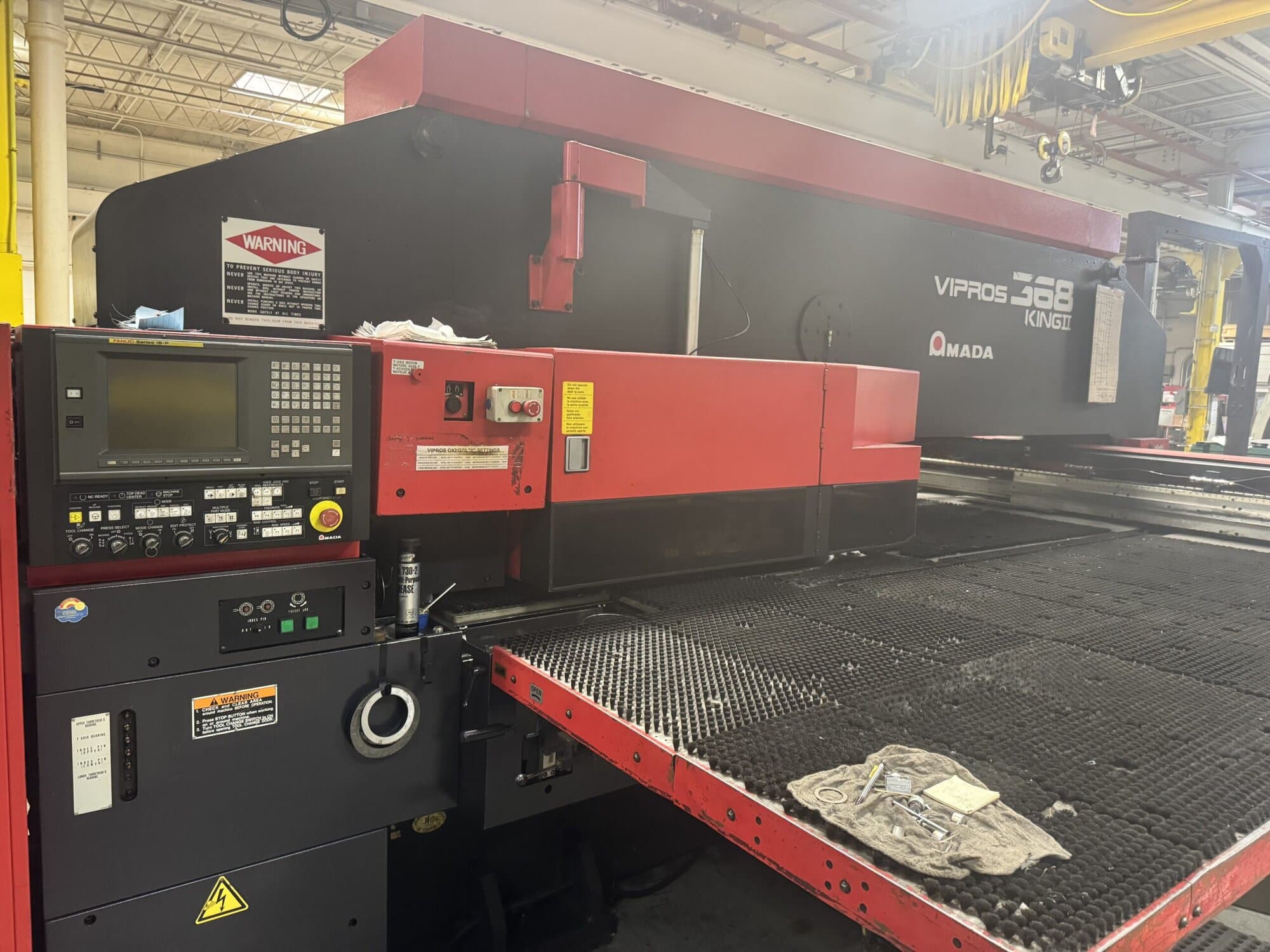

Fanuc Series 18-P Control
