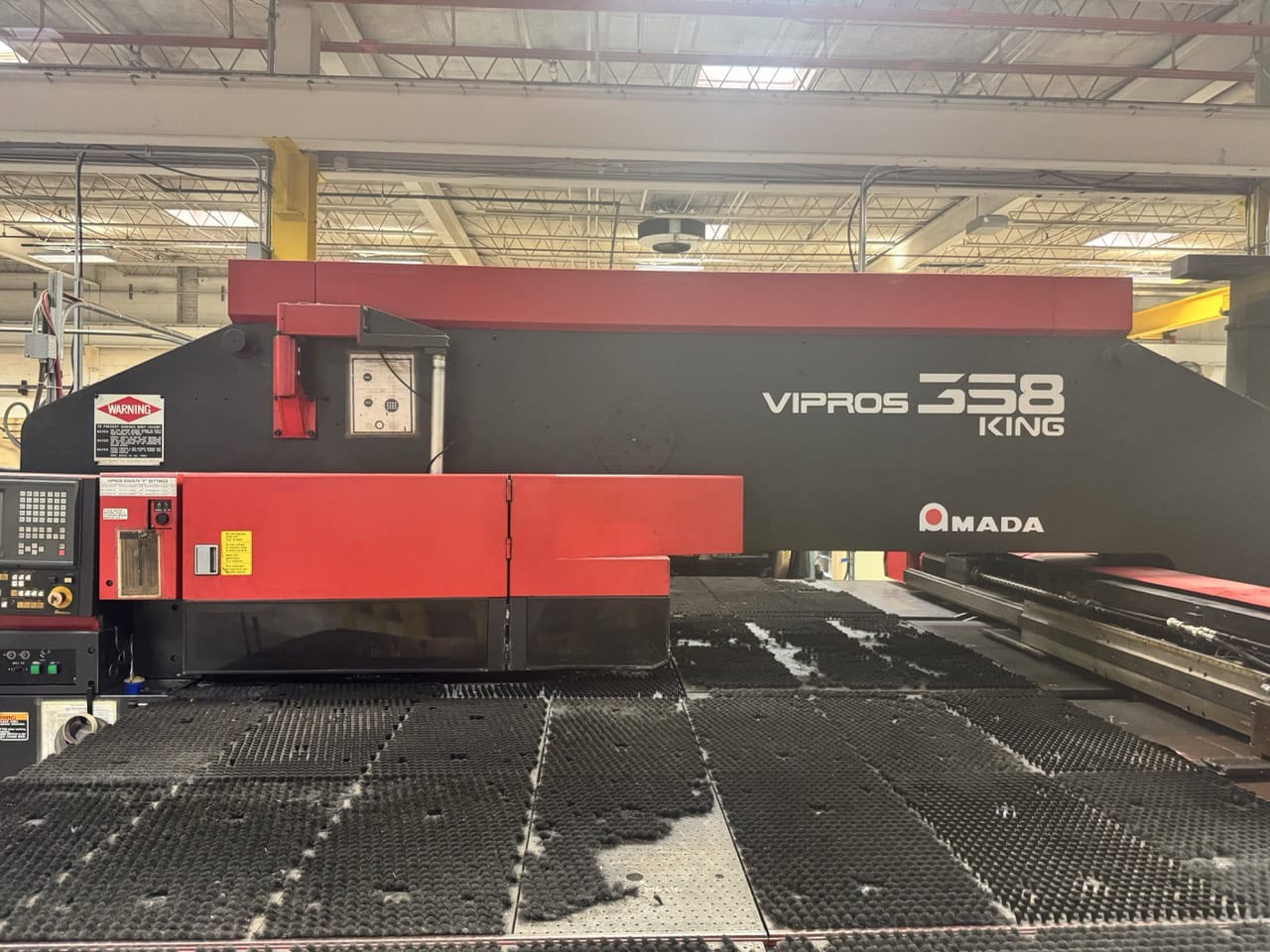

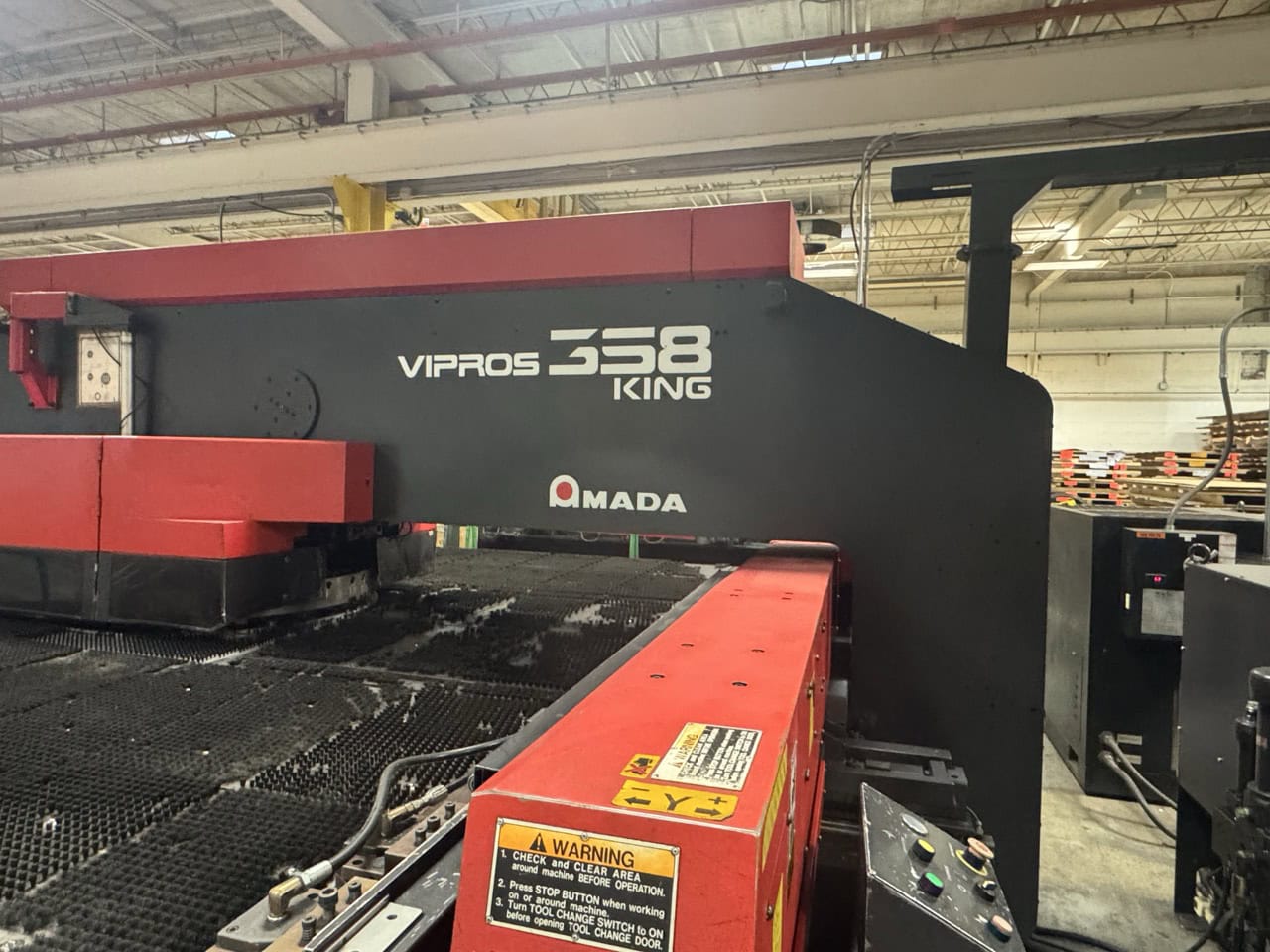

33 Ton Amada Vipros 358 King Turret Punch, 1998 – Fanuc Control

Name: 33 Ton Amada Vipros 358 King Turret Punch, 1998 - Fanuc Control
SKU: 34036402226
Availability: InStock

$24,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Turret Punches
Make: Amada
Model: Vipros 358 King
Year: 1998
Capacity: 33 Ton
Machine Location: Illinois
Stock #: 402226

Capacity: 33 Ton
Press Stroke: 1.256″
Travels: 50″ x 78.74″
Maximum Sheet Size (w/ Repositioning): 50″ x 157.5″
Maximum Material Thickness: 0.125″
Maximum Sheet Weight: 110 Lbs
Maximum Hole Diameter: 4.5″

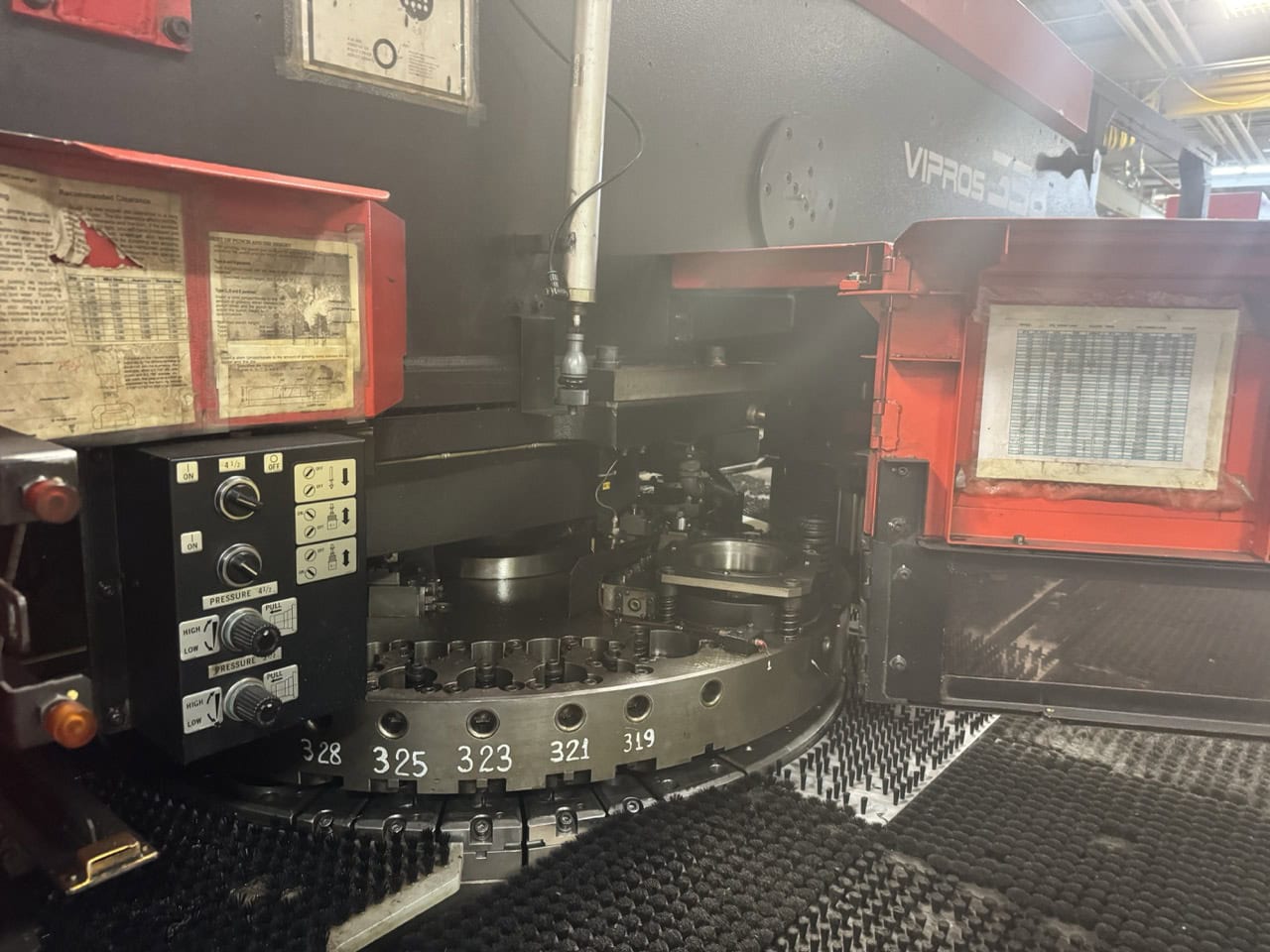

Turret Stations: 58 (4 Auto-Index)
Turret Rotation Speed: 25 RPM
Max Linear Table Speed: 3150 IPM
Punching Accuracy: +/- 0.004″
Positioning Accuracy: +/- 0.001″
Repeatability: +/- 0.001″

Equipped With:

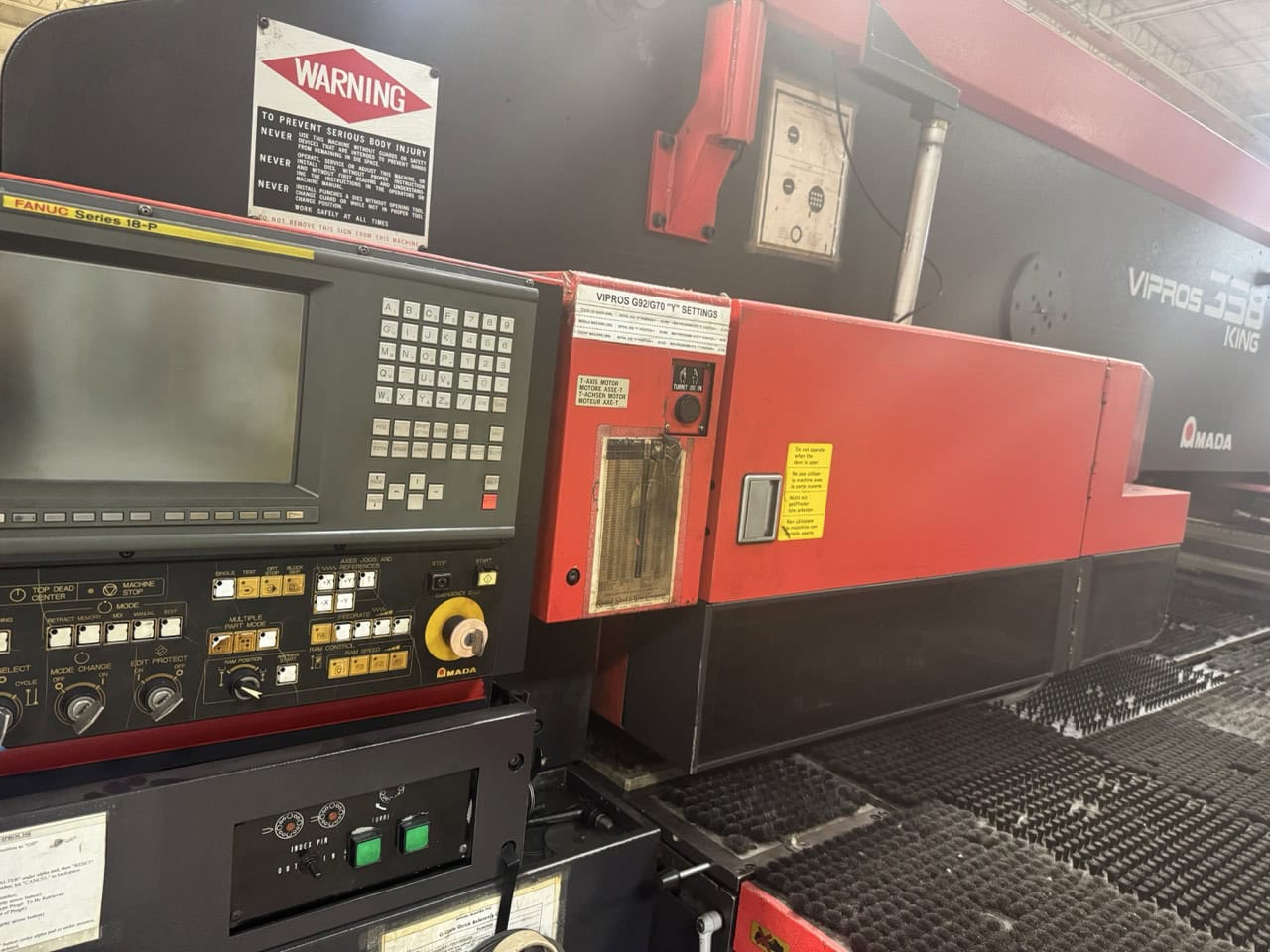

Fanuc Series 18-P Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
