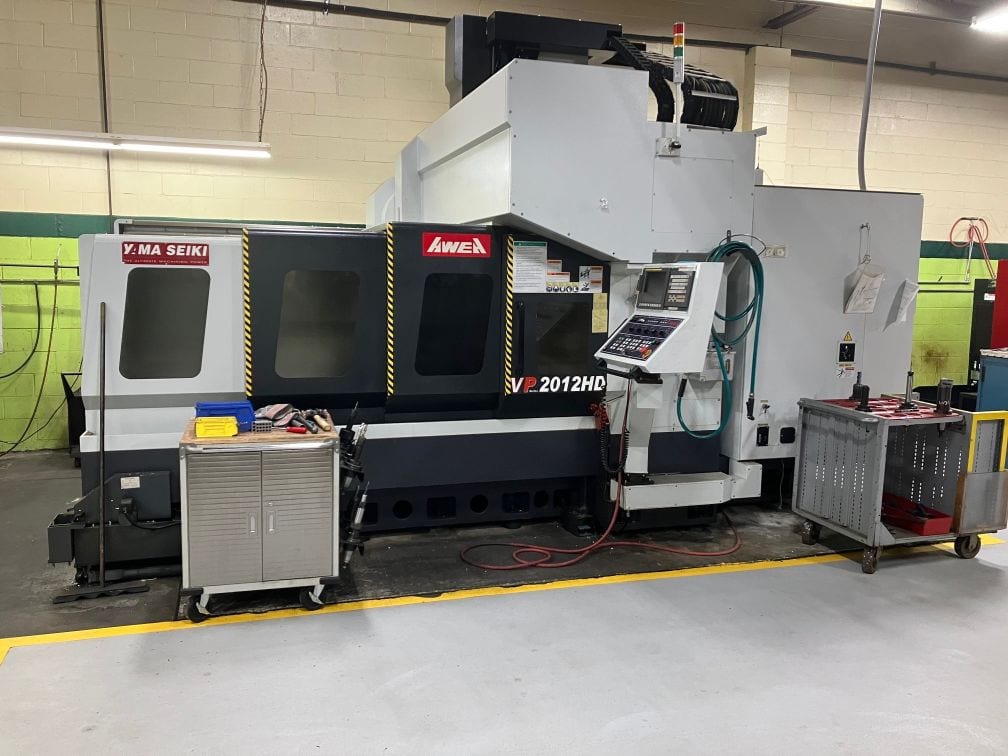

Yama Seiki VP2012HD CNC Bridge Mill, 2014 – Chip Blaster, 4th Axis Pre-Wire, 6k spindle with Gear Box, Fanuc Control
$129,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

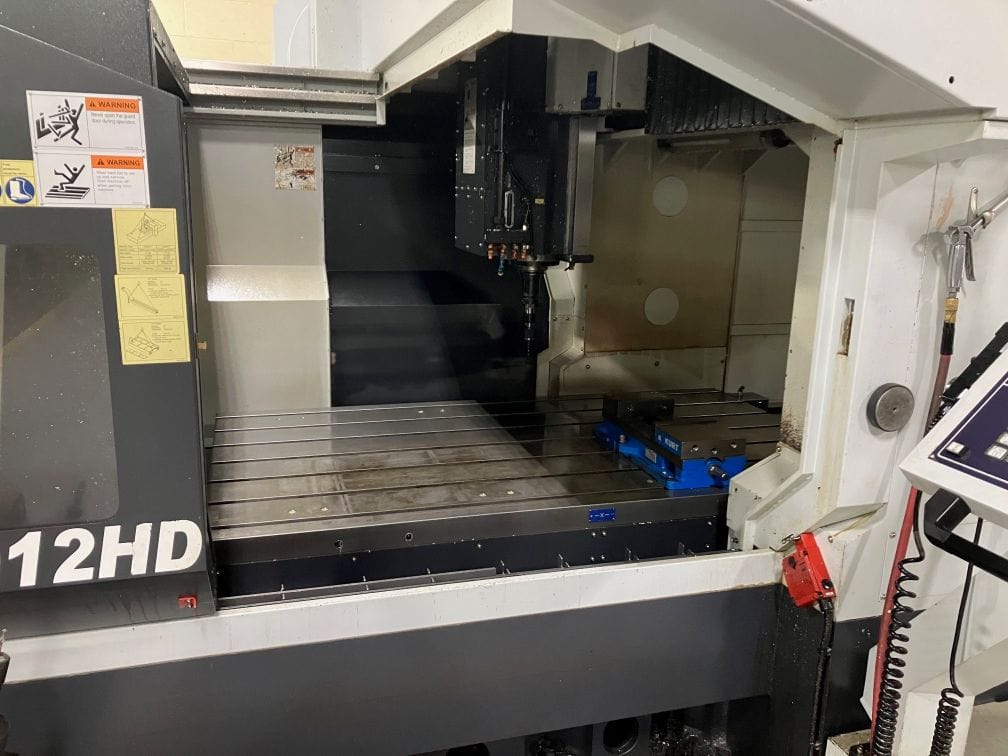

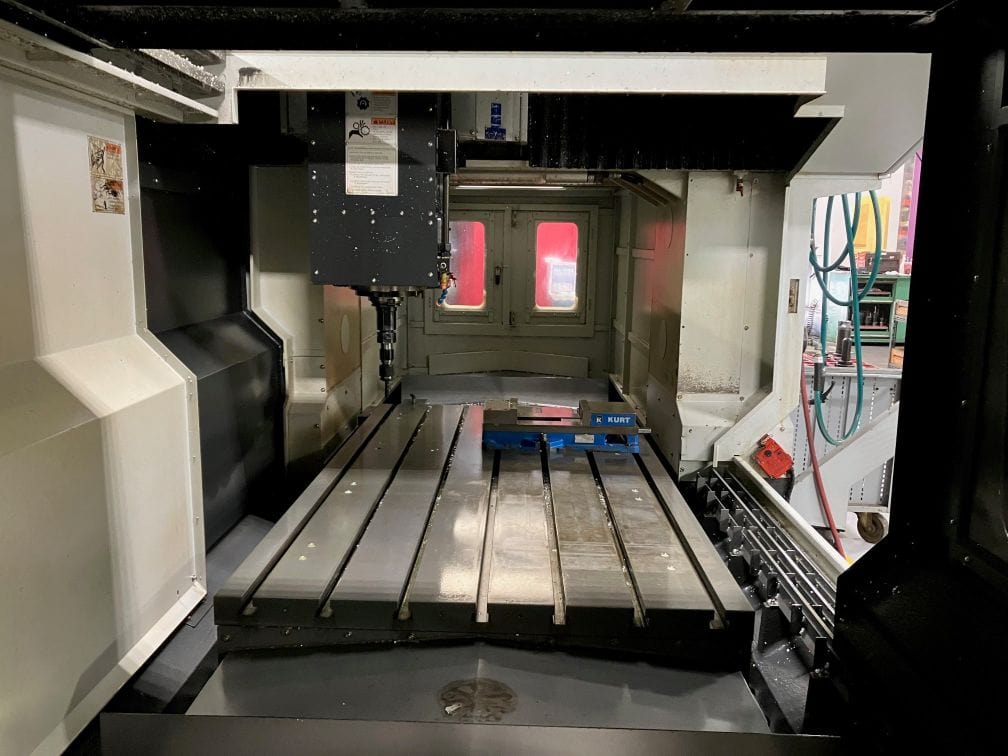

Table Size: 78.74″ x 43.31″
Max Load On Table: 9,900 LBS
X Axis Travel: 78.74″
Y Axis Travel: 47.24″
Z Axis Travel: 29.92″
Spindle Speed: 10- 6,000 RPM
Spindle Drive Motor: 35 / 30 HP
Spindle Torque: 474 FT. LBS
Spindle Taper: CAT 50
Tool Capacity: 40
Distance From Table to Nose: 7.78″ – 37.80″
Distance Between Columns: 51.18″
Rapid Traverse (X,Y): 945 IPM
Rapid Traverse (Z): 591 IPM
Machine Weight: 40,000 LBS
Equipped With:

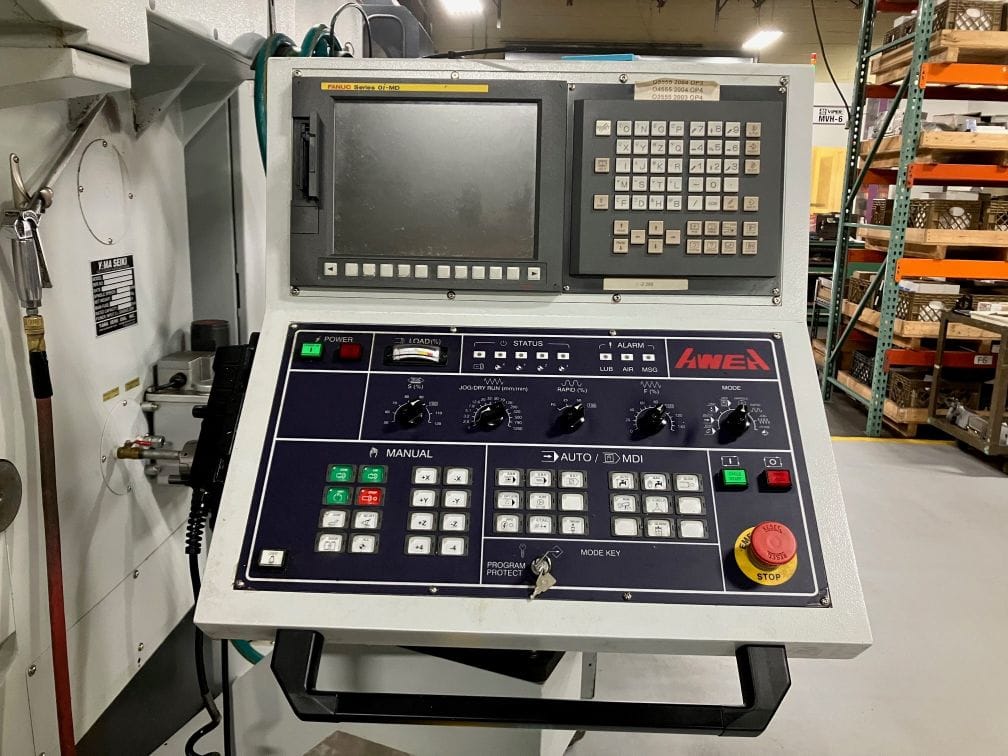

Fanuc 0i-MD Control
4th Axis Interface Pre-Wire (w/o amplifier)
Roof Enclosure Splash Guard
Chip Conveyor
Oil Skimmer
Door Interlocks For Front Door

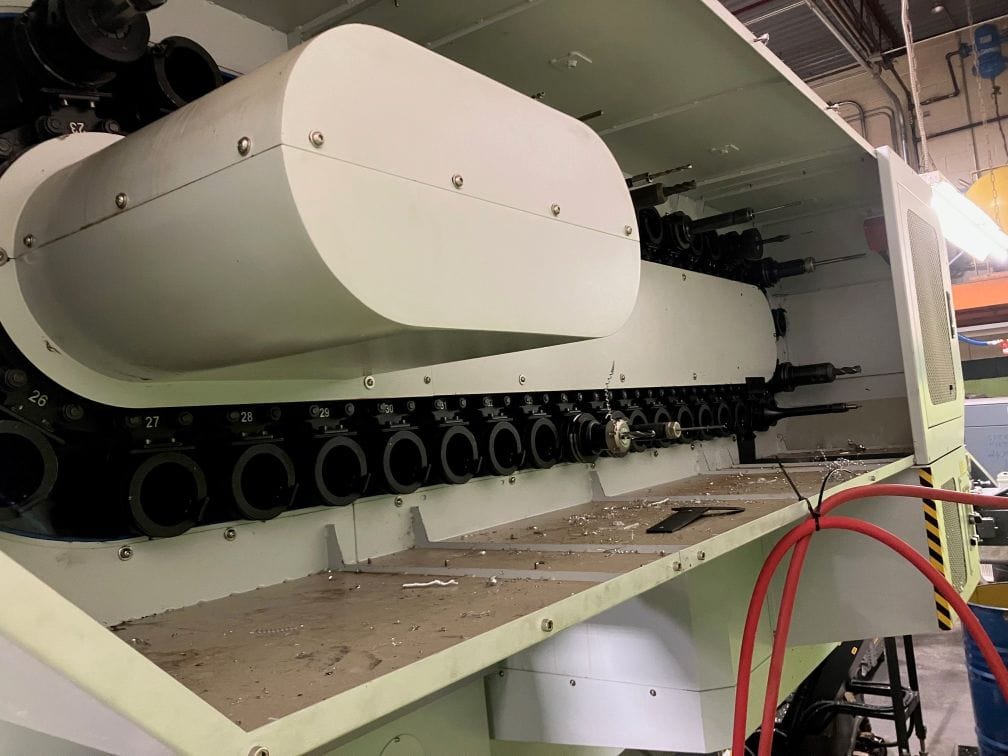

40 Tool Magazine
Control Panel & Ladder for Magazine
Chip Blaster J30 CTS for 1000 PSI
Rigid Tapping
Helical Interpolation
Centralized Automatic Lubrication System
Twin Screw Type Chip Auger
Coolant System with Pump & Tank
Air Gun
RS232 Interface
