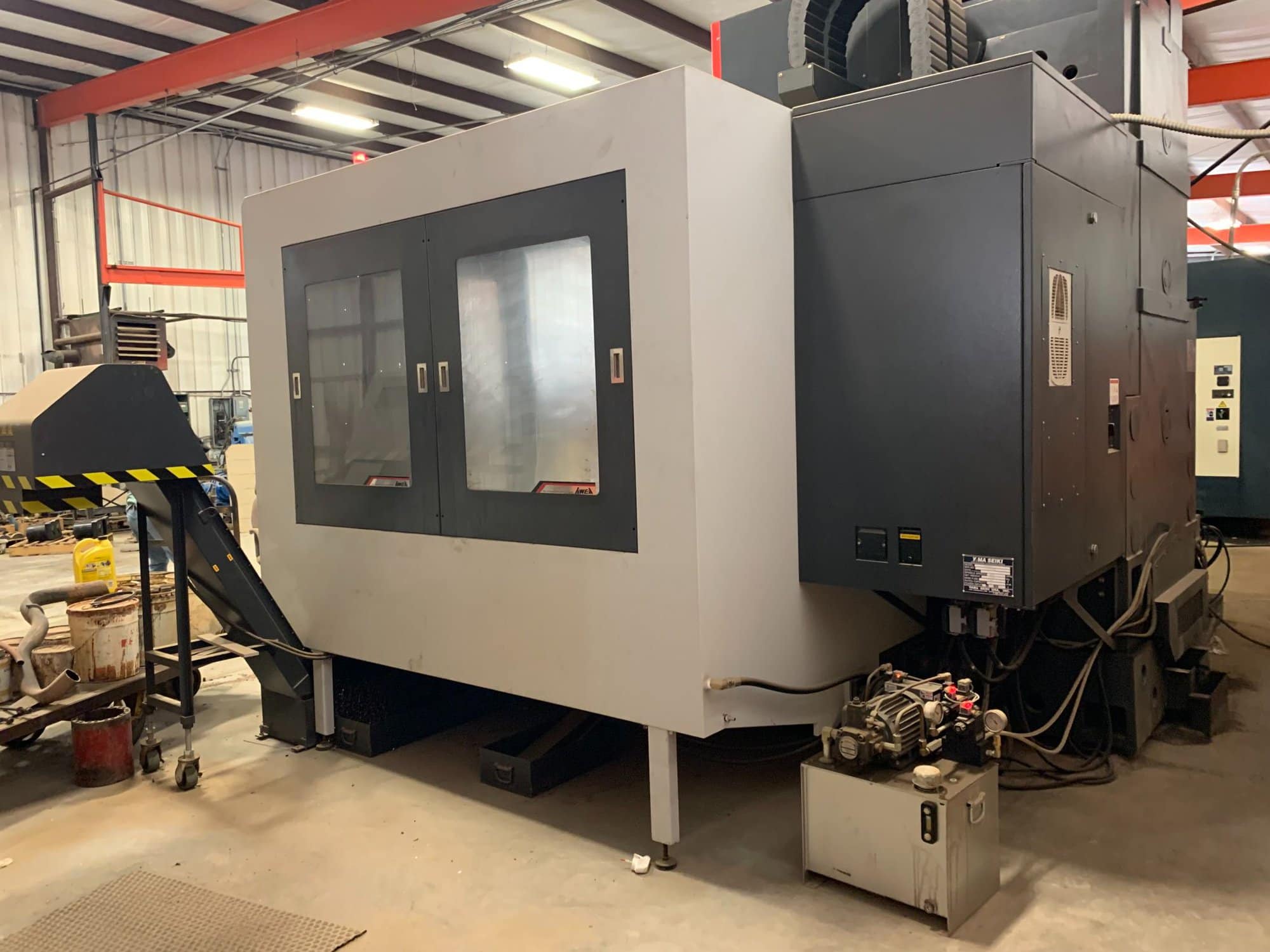

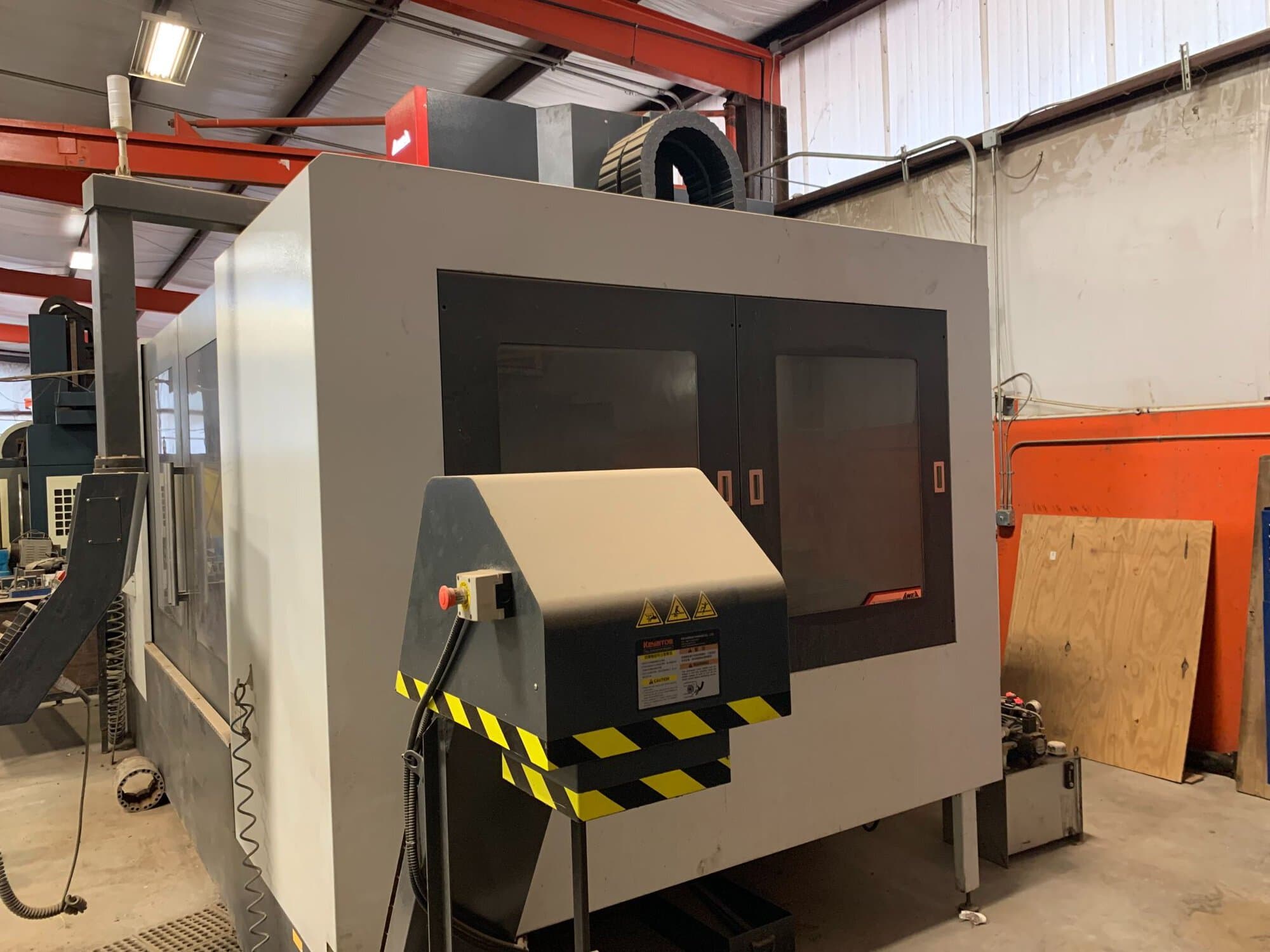

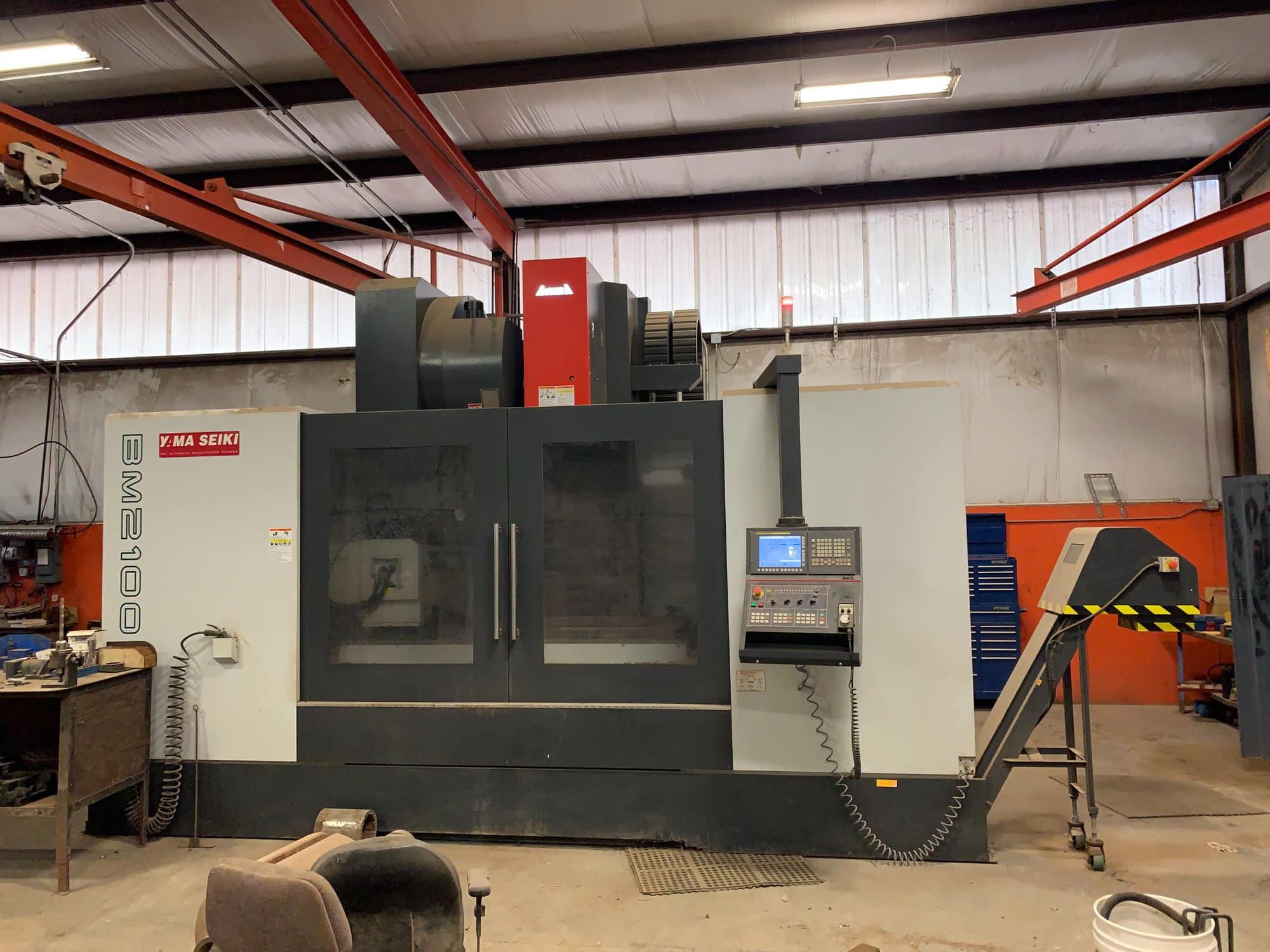

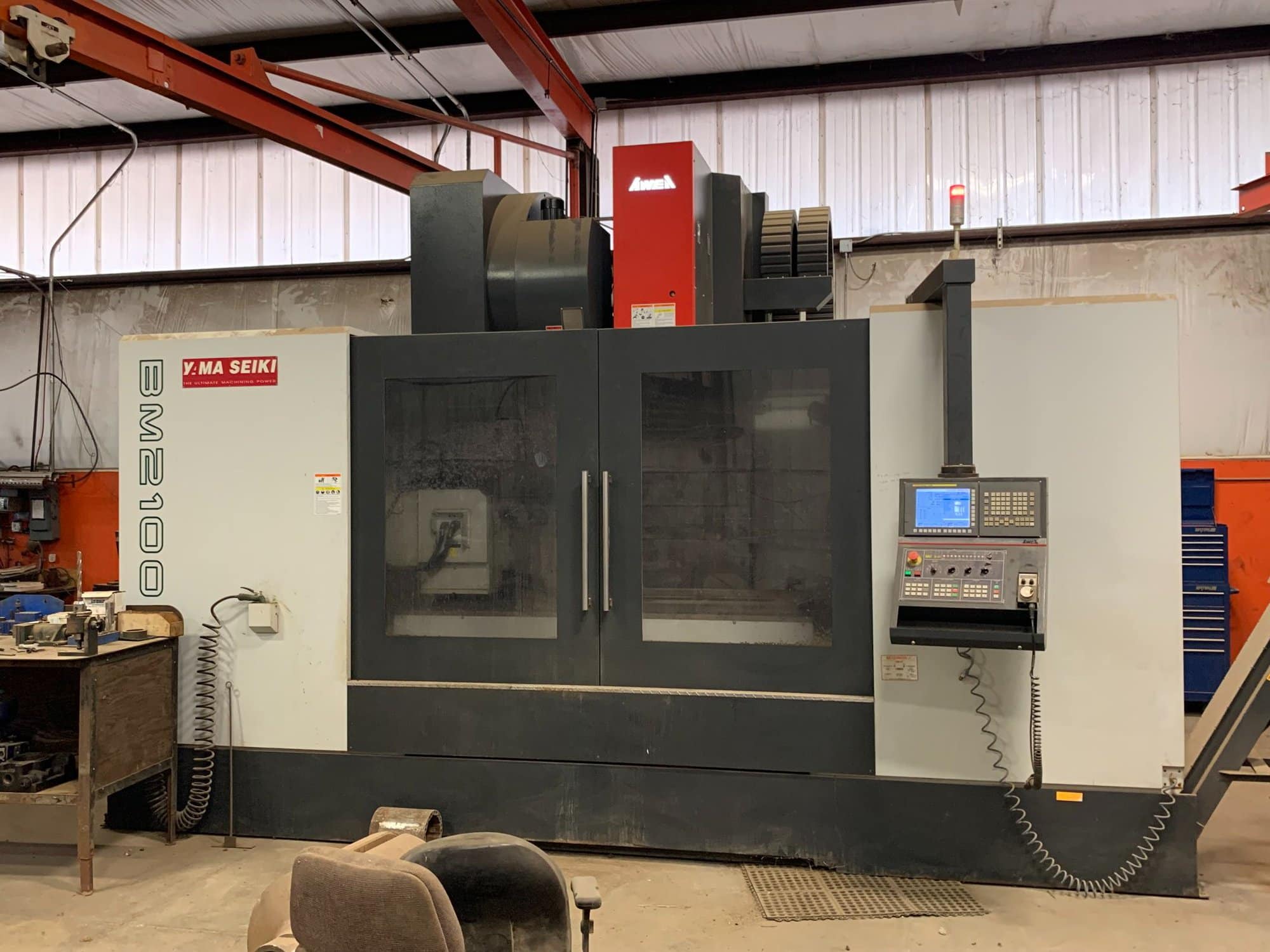

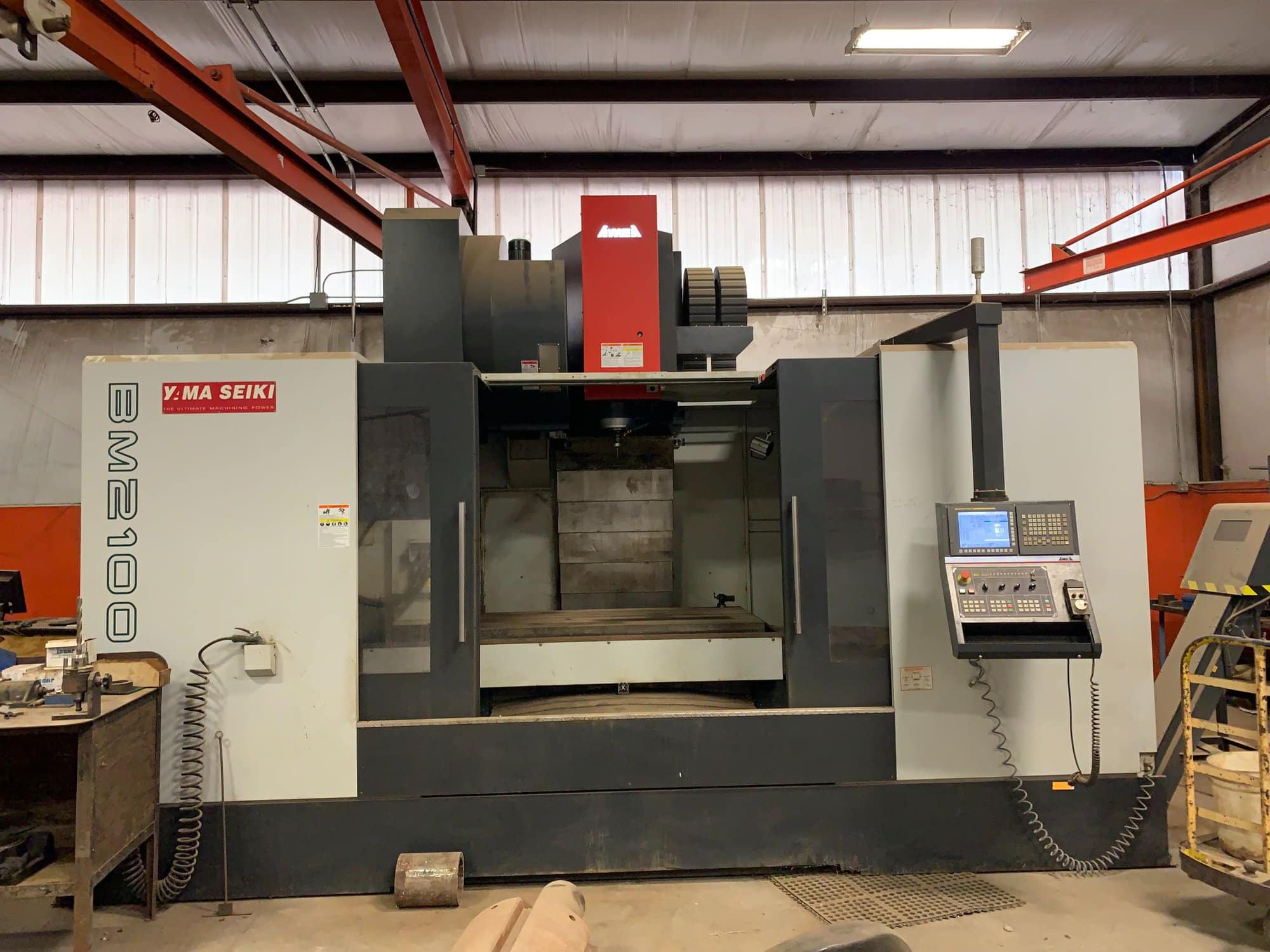

Yama Seiki BM2100 High Rigidity CNC VMC, 2019 – Fanuc, 4th Axis, CTS
$189,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels
X: 82.6″
Y: 39.3″
Z: 39.3″
Power: 35 Hp Spindle Motor
Taper: Cat 50
30 Tool Swing Arm Atc
Spindle Speed: 6,000 Rpm

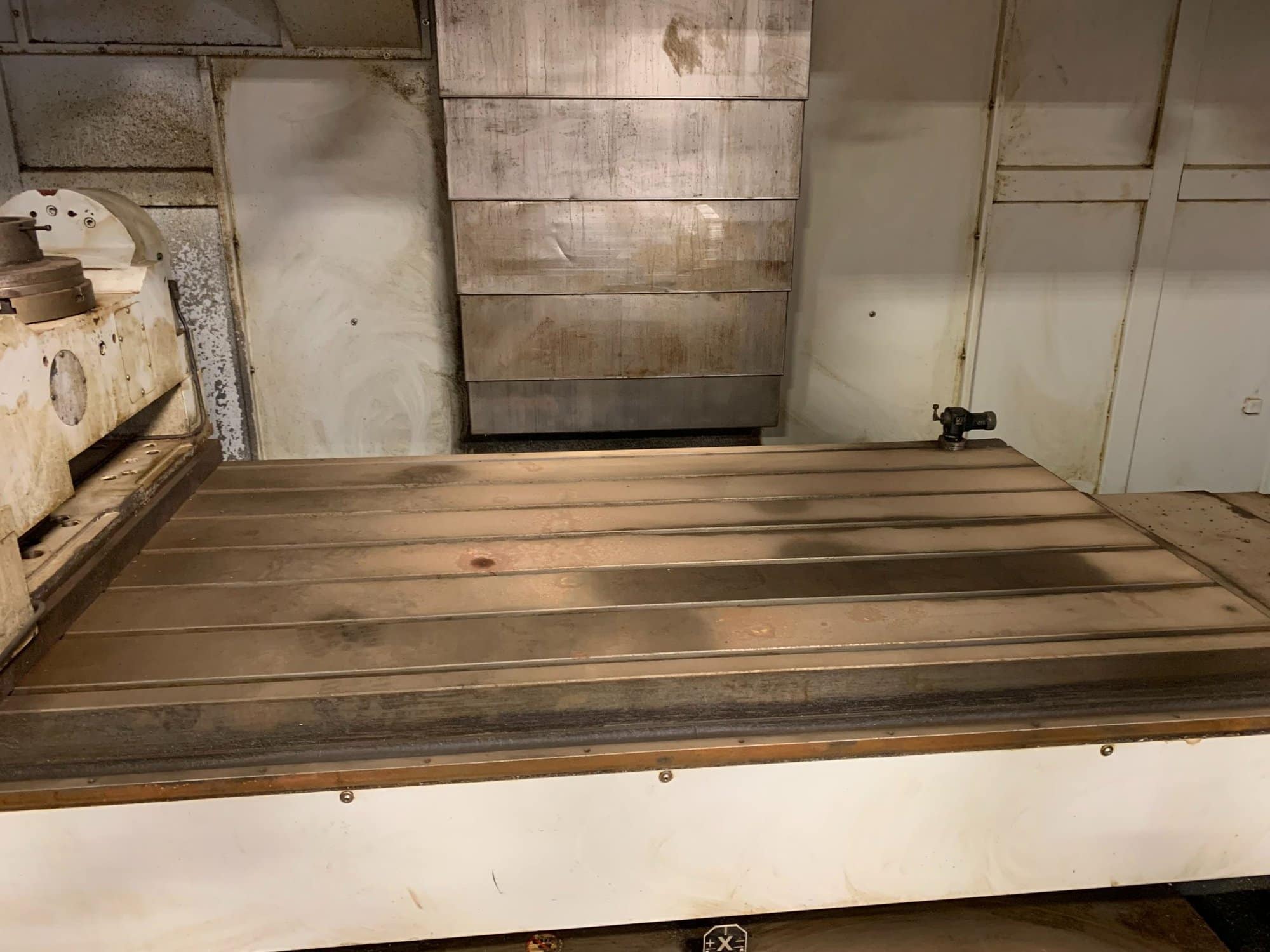

Table (WxL): 39.3″ x 90.5″
Coolant Through Spindle: 1000 PSI
Voltage: 220V 3 PH 100A
Dimensions (Approx. LxWxH): 249″ x 168″ x 148″
Weight: 44,000 Lbs
Equipped With:

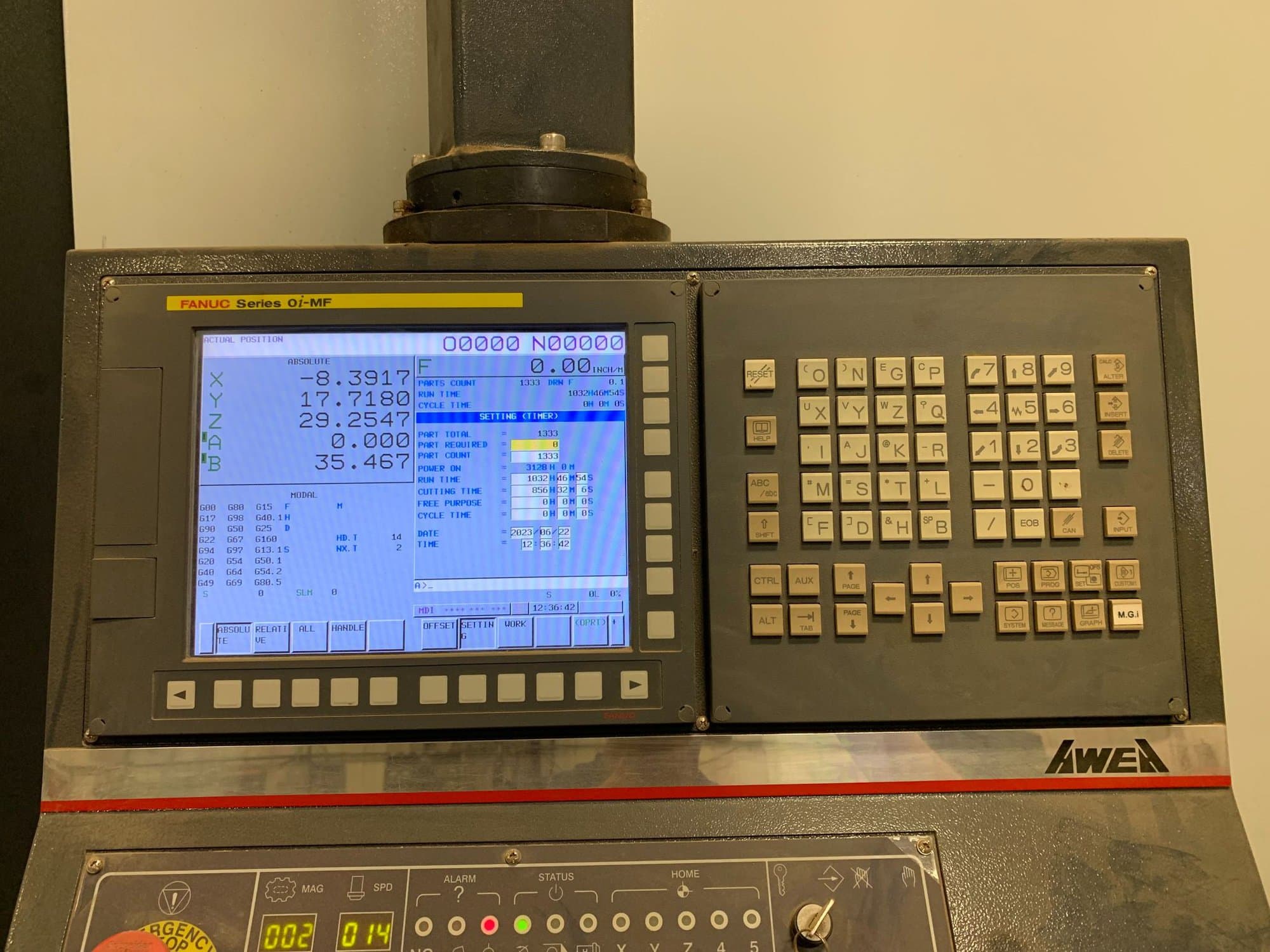

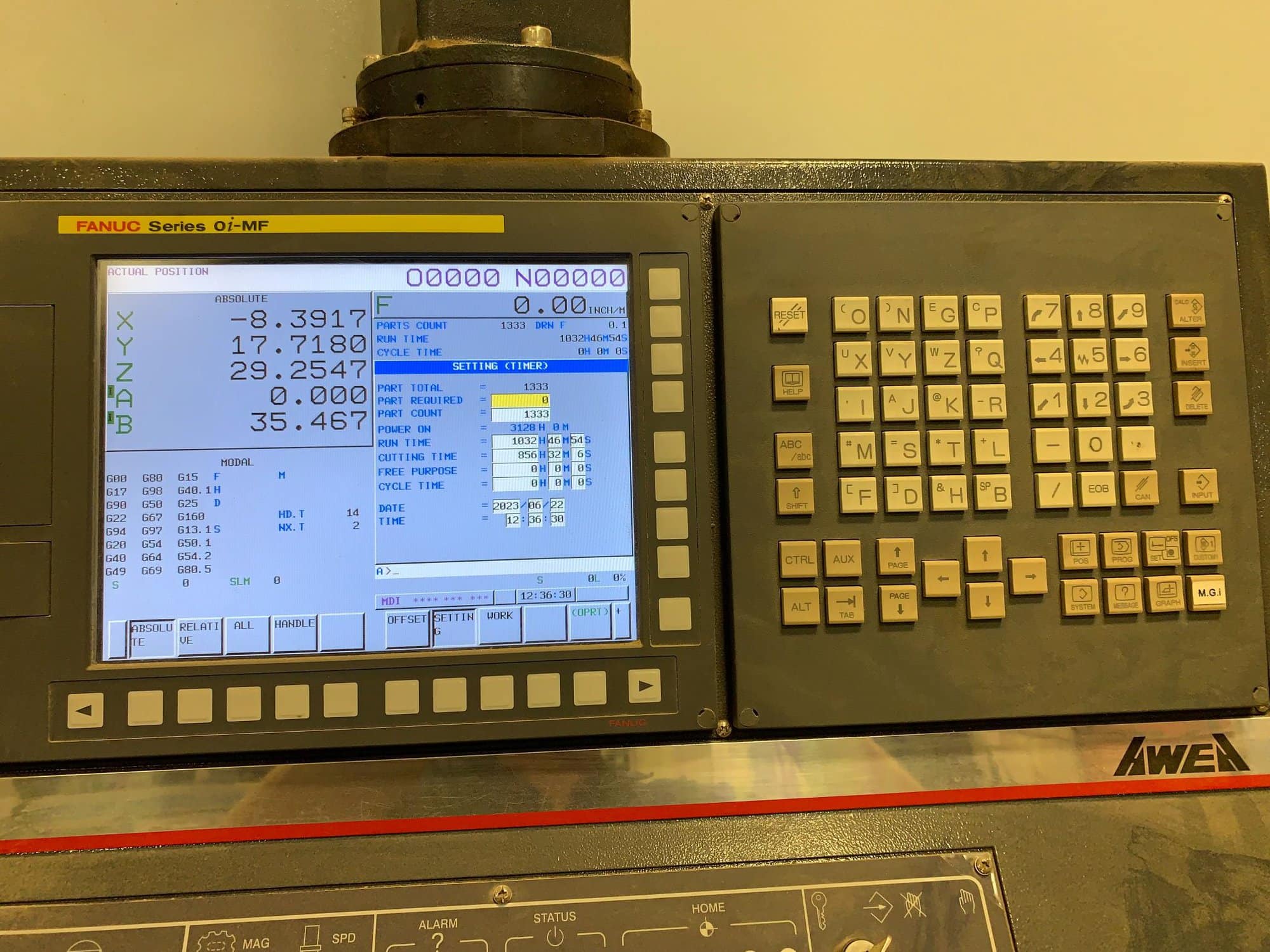

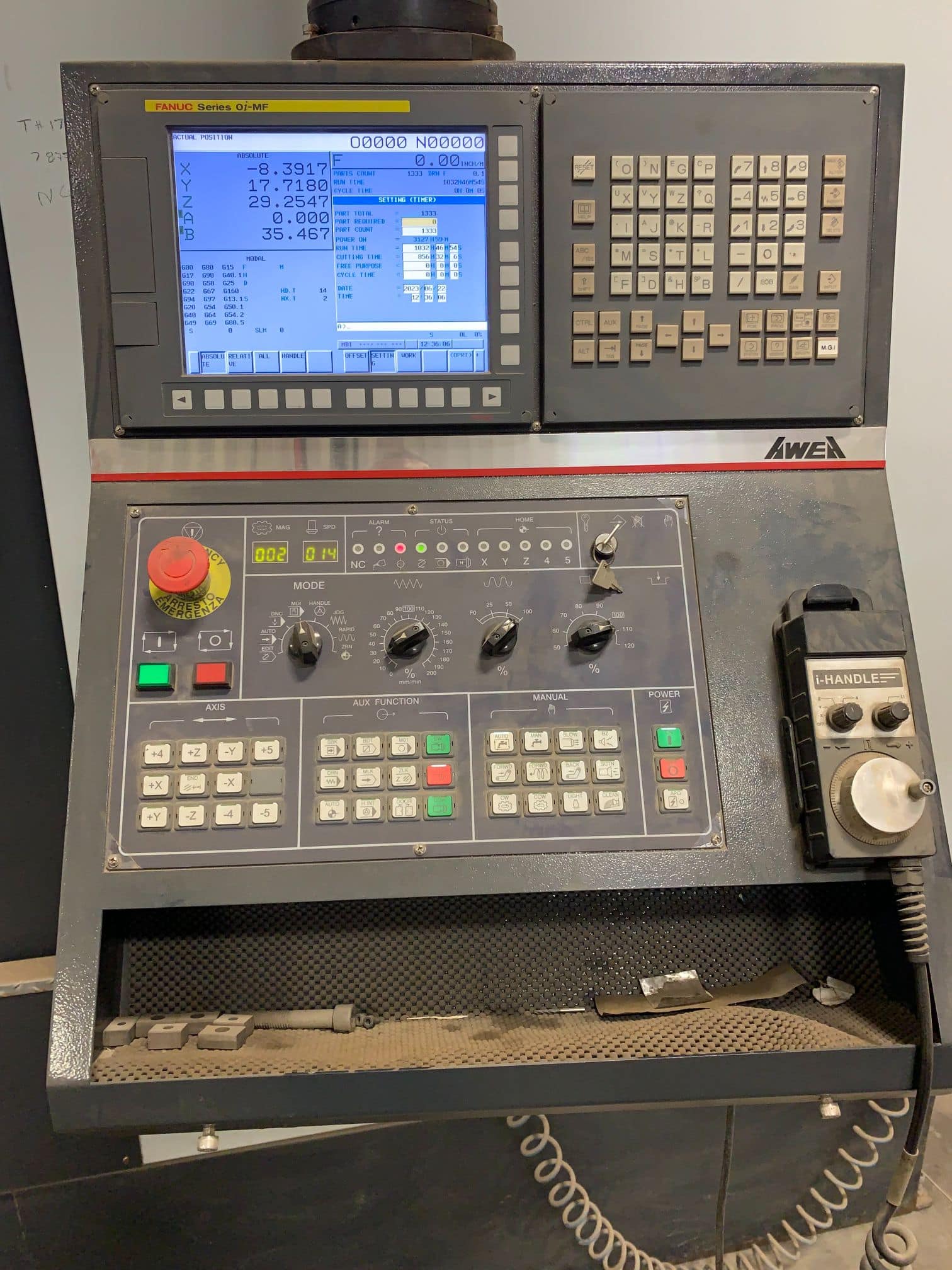

Fanuc Oi-mf With 10.4 Lcd Screen
Renishaw Probe Package Ots Tool Setter and Omp Part Probe

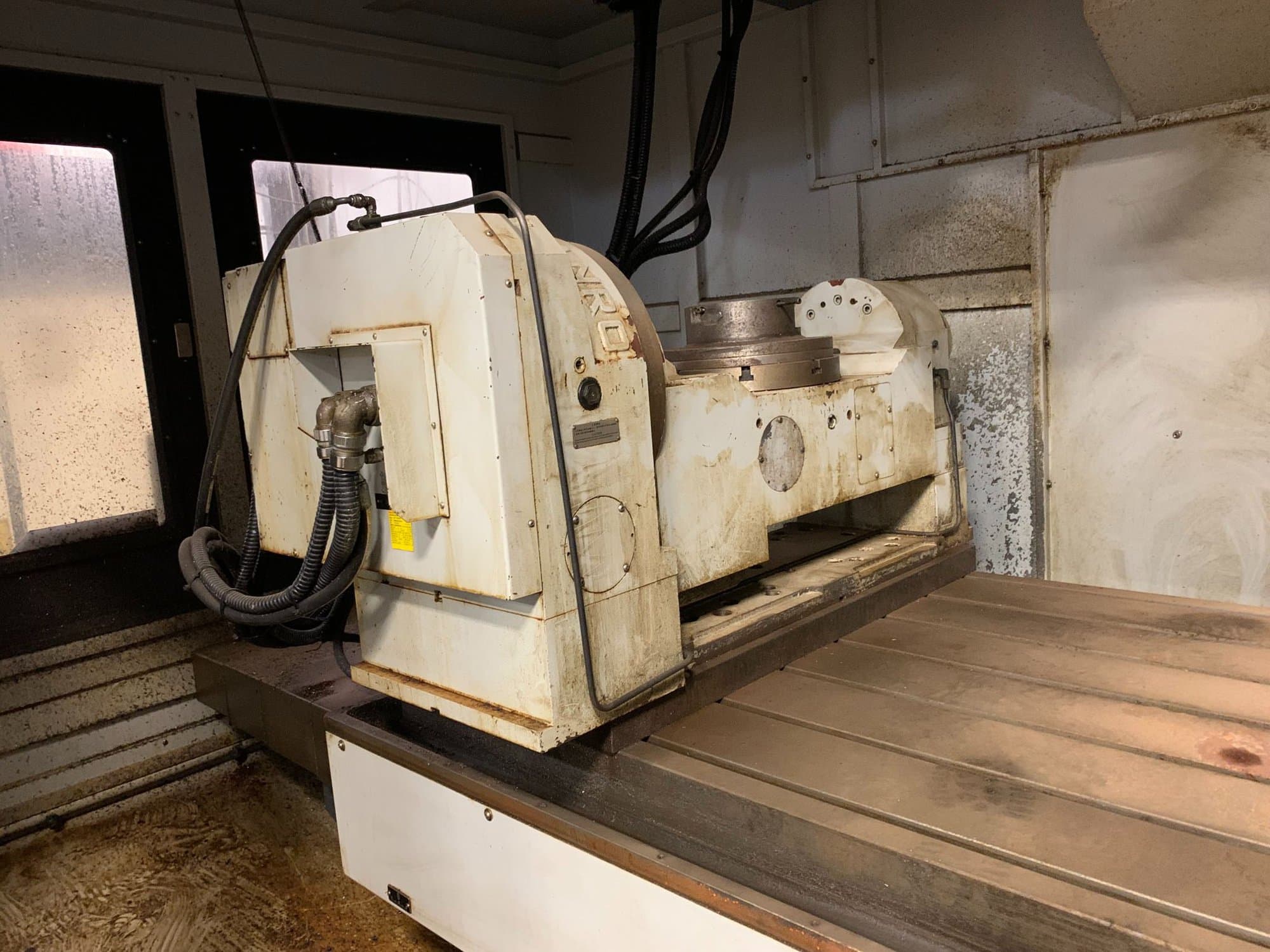

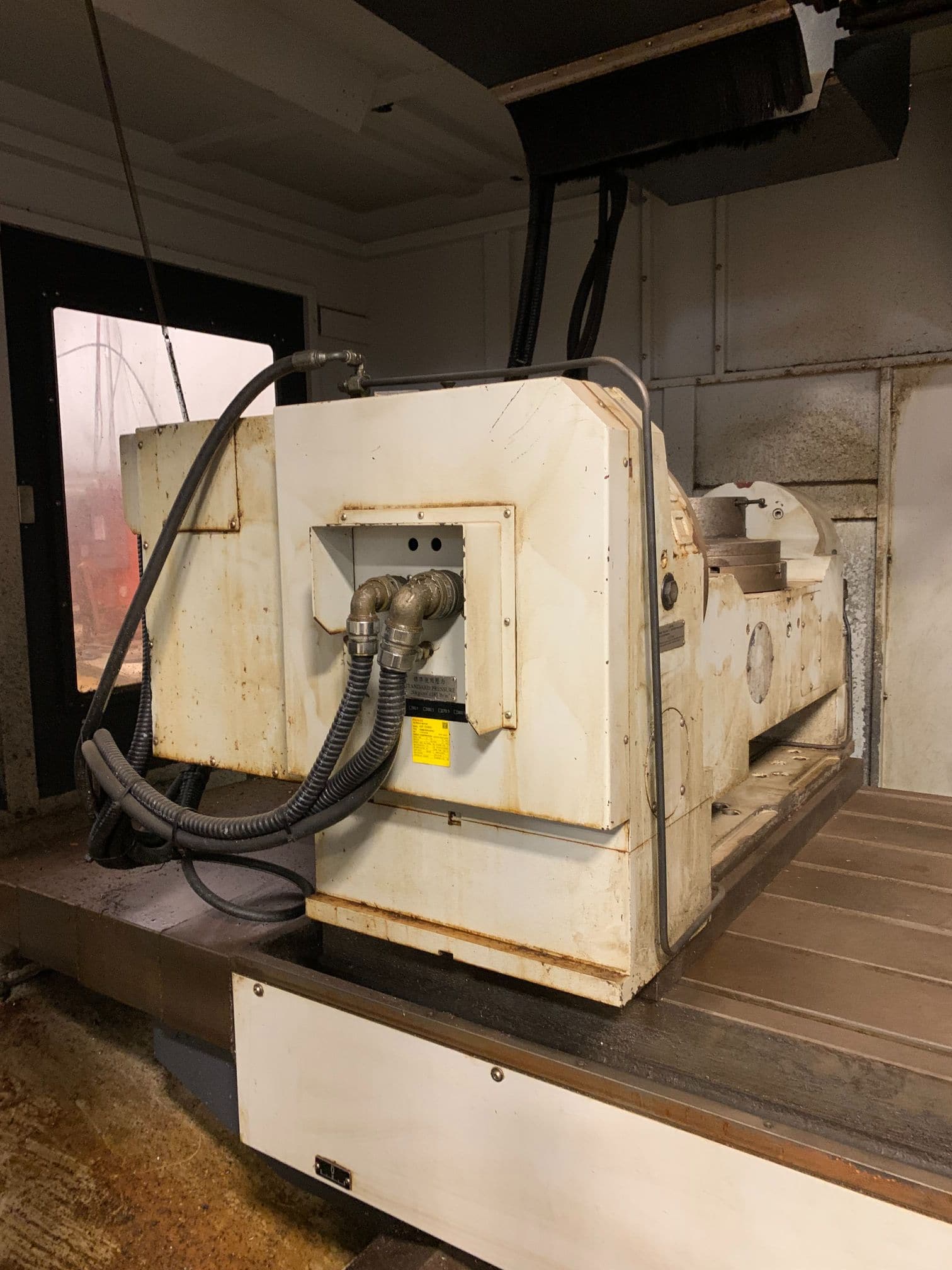

Ganro Tr320 Tilt Rotary Table
Rip Steady Rest Rip221 6”-21” Capacity

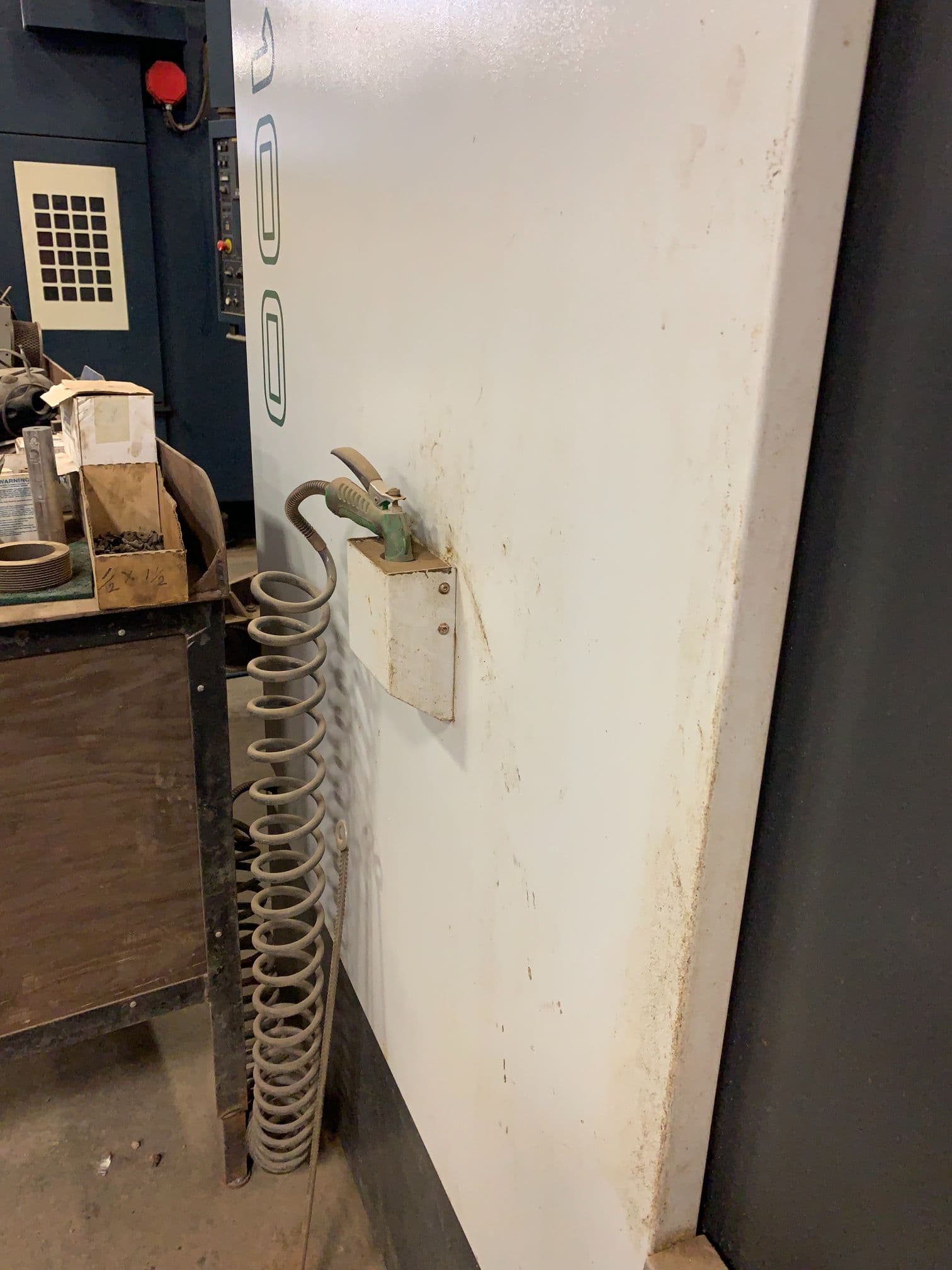

Advance Auto Lubrication System W/copper Piping -air Gun & Coolant Gun
Air Buffer Tank for Atc
Air Curtain Around Spindle
Coolant Nozzle Around Spindle
C3 Class Ball Screws With Pretension on All Axes – Fanuc Ac Servo Drive Motors

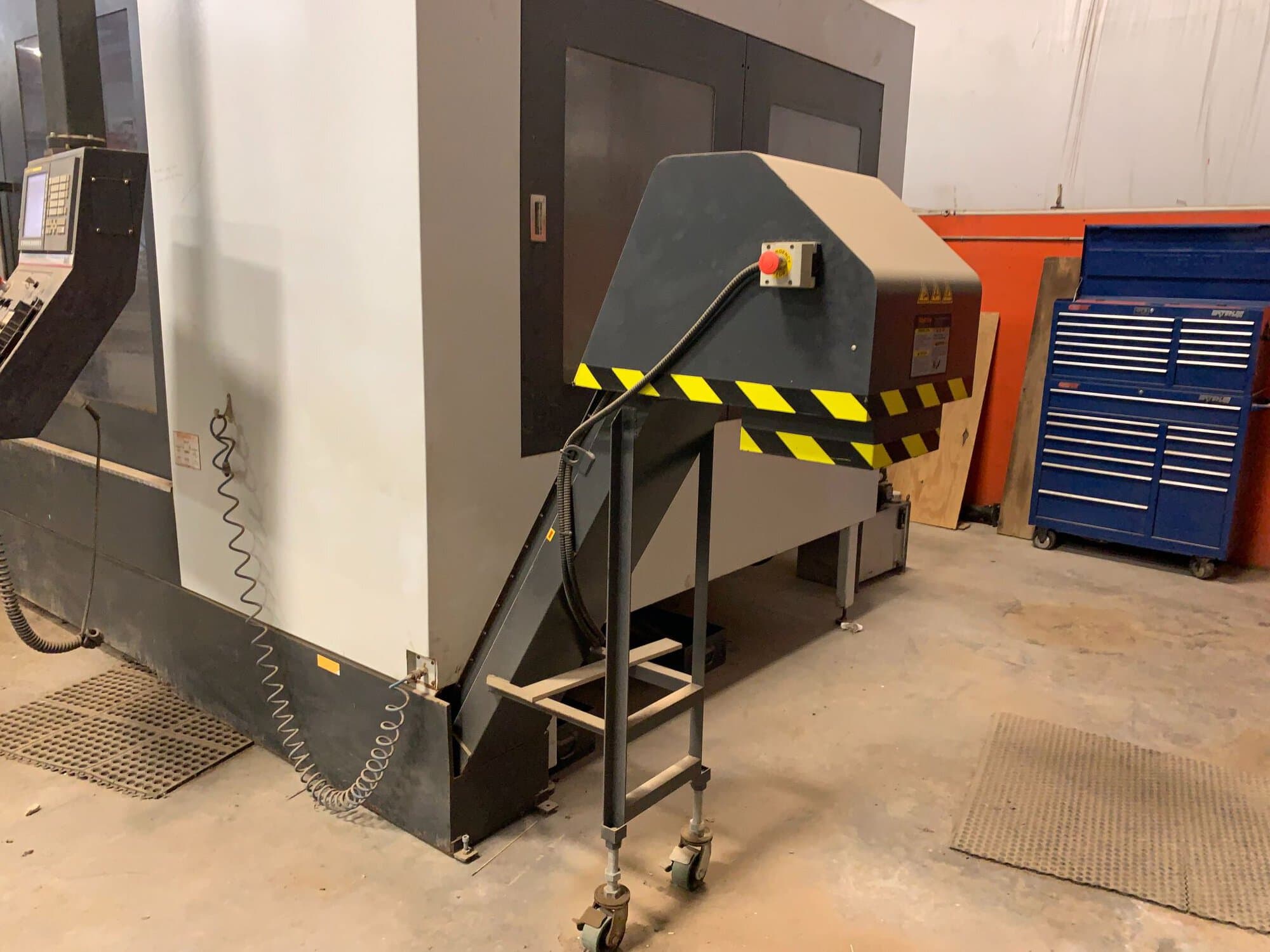

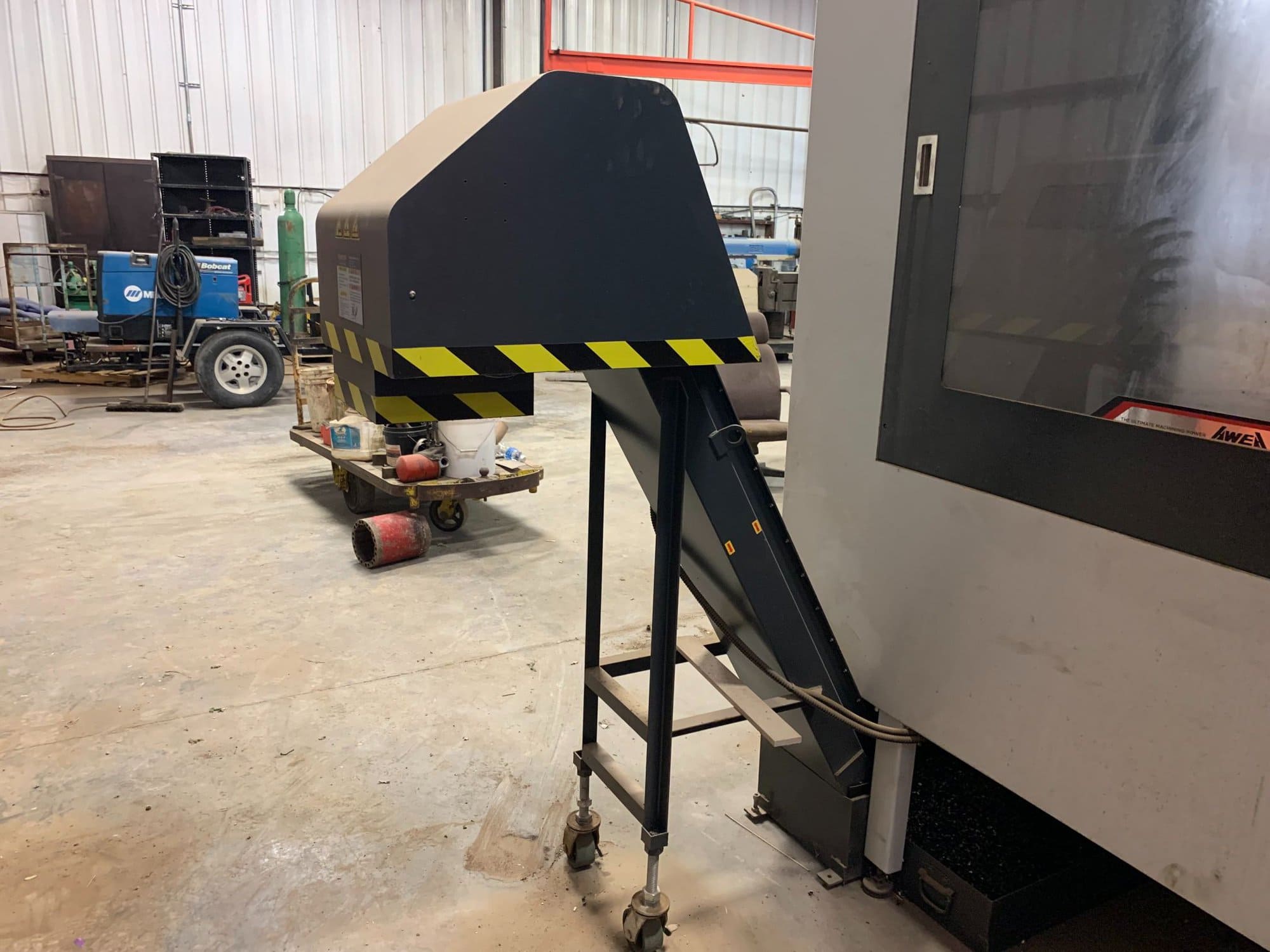

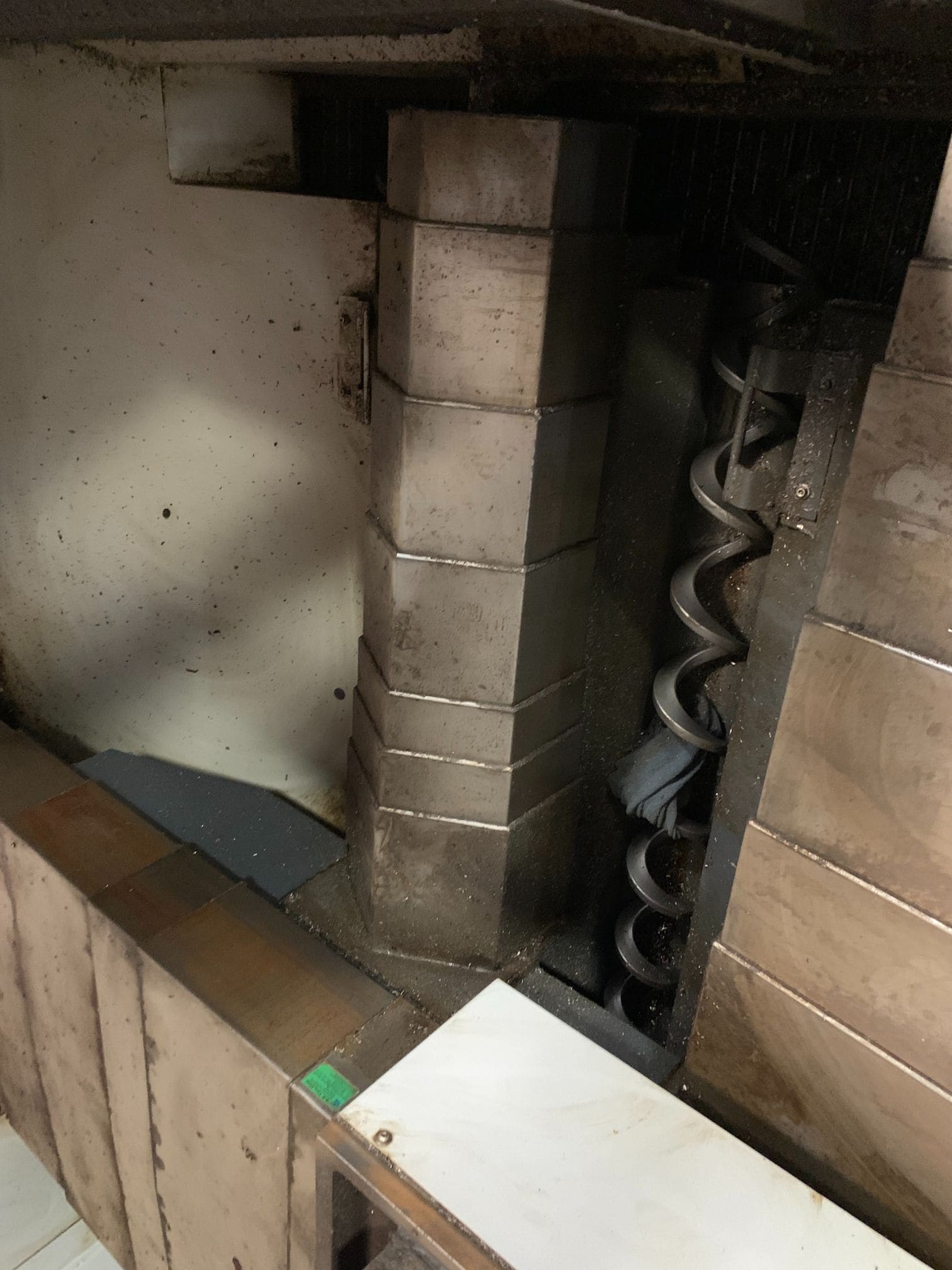

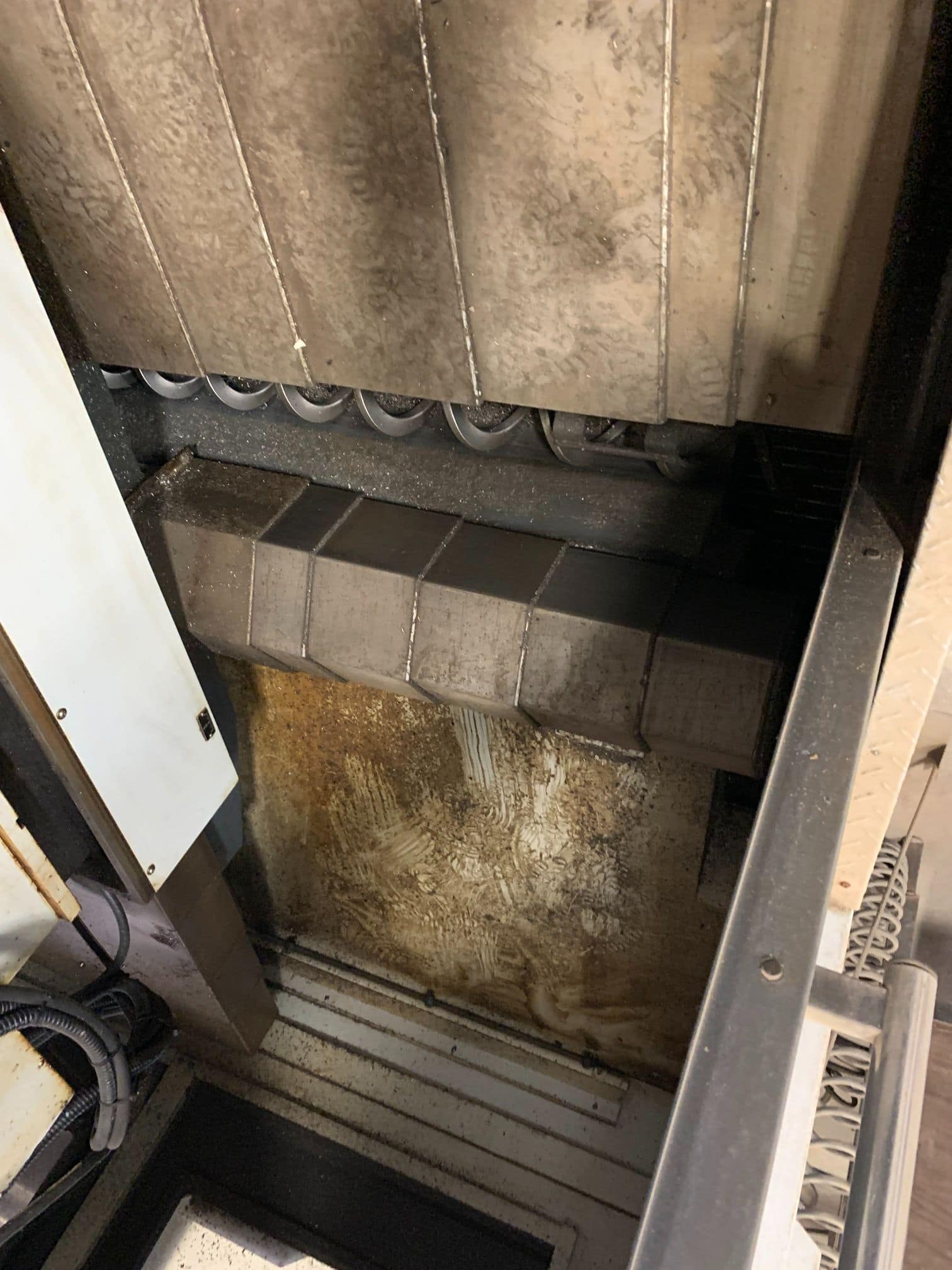

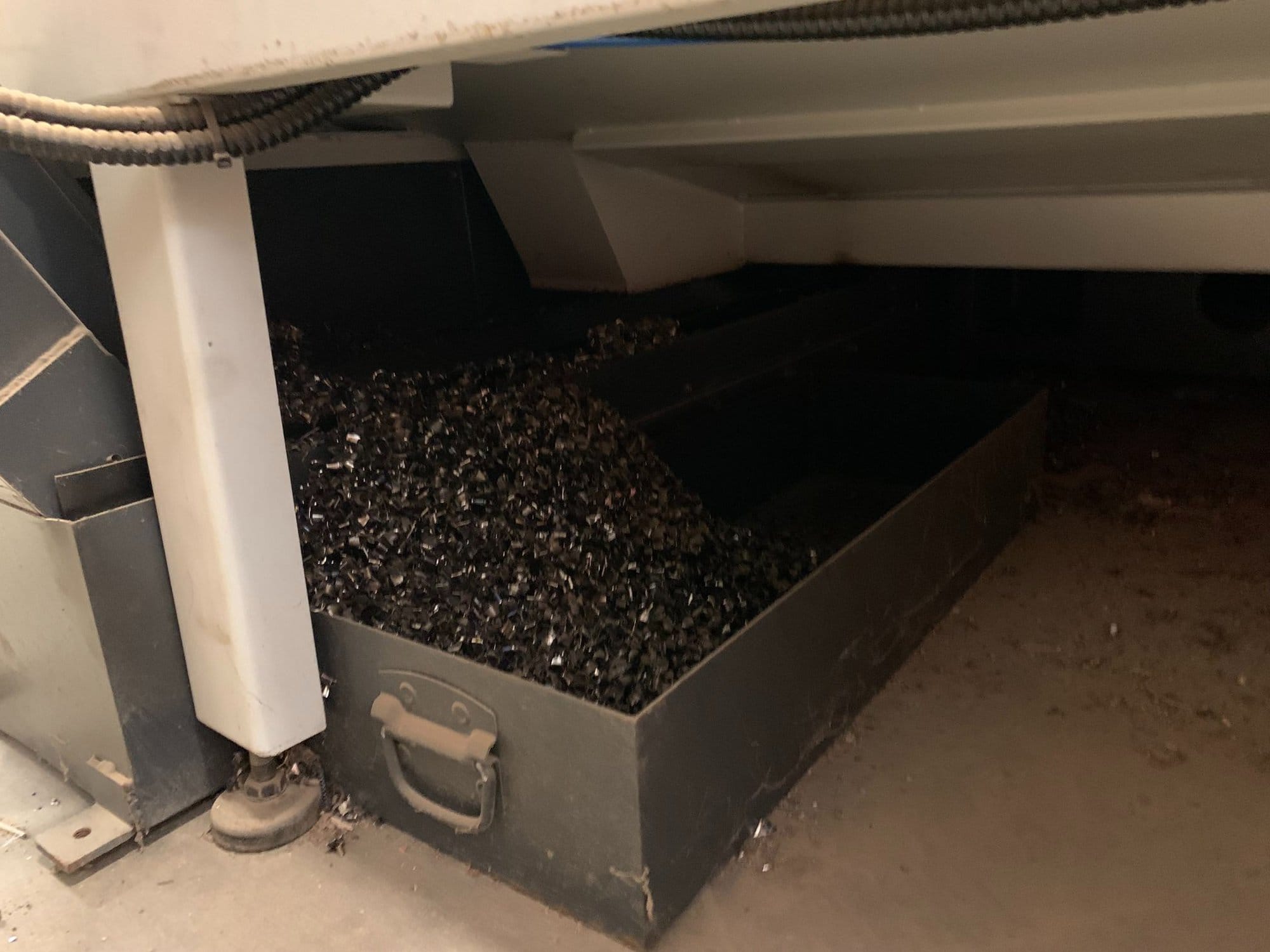

Coolant System With Grundfos 3/4hp Coolant Pump – Chip Conveyor / Dual Chipaugers
Chip Wash Down System

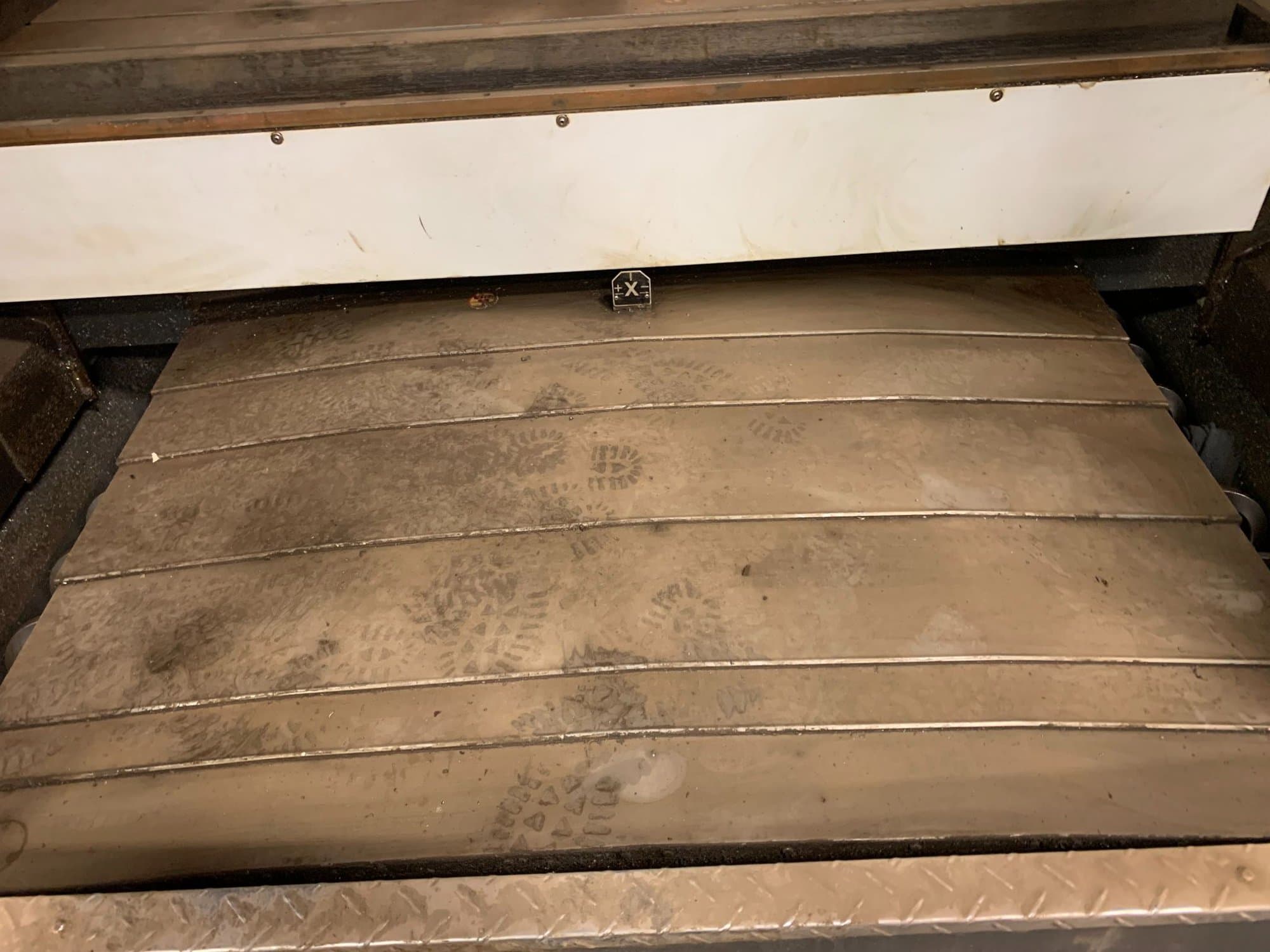

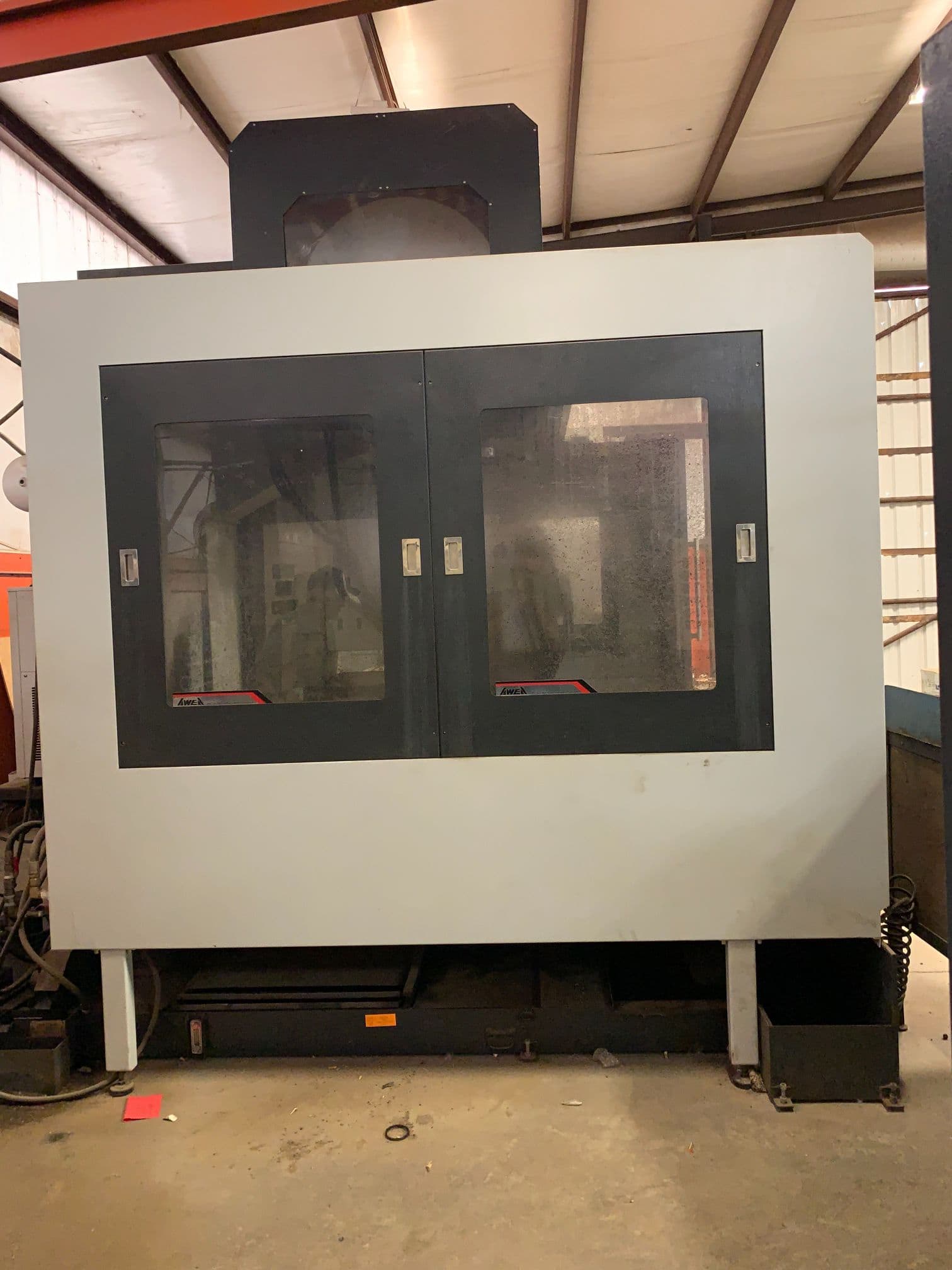

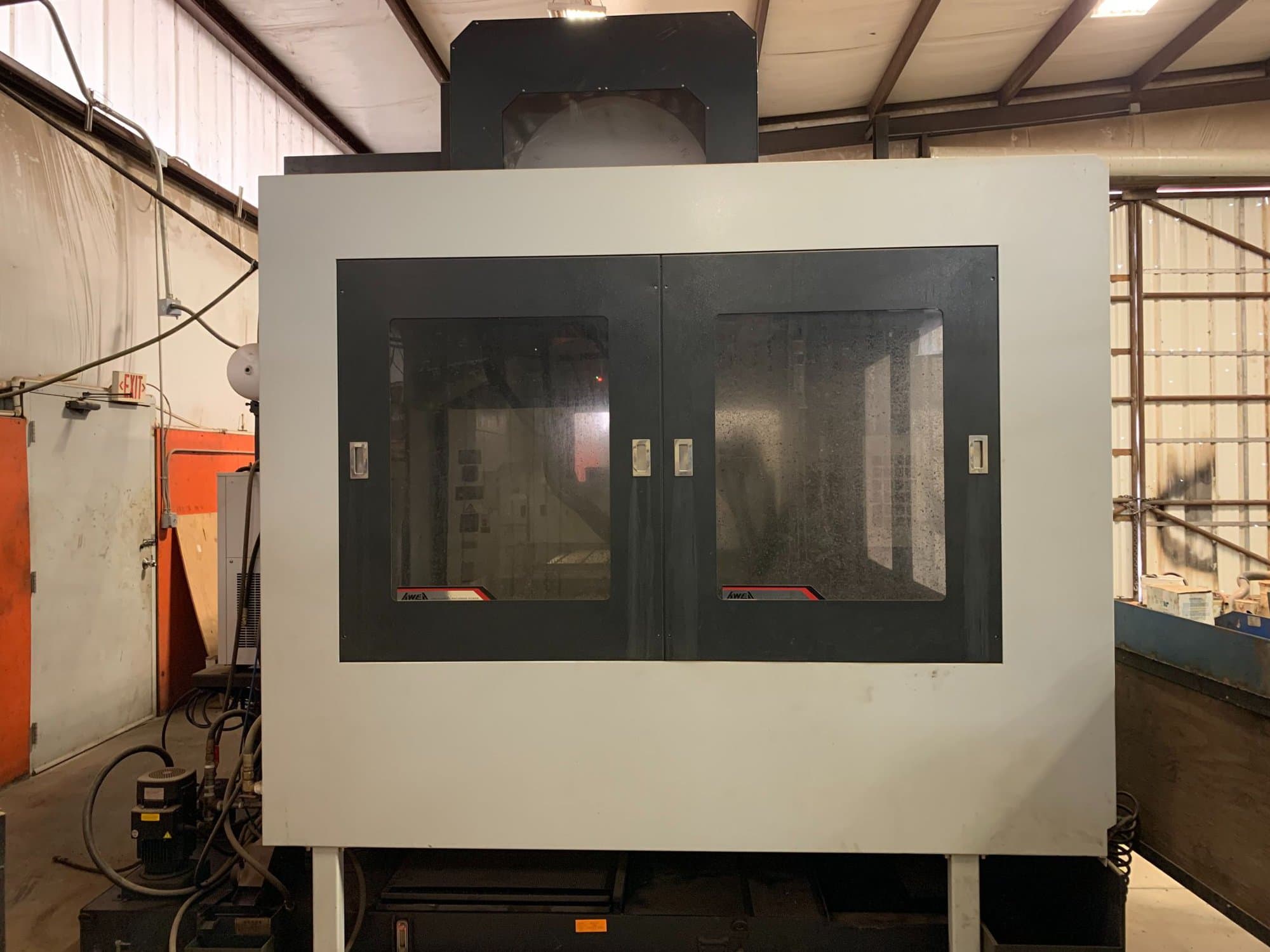

Enclosed Splash Covers

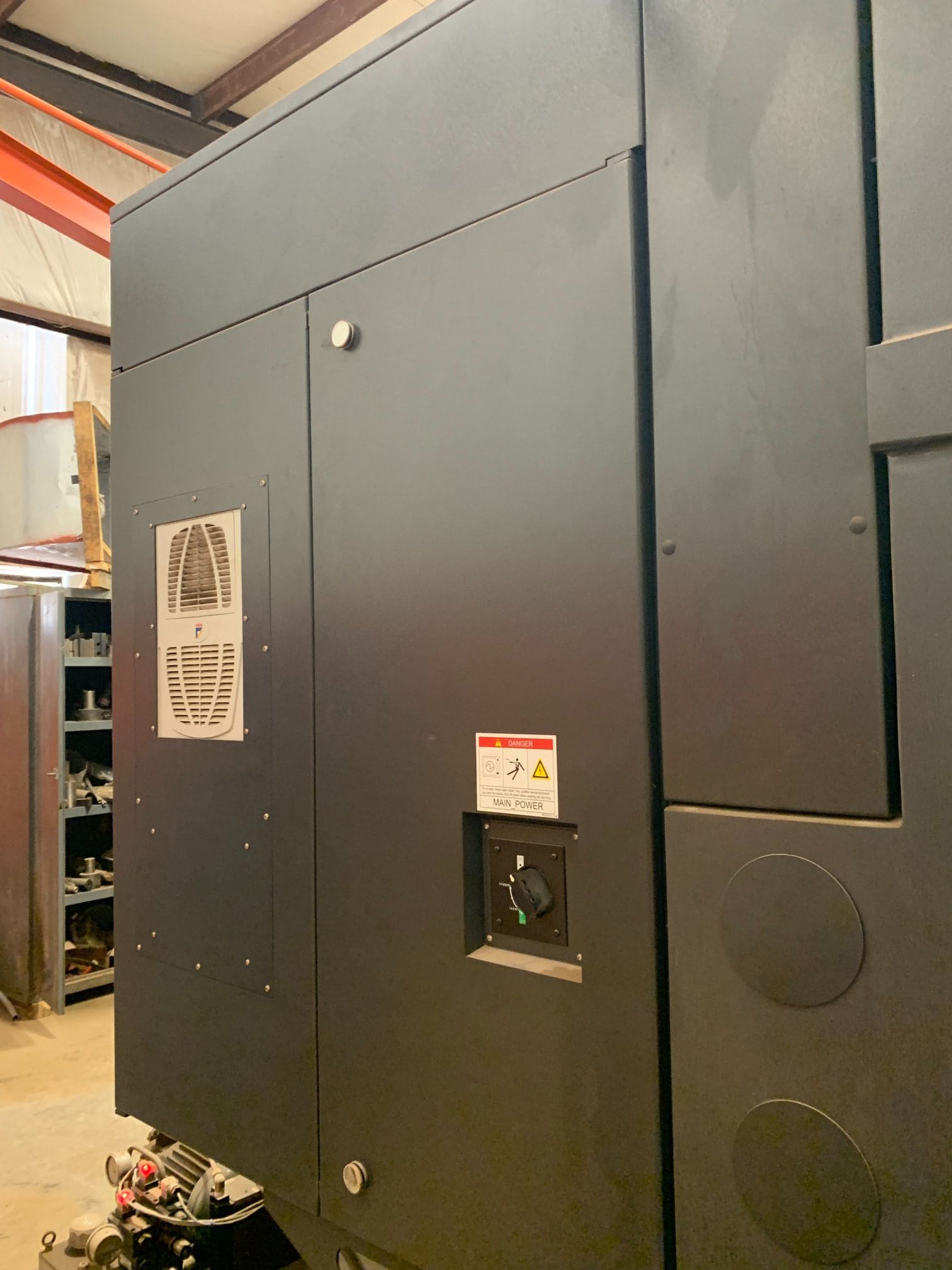

Electrical Cabinet Heat Exchanger – Leveling Kit

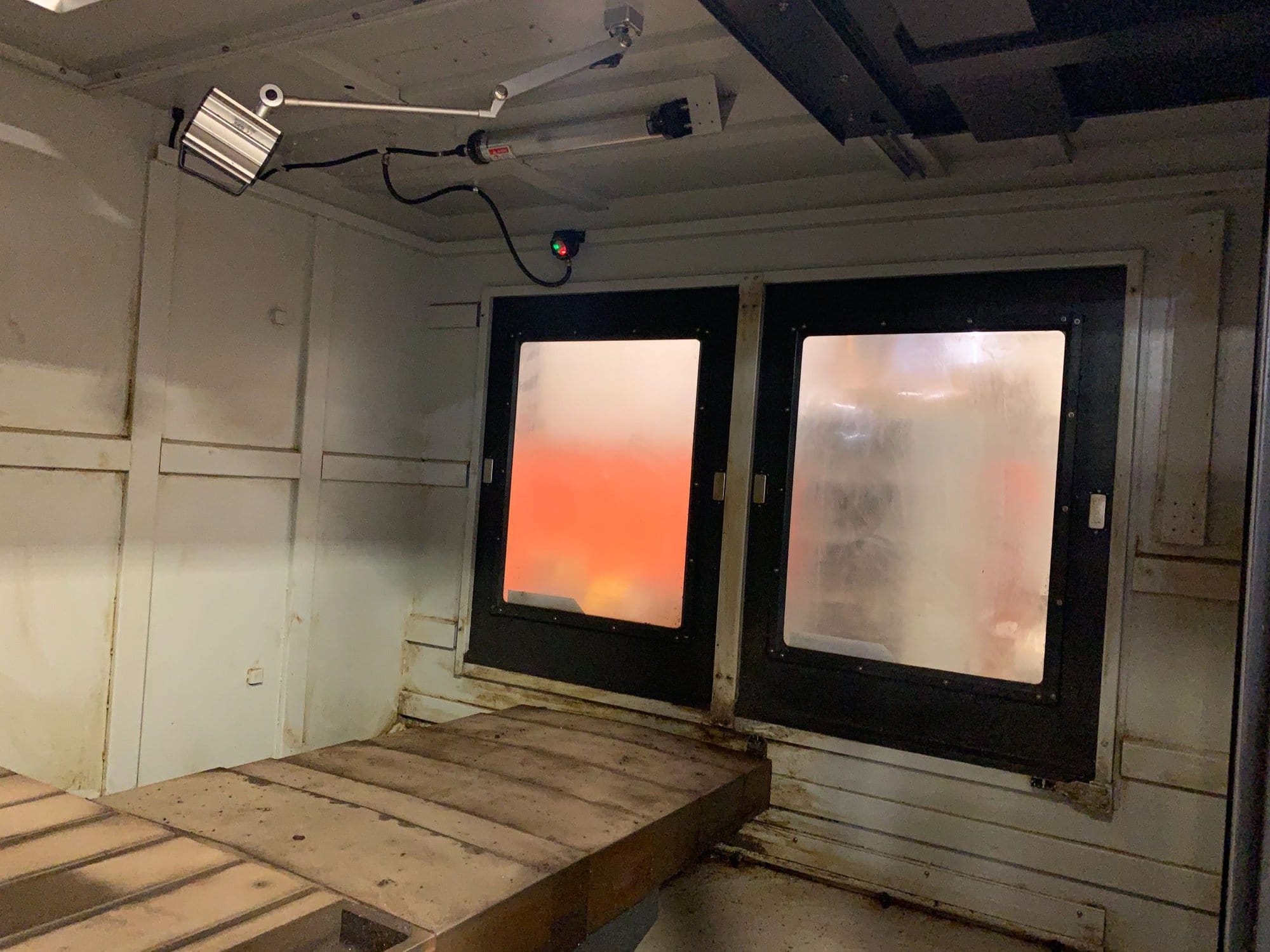

High Intensity Work Light (for Table)
Indoor Florescent Lamps (for Machining Area) – M Code Controlled Air Blower
Mcodeautomatic Power Off
Maintenance Tool Kit
Remote Mpg
Hardened and Ground Box Ways – Oil Skimmer

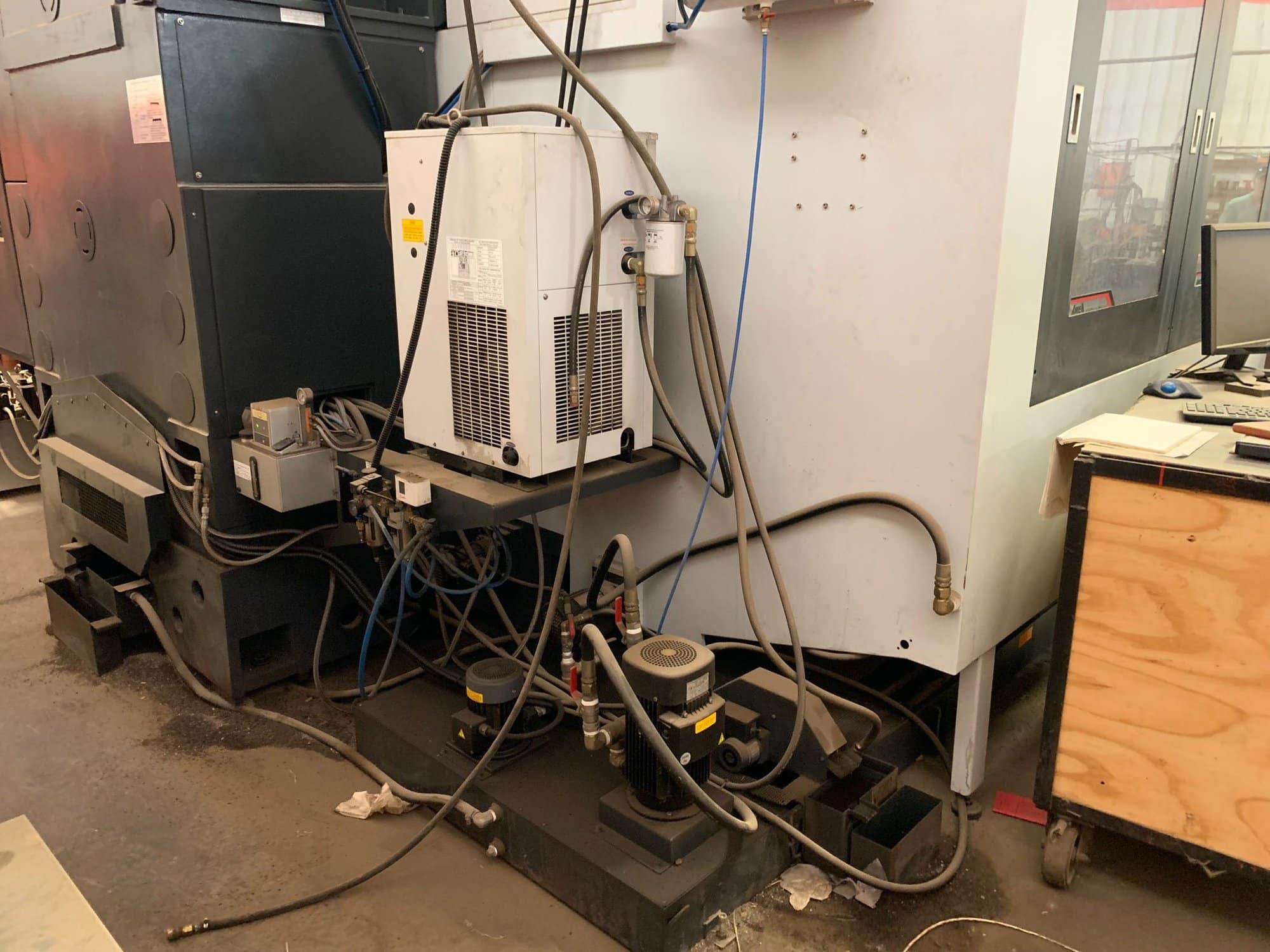

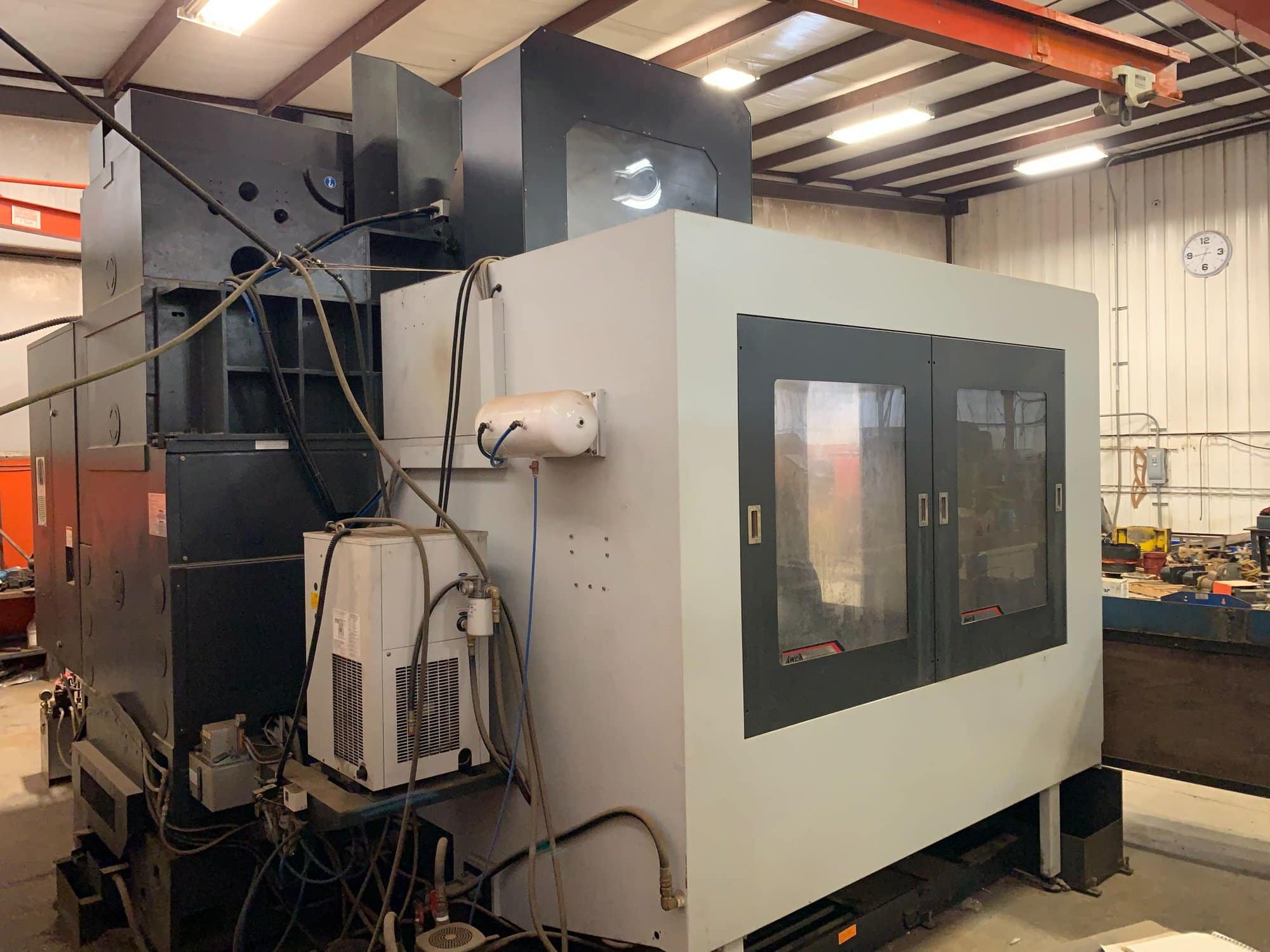

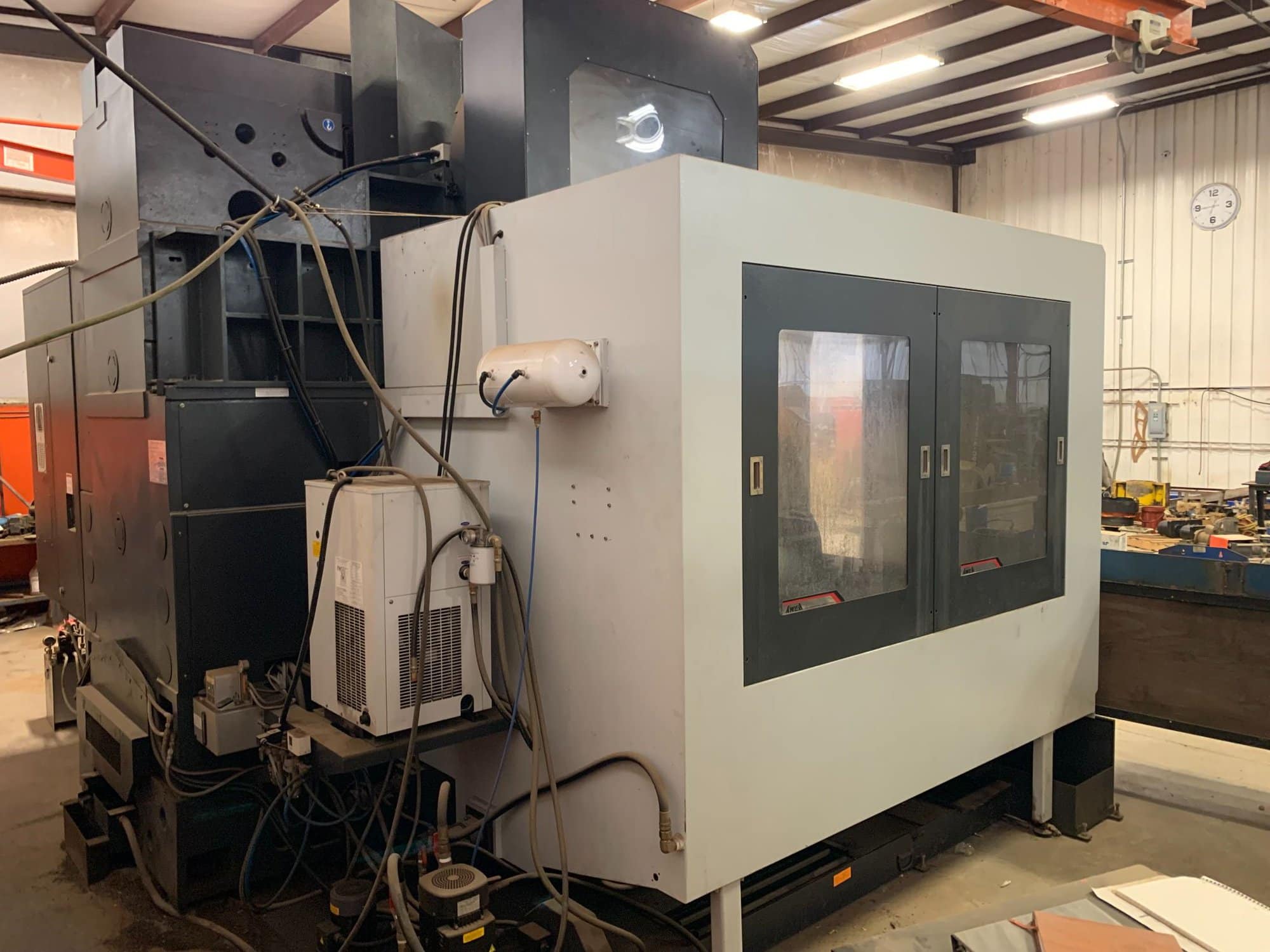

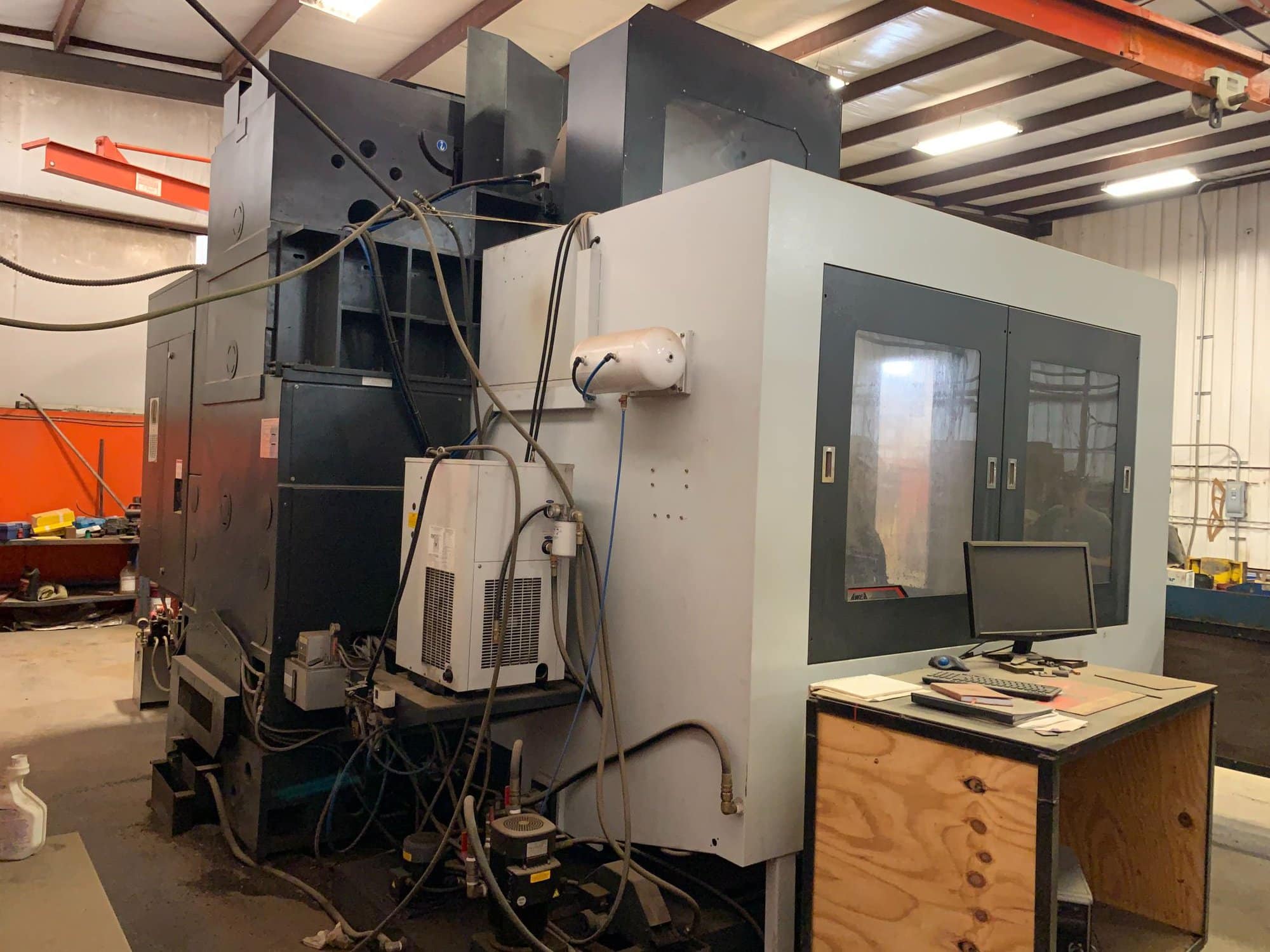

Oil Type Spindle Chiller
Operation & Maintenance Manuals – Door Interlock
4 Axis Interface (W/o Amp)
Big Plus Spindle
Cts Capable
Manual Guide I +iconsole
High Speed Hrv Function
Ata Flash Card Socket -spindle Synchronous Control – Position Switch
Part Program Storage 1280m (512k) -400 Registered Programs -background Editing
Part Program Editing – Custom Macro
Additional Customer Macro Variables #100-199, #500-999 – 4 8 Pairs Additional Work Piece Coordinate System
Linfar Interpolation
Circular Interpolation
Helical Interpolation
Ai Contour Control (Aicc) – 40 Blocks/ Sec Look Ahead
Cylindrical Interpolation
A-i Advanced Preview Control – Polar Coordinate Command
High Speed Skip
Threading. Synchronous Cutting
Tool Length Compensation -400 Pairs Tool Offset
Programmable Mirror Image -automatic Corner Override – Tapping Mode
Cutting Mode
Coordinate System Rotation – Canned Cycles for Drilling
Rigid Tapping
Auto Power Off
Software for Embedded Ethernet -rs-232 Interface
Memory Card Input/output – Tool Life Management
