Twin 10 HP Powerex Rotary Vane Medical Air Compressor System w/ Baldor Super-E Motors
$16,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Equipment Overview

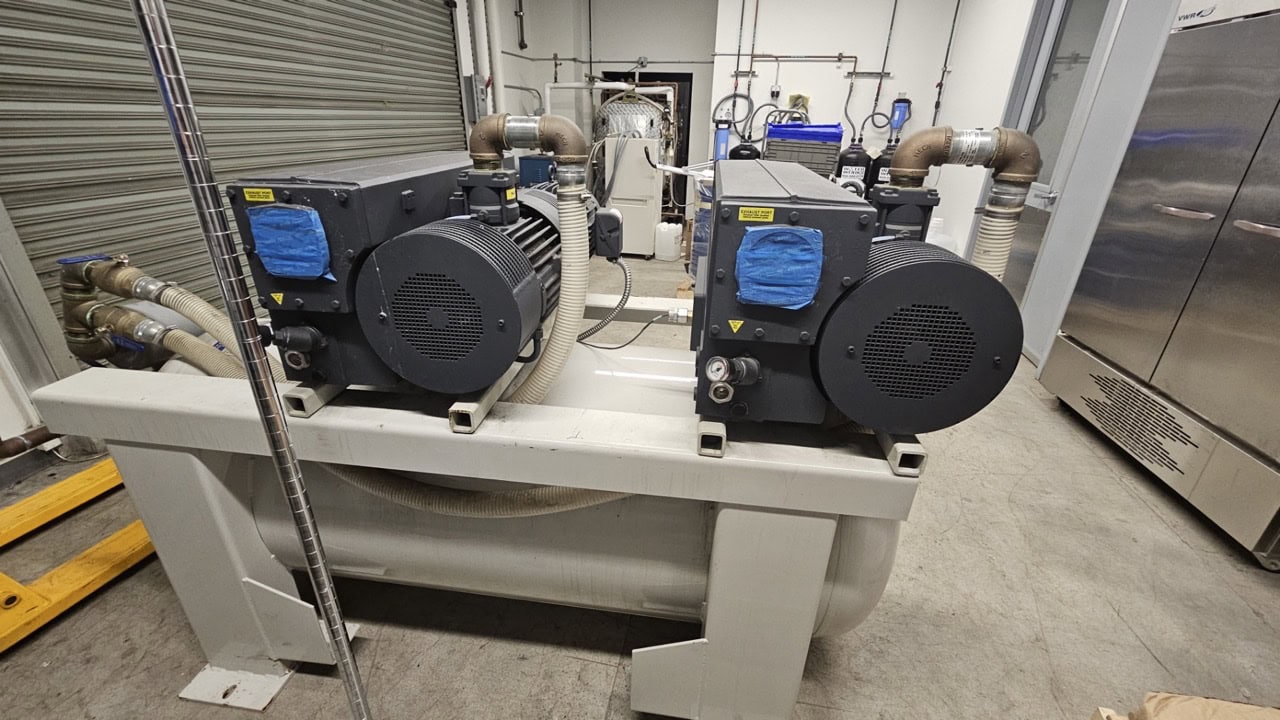

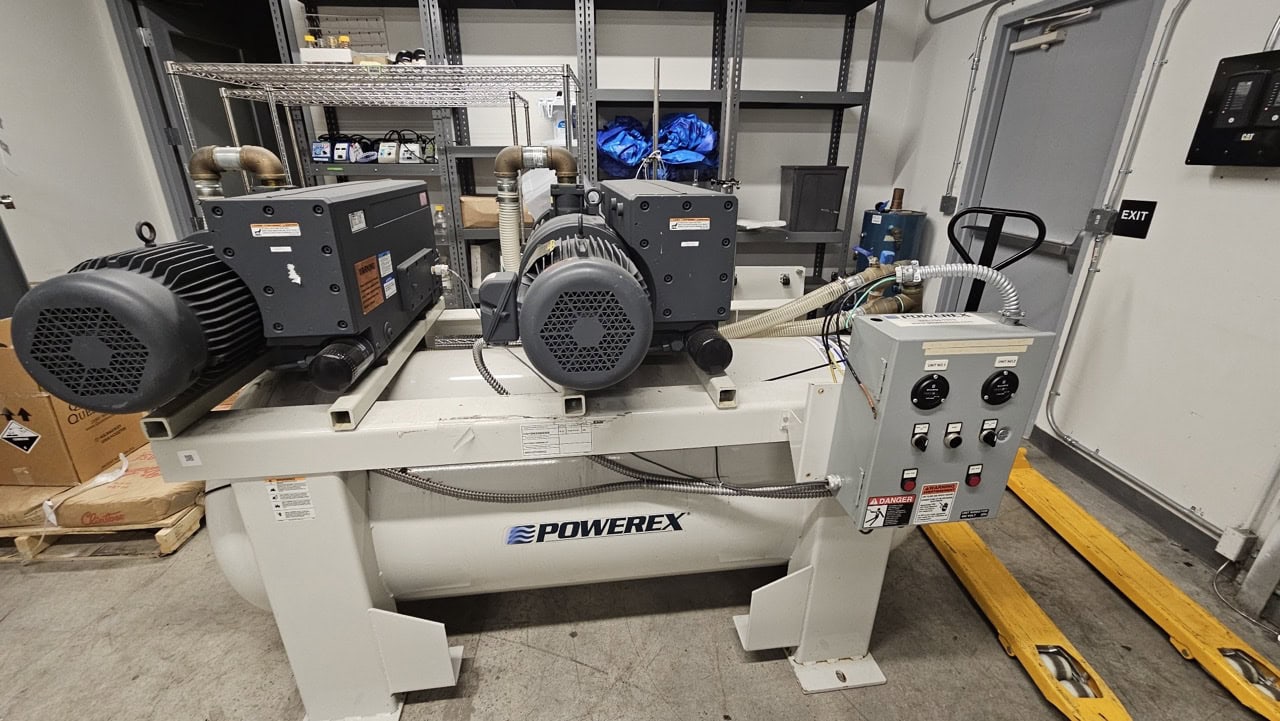

This Powerex medical-grade air compressor system features a duplex setup with two 10 HP Baldor Super-E motors and rotary vane compressor heads mounted on a horizontal receiver tank. Designed for continuous, clean, oil-free air delivery, this setup is ideal for healthcare or laboratory environments. It includes a control panel and integrated safety systems.
Key Features and Specifications
Motors:
– Brand: Baldor Reliance Super-E
– Model: 06249I8103
– HP: 10 HP each (Total: 20 HP)
– RPM: 1760
– Voltage: 230/460 V
– Amps: 26.2 / 13.1 A
– Efficiency: 91.7%
– Frame: 215TC
– Enclosure: TEFC
– NEMA Design: A
– Class F insulation, IP54 protection
Compressor System:
– Configuration: Duplex (two pumps)

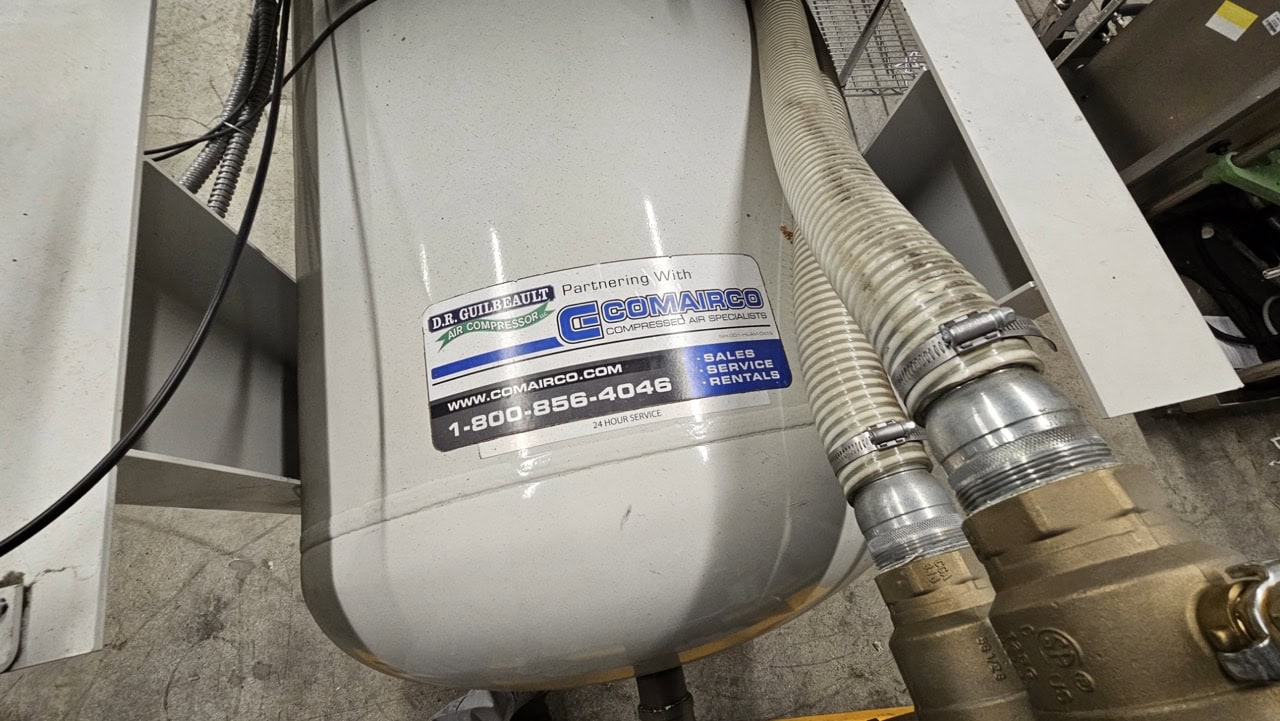

– Tank Type: Horizontal air receiver
– Tank Size: Estimated 120–240 gallons (exact size not labeled)
– Pump Type: Oil-less rotary vane
– Brand: Powerex
– Panel Drawing: PVI-19T
– Panel Voltage: 460V, 3-phase
– Largest Motor FLA: 12.8 A
– Total FLA: 27.6 A
Control Panel:
– Type 1 enclosure
– Displays: Dual unit gauges
– Power supply: 3-phase, 460V
– Safety labels present
– Manual toggle switches
