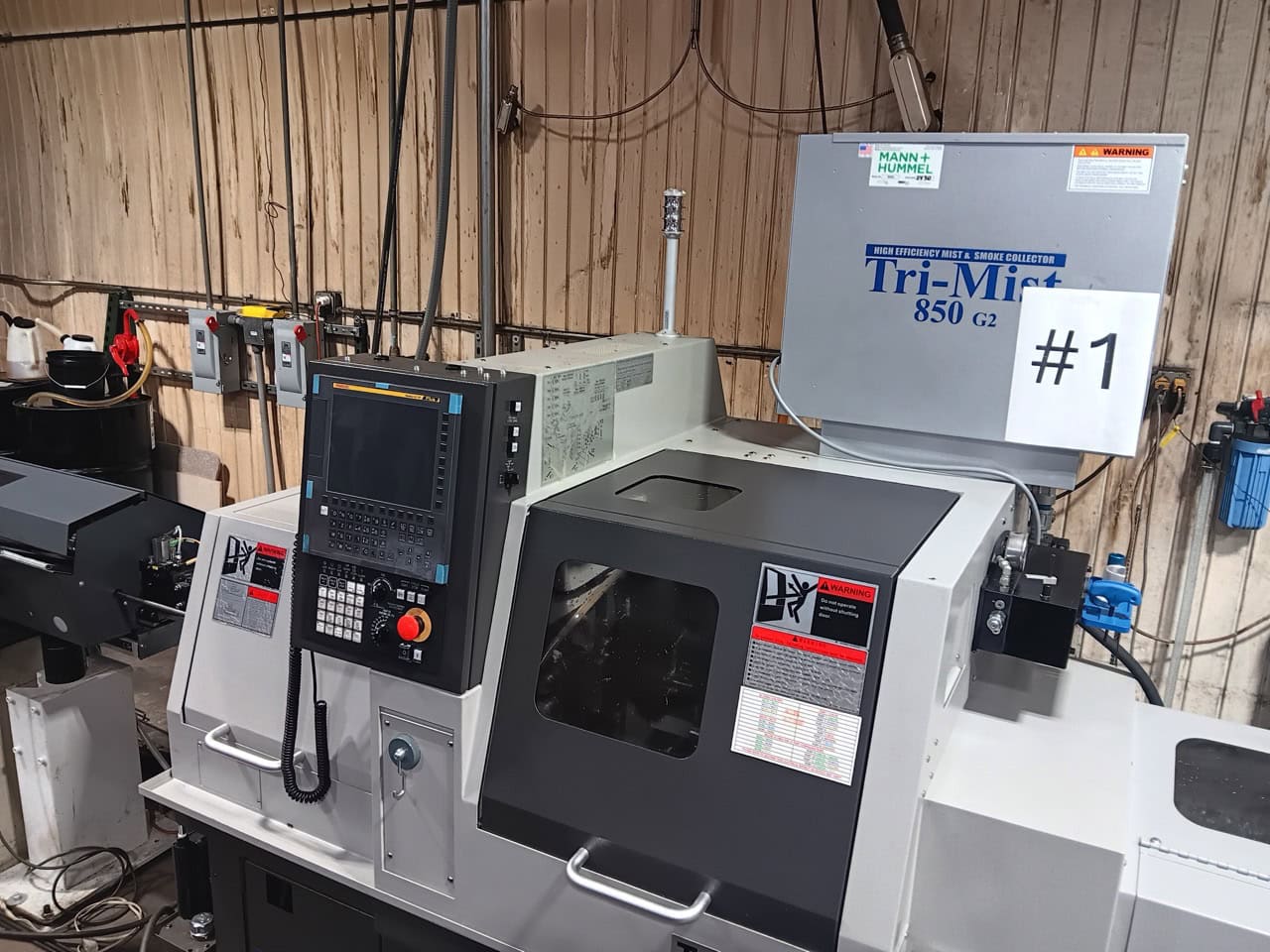

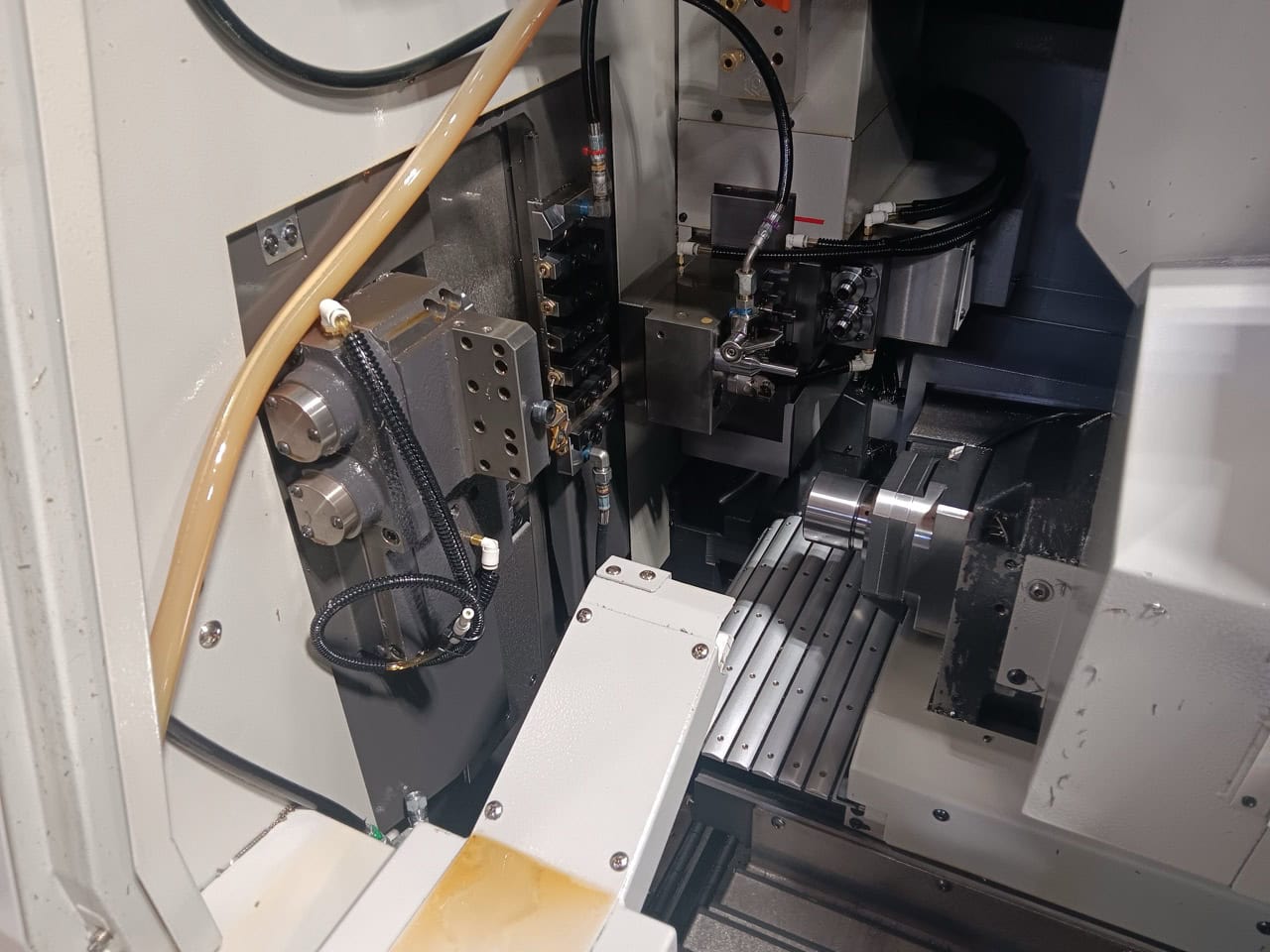

Tsugami B206-V CNC Swiss Lathe, 2024 – Bar Feeder, Mist Collection, Chip Conveyor
$239,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Maximum Machining Diameter: 0.787″ (20mm)
Maximum Headstock Stroke (Guide Bushing): 6.69″ (170mm)
Maximum Headstock Stroke (Chucker): 1.771″ (45mm)
Maximum Main Spindle Speed: 10,000 rpm
Live Tool Spindle Speed: 8,000 rpm
Sub Spindle Maximum Machining Diameter: 0.787″ (20mm)
Sub Spindle Front Ejection Max Length: 3.15″ (80mm)
Sub Spindle Speed: 12,000 rpm
Max Tool Spindle Slotting Cutter Diameter: 1.1811″ (30mm)
Max Rapid Traverse Rate: 36 M/min
Input Power: 11.0 KVA
Compressed Air Requirements: 60 psi
Coolant Tank Capacity: 180L (47 Gal.)
Main Spindle: 7.5 hp (3.7/5.5 kW)
Sub Spindle: 5 hp (2.2/3.7 kW)
Equipped With:
Fanuc 0i-TF Plus Control
Tri Mist 850 Mist Collection System
Henning Pureflow Chip Conveyor
MP System 1,000 PSI Pressure Coolant System
12′ Magazine Bar Feeder
Stack 3 Red/Yellow/Green Patrol Light System
