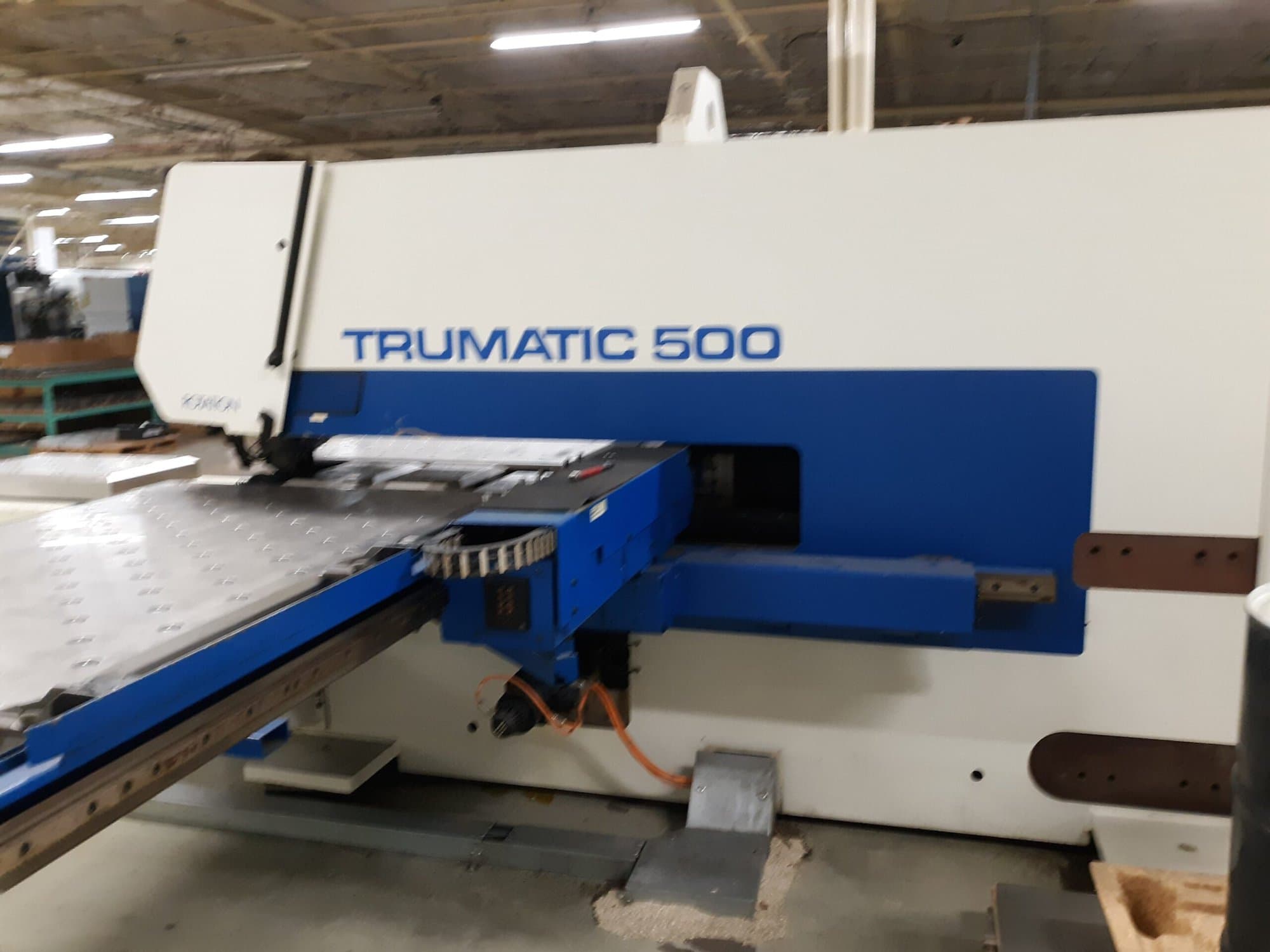

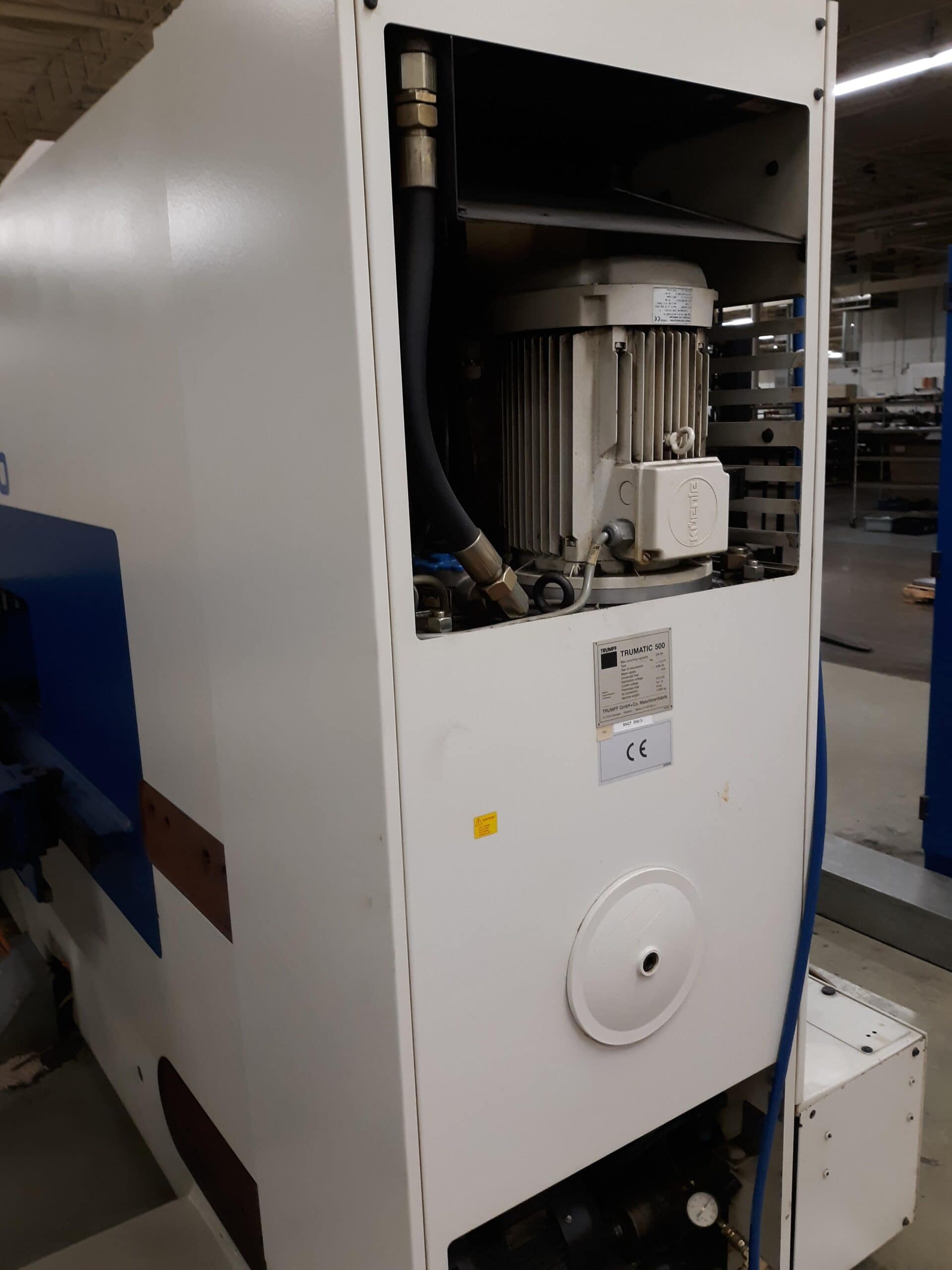

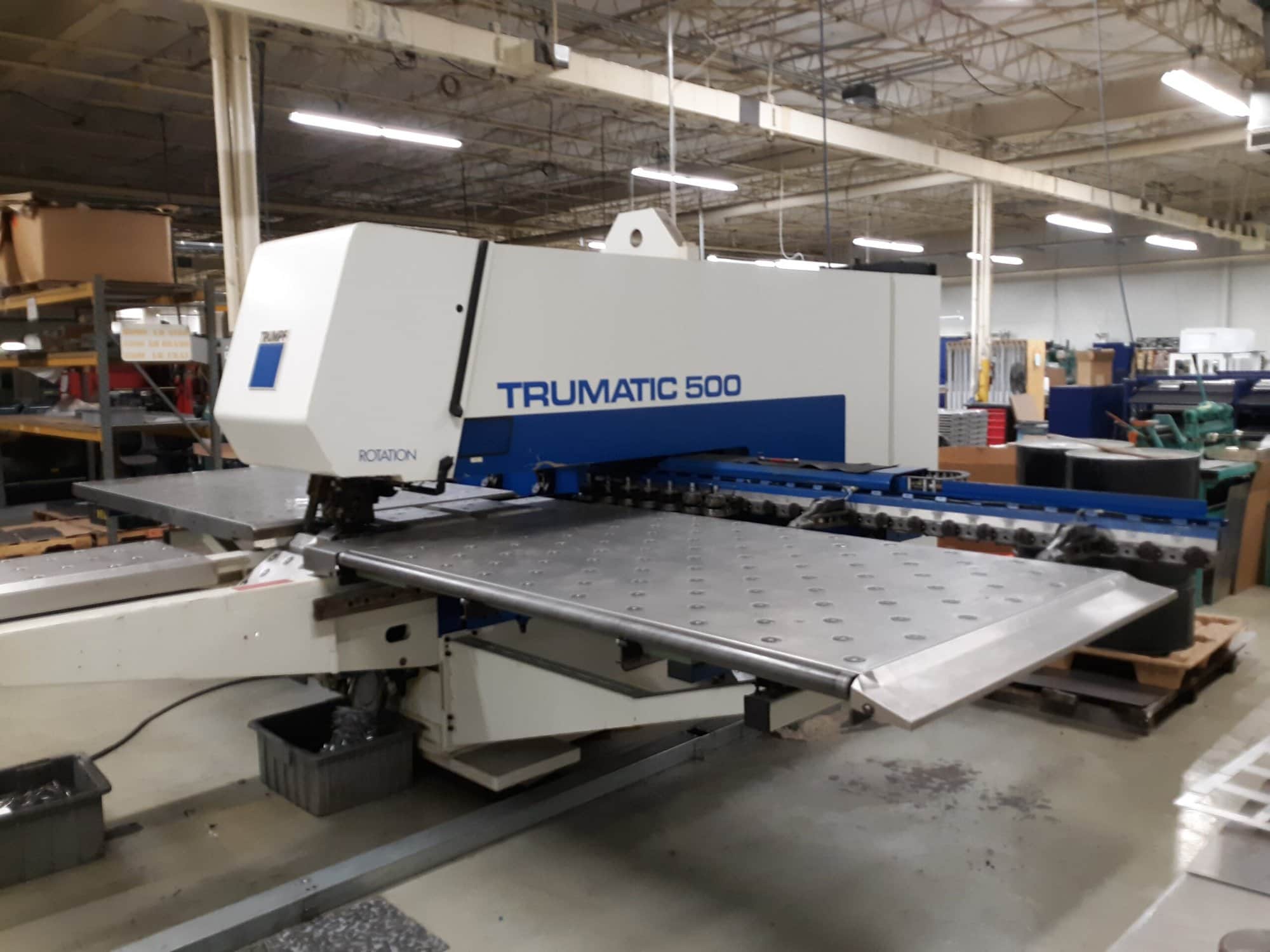

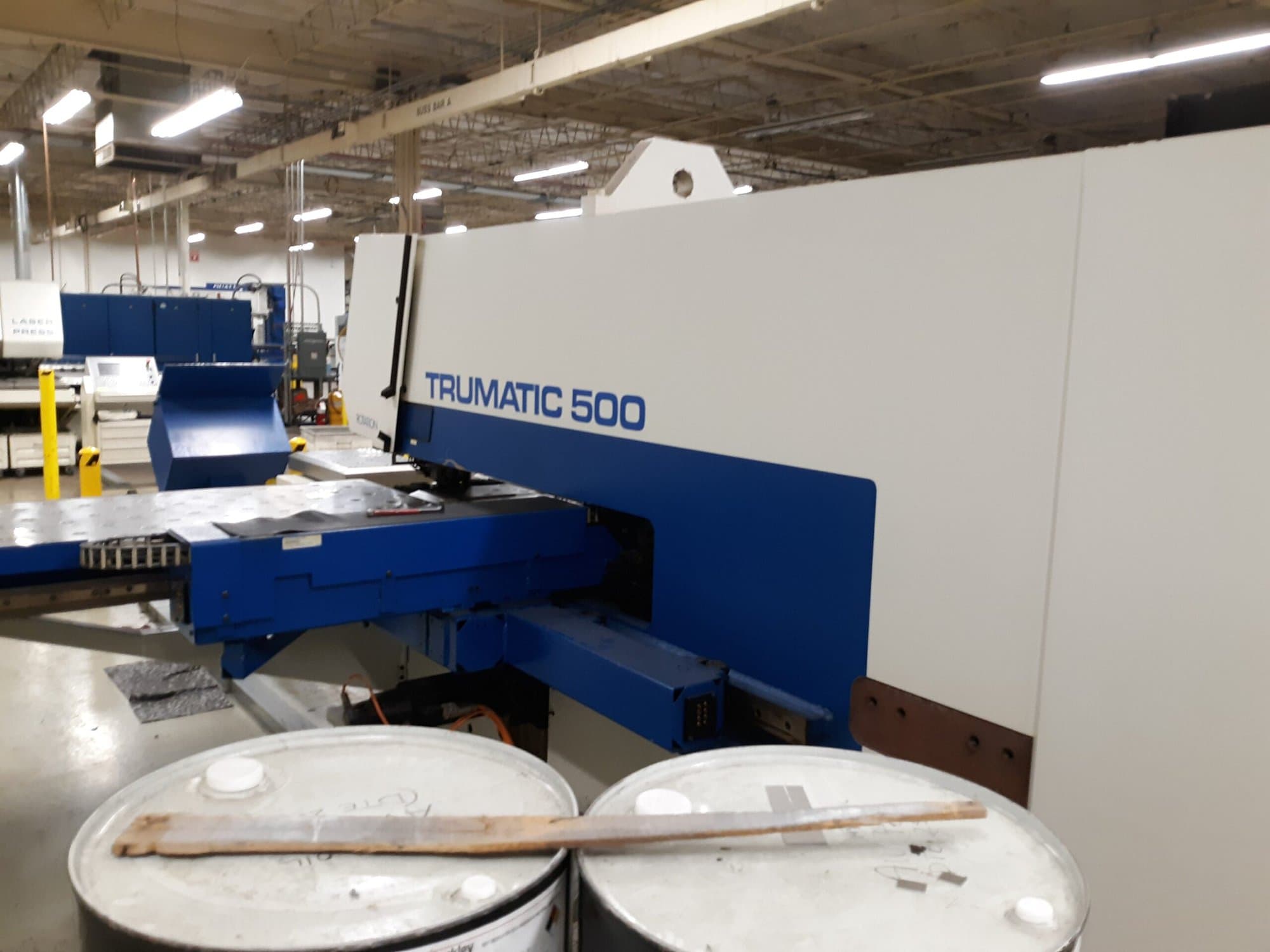

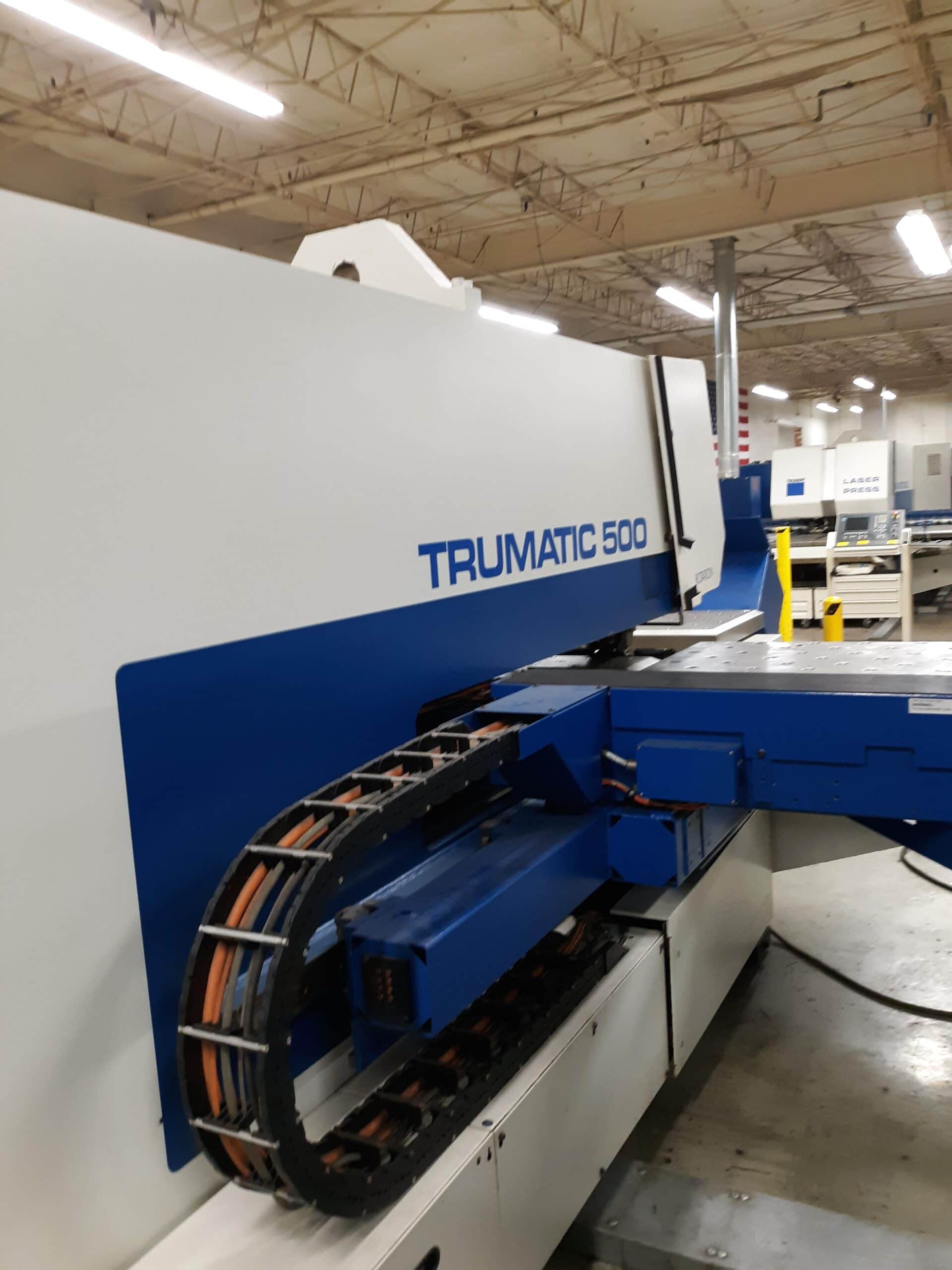

Trumpf Trumatic 500 Turret Punch, 2000
$29,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Punching Capacity: 22 Tons
Maximum Sheet Thickness: 0.31″
X-Axis Travel: 100″
Y-Axis Travel: 50″
Maximum Workpiece Weight: 507 lbs.
Maximum Punch Diameter: 3″
Maximum Pos. Spd, X Axis: 3600 IPM
Maximum Pos. Spd, Y Axis: 2400 IPM
Weight: 25,000 LBS
Equipped With:
10-15 Tool Holders
