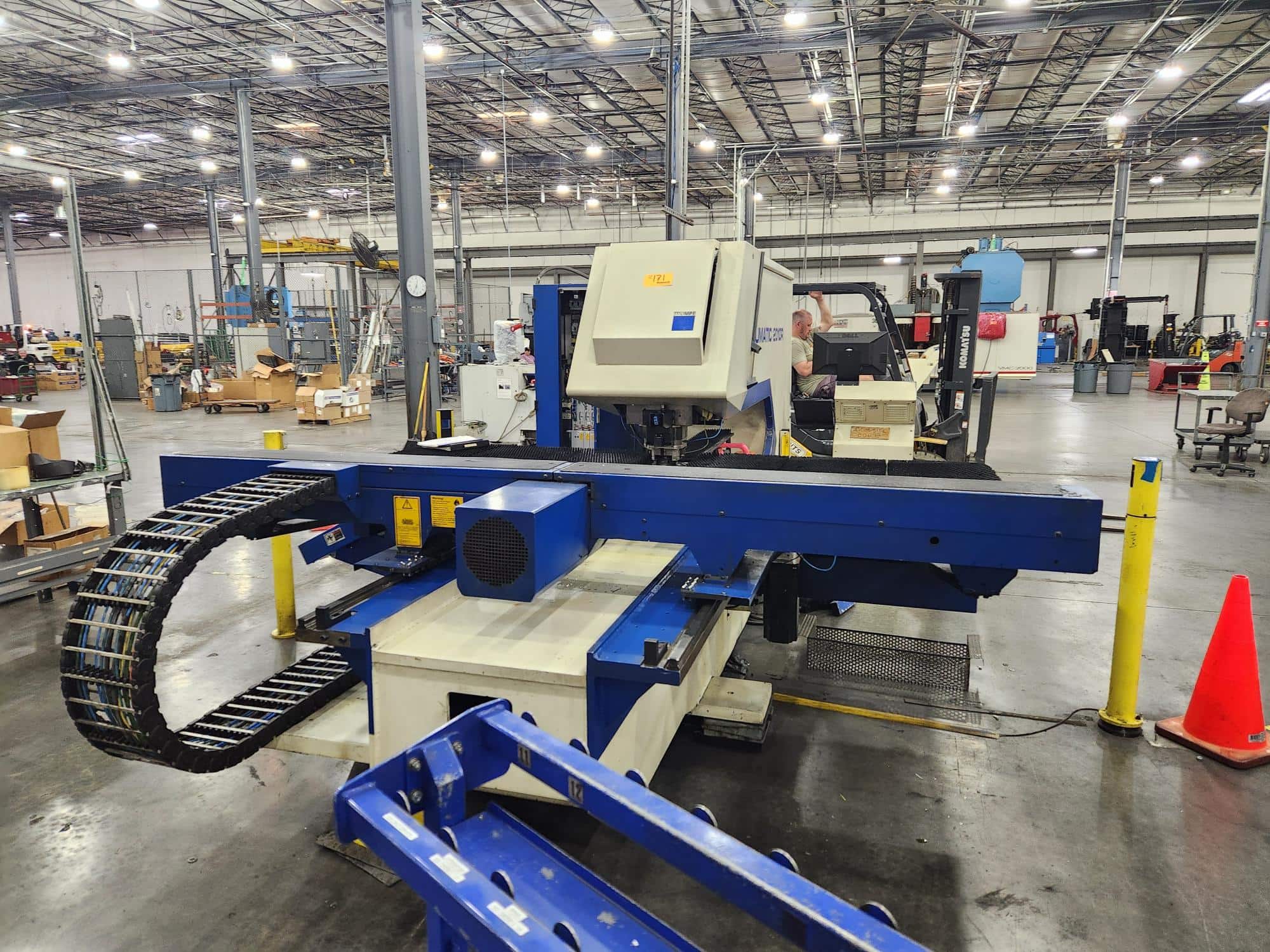

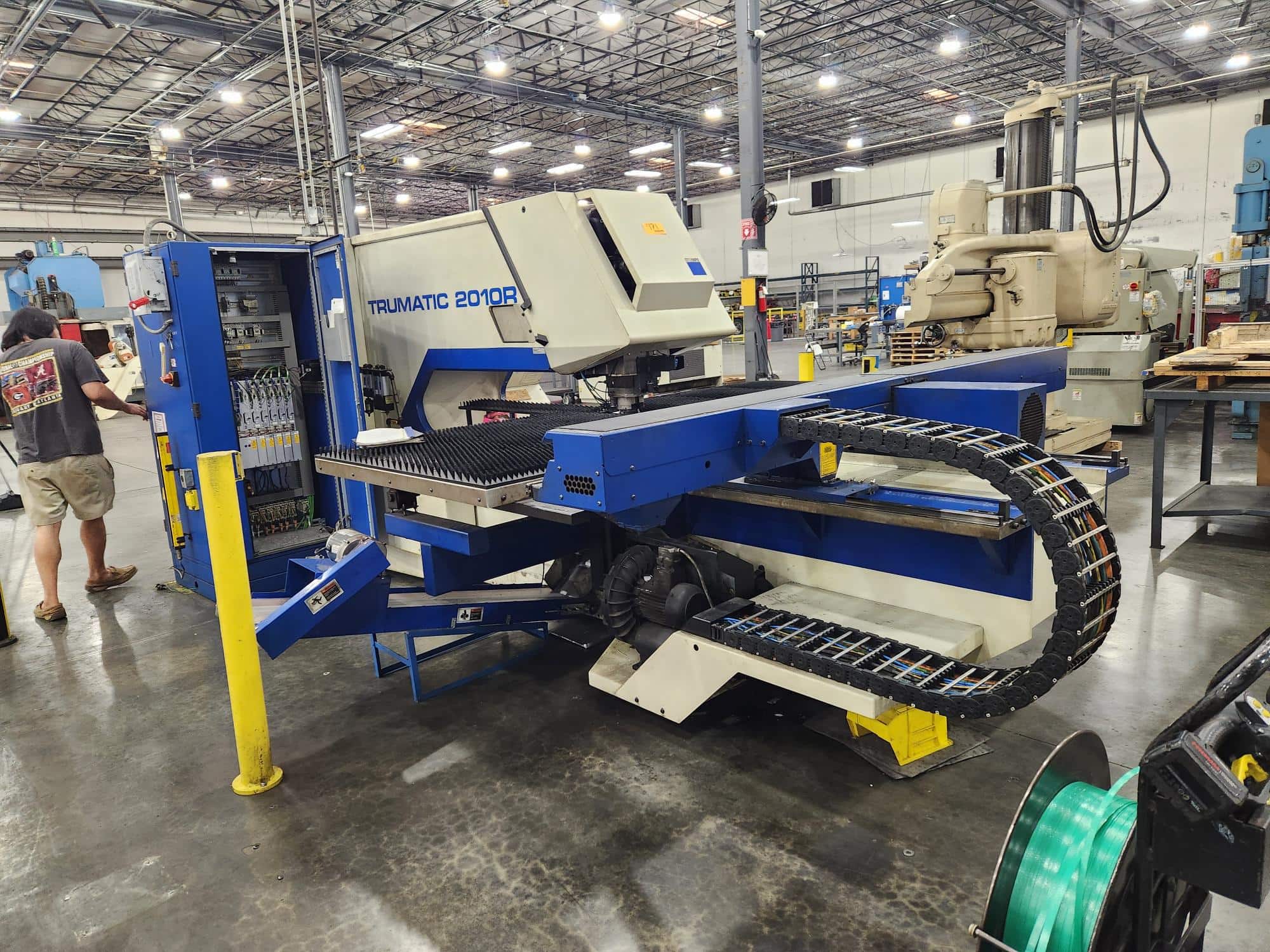

Trumpf Trumatic 2010R CNC Punch, 2002
$9,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
TRUMPF TRUMATIC 2010R CNC PUNCH (2002)
MAXIMUM TONNAGE CAPACITY: 22
TABLE TRAVEL: 50″ X 50″
MAXIMUM SHEET THICKNESS: 1/4″
MAXIMUM PUNCH DIAMETER: 3″
MAXIMUM WORKPIECE WEIGHT: 175 LBS.
X-AXIS SPEED: 3,600 IPM
Y-AXIS SPEED: 2,400 IPM
SIMULTANEOUS (X & Y): 4,300 IPM
POSITIONING ACCURACY: +/- 0.004″
REPEATABILITY: +/- 0.0012″
STROKES/MINUTE (1″ PITCH): 420
STROKES/MINUTE (.040″ PITCH): 900
STROKES/MINUTE (MARKING/BEADING): 2,200
EQUIPPED WITH:
PROGRAMMABLE PUNCH HEAD ROTATION
10 STA. AUTOMATIC TOOL CHANGER ON X-RAIL
BRUSH TABLE DESIGN
(2) MATERIAL WORK HOLDER CLAMPS
HIGH SPEED MARKING & BEADING
REMOTE START/STOP PEDESTAL
