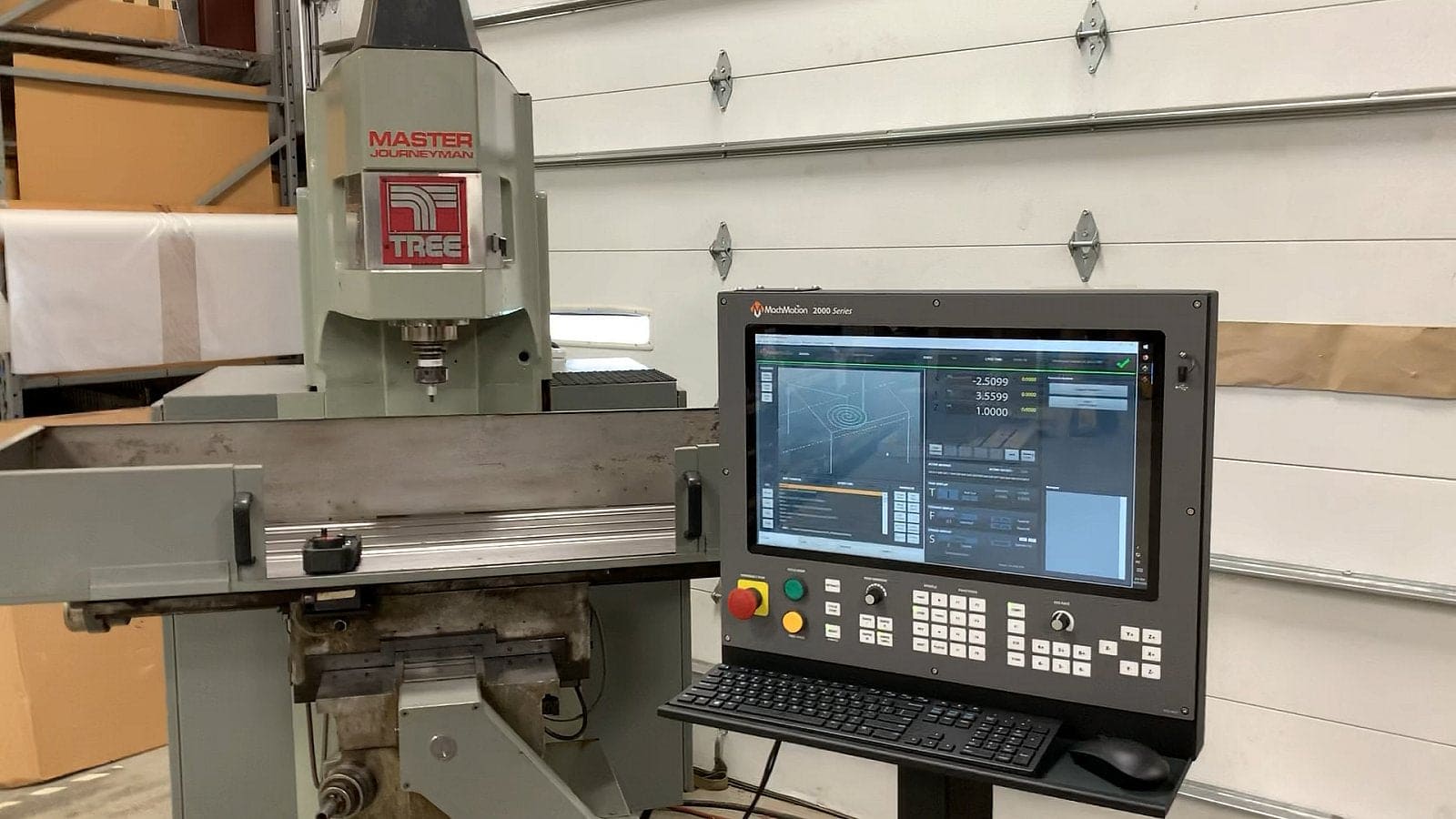

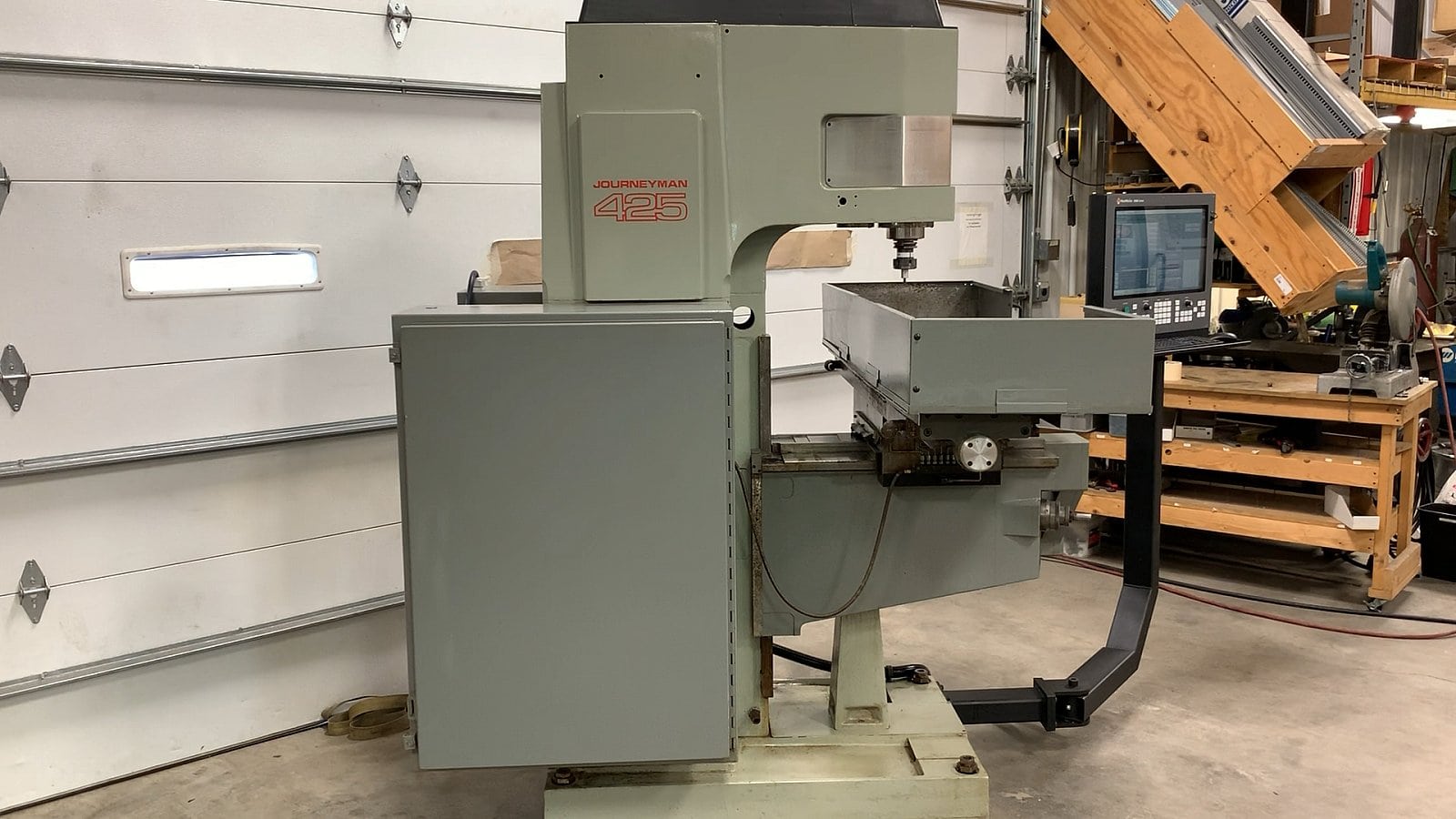

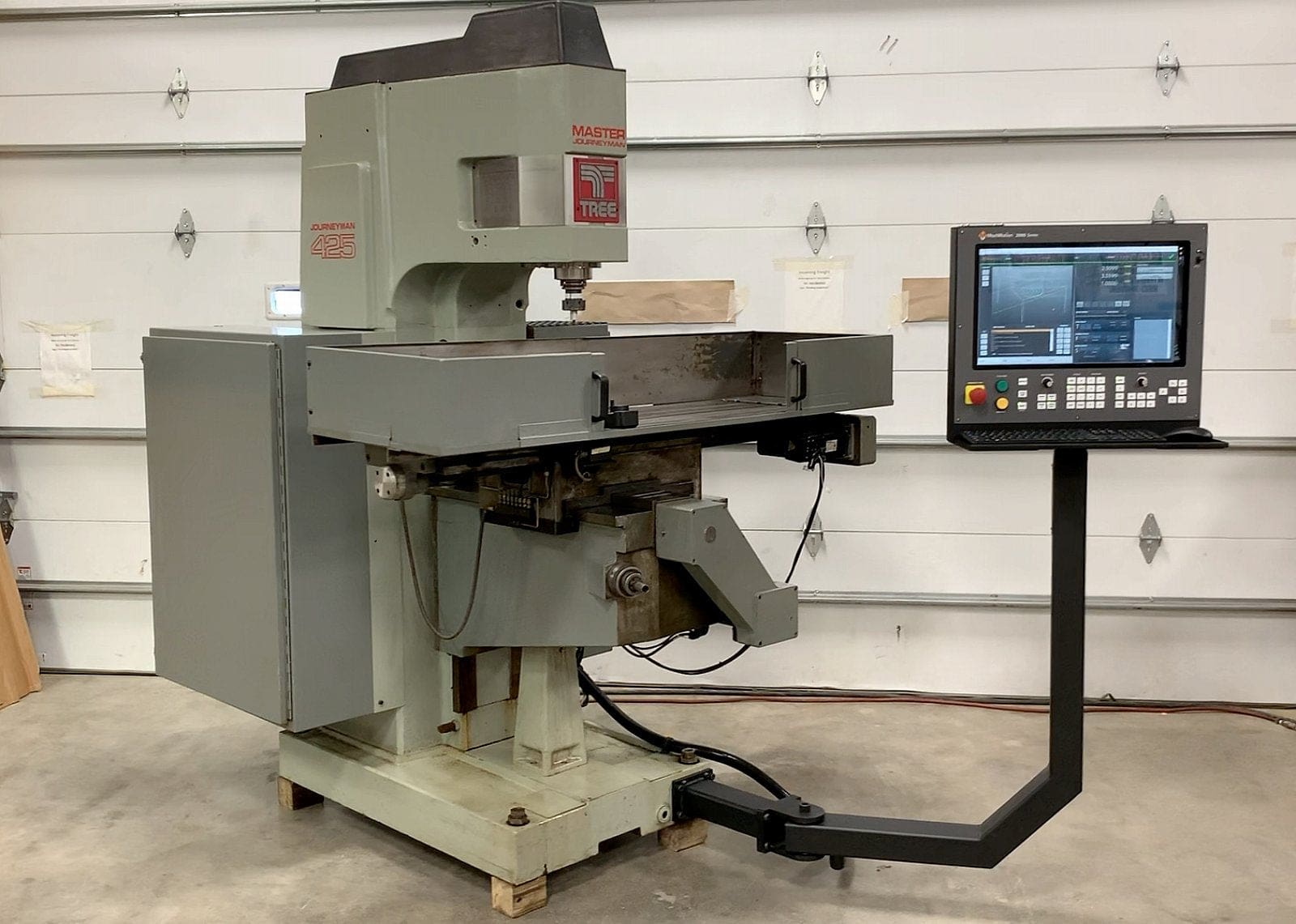

Tree Journeyman 425 CNC Mill, 1995- Updated MachMotion Control System
$18,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

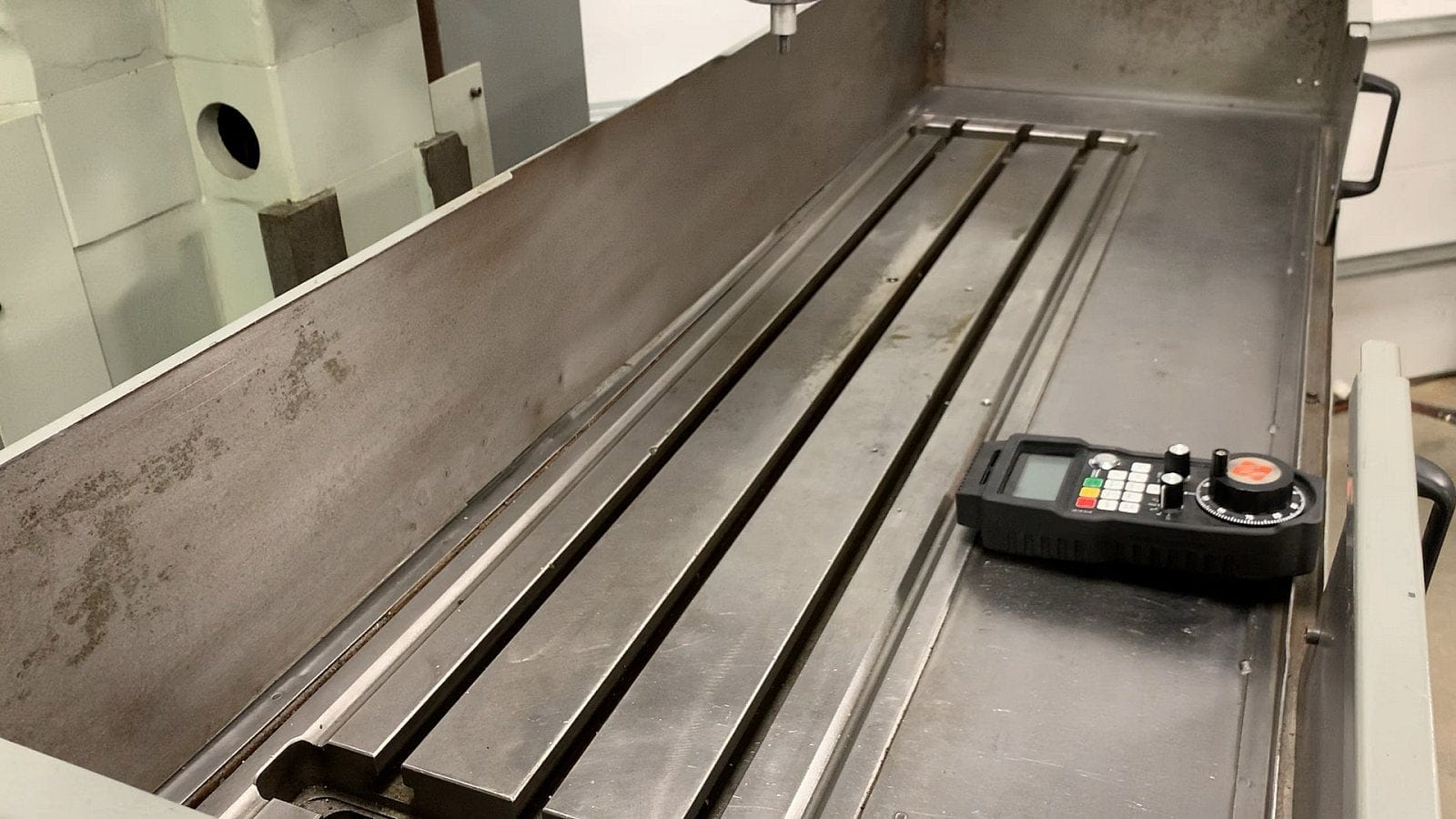

Table Travel (X Axis): 30″
Saddle Travel (Y Axis): 15″
Quill Travel (Z Axis) 6″
Knee Travel (Manual): 17.7″
Throat Distances: 14.8″
Maximum Load (Centered): 800 LBS
Spindle
Motor: 5Hp / 7 1/2 for 30Min
Taper: #40 Cat V-Flange
Speed Range: 50-3500
Quill Diameter: 4″
Space and Weight
Machine Weight Shipping: 6000LB
Height: 86″
Floor area 88X100″
Power
230 Volt 3 Phase
Equipped With:
Mach Motion 3-Axis CNC Control, New retrofit 2019,

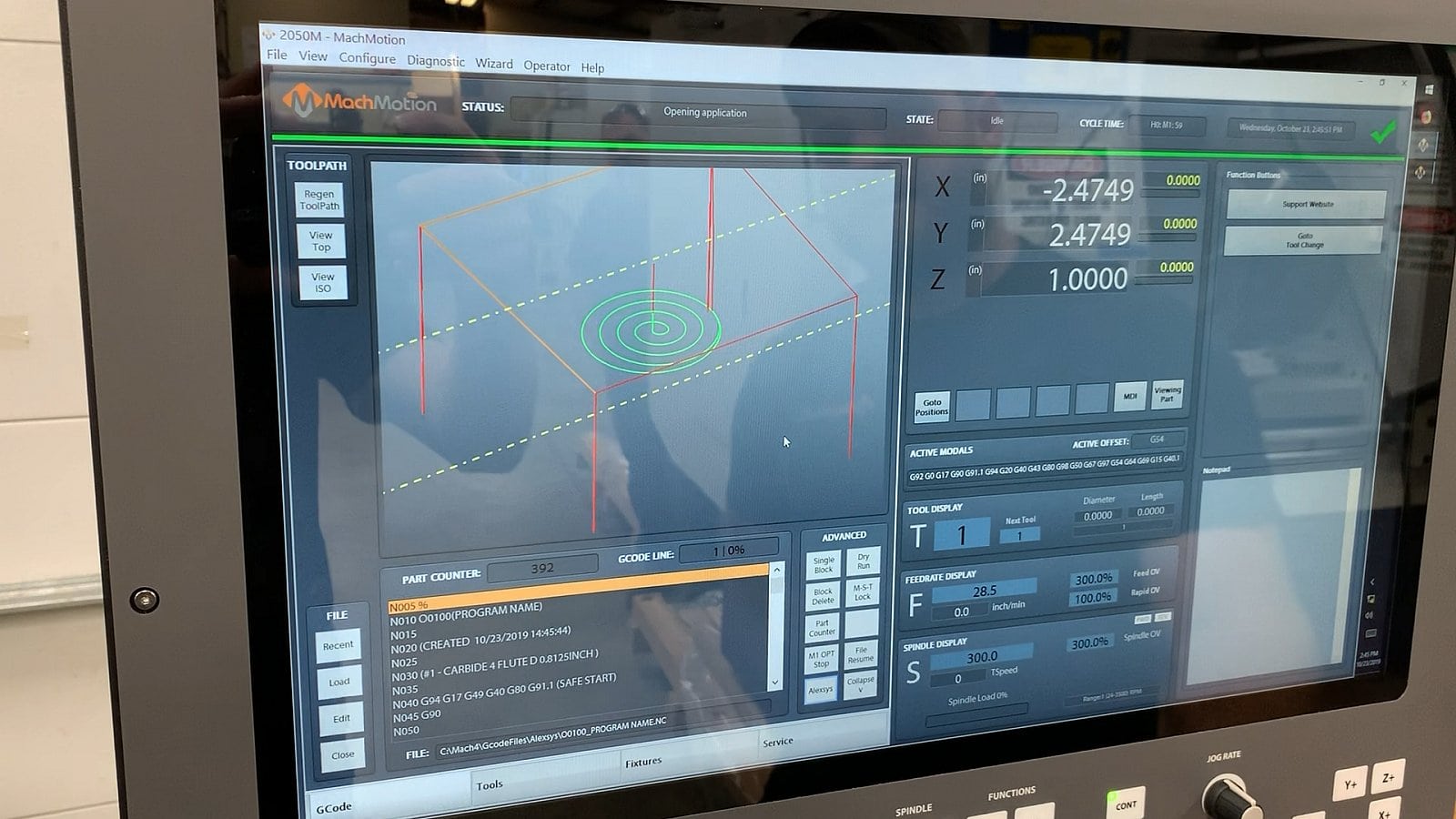

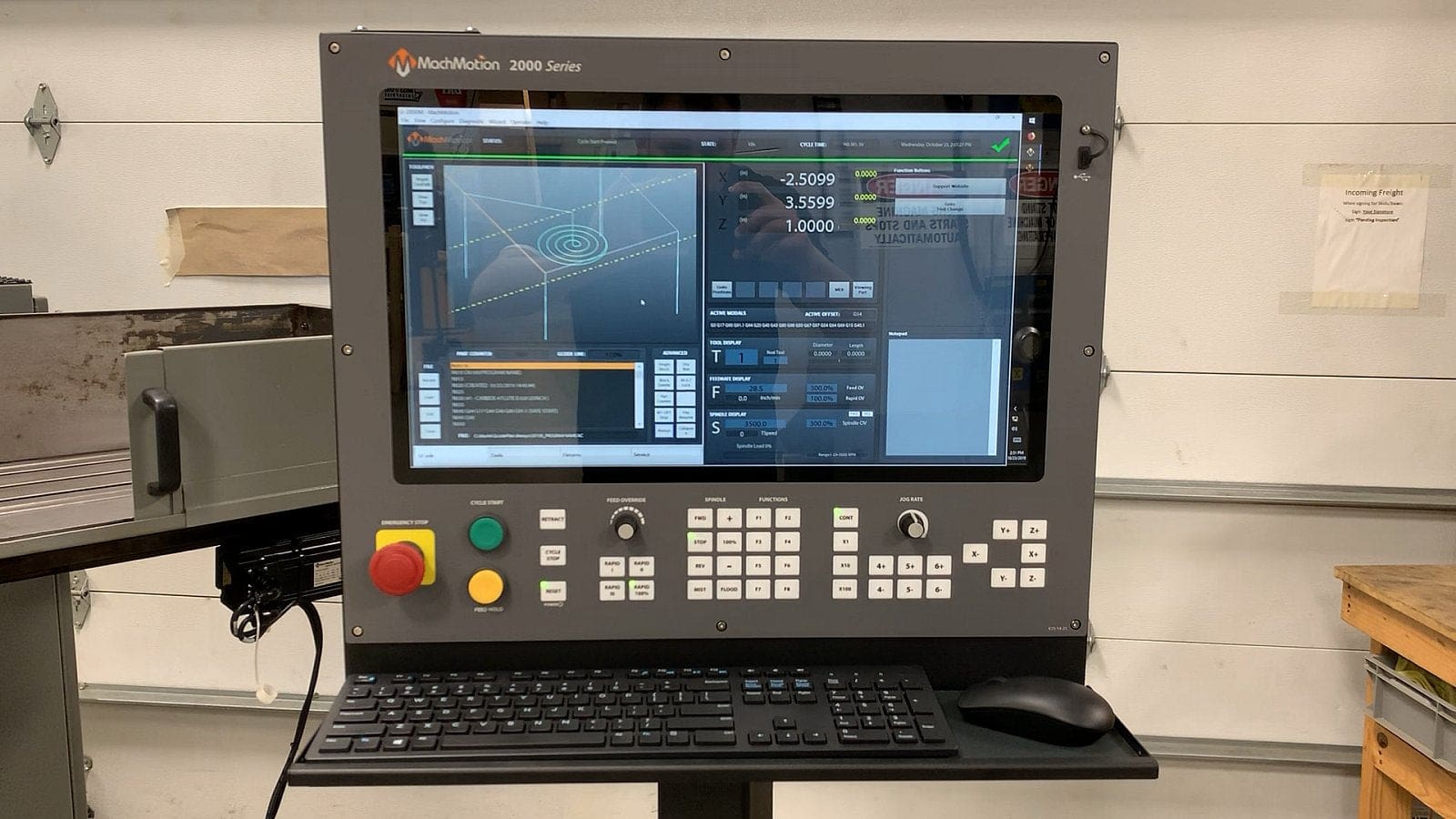

Smart 21″ Touch Screen CNC Controller

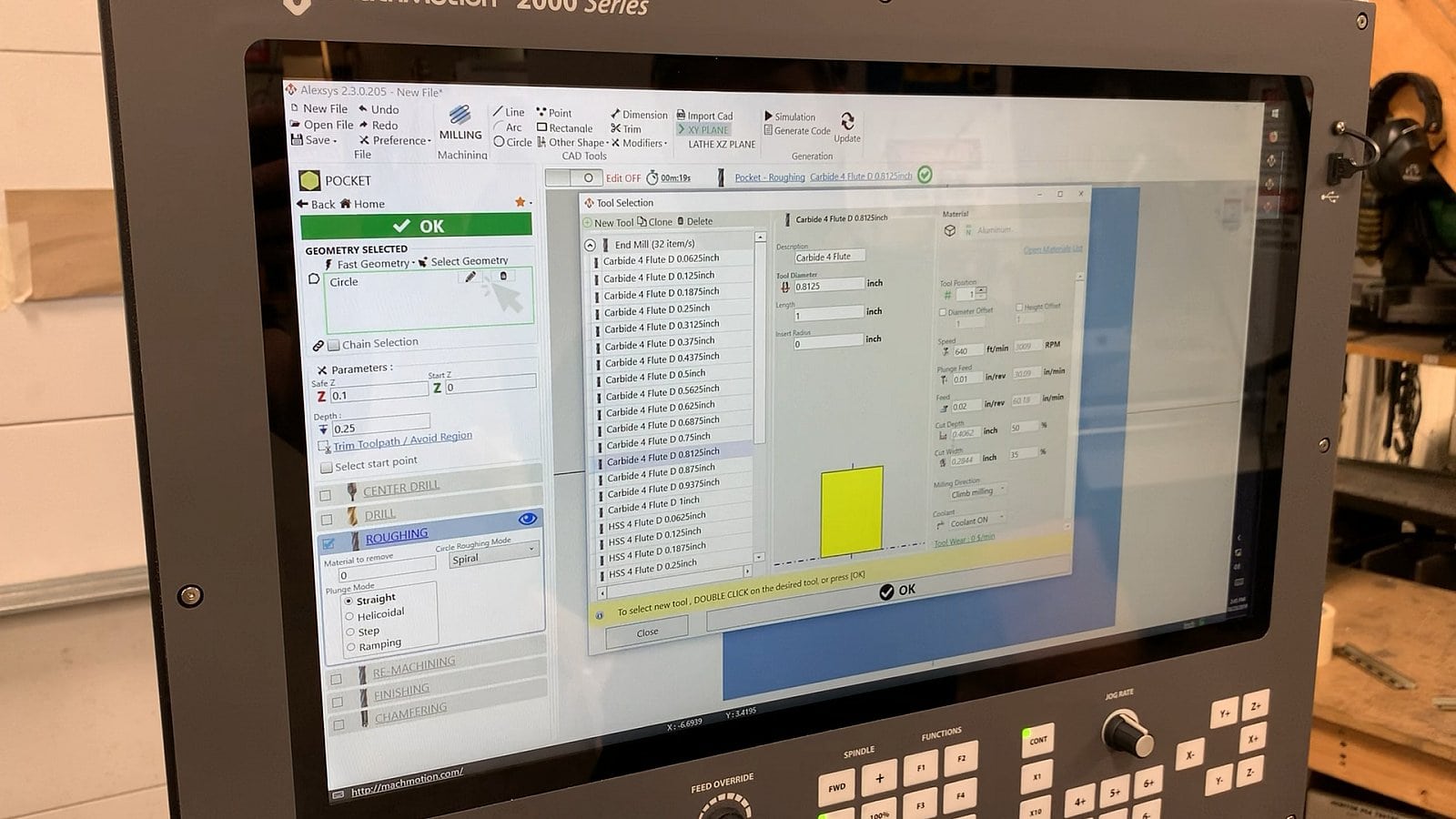

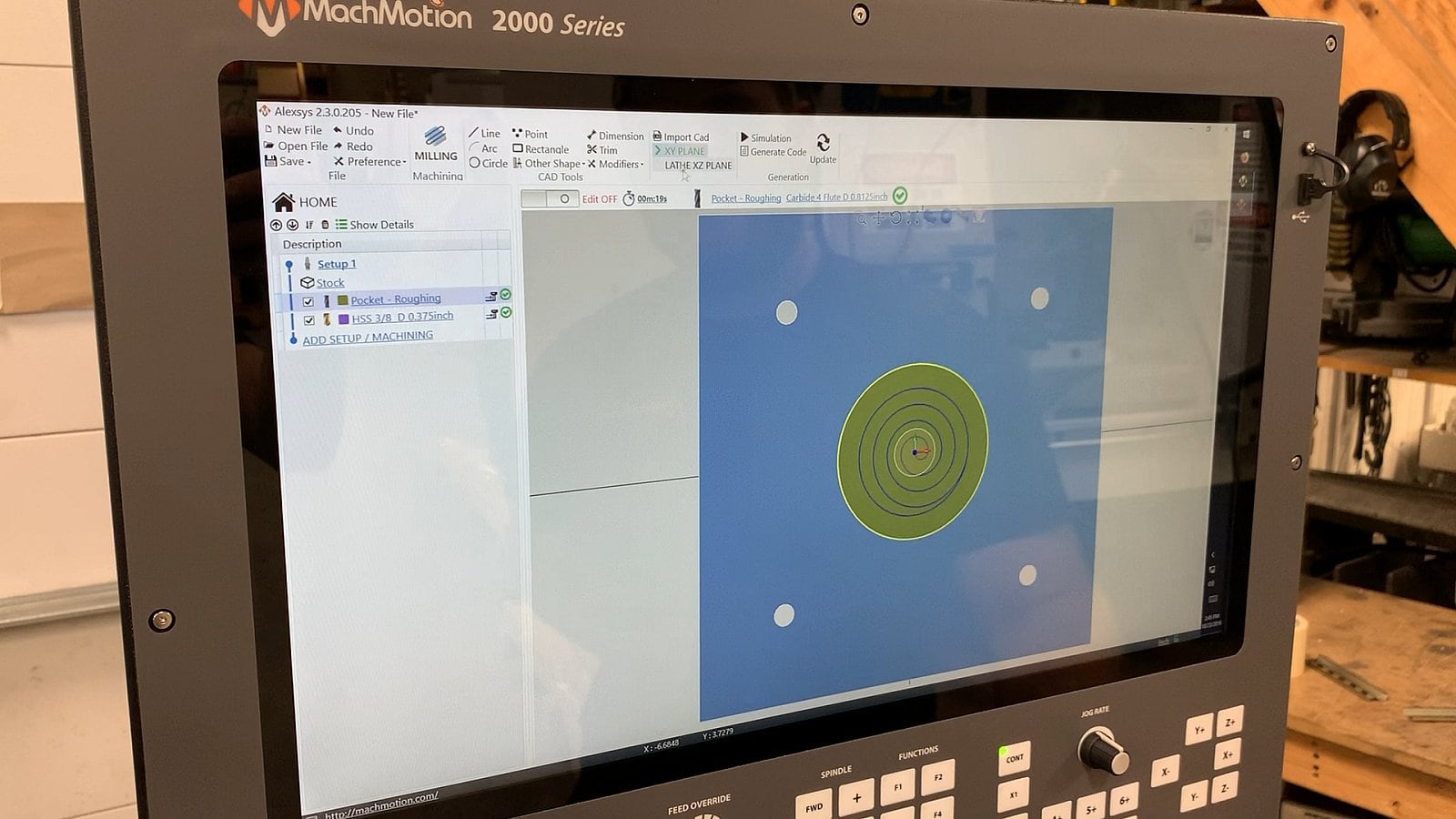

Conversational Programming
DXF Import
New AC Brushless Servos
New Spindle Drive
Absolute Encoders, No Homing required – Never lose your position
Programmable Spindle Speed from the controller VFD
Free Remote Support
1-yr Warranty
