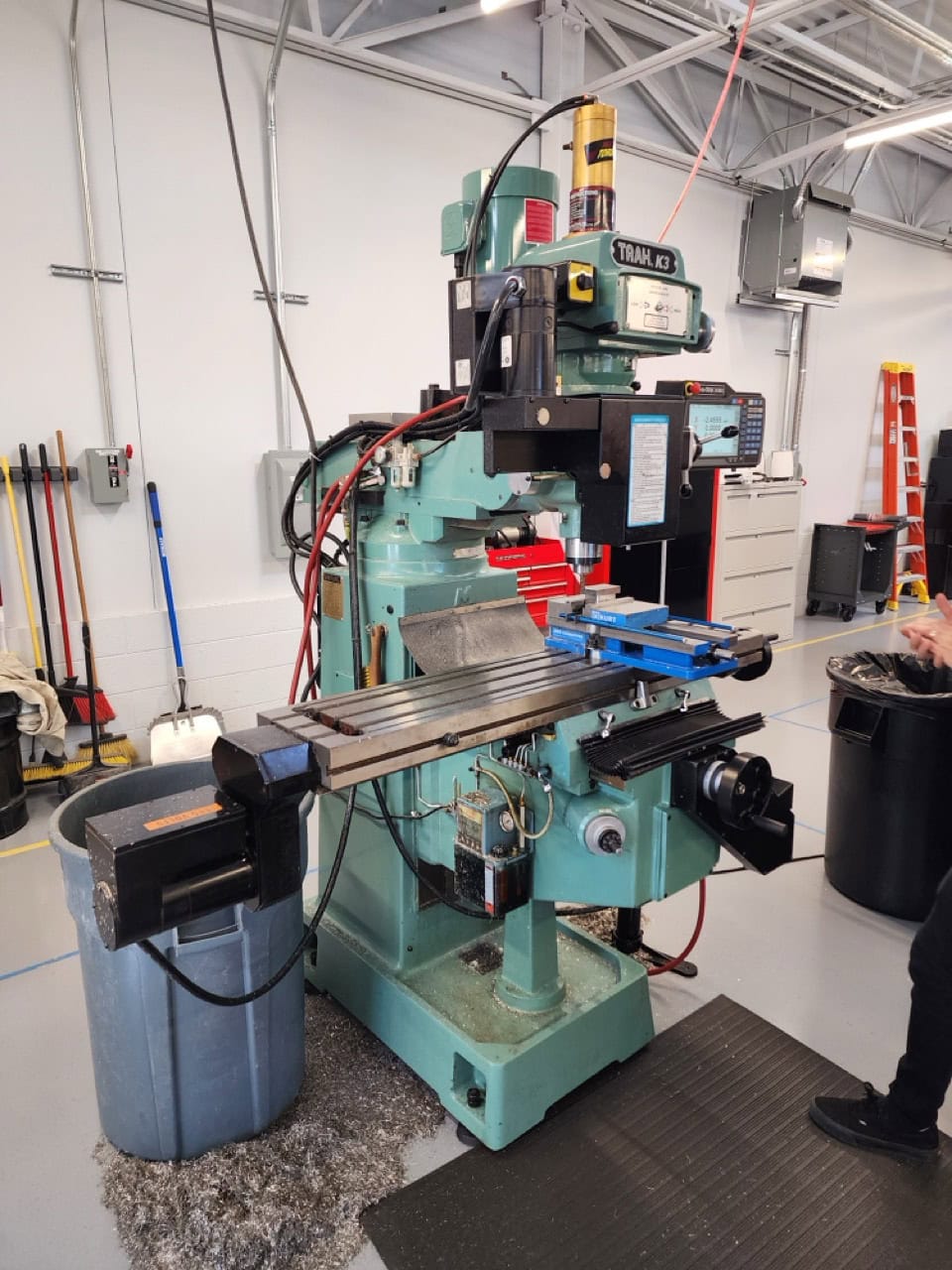

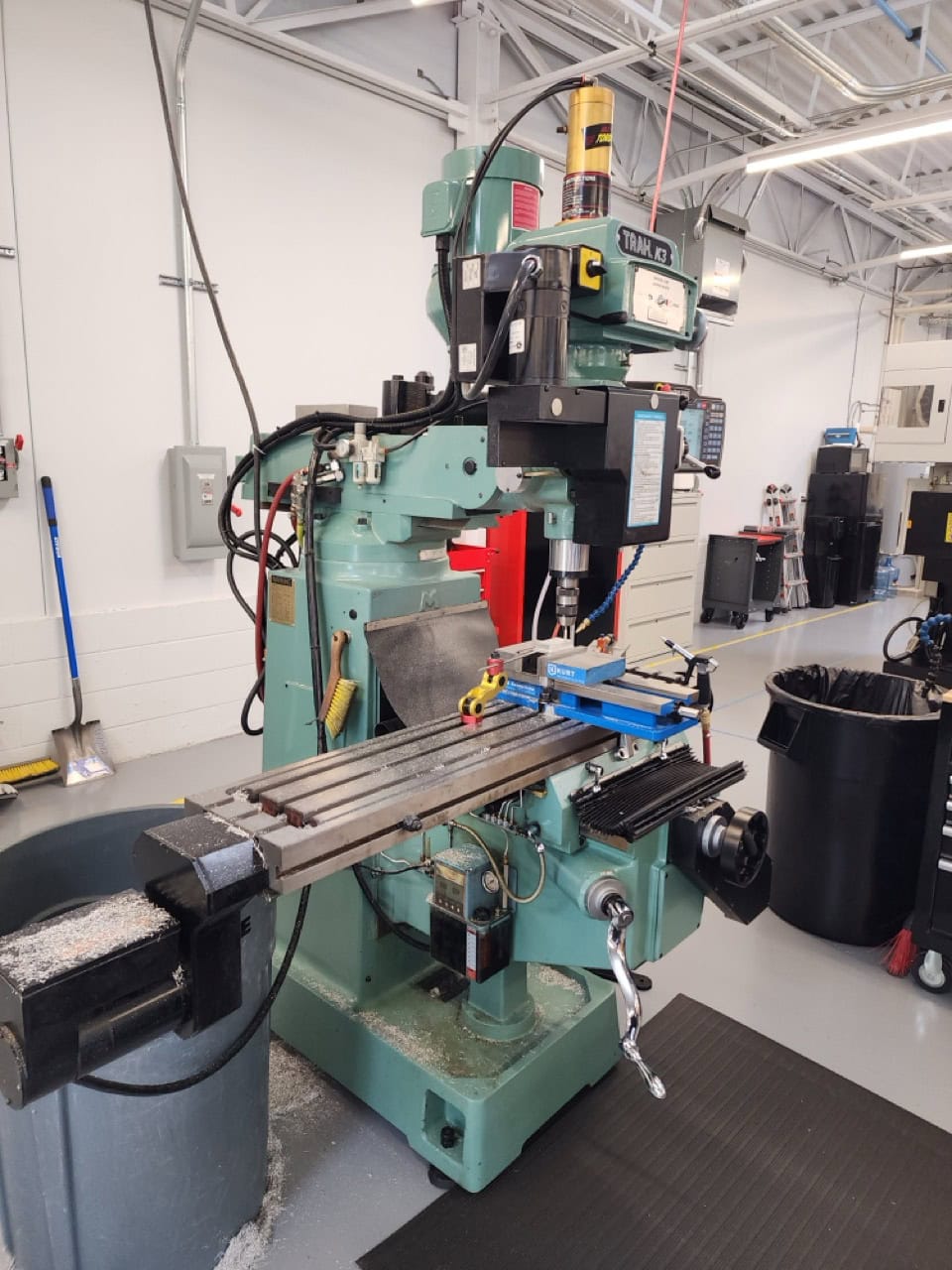

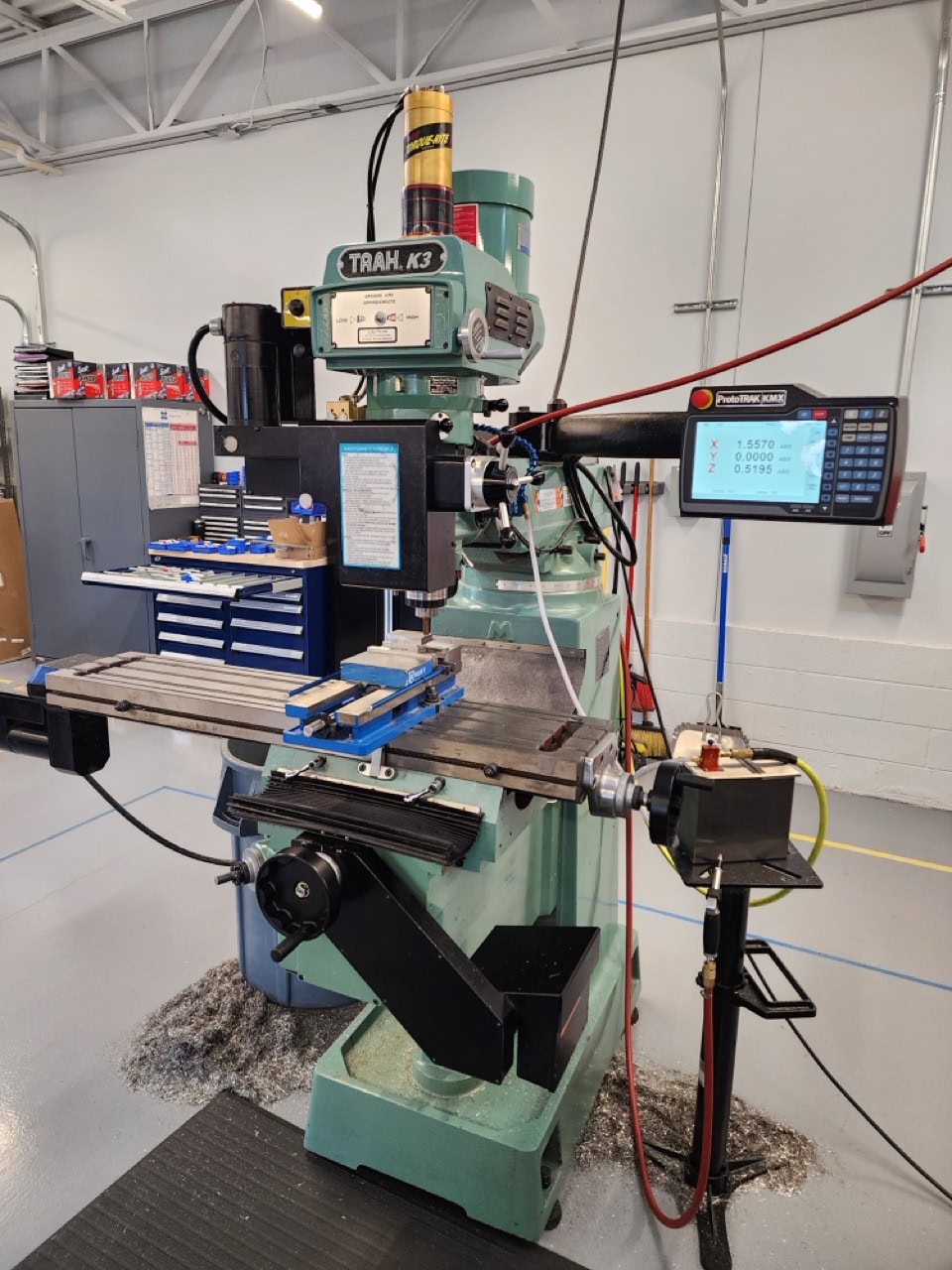

Trak K3 KMX-3 CNC Knee Mill, 2022 – DRO, KMX Control
$26,340.75
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size: 50″ x 10″
T-Slots: 5/8″ x 3 x 2 ½”
Table Travel: 32″
Saddle Travel: 15.5″
Knee Travel: 16″
Ram Travel: 24″
Maximum Quill Travel: 5″
Quill Diameter: 3 3/8″
Spindle Taper: R8
Spindle Speed Range: 60-4200 RPM
Head Tilt: 45° forward, 45° back, 90° left, 90° right
Spindle Motor: 3 HP
Power Requirement (Control): 110V; 1P; 10A
Power Requirement (Machine): 220/440V; 3P; 8.5/4.25A
Maximum Weight on Table: 750 lbs.
Maximum Rapid Feed: 100 IPM
Machine Weight: 2816 lbs.
Machine Dimensions (LWH): 71″ x 59″ x 84″
Equipped With:
KMX Controller
DRO
