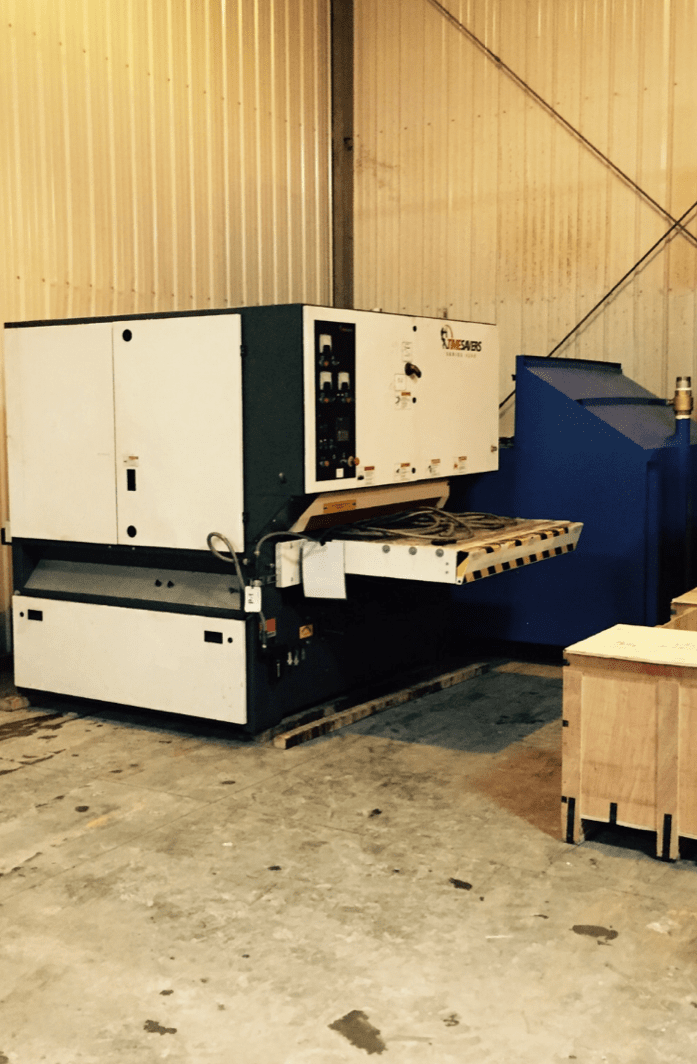

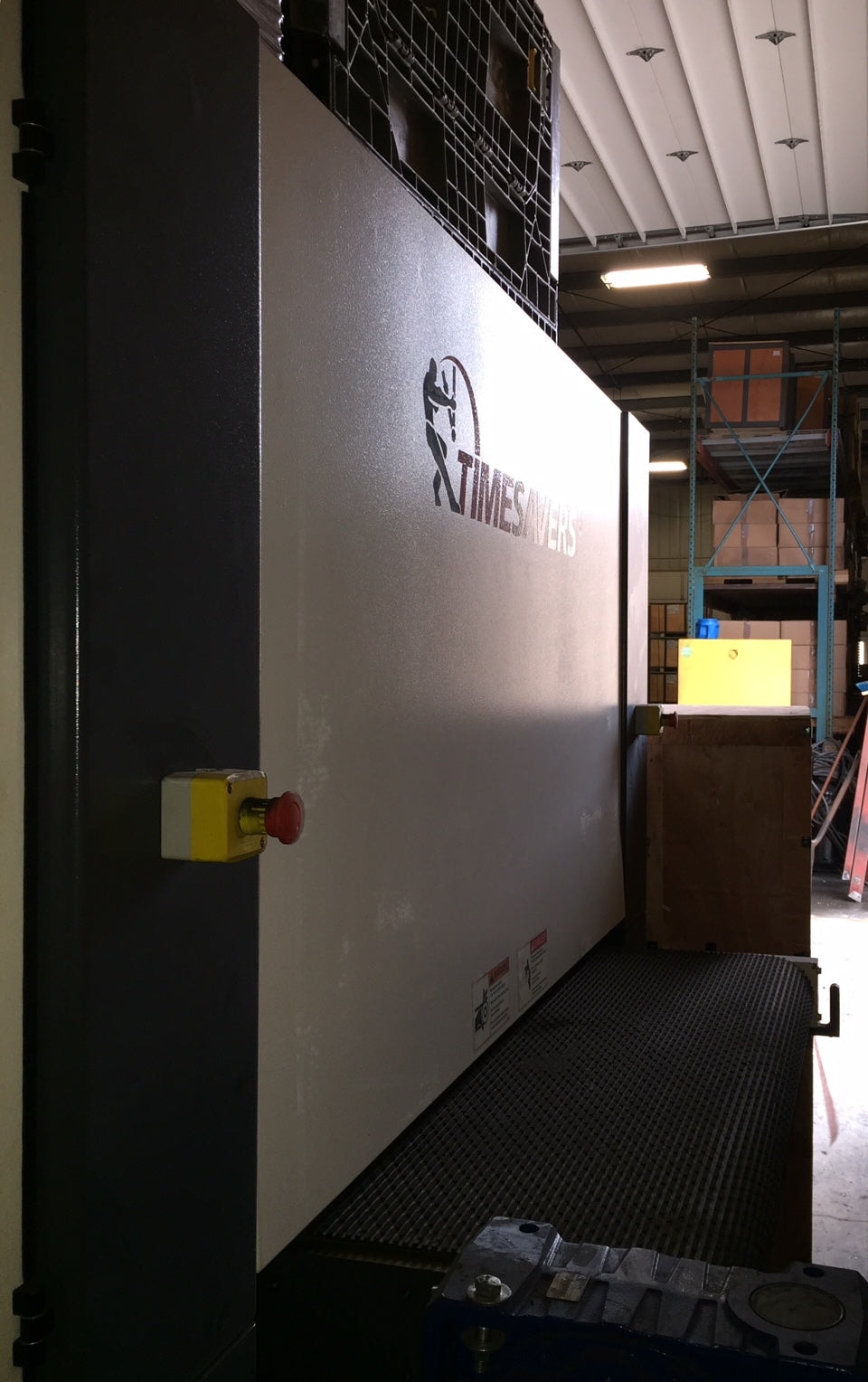

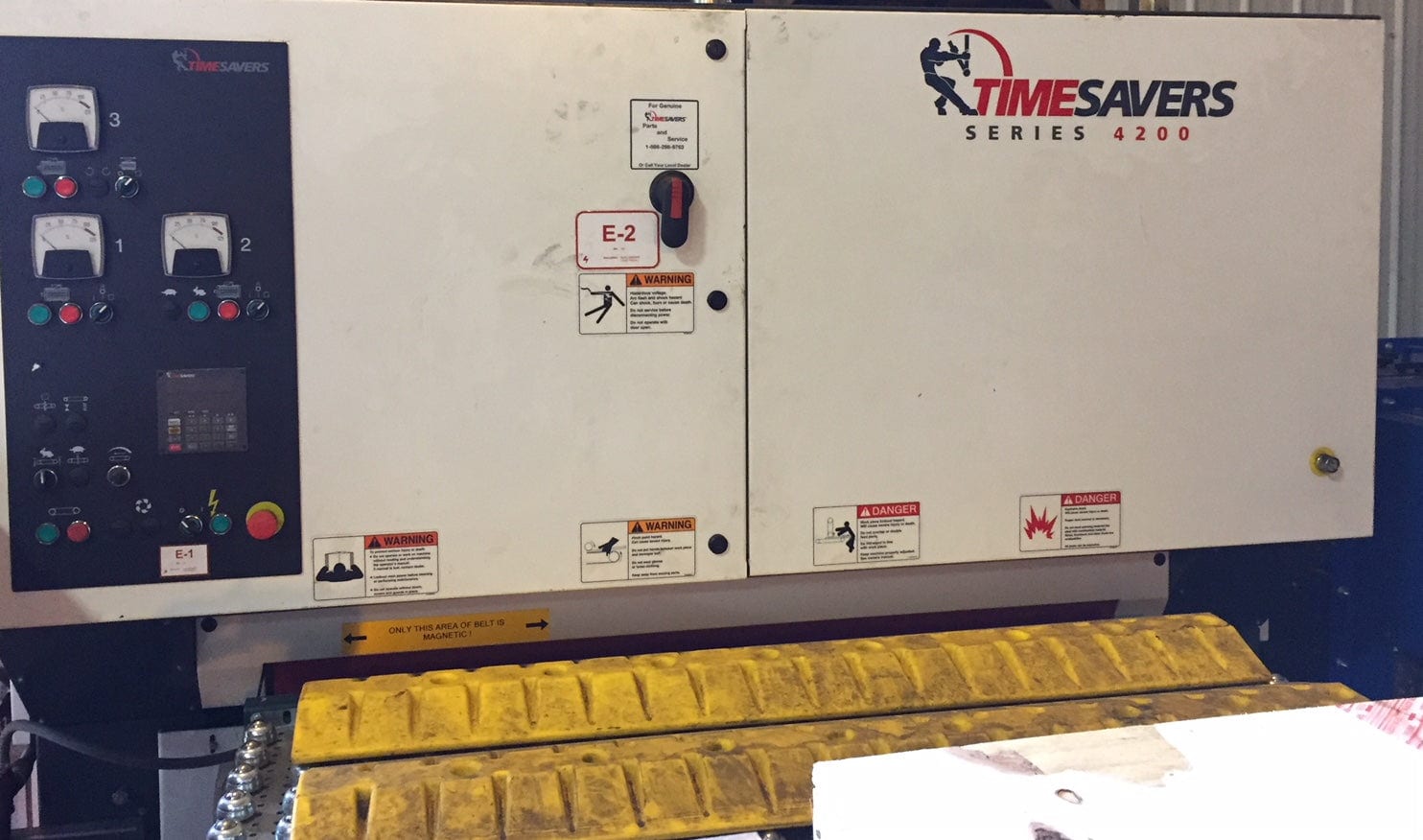

Timesavers 4231-25-084 Sander (Dry), 2015 – Under 100 Hours, Dust Collector
$75,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

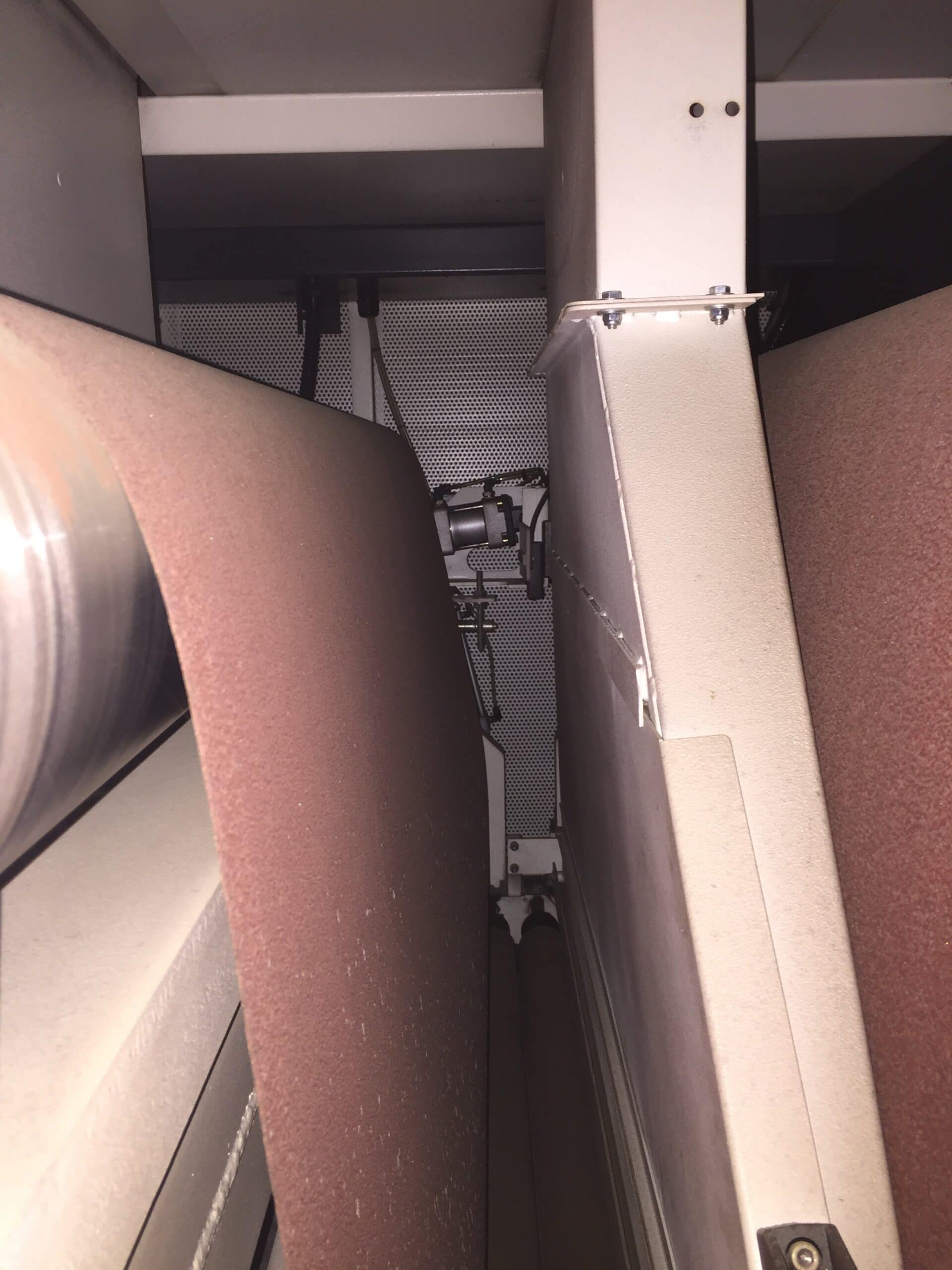

Abrasive Belt Size: 52″ X 75″
Abrasive Brush Size: 51″ X 11″ Diameter
Max. Width Stock: 48″
Min. Part Length: 13.5″
Infeed Loading Area: 27″
Machine Opening: 0-6″
Feed Speed: 10-30 Fpm A/c
Voltage: 460/3/60
Approx. Full Load Amps @ 460 Volt: 127 (200 Amp)
Motor: 30,30,25 Hp, Tefc (200 Amp Disc.)
Passline Height: 32″ – 38″ Variable
Cfm Exhaust Requirements: 4400 Cfm (5″ Static Pressure)
Compressed Air Usage: 4 Cfm @ Psi
Shipping Dimensions (machine only) : 8′ X 8′ X 8′
Approx. Shipping Weight: 11,400 Lbs

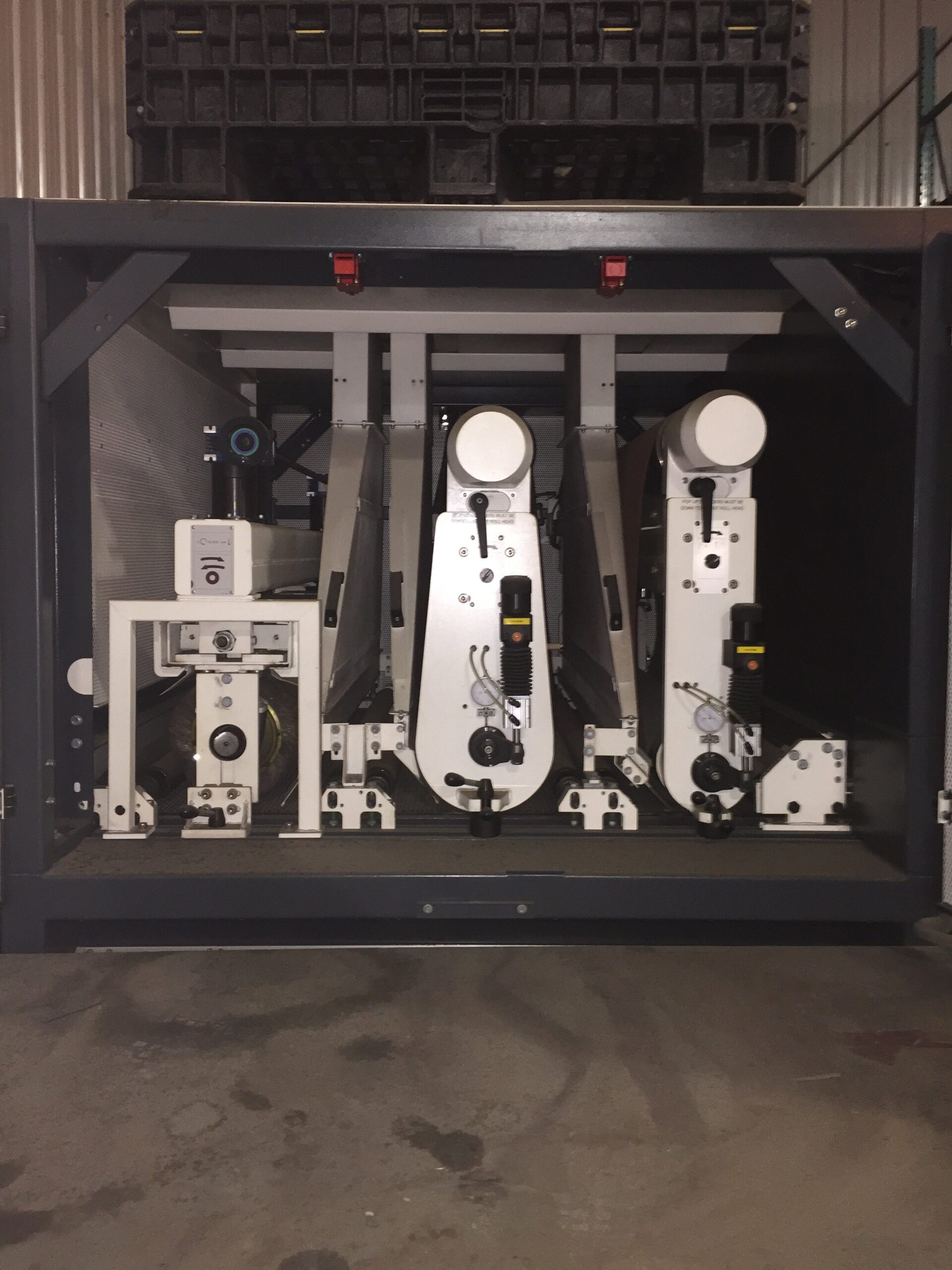

Equipped With:

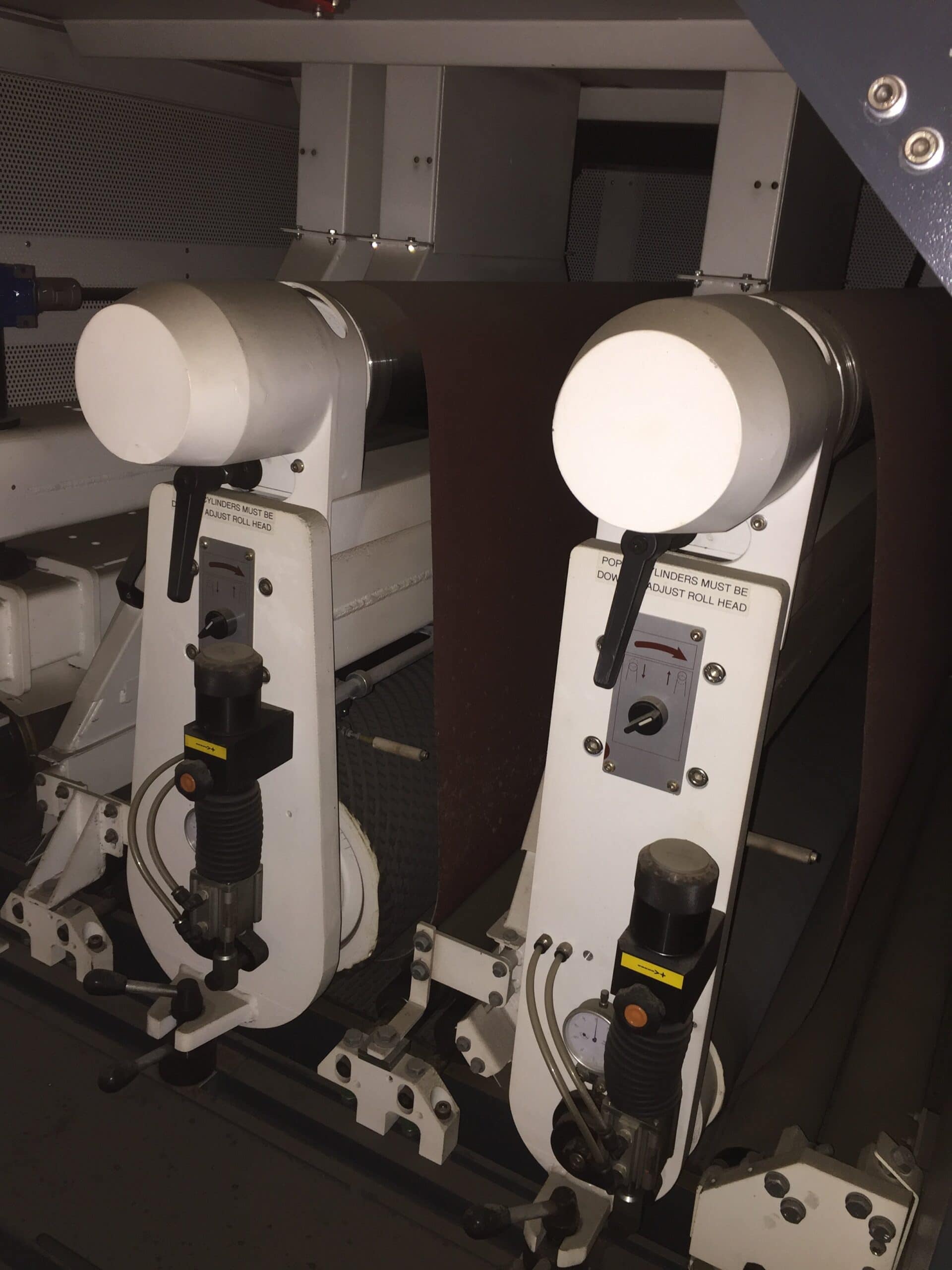

First Position: Drum Head;
A Dynamically Balanced 7″ Hard Drum Powered By A 30h.p. Drive For The Aggressive Removal Of Slag.

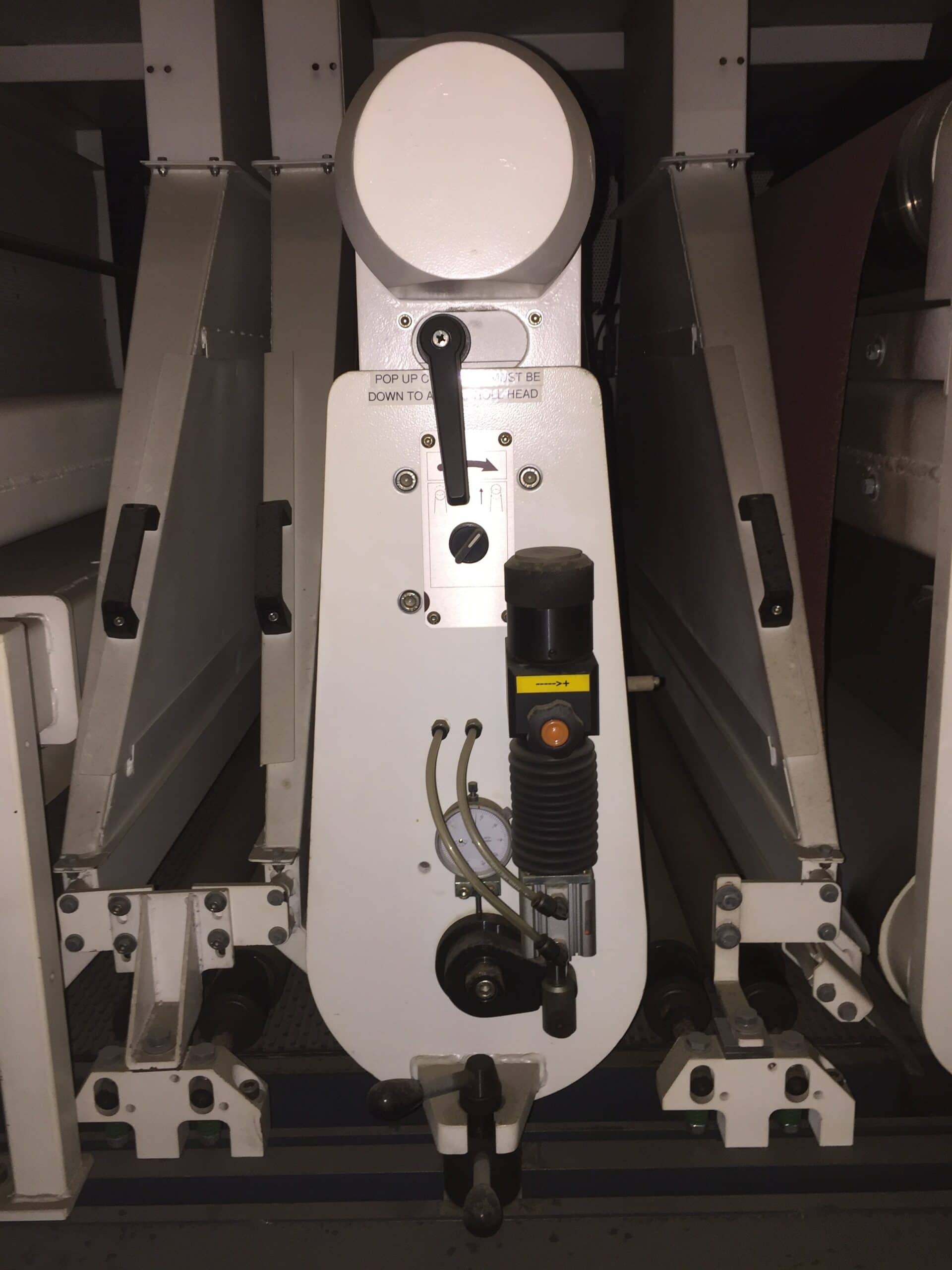

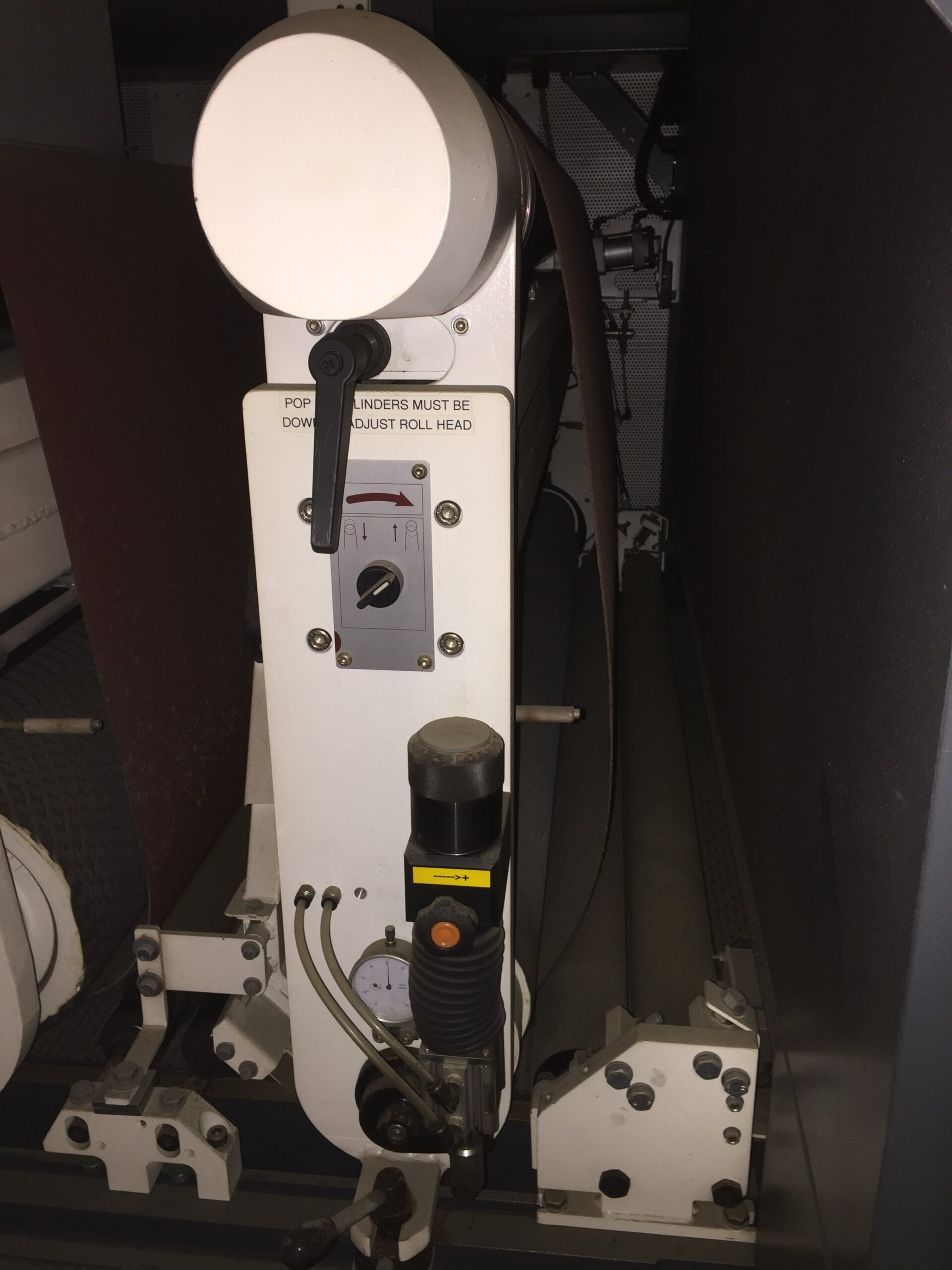

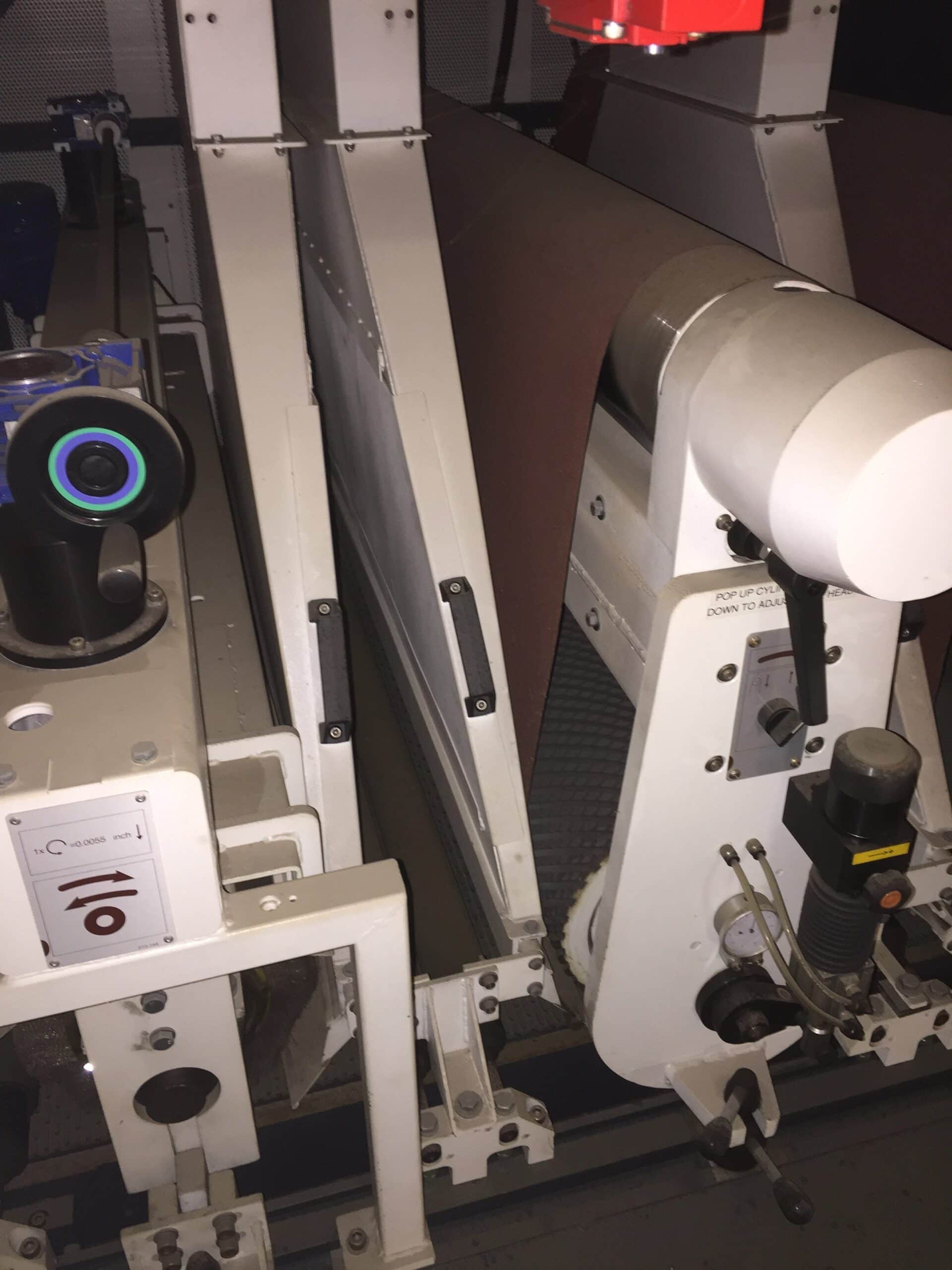

Second Position: Drum Head;
A Dynamically Balanced 11″ Soft Drum Powered By A 30h.p. Drive For The Aggressive Removal Of Slag And Cosmetic Finish.

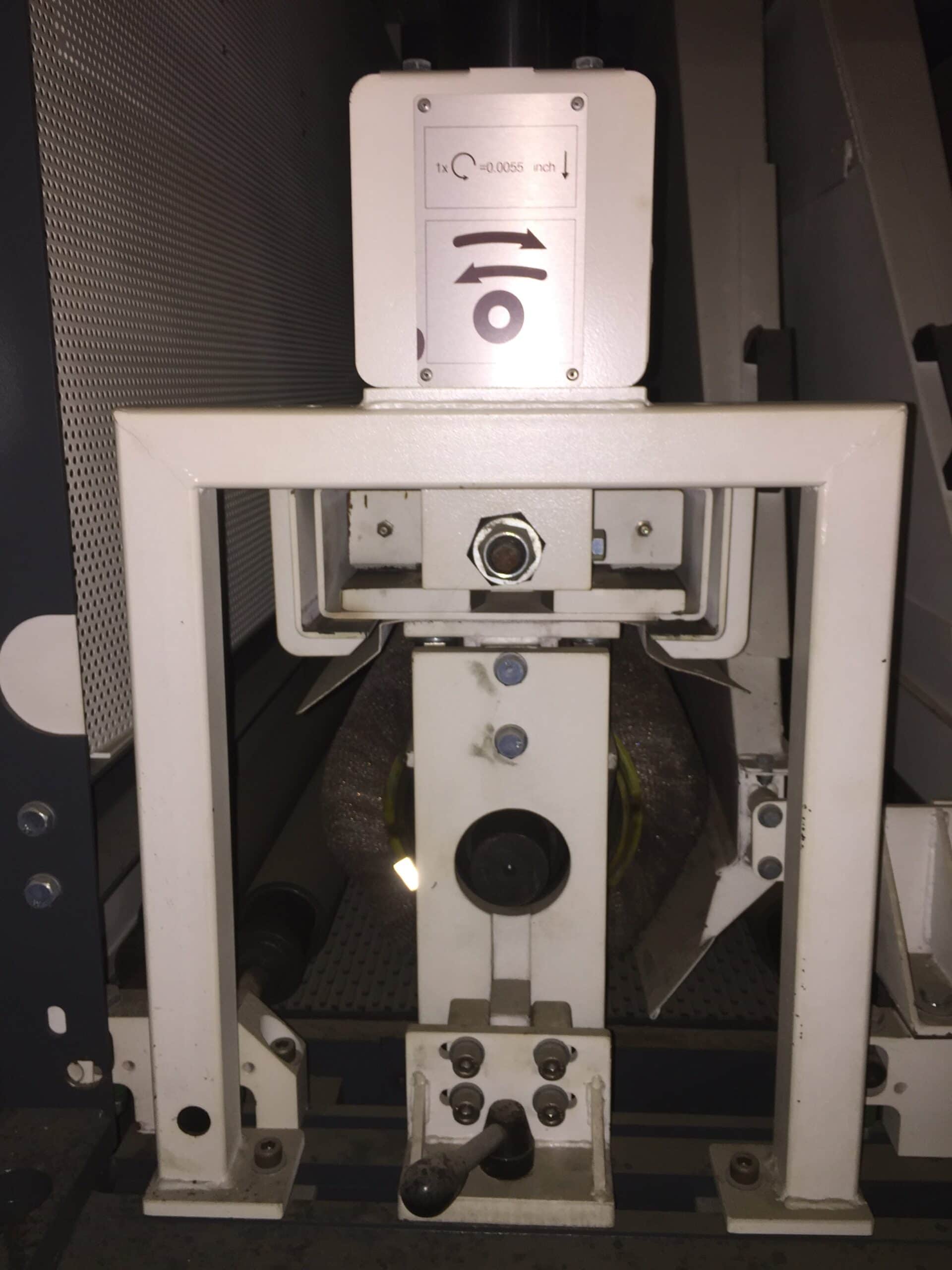

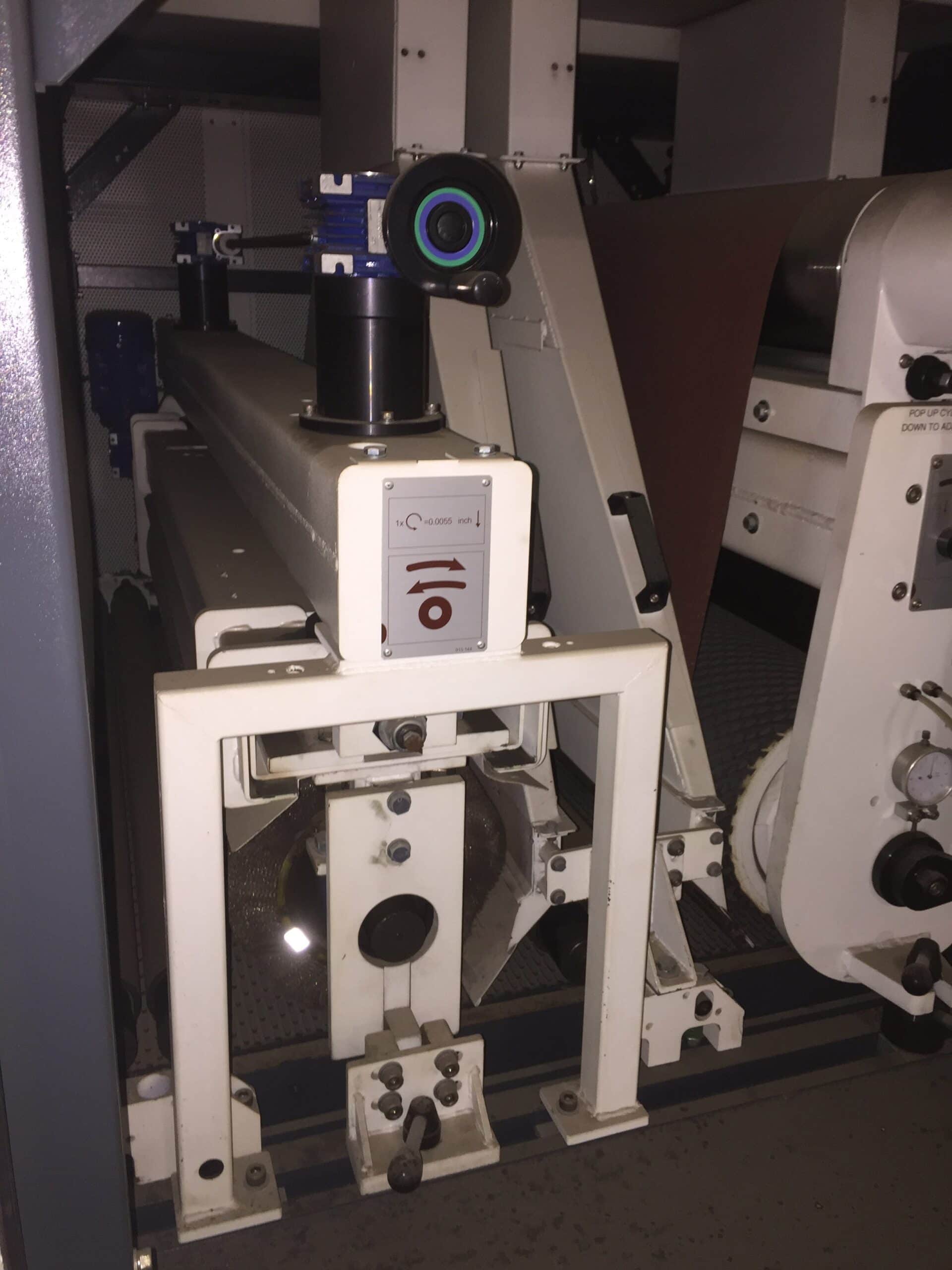

Third: Wire Brush Head;
Oscillating 11″ Diameter Stainless Steel Wire Brush For Removal Of Burr And Finish Enhancement.
Infeed Stop Bar
20″ Infeed Roller Extension
Dual Infeed And Dual Outfeed Holdown Rolls Ductwork Kit; Specifically Engineered To Connect Machine To The Dust Collector.
Magnetic Chuck; Workpiece Positive Placement Device Roller Deck; Infeed And Exit Tables Abrasive
