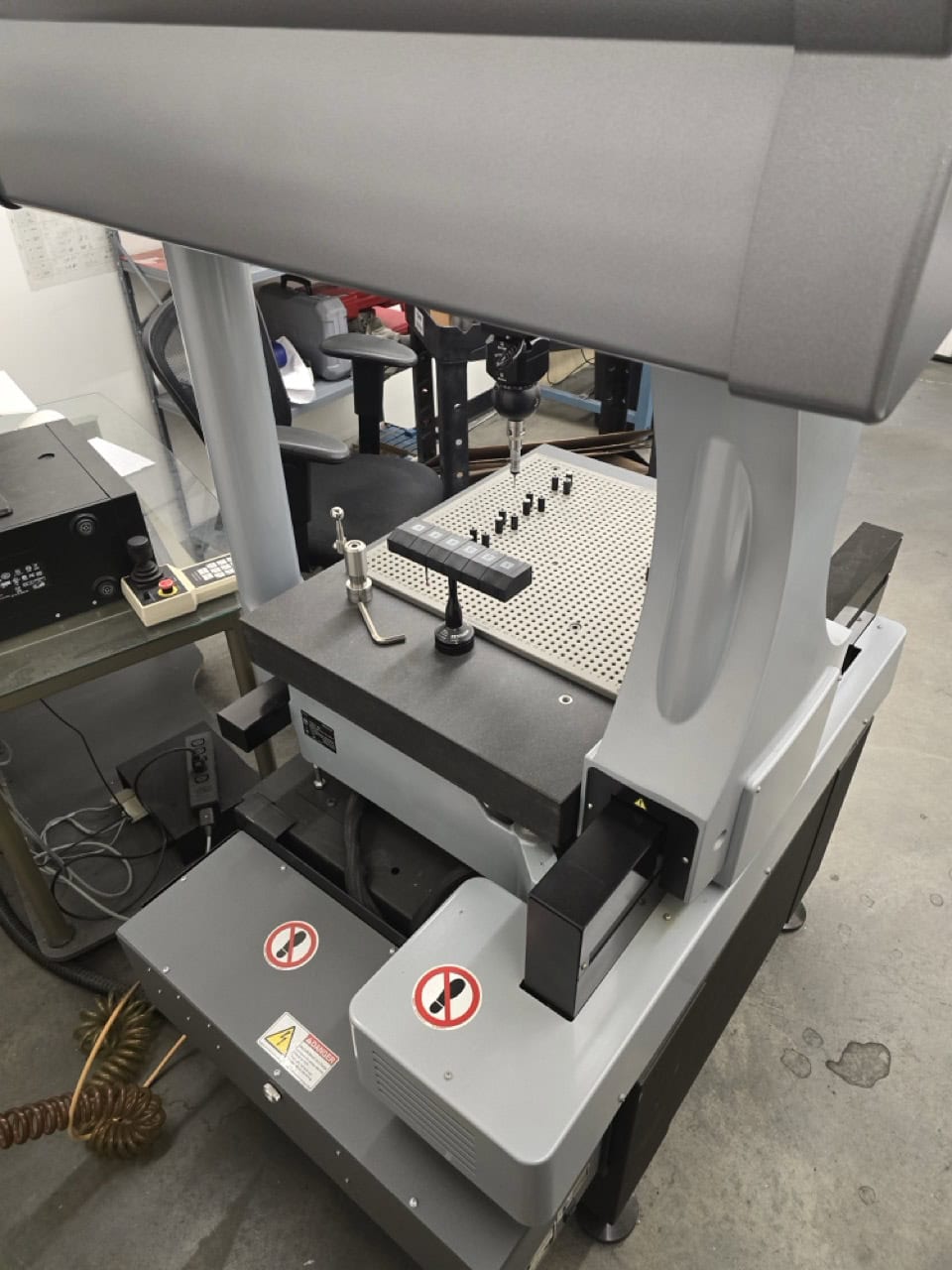

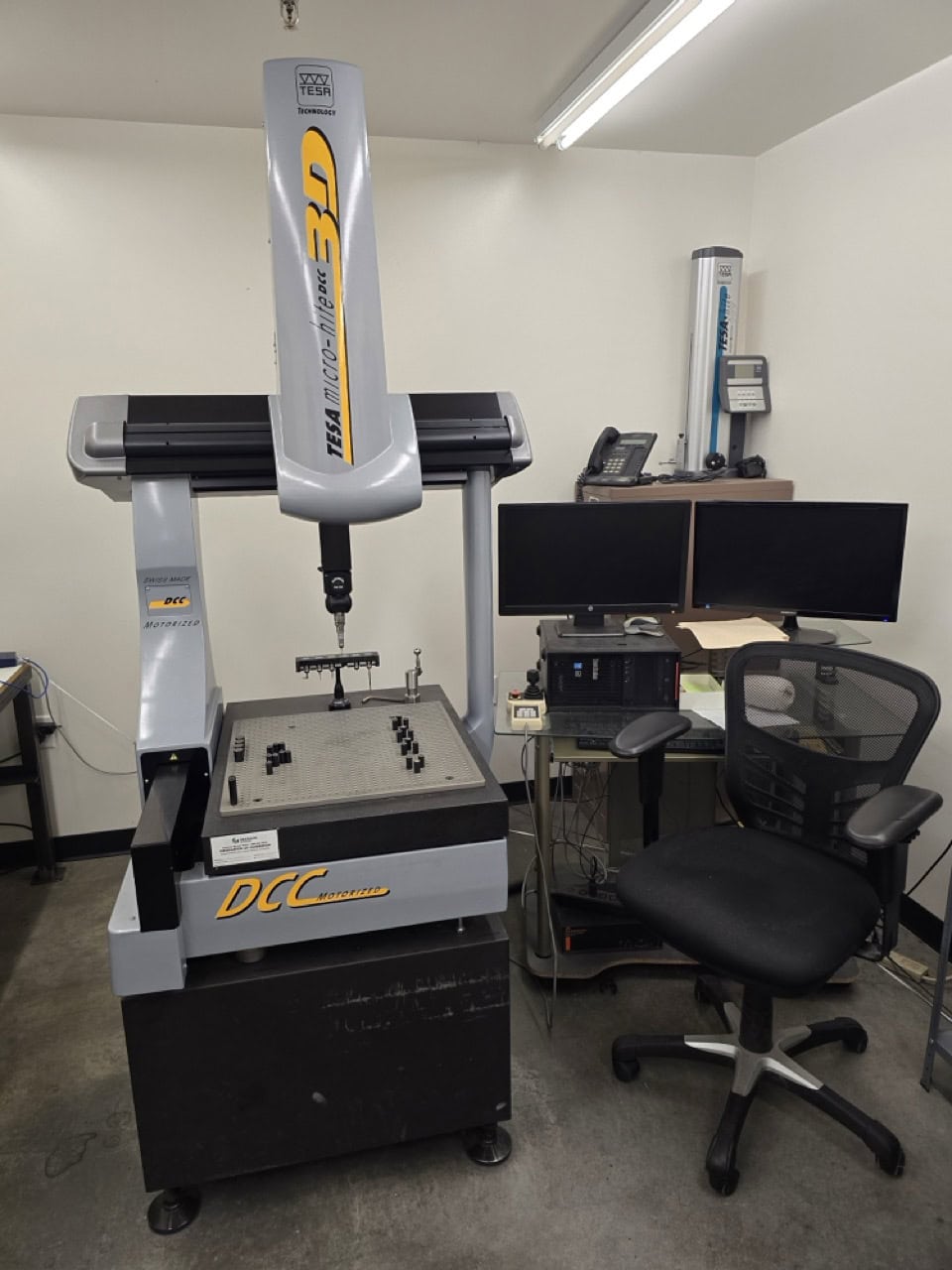

TESA Micro-Hite dcc 3D M.1604.3110 Motorized CMM, 2009
$14,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Measuring Volume & Accuracy
Measuring Range (X/Y/Z): 17.32” x 19.29” x 15.35”
Repeatability (ISO MPE-p): 0.00014”
Measurement Uncertainty (ISO MPE-e): 0.000098” + 0.000154” x L
Dimensions & Weight (Imperial Units)
Overall Dimensions (LxWxH): 40.55” x 43.31” x 66.14”
Shipping Box Size: 53.15” x 53.15” x 86.61”
Net Weight: 496 lbs.
Gross Weight: 772 lbs.
Operating Conditions
Power Supply: 230V AC
Air Pressure: Required for air bearings
Operating Temperature Range: 64.4°F to 71.6°F
Equipped With:
Renishaw PH10M
