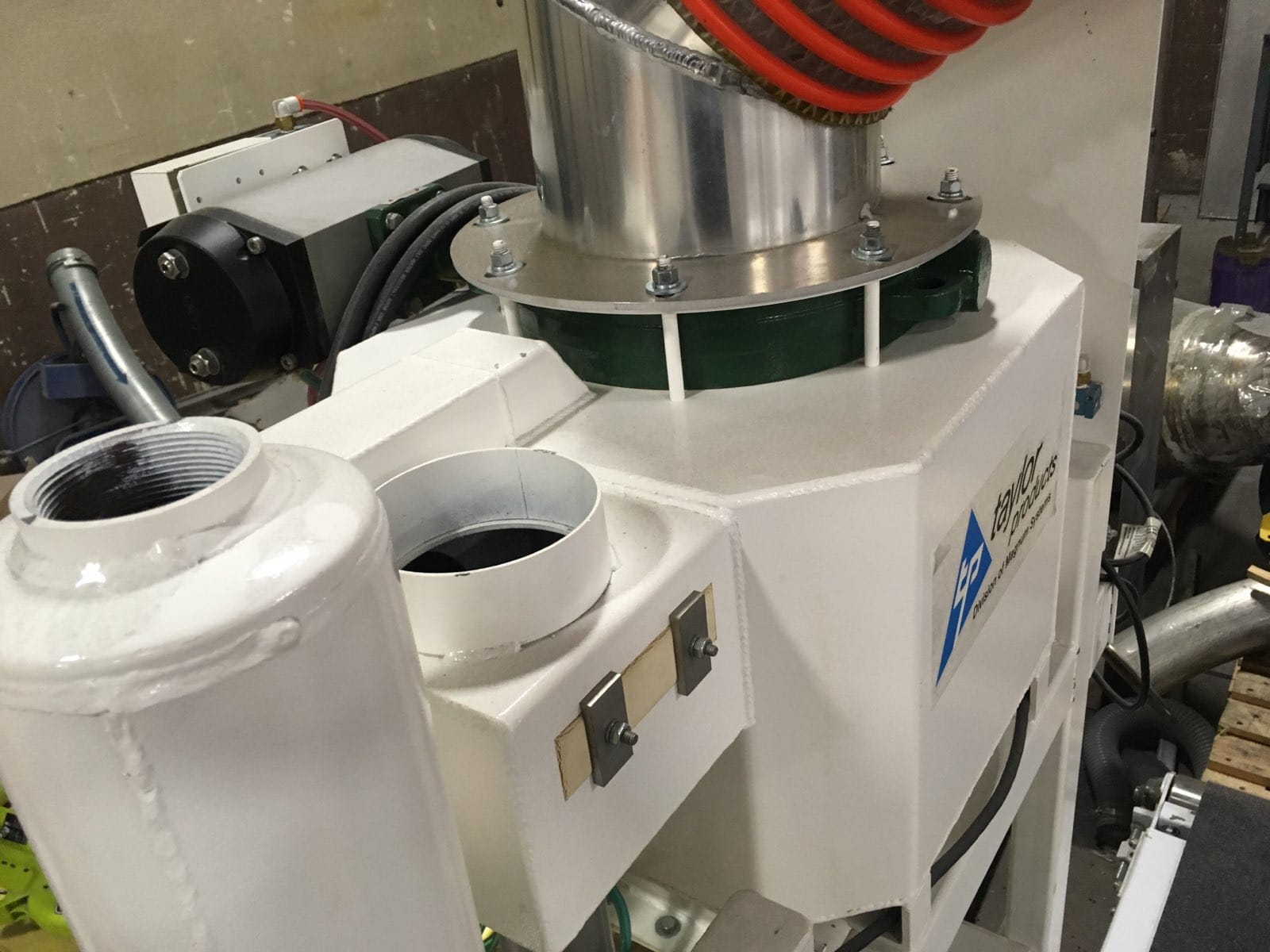

Taylor Products Type-C Valve Type Bagger , 15 -125 Lb Bag Capacity
$16,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

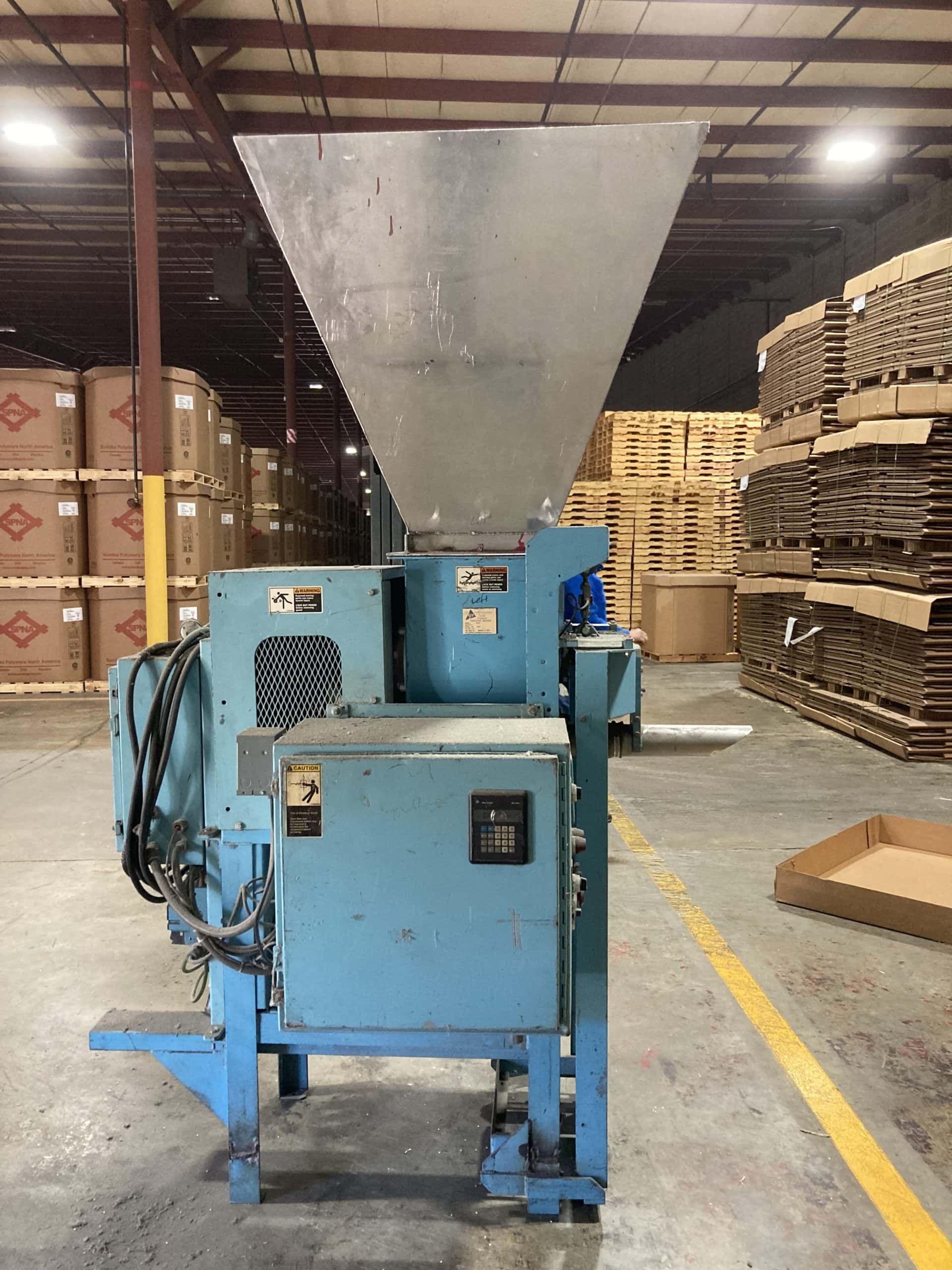

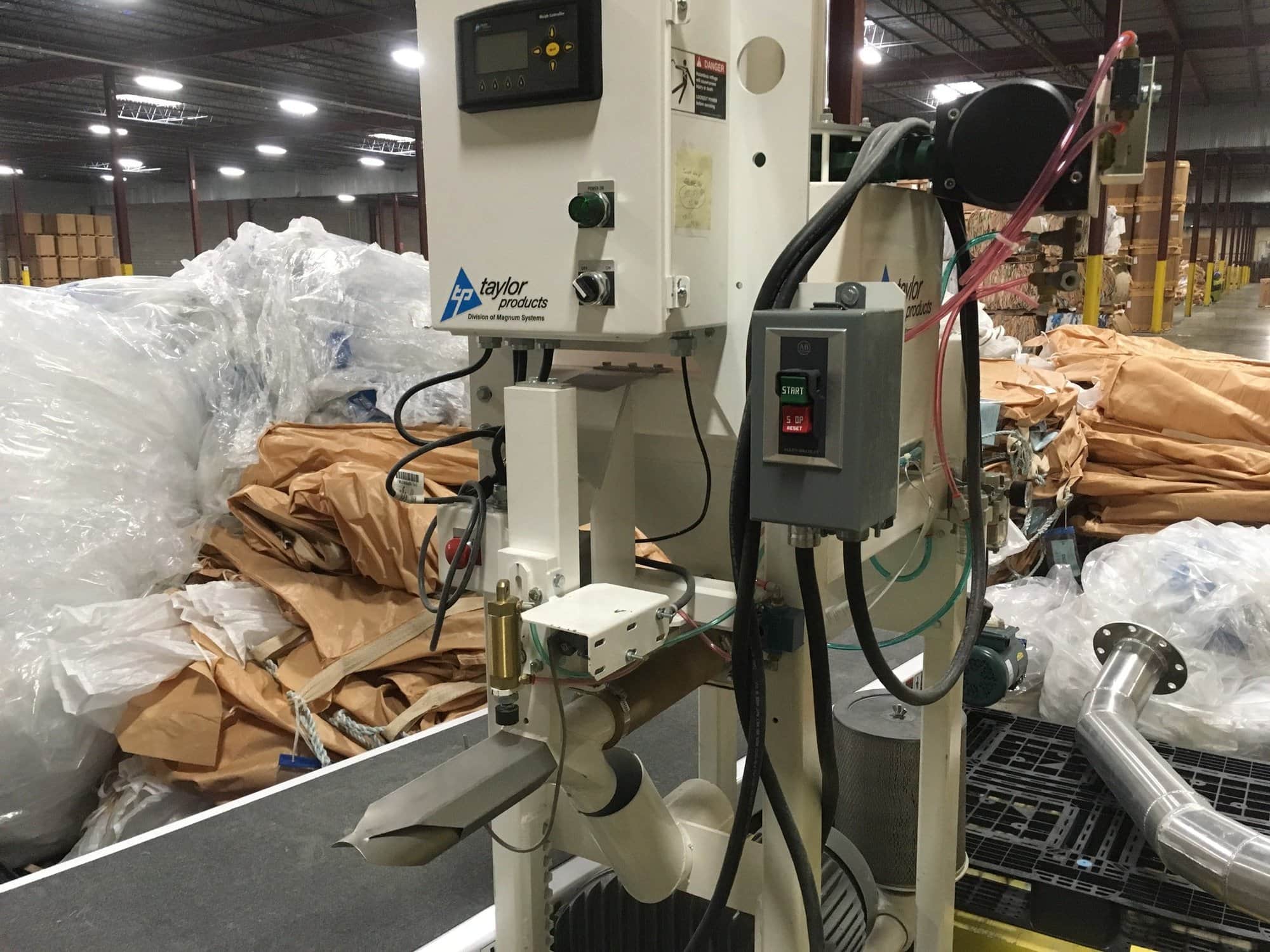

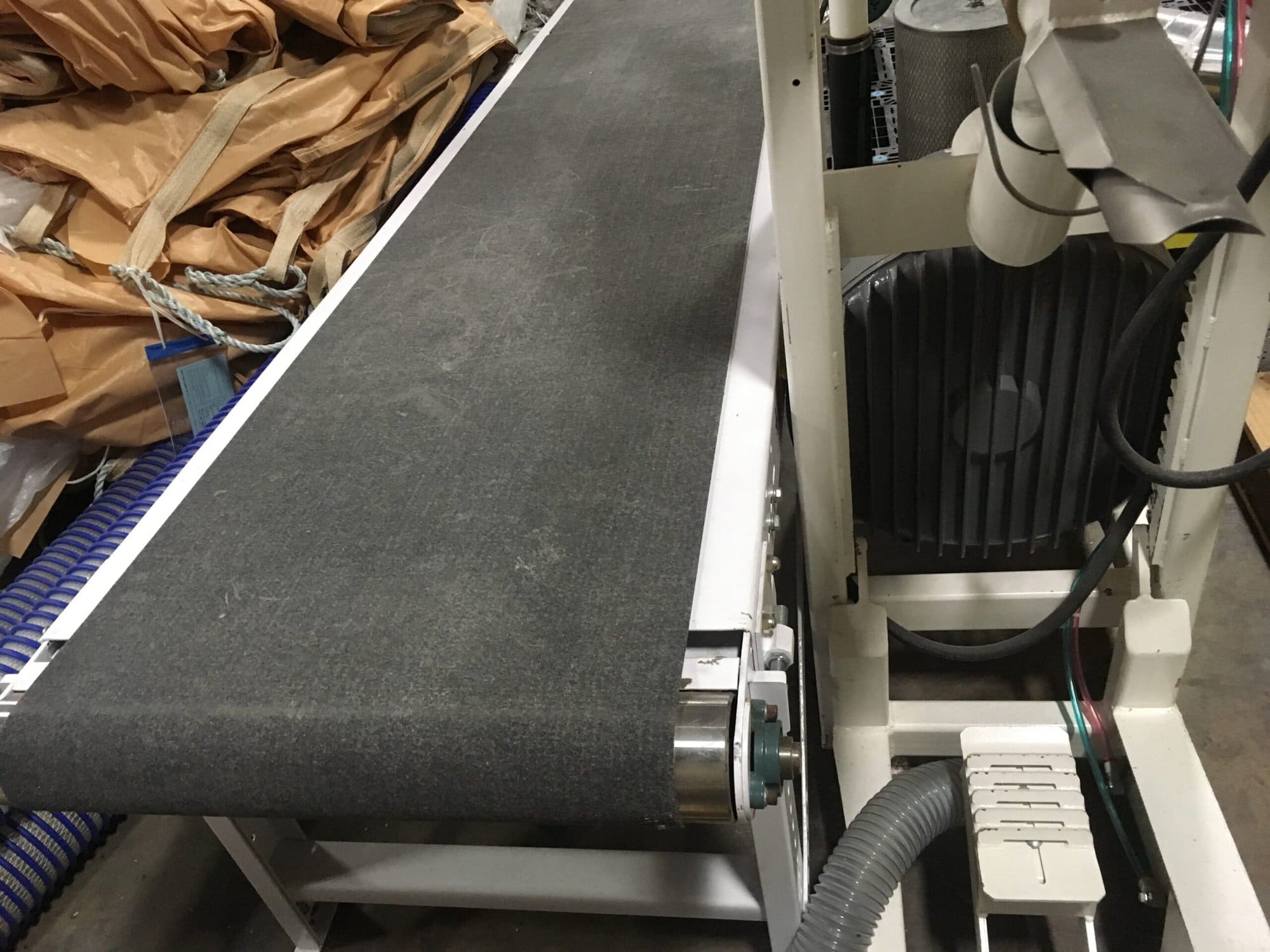

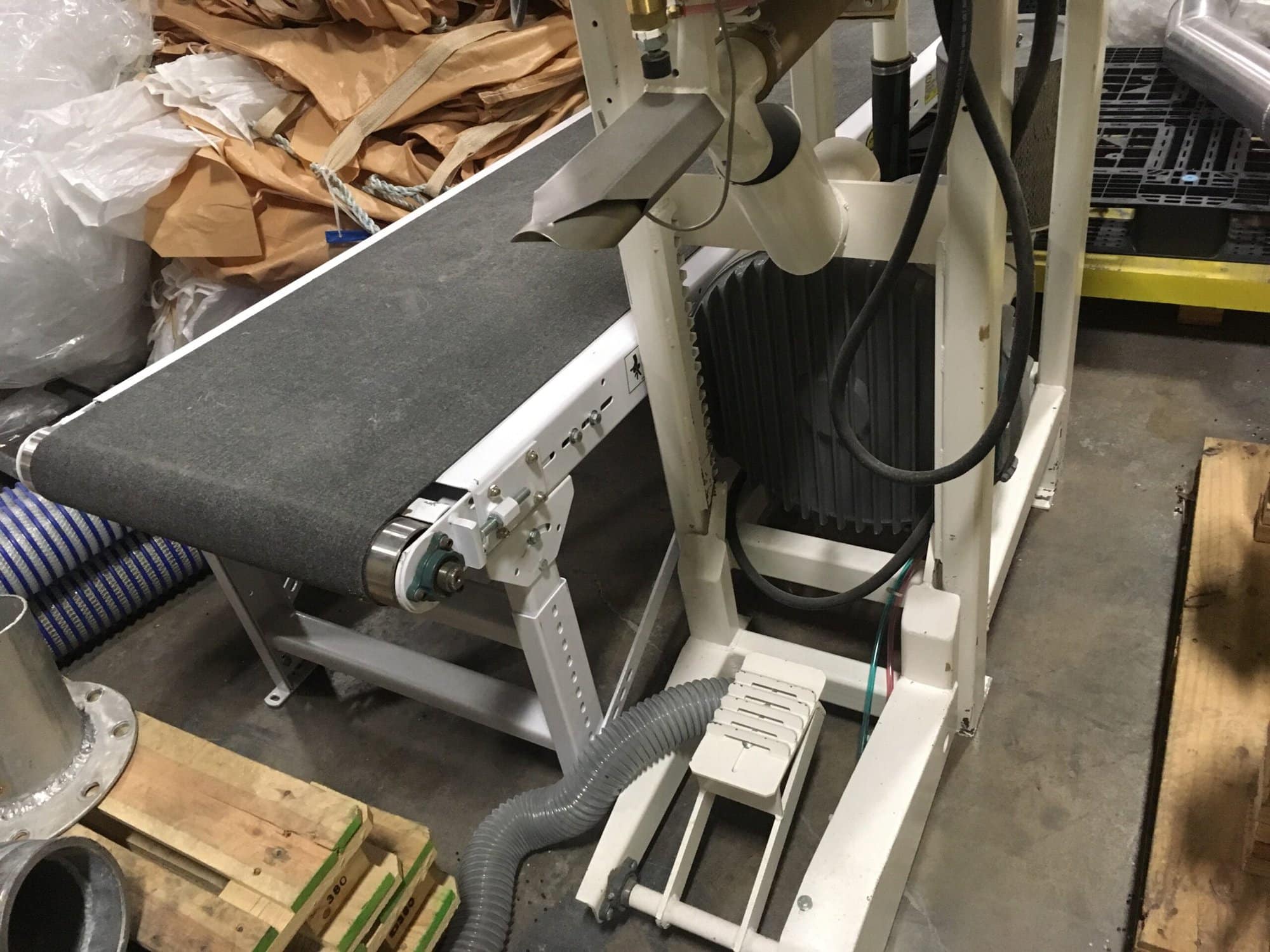

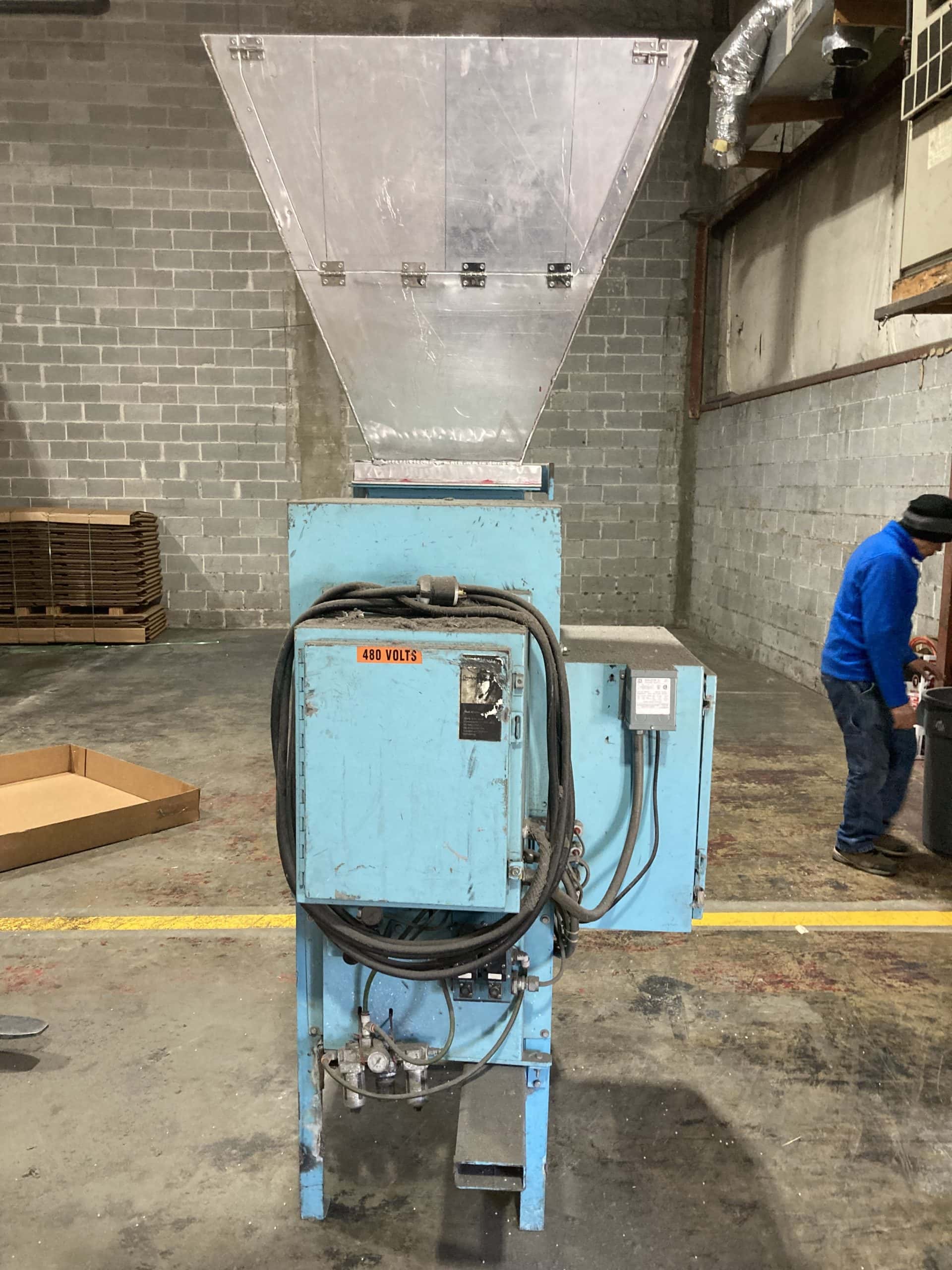

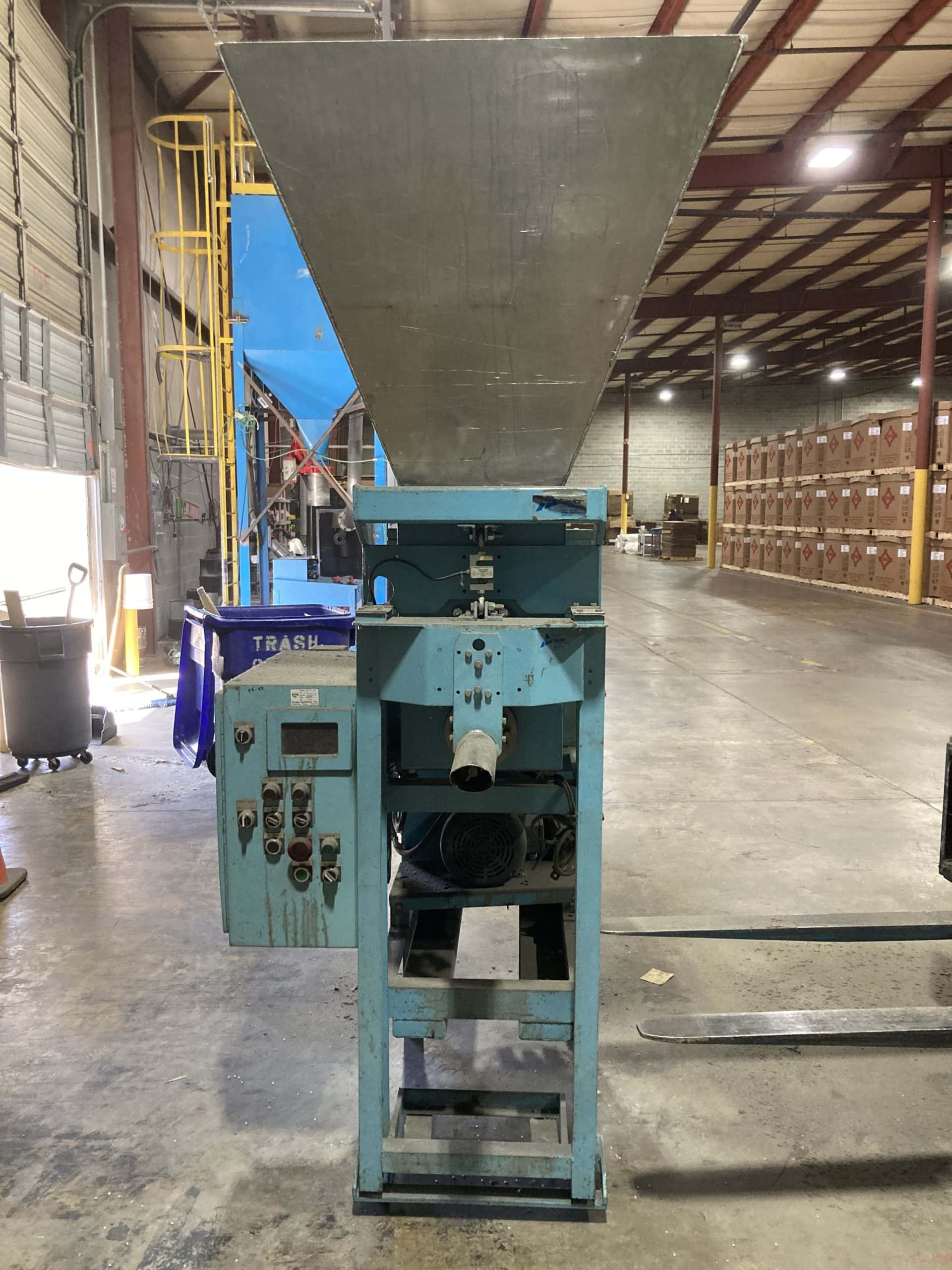

Used Taylor Type-C Valve Bagger and discharge conveyor, Specs are as follows;
• 15 to 125 lb capacity for valve bags
Dimensions
19.0 in x 49.25 in x 78.125 in
Speed: Up to 600 BPH/Spout
Accuracy: Up to 0.4%
Weight Range:15 lb to 125 lb
Scale:Analog, Digital
Configuration: Single spouts
Construction: Carbon Steel Blasted and Painted

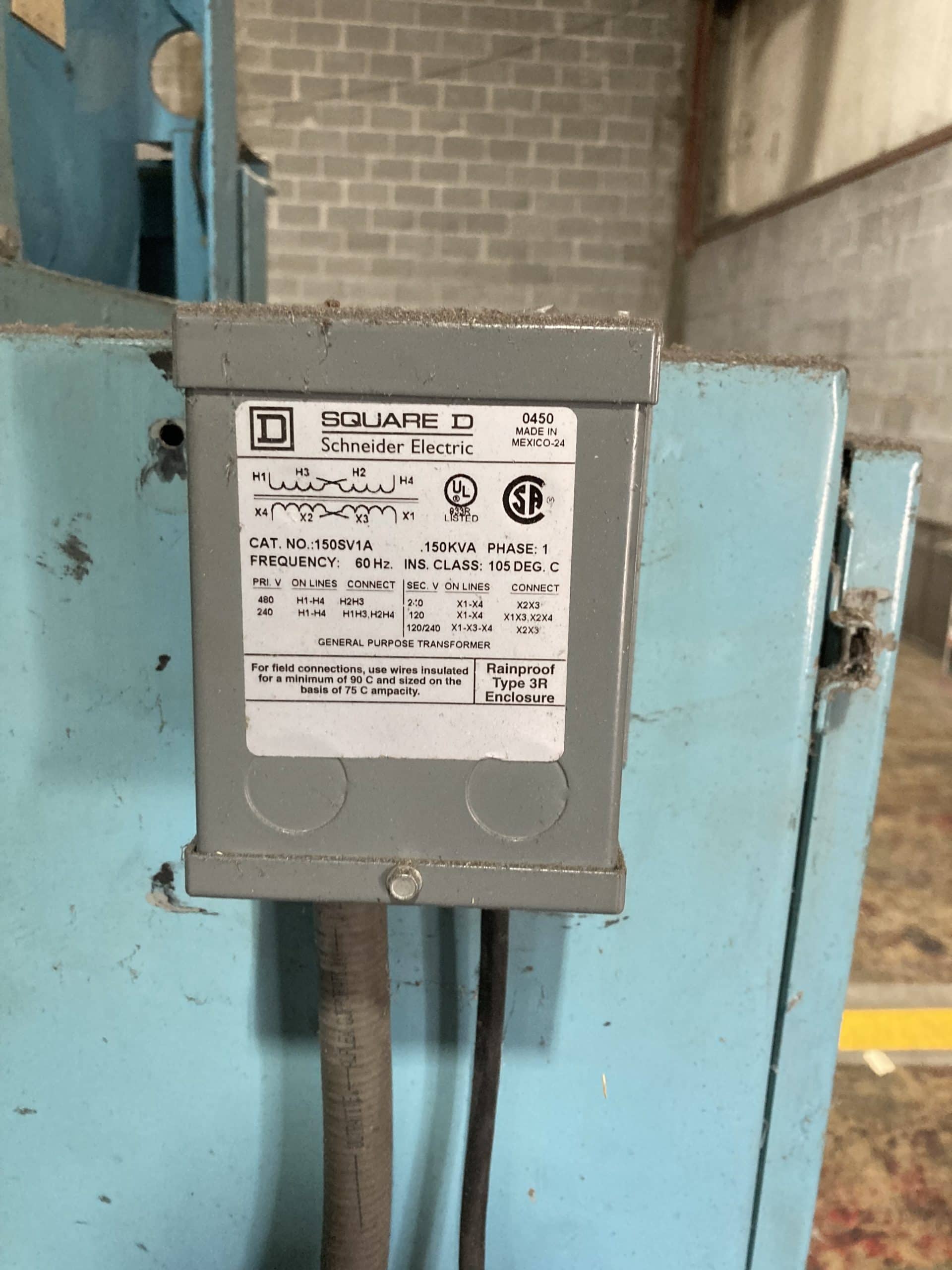

Electrical Requirements:230/460 Volt, 3 phase, 60 Hertz (Blower)
Air Requirements: 90 PSI 0.5 cubic feet per cycle 200-300 CFM (dust control recommended)
Process Air: Integrated Regenerative Blower
Product Hopper: 4,000 cubic inch Capacity (standard)
Bag Discharge: Integrated Pneumatic Kicker (standard)
Bag Clamp: Integrated Pneumatic Clamp (standard)
Product Cut-off: Pop-Off Vent (No Pinch on Fill Tube) Last used to fill plastic pellets. But MFg indicates that unit is good for all free flowing materials including Certified seeds • Fertilizers • Plastic pellets • Grains • Sand
