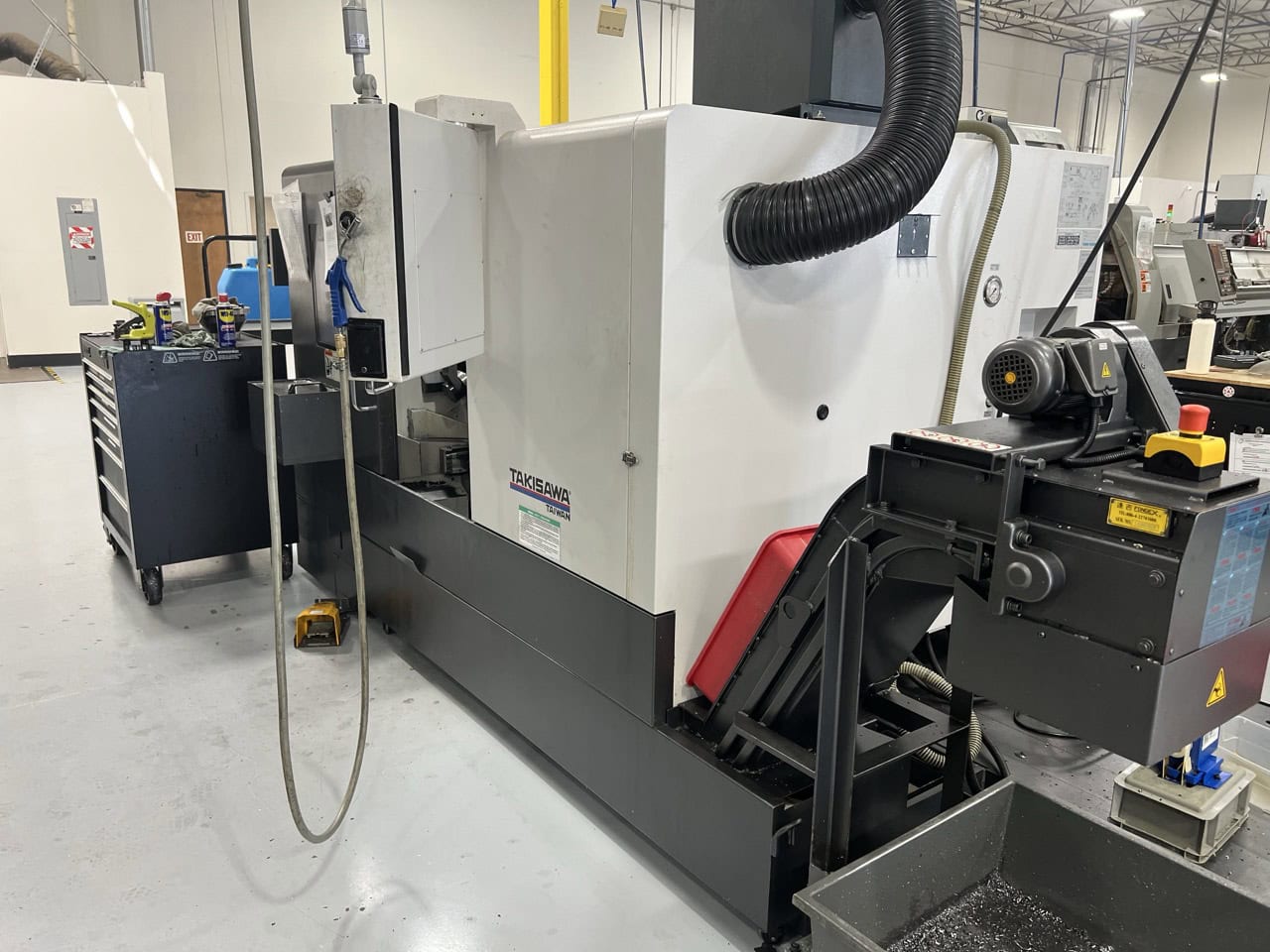

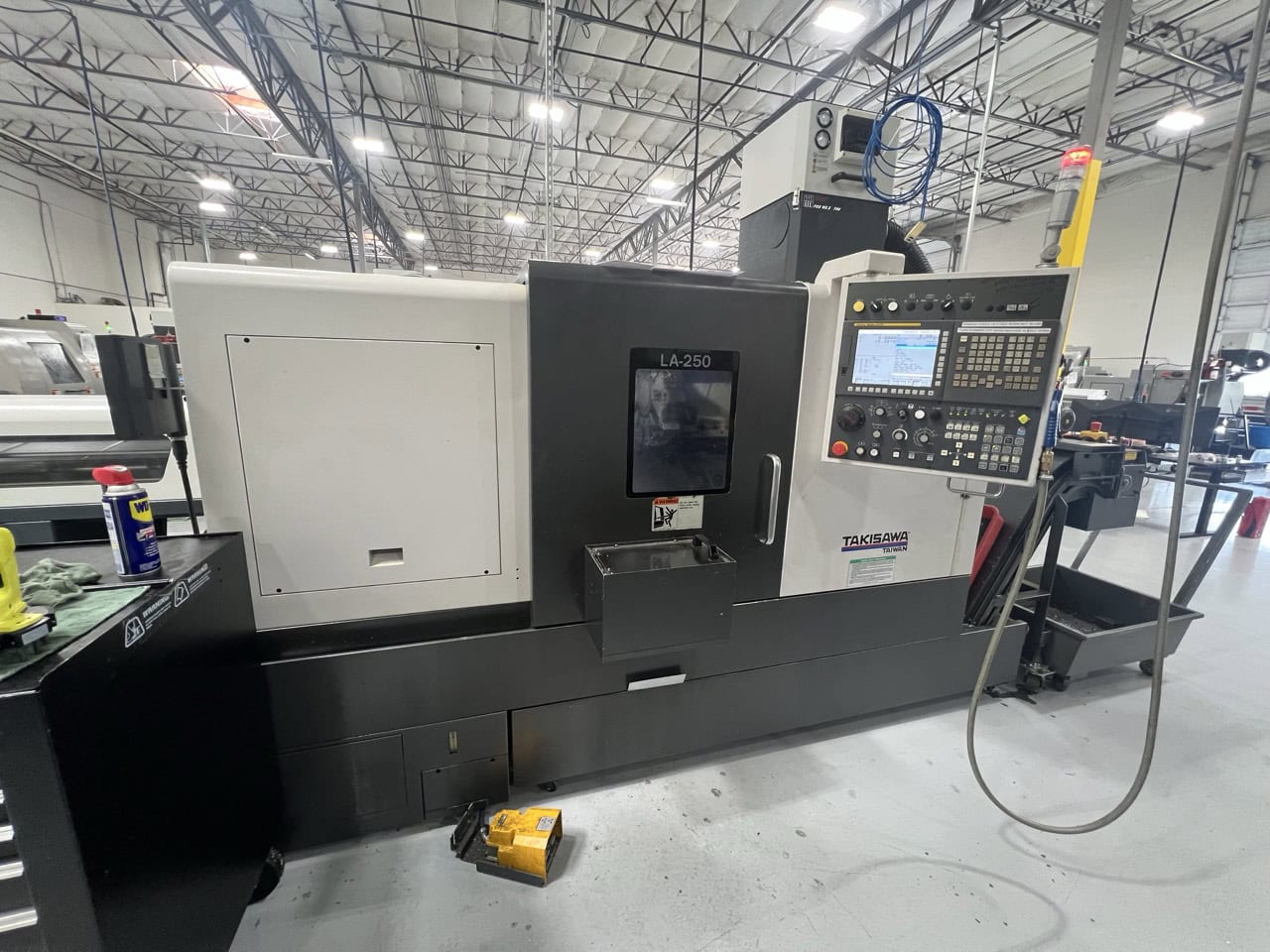

Takisawa LA-250 CNC Lathe, 2018 – Tailstock, Chip Conveyor, Parts Catcher
$59,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Distance Between Center: 34.6″
Chuck Diameter: 10″
Max Turning Diameter: 17.7″
Max Turning Length: 30.1″
Bar Capacity: 3″
X-Axis Travel: 10″
Z-Axis Travel: 31.5″
Spindle Speed: 3,500 rpm
Spindle Nose: A2-8
Spindle Thru-Hole Diameter: 3.4″
Spindle Bearing Diameter: 4.7″

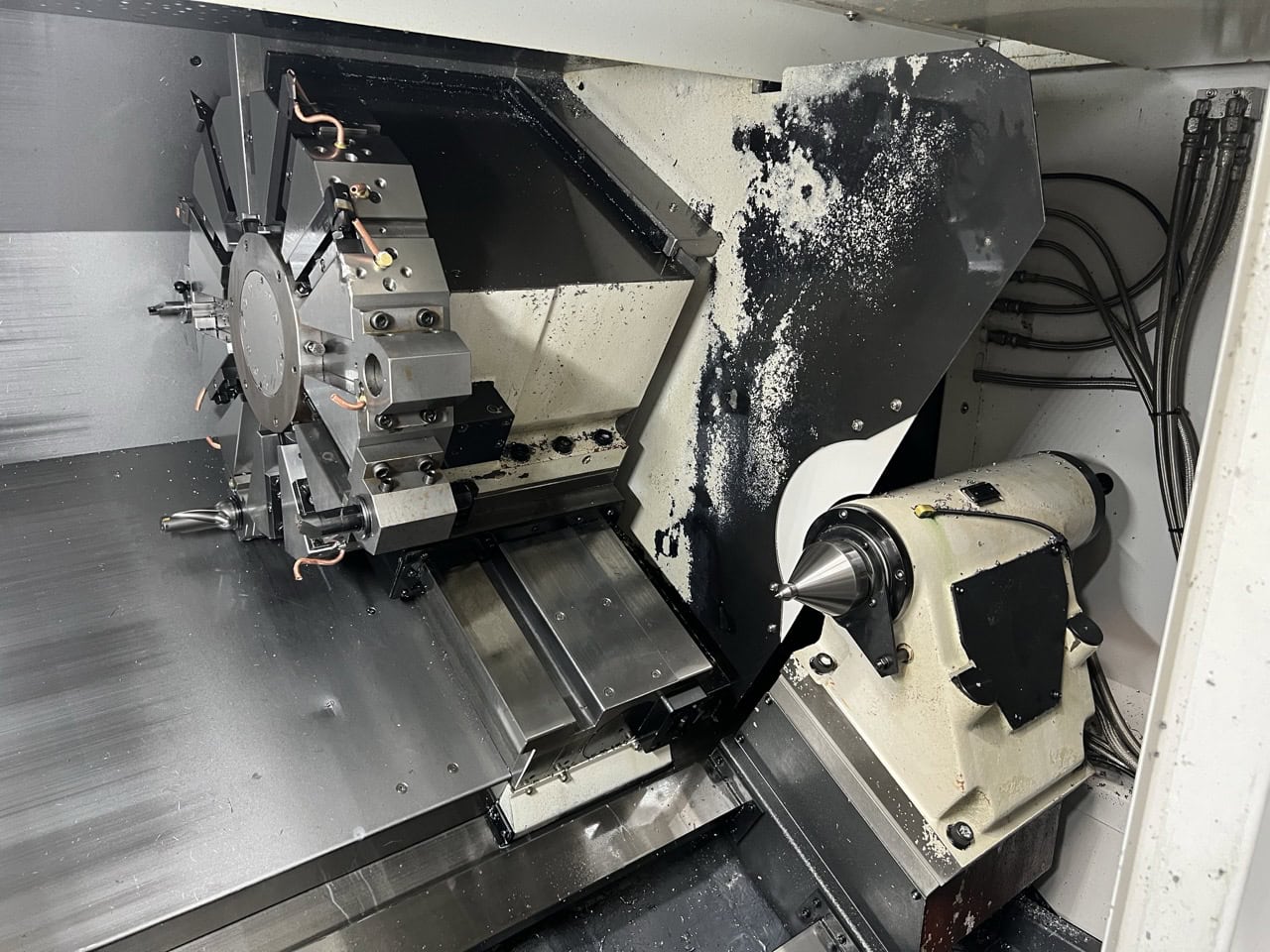

Turret: 12 station
OD Tool Shank: 1″ square
Diameter of Boring Bar Holder: 1-1/2″
Time of Tool Change: 0.6 sec
Tailstock Stroke: 28.7″
Tailstock’s Shaft Stroke: 5.9″
Tailstock Taper: MT #5
Tailstock’s Shaft Hole Diameter: 4.3″
X-Axis Rapid: 630 ipm
Z-Axis Rapid: 787 ipm
Jog Feed Rate X-Axis: 0-50 ipm
Jog Feed Rate Z-Axis: 0-50 ipm
Spindle Motor: 25 / 20 HP
Equipped With:

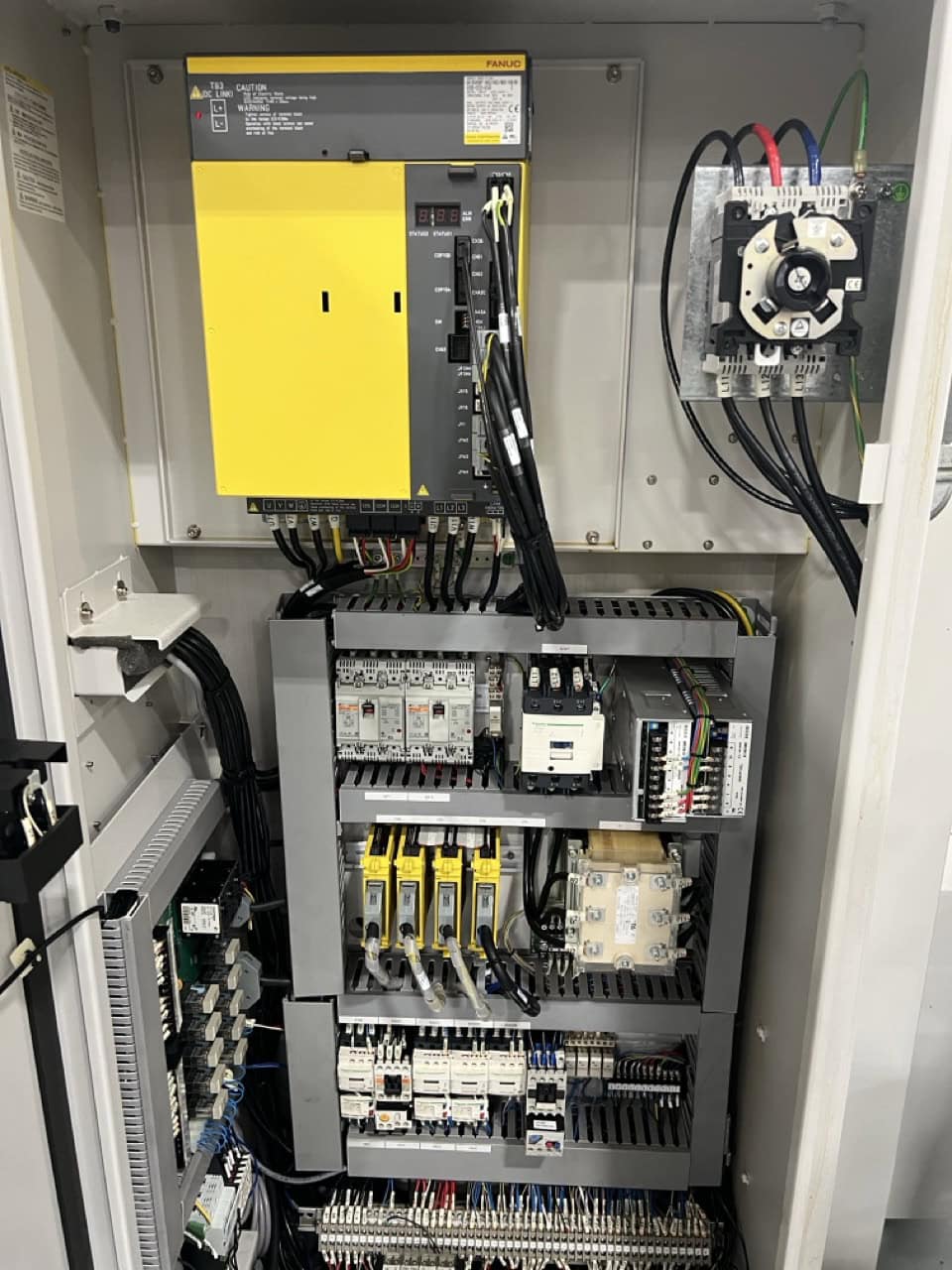

Fanuc 0i-TF Control
Tailstock
