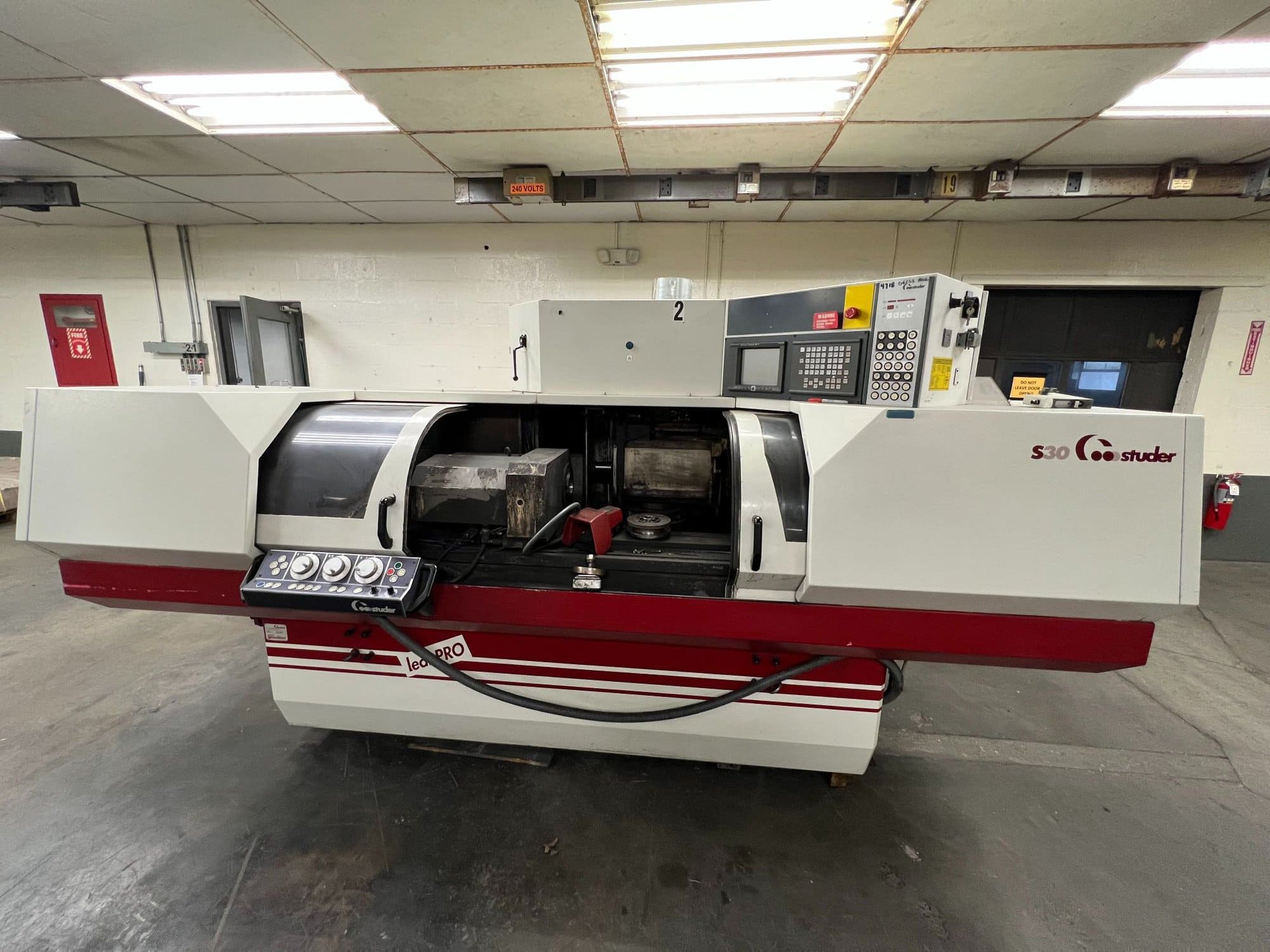

Studer S30 Lean Pro CNC Universal ID/OD Cylindrical Grinder, 2001 – Tailstock Included
$27,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Center Distance: 39.4″
Maximum Grinding Length: 37.8″
Max Grinding Wheel Width: 6″
Max Grinding Wheel Diameter: 15″
Maximum Workpiece Weight between Centers: 286lbs
Z-Axis Travels: 41.4″
X-Axis Travels: 10.8″
Turret Wheelhead
Swivel Range: -15° – 195°
ID Spindle Diameter: 4″
ID Spindle Speed: 20,000RPM
Main Spindle Motor: 10HP
Dimensions
Approx. Machine Length: 146″
Approx. Machine Width: 85″
Approx. Machine Height: 90″
Approx. Machine Weight: 13,200lbs
Equipped With

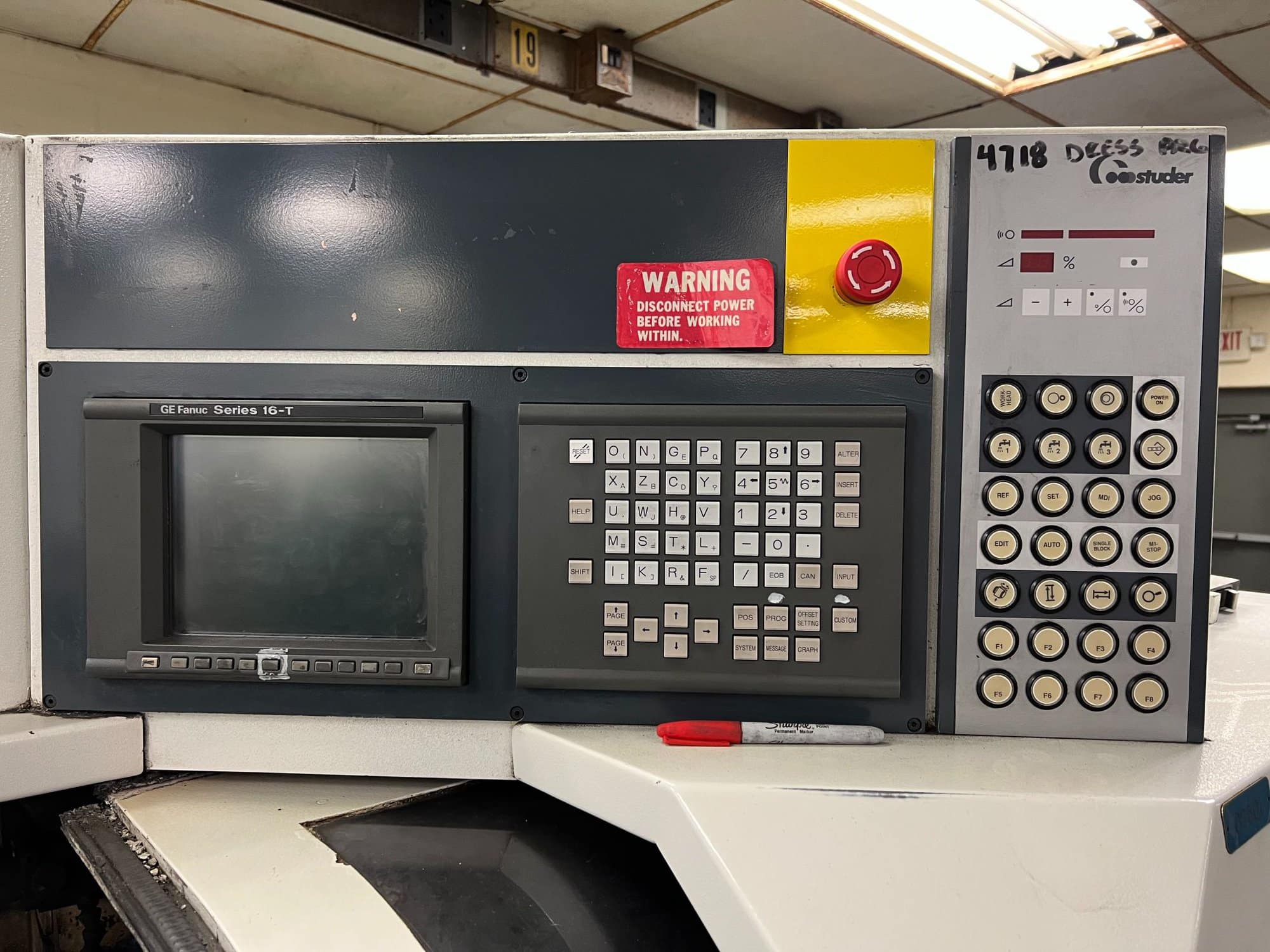

GE Fanuc Series 16-T CNC Controller
Tailstock
6 Extra Wheel Hubs
Mist Collector
