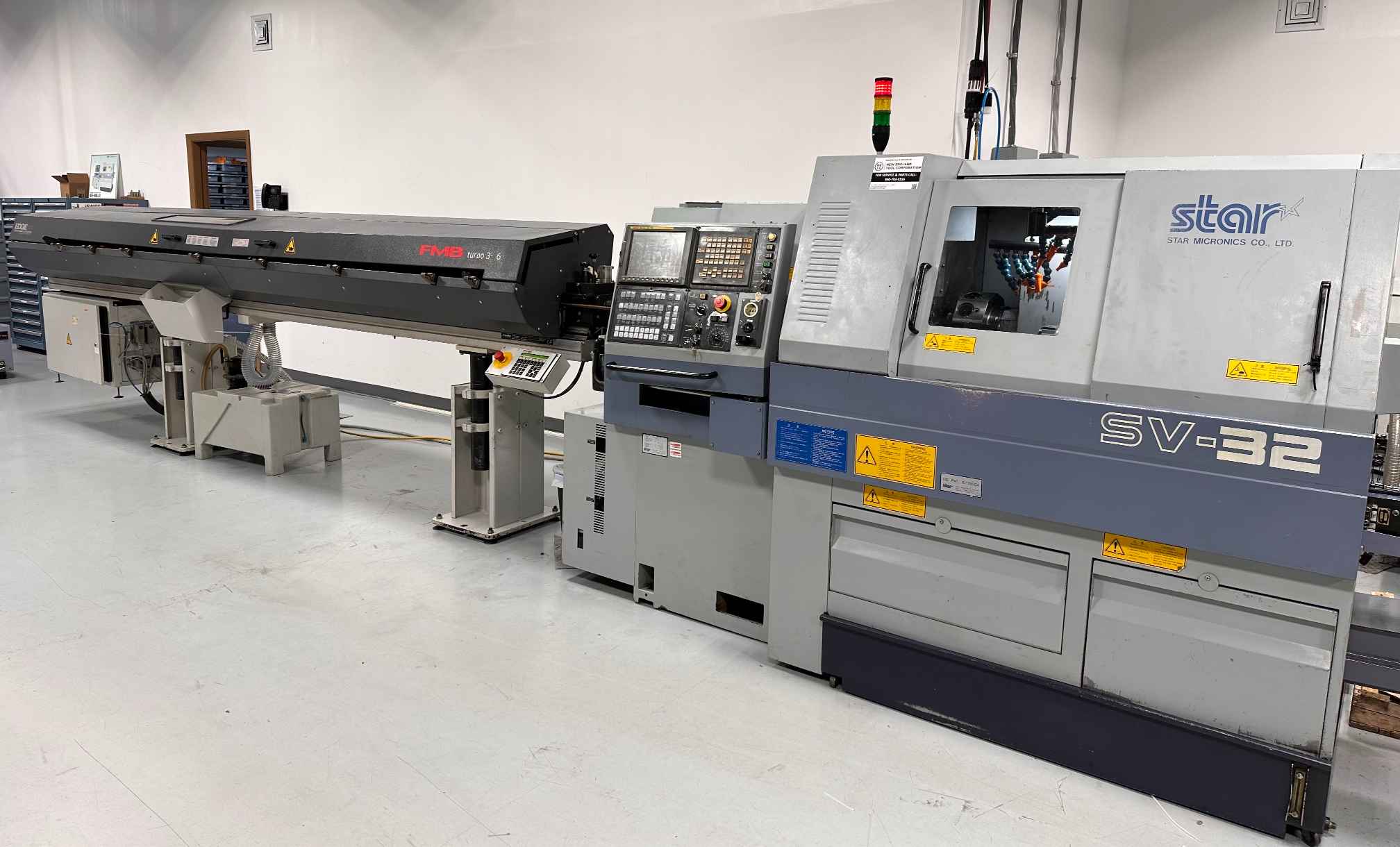

Star SV-32 Swiss CNC Lathe, 2003 – Live Tooling, Bar Feeder
$139,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max. Machining Diameter: 1.26″
Max. Machining Length per Chucking: 12.6″
Spindle Speed: 200 – 7,000 RPM
Main Spindle Motor: 5.5 kW (7.5 HP)
Back Spindle Motor: 1.5 kW (2 HP)
Approximate Machine Weight: 8,800 lbs
Equipped With

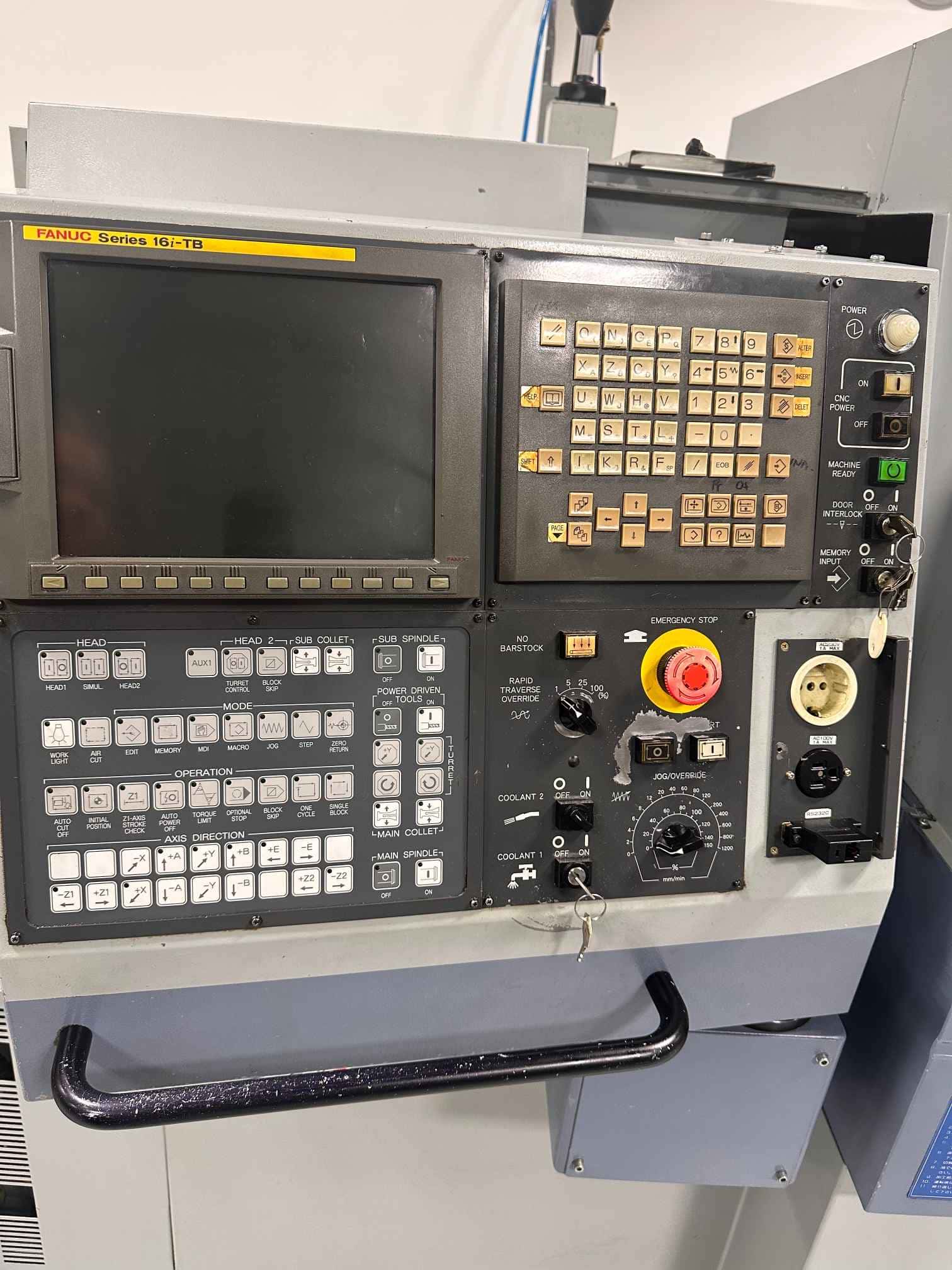

FANUC-16iTB
LNS Chip Conveyor
Magic Guide Bushing
Chip Blaster Pump

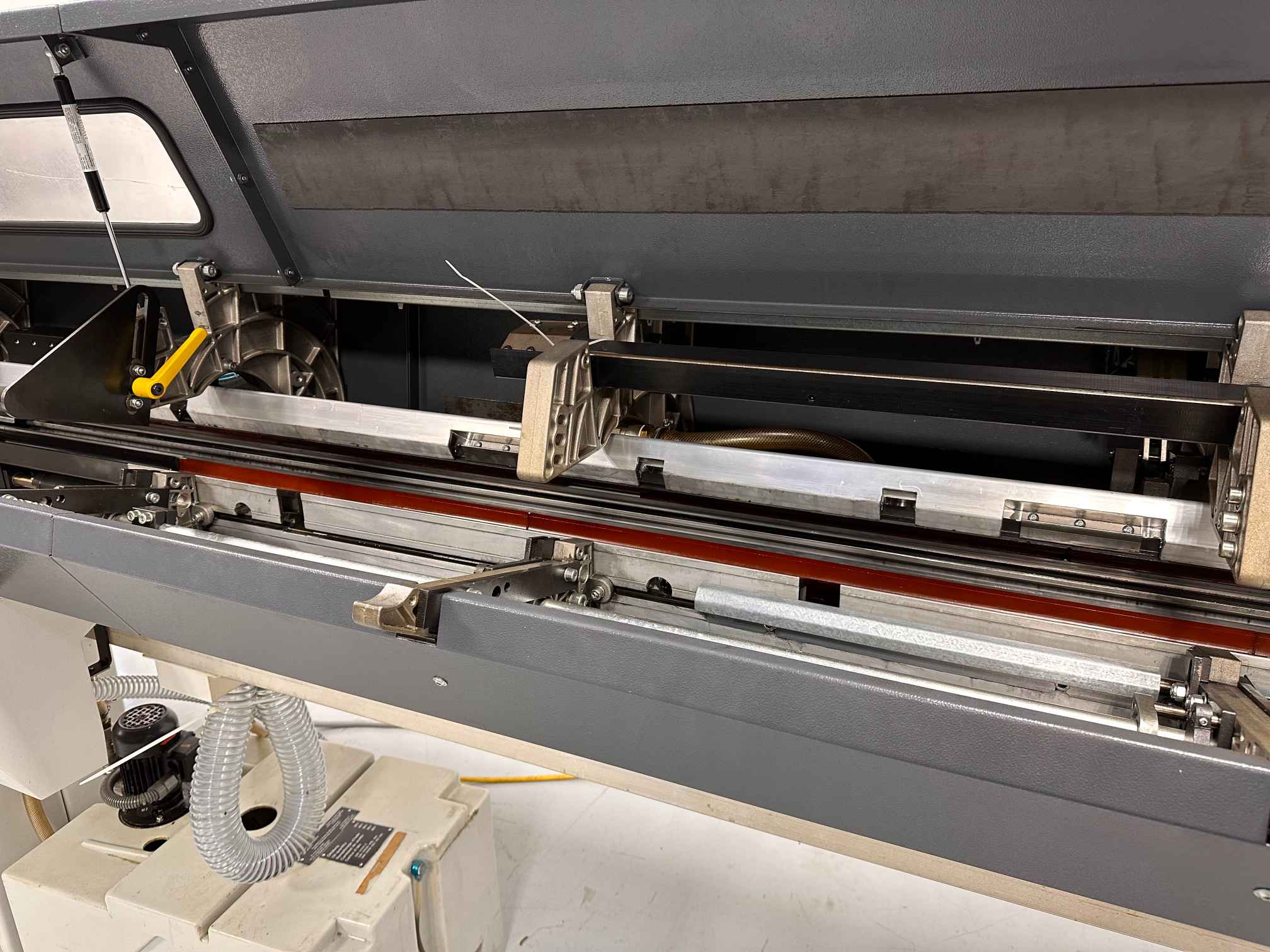

FMB Turbo 3-36 Loader (w/ 32mm channel set and 10mm pusher set)
Tool Holders
Tooling
NEW PARTS INSTALLED
X axis ballscrew and bearings
Y axis ballscrew bearings
Way lube pump
Main spindle toggles
Sub spindle toggles
Cabinet Fan
Cutting room lights (LED replacement)
New door limit switch
Rebuilt counter unit
Full machine alignment
1 Year Fanuc Warranty
