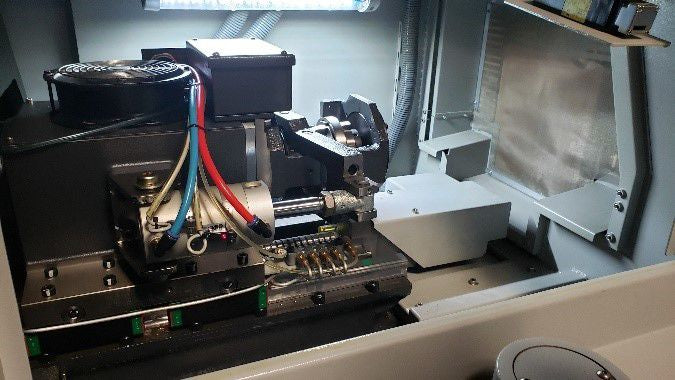

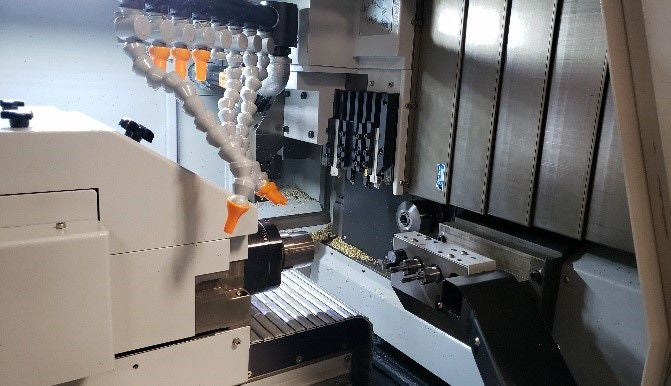

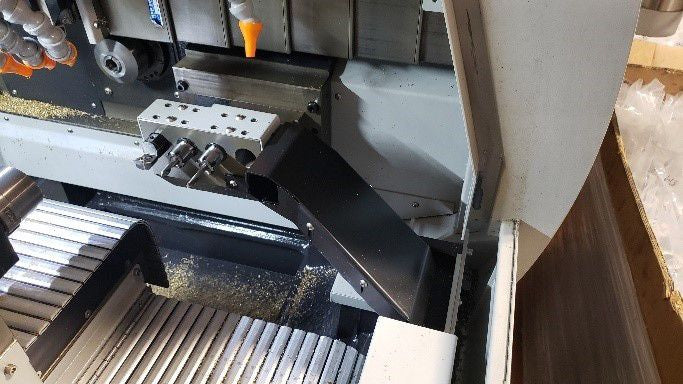

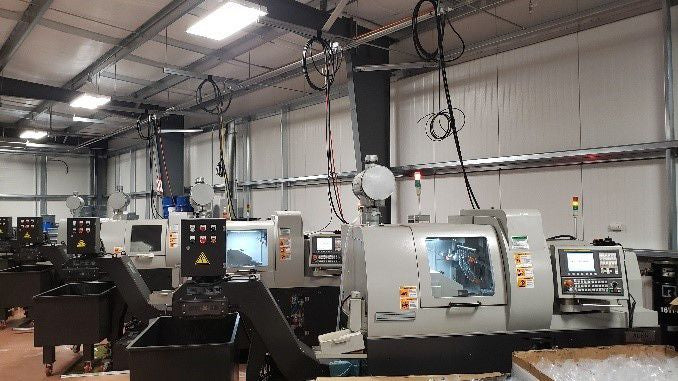

Star Ecas-20 Swiss-Lathe, 2008
$49,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max. Machining Diameter 20 mm (25/32″)
Max. Headstock Stroke 205 mm (8″)
Tool Post:
Front Tool Post Turning/power
Driven Rear Tool Post Turning/end
Working Power driven
Tool:
Number of Tools (front) 4 Tools
Number of Tools (rear) 12 Tools
Tool Shank 12 mm
4-Spindle Sleeve Holder:
Number of Tools 4 Tools
Max. Drilling Capacity 10 mm (25/64″)
Max. Tapping Capacity M8 x P1.25″
Max. Die Cutting Capacity M8 x P1.25″
Power Driven Tools:
Power Driven/Live Tools (front slide) 3 Tools
Power Driven/Live Tools (rear slide) 3 Tools
Max. Drilling Capacity 8mm (5/16″)
Max. Tapping Capacity M6 x P1.0
Max. Milling Capacity 10mm (25/64″)
Max. Slotting Capacity 1.5mm(W) x 4mm (D)
Main Spindle Indexing Degree 0.01 deg. (C-axis)
Control:
Main Spindle Speed 10,000 RPM
Main Spindle Motor 2.2 Kw (Cont.)
3.7 kW (30 min.):
Power Driven Tool 8,000 RPM
Power Driven Drive Motor AC Servo Motor
0.75 kW:
Coolant Tank Capacity 120 liters
Power Consumption 8 KVA
Backworking attachment specifications:
Max. Chuck diameter 20mm (25/32″)
Max. Length for front ejection 80mm (3-5/32″)
Max. Parts projection length 30mm (1-3/16″)
4 Spindle Attachment for back working side:
Max. Drilling capacity for Stationary tool 10mm (25/64″)
Max. Drilling capacity for driven tool 8mm (5/16″)
Max. Tapping capacity for stationary tool M8 x P1.25″
Max. Tapping capacity for power driven tool M6 x P1.0
Sub Spindle Minimum Indexing Angle 0.01 deg. (C-Axis-
control)
Sub Spindle Speed 10,000 RPM
Sub Spindle Motor 2.2kW (Cont./3.7kW
(30 min)
Machine Dimensions (approx) 8.5’Lx3.75″Dx6’H
Machine Weight (approx) 7,700 lbs

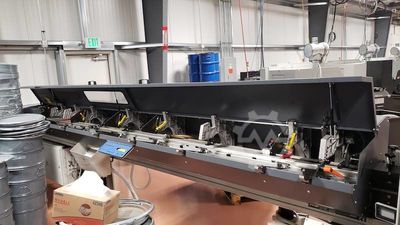

Bar Feed Dimensions (approx) 3’W x 15’L
