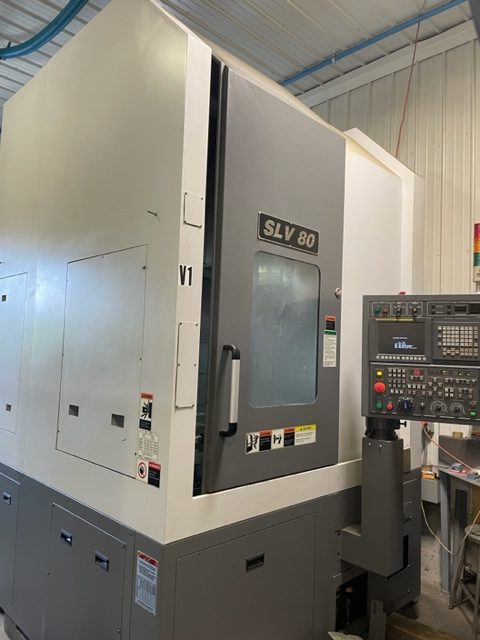

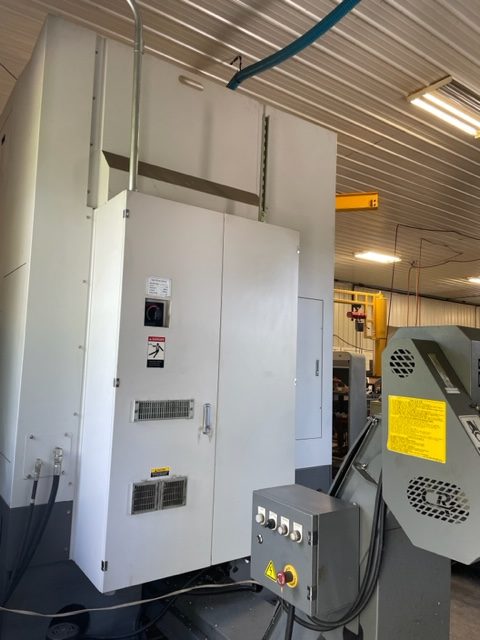

Samsung SLV-80 VTL, 2015 – Low Hours, 24″ Chuck, Chip Conveyor
$100,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity
Swing over the bed: 35.04”
Swing over the cross slide: 29.13”
Maximum turning diameter: 31.89”
Maximum turning length: 31.50”
Spindle

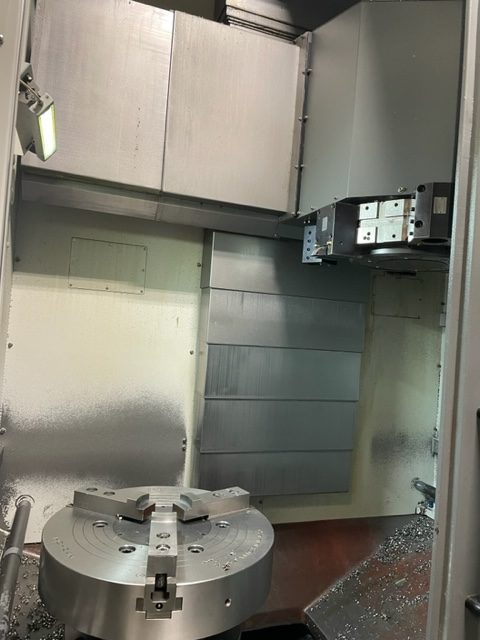

Chuck Size: 24″
Spindle Nose: A2-11 (ASA)
Main Spindle Motor: 50
Spindle Speed: 2,000 RPM
Spindle Bearing Diameter (front): 6.29″
Speed ranges: 2
Slide & Carriage
X Axis Travel:16.93”
Z Axis Travel: 31.5”
Rapid Traverse X: 787 ipm
Rapid Traverse Z: 787 ipm
Guide Ways (X / Z): Box way
Turret:
Number of Tool Stations: 12
Turret Indexing Speed 1 Station: .25 Seconds
Curvic Coupling: 3
Coupling Diameter / Clamp Force: 16,484 lbs.
Tool Size (Turning and Facing): 1-1/4” – Wedge Clamp
Tool Size (Boring Bar Maximum Diameter): 2-1/2”
Power Consumption: 62 kVA
Voltage: 220V±10%, 60 Hz, 3 phase
Control: Fanuc 0i-TD
Display Unit: 10.4” TFT LCD Color Monitor
1,519 Hours Run Time
1,420 Hours Cut Time
Machine Size
Floor Space Requirements (L x W x H): 75” x 100” x 140”
Machine Weight: 24,250 lbs.
