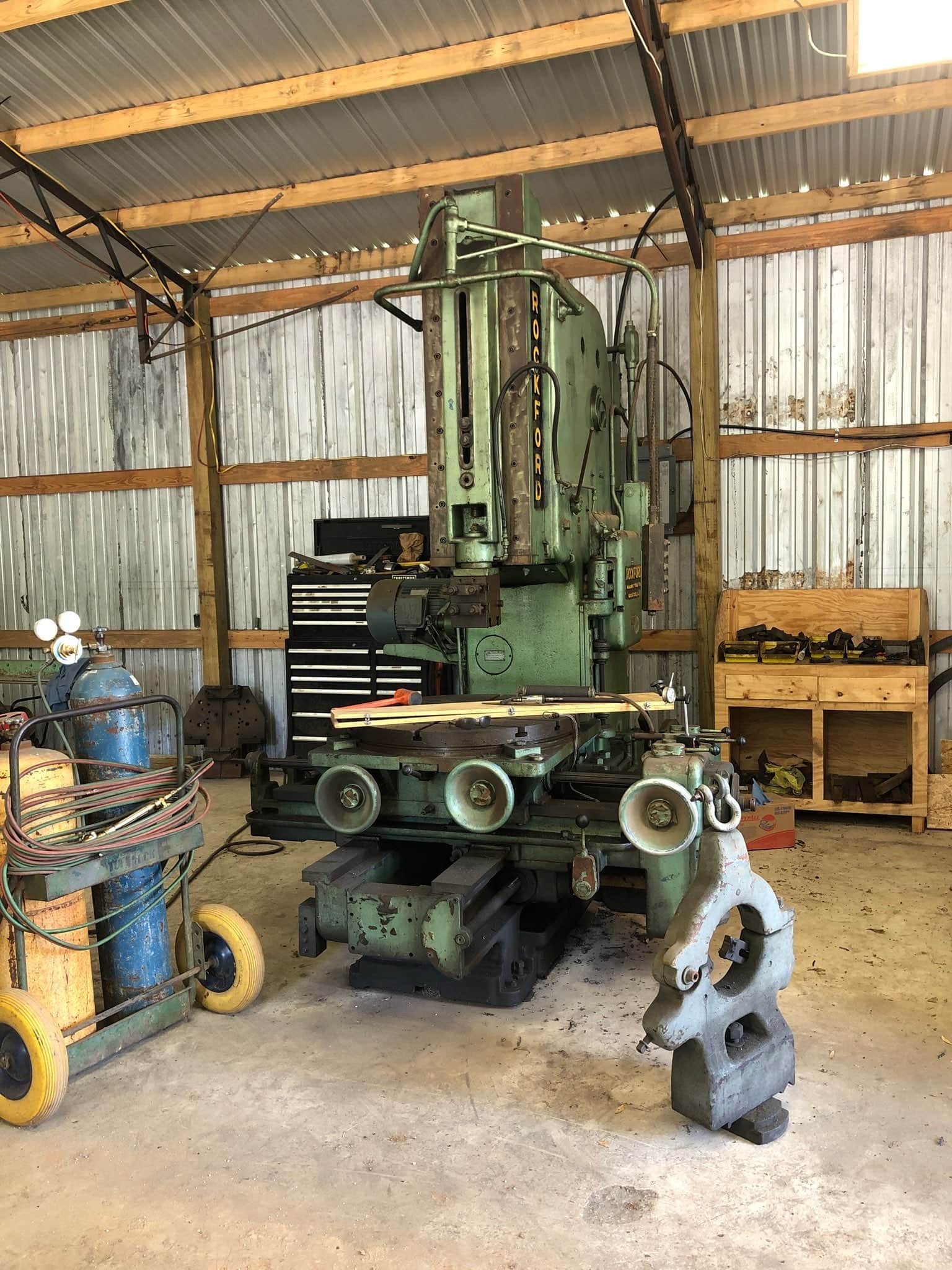

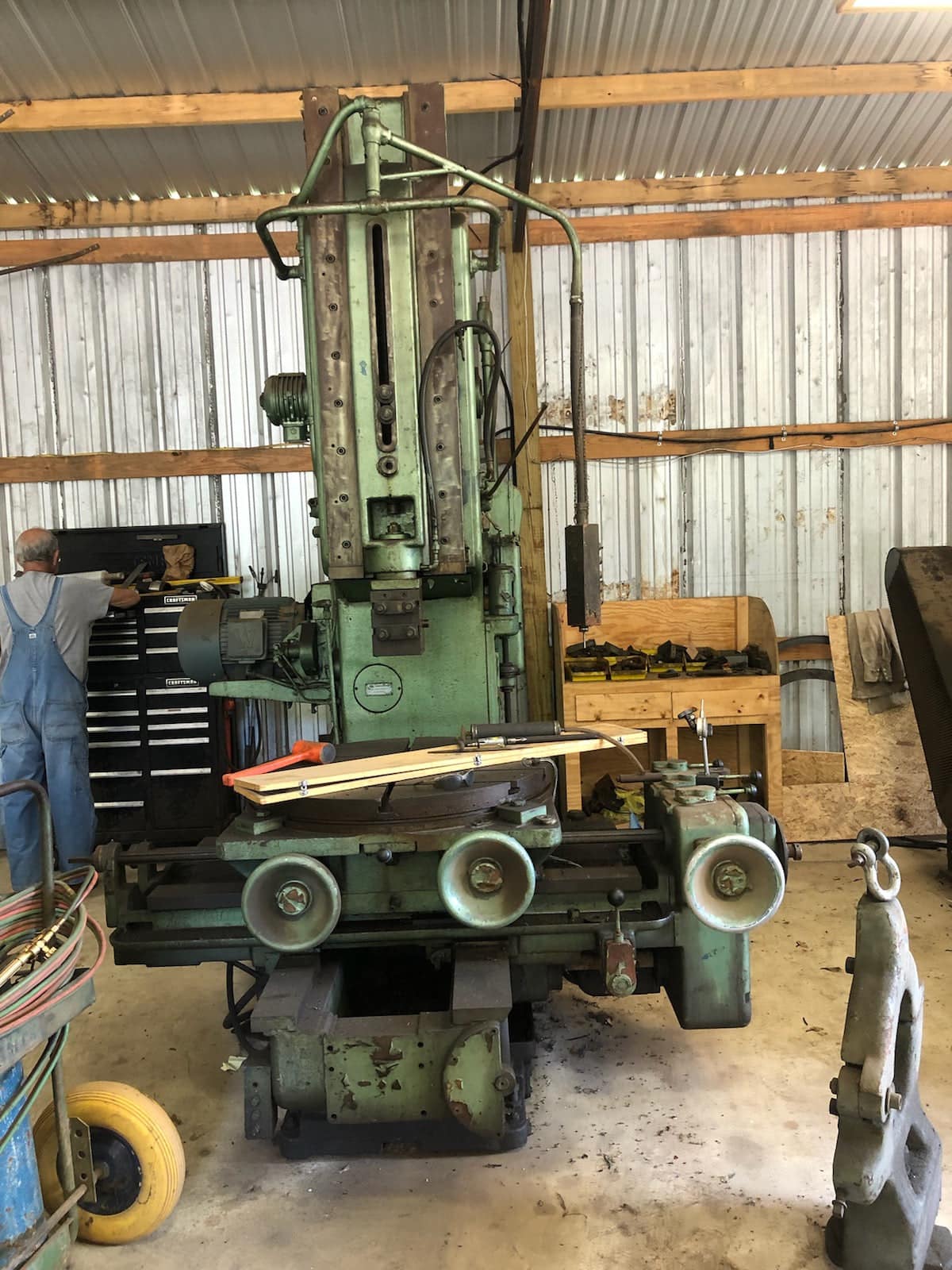

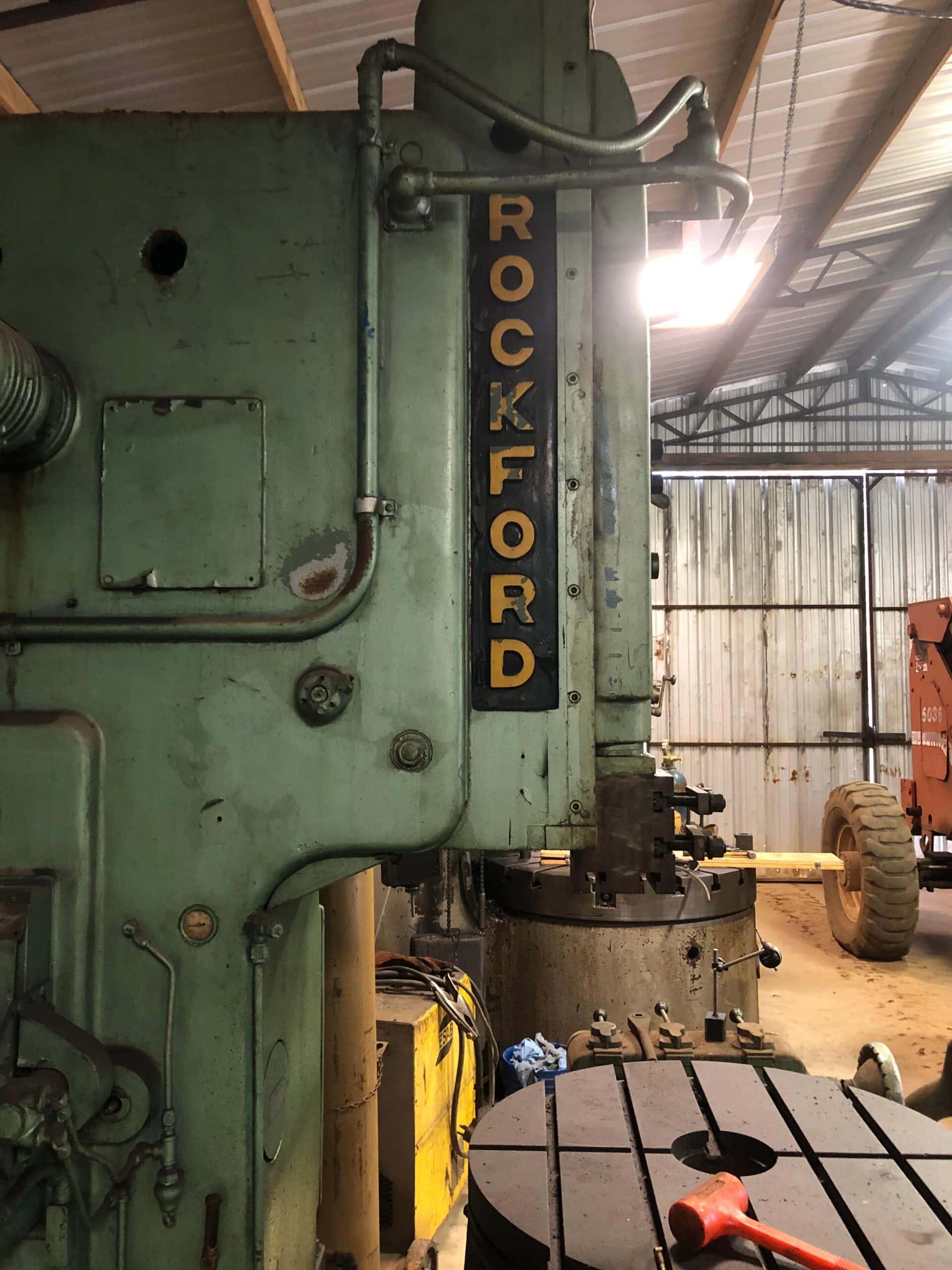

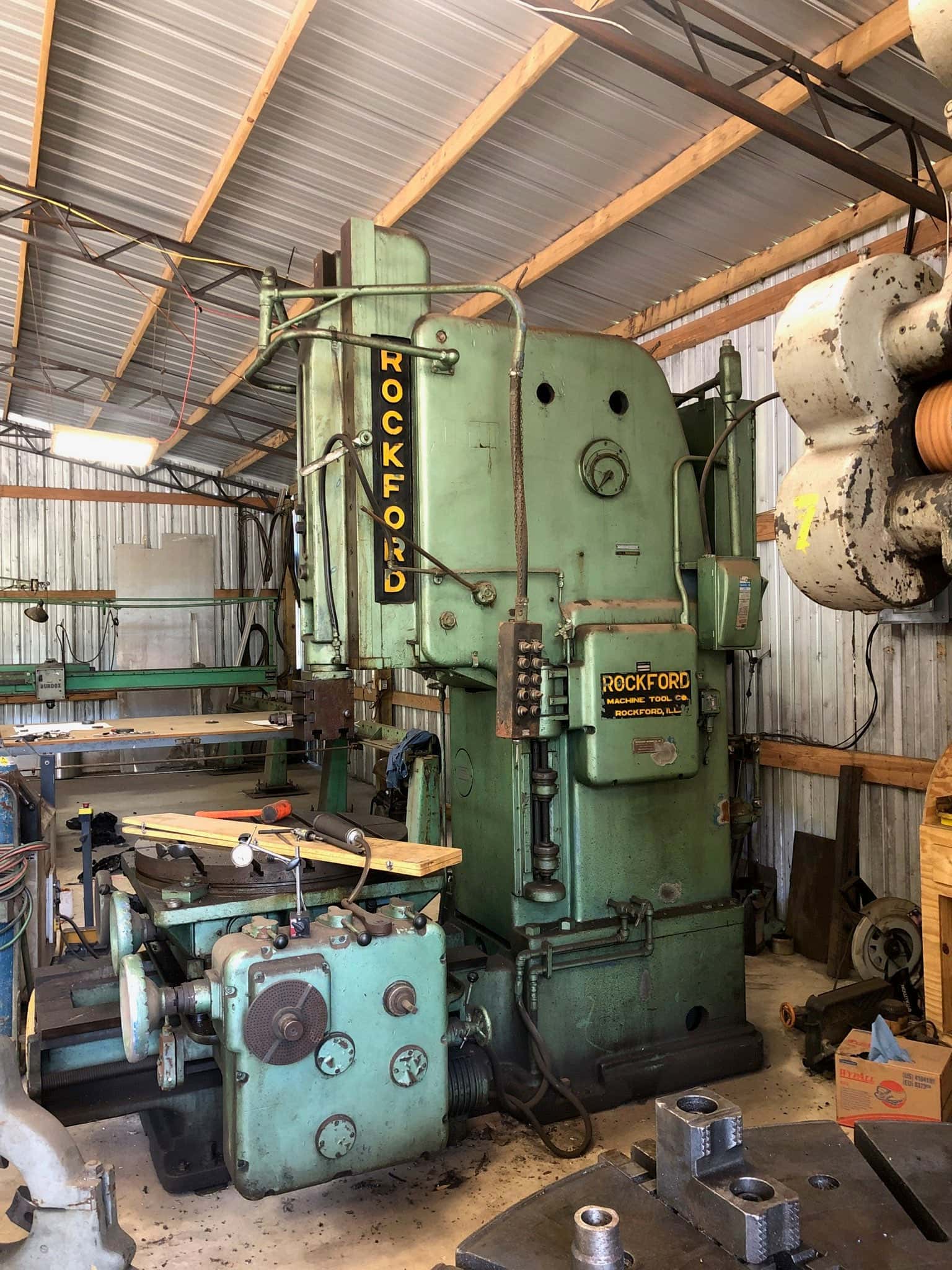

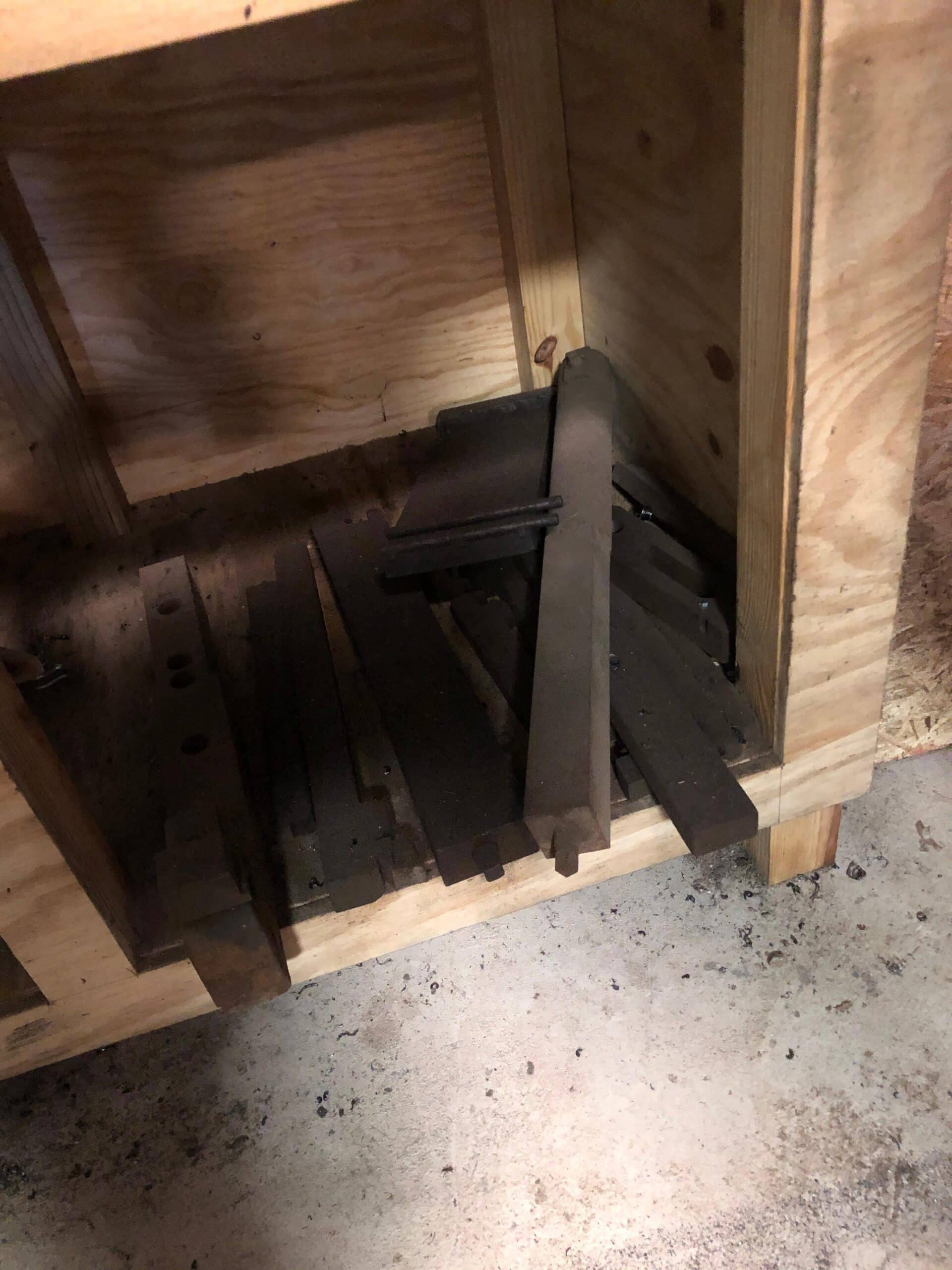

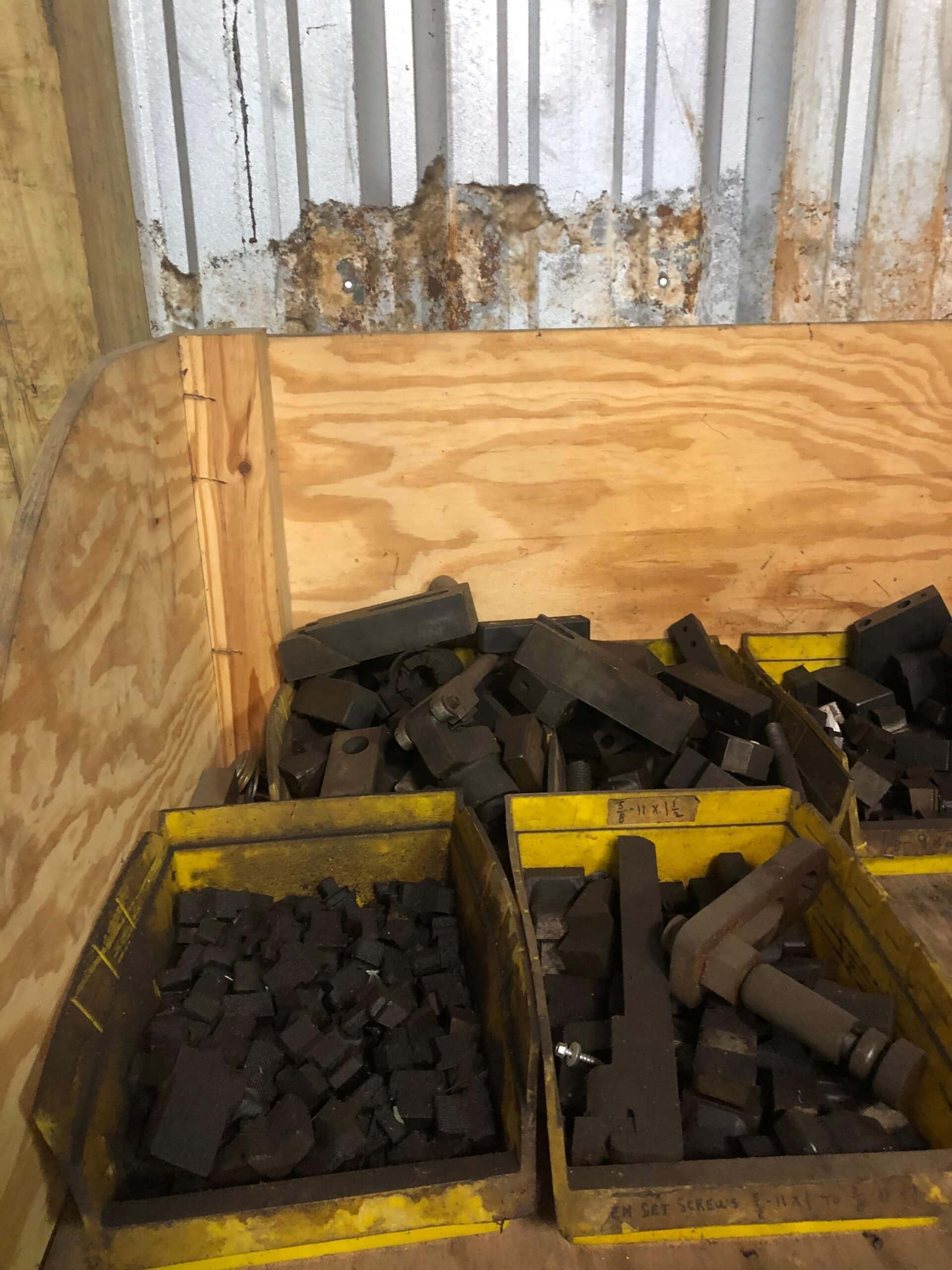

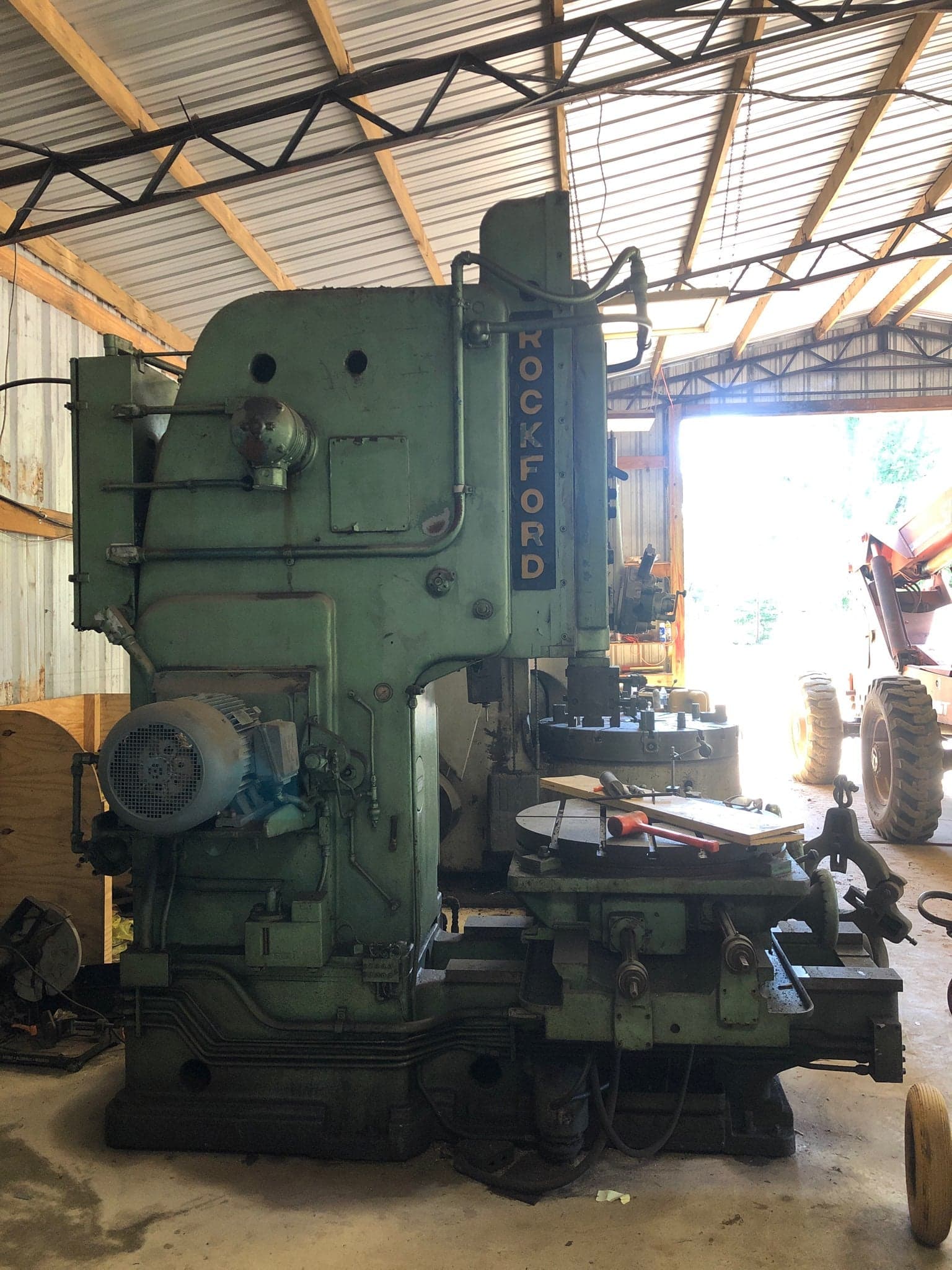

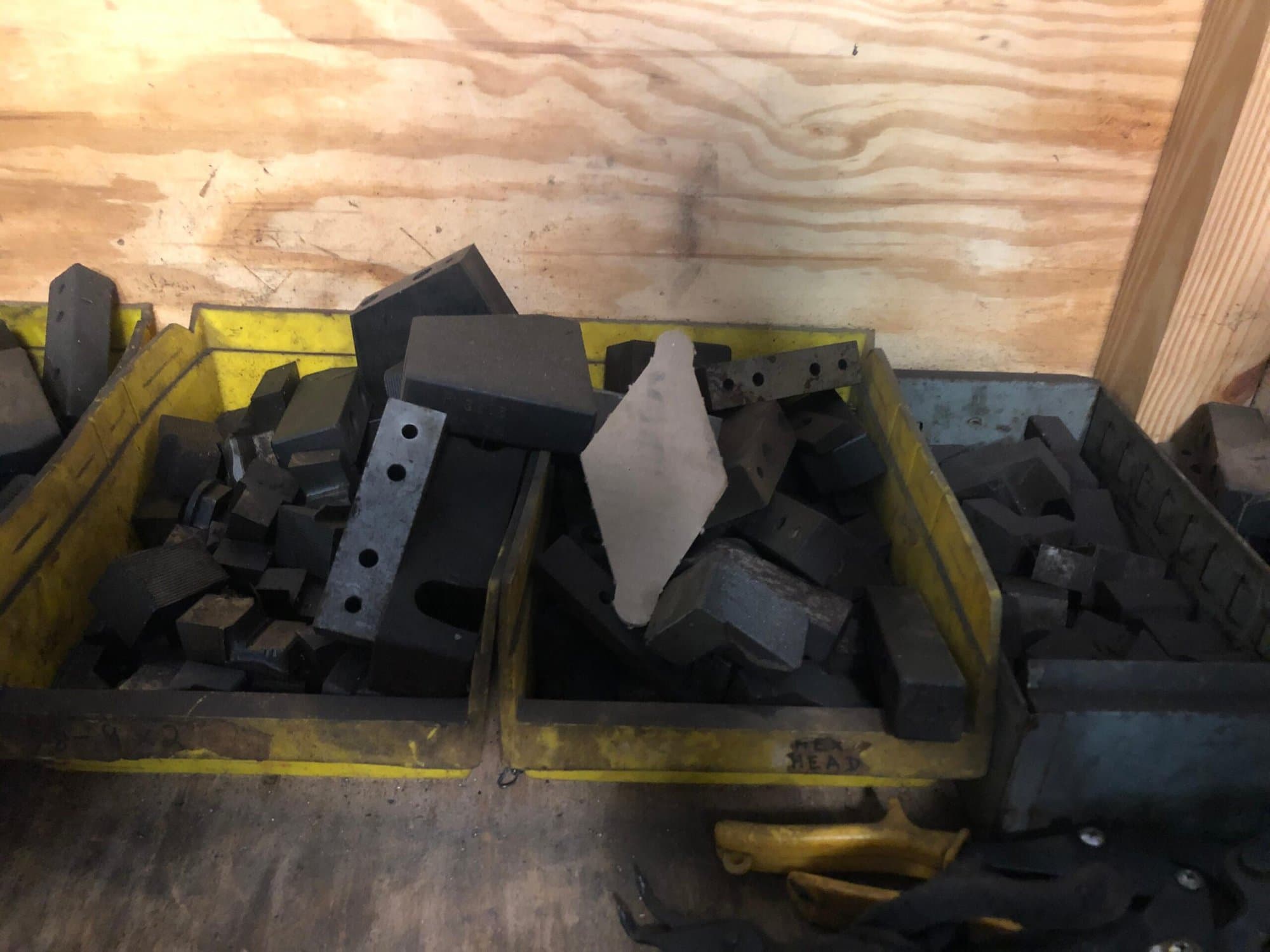

Rockford SA 20 Vertical Slotter – 36″ Table, Tooling
$12,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Stroke Maximum: 22″
Stroke Minimum: 3″
Cutting Speed Range: 25 -100 feet / minute
Table Travel, Longitudinal: 26″
Table Travel, Transverse: 26″
Table to Lower Face Tool Head: 40″ max.
Table to Bottom of Ram Slide: 24″
Table Top to Floor: 36″
Table Diameter: 36″
Table Tee Slots, Width: 13/16″
Slotter Capacity: 55″
Tool Post Capacity: 7/8″ x 2″
Tool Head Height: 7″

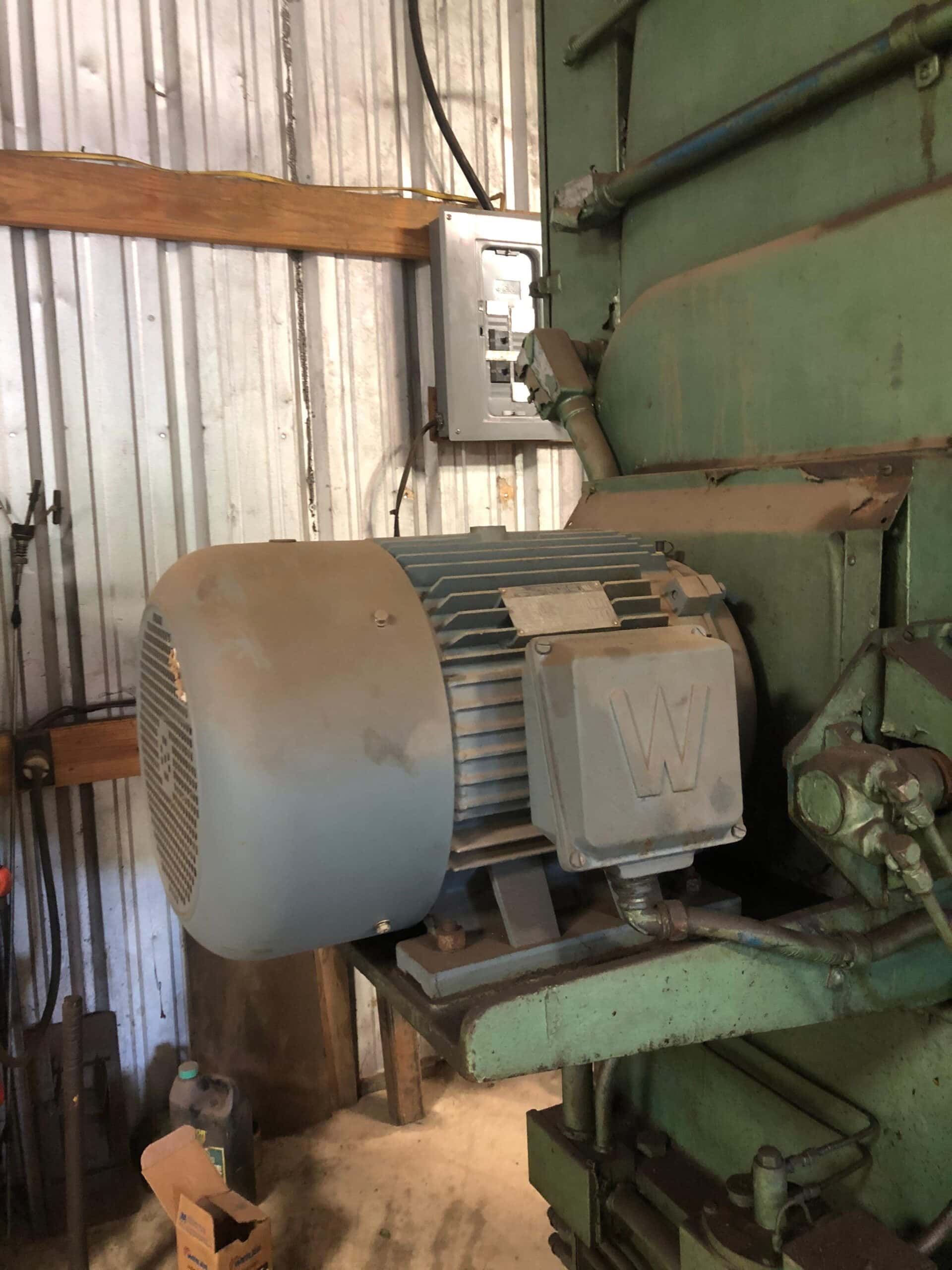

Motor: 15 HP
Floor Space: 90″LR x 110″FB
Overall Height, Ram Up: 140″
Approximate Weight: 18,000 lbs.
EQUIPPED WITH:
4 Position Shot Pin on Table
Indexing Capability
Tilting Ram for Angular Cuts
