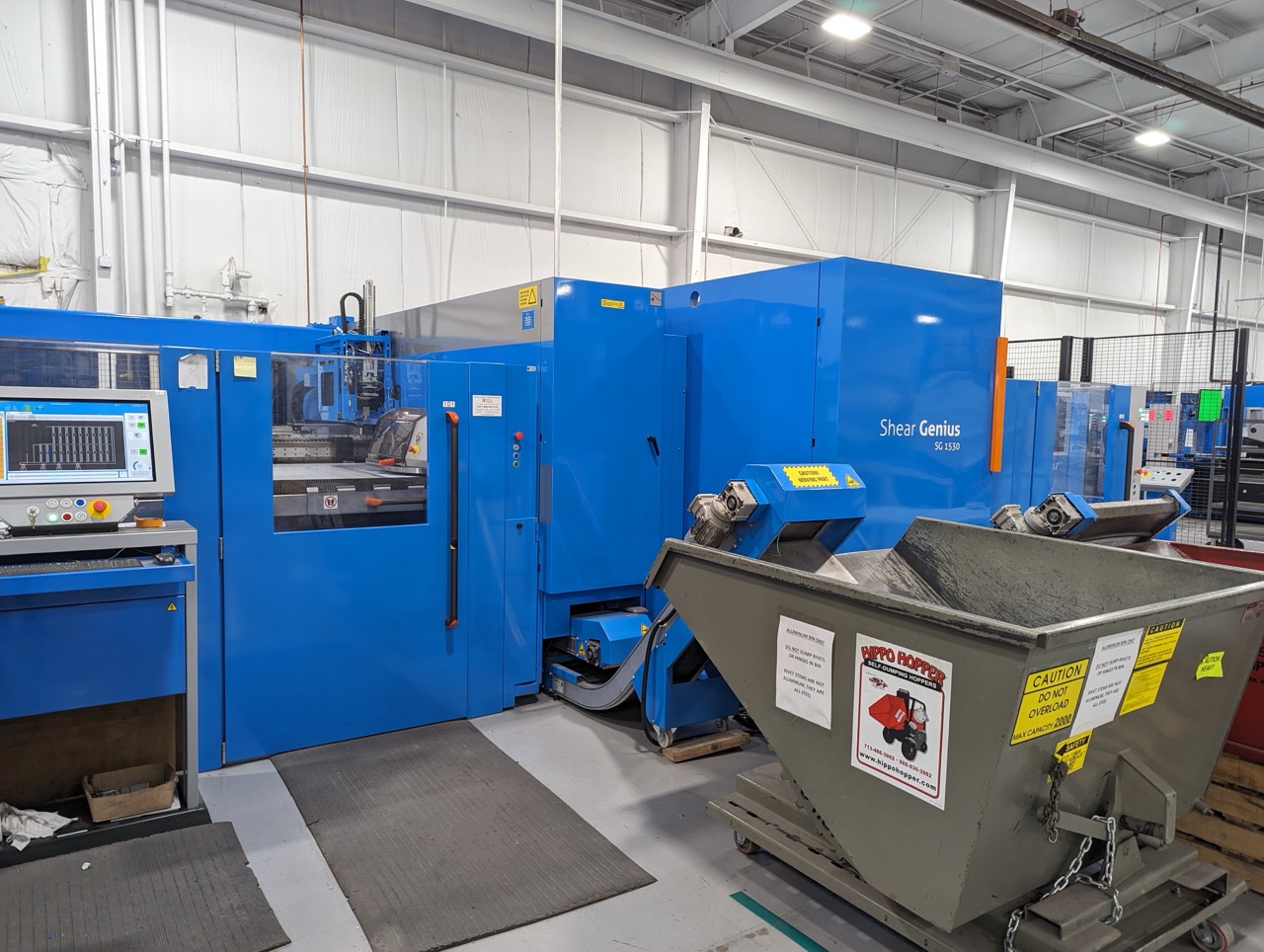

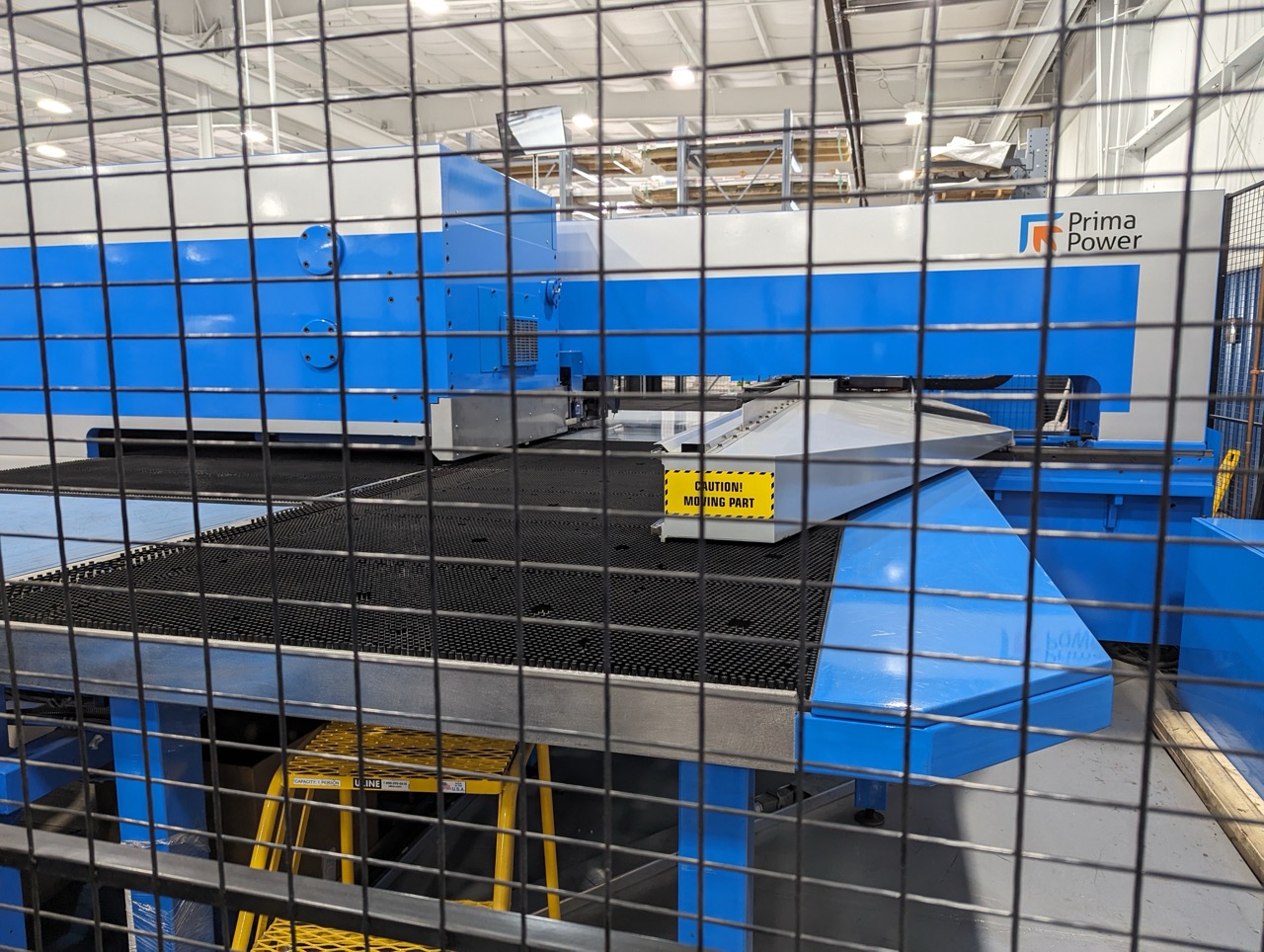

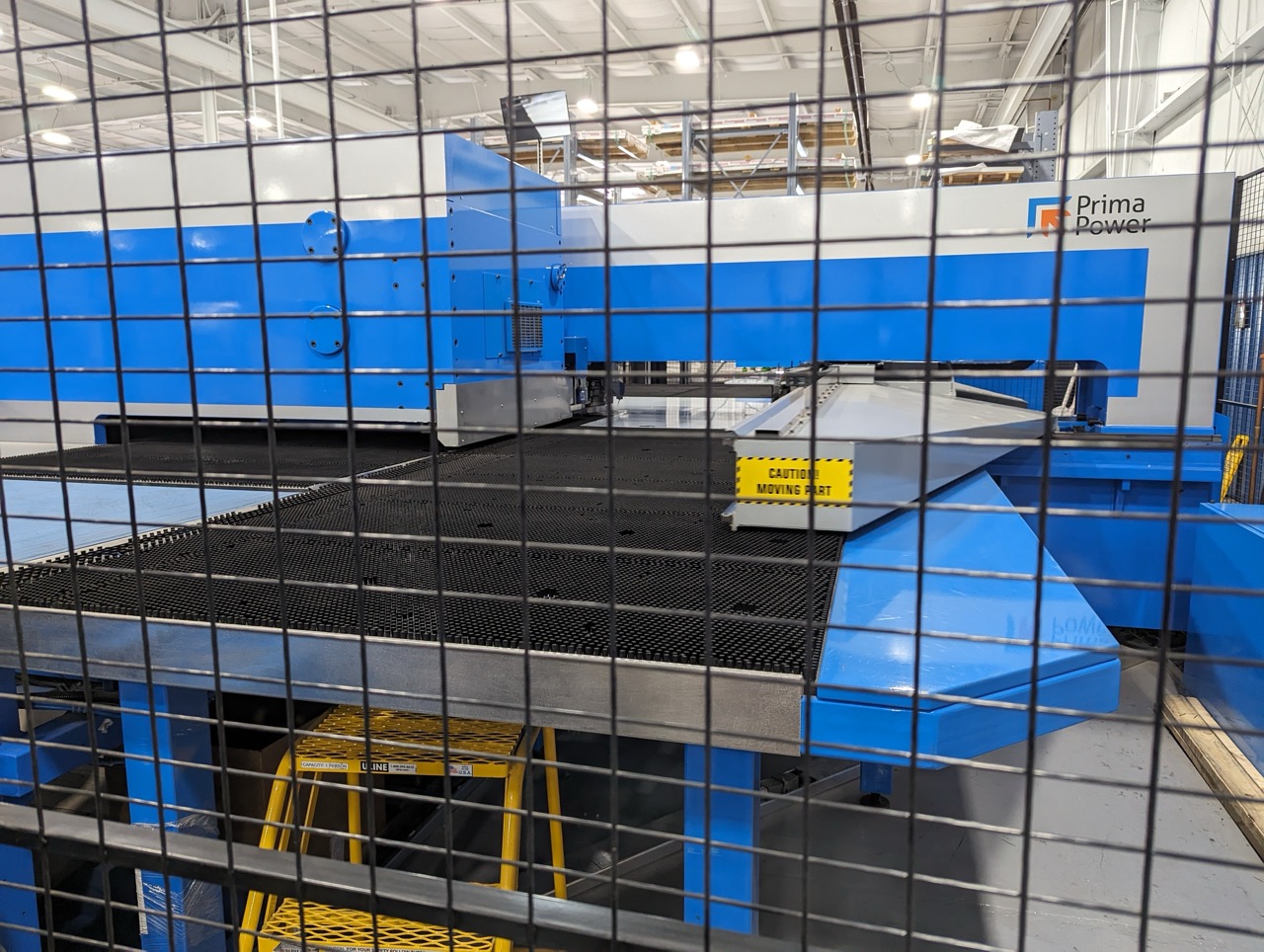

Prima-Power Shear Genius SG1530 33 Ton CNC Servo-Electric Turret Punch, 2020 – With Integrated Shearing

TONNAGE CAPACITY 33 TON
MAX. SHEET SIZE 120″ X 60″
MAX. MATERIAL THICKNESS, PUNCH 0.31″
AXIS POSITIONING SPEED 5905 IPM
MAX. HIT SPEED 1000 HPM
INDEX SPEED 250 RPM
MAX. SHEET WEIGHT 551 LBS
INTEGRATED RIGHT ANGLE SHEAR:
MAX. SHEET SIZE 39.37″ X 59.06″
MAX. CUTTING CAPACITY, MS 0.157
MAX. CUTTING CAPACITY, ALUMINUM 0.196″
MAX. CUTTING CAPACITY, STAINLESS 0.118″
AUTOMATIC BLADE CLEARANCE YES

EQUIPPED WITH:
PRIMA CNC CONTROL
SERVO ELECTRIC PUNCH
16-STATION TURRET W/ 9-MULTISTATIONS
SCRATCH FREE BRUSH TABLE
AUTOMATIC CLAMP SETTING & MOVEMENT

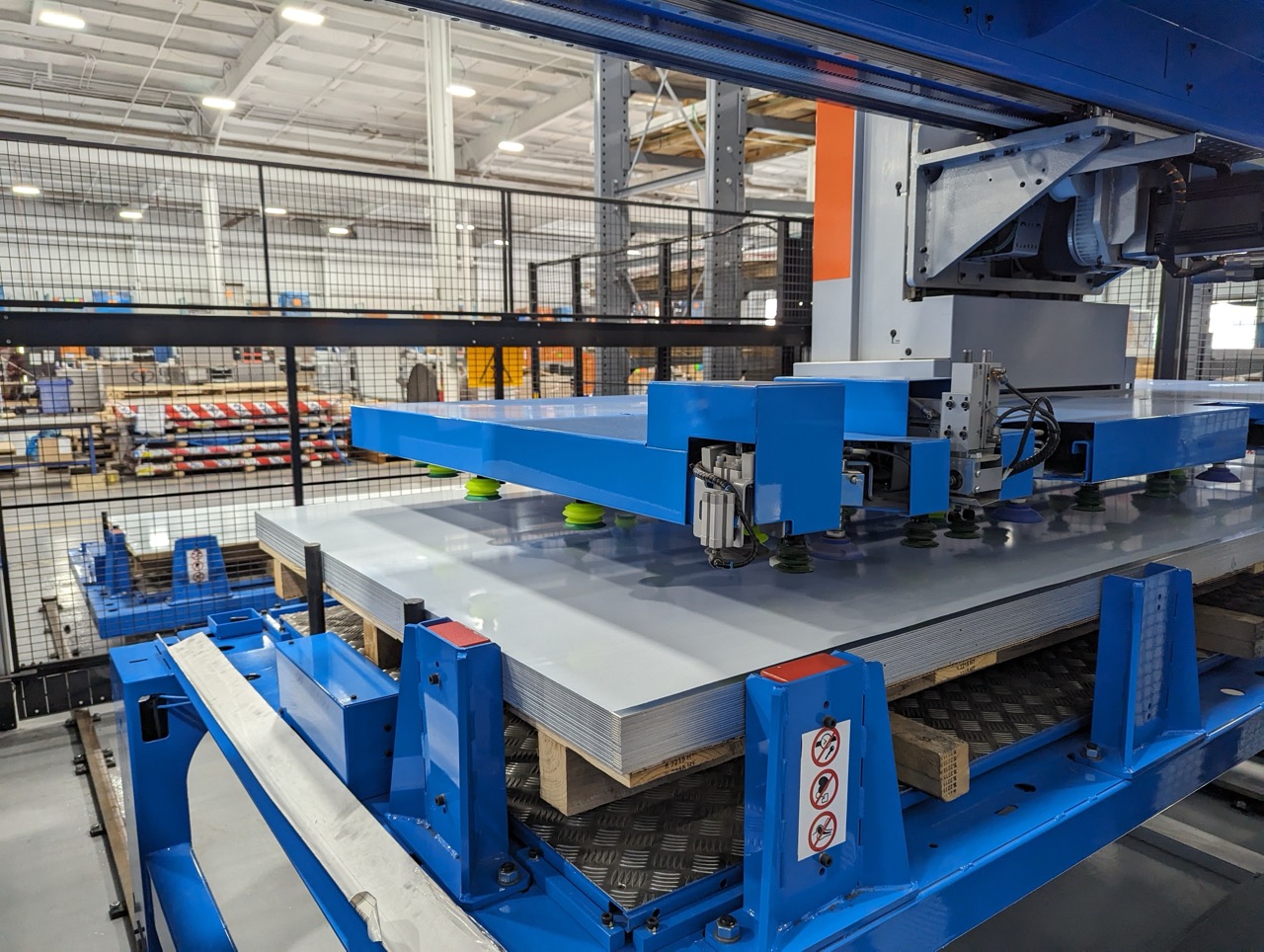

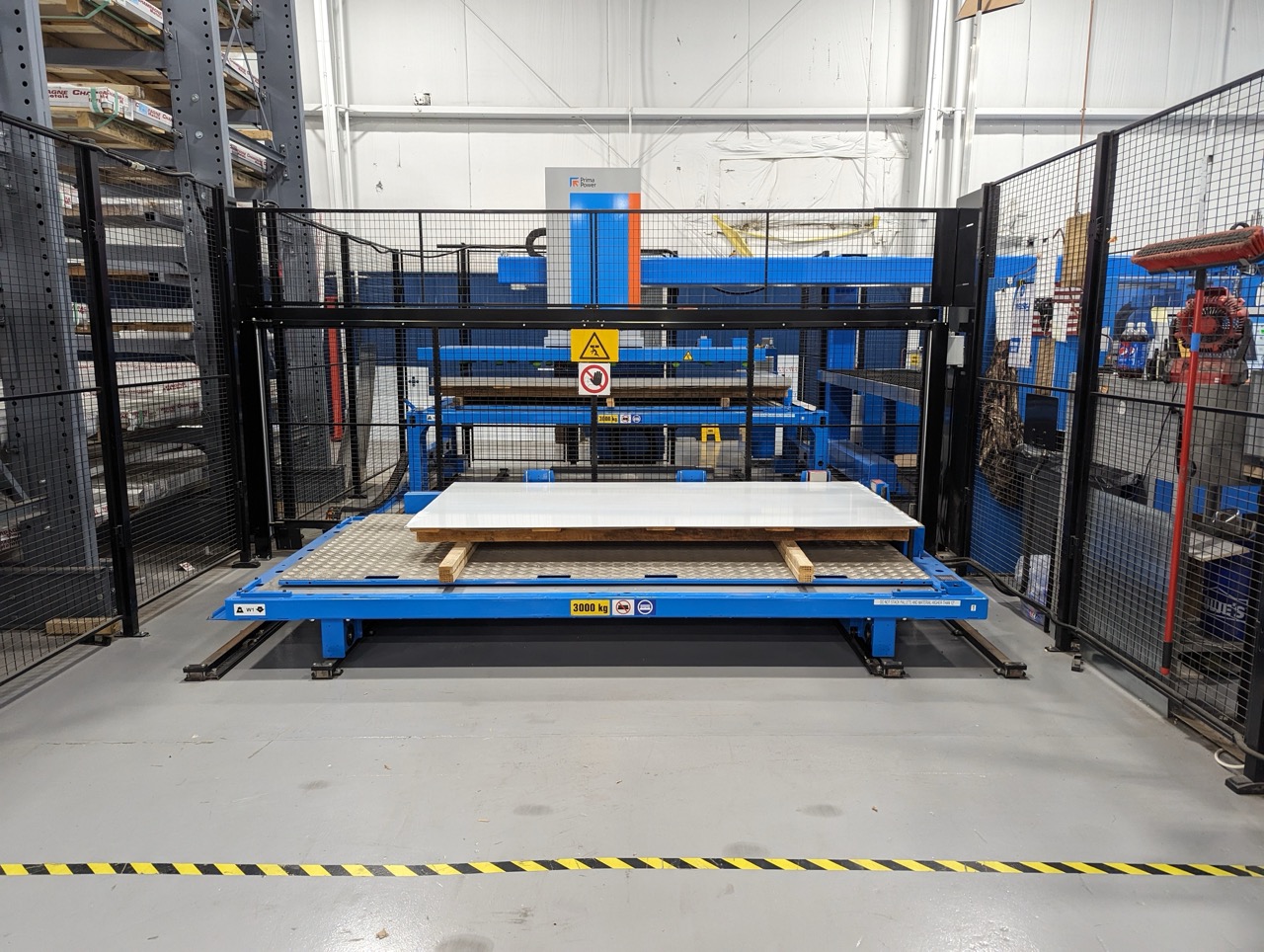

AUTOMATICS PARTS LOADER
INTEGRATED RIGHT ANGLE SHEAR
TOOLING
NOTE:
LOW HOURS, APPROX. 7540 POWER ON, 2426 RUN TIME
INSPECT IN PLANT UNDER POWER
