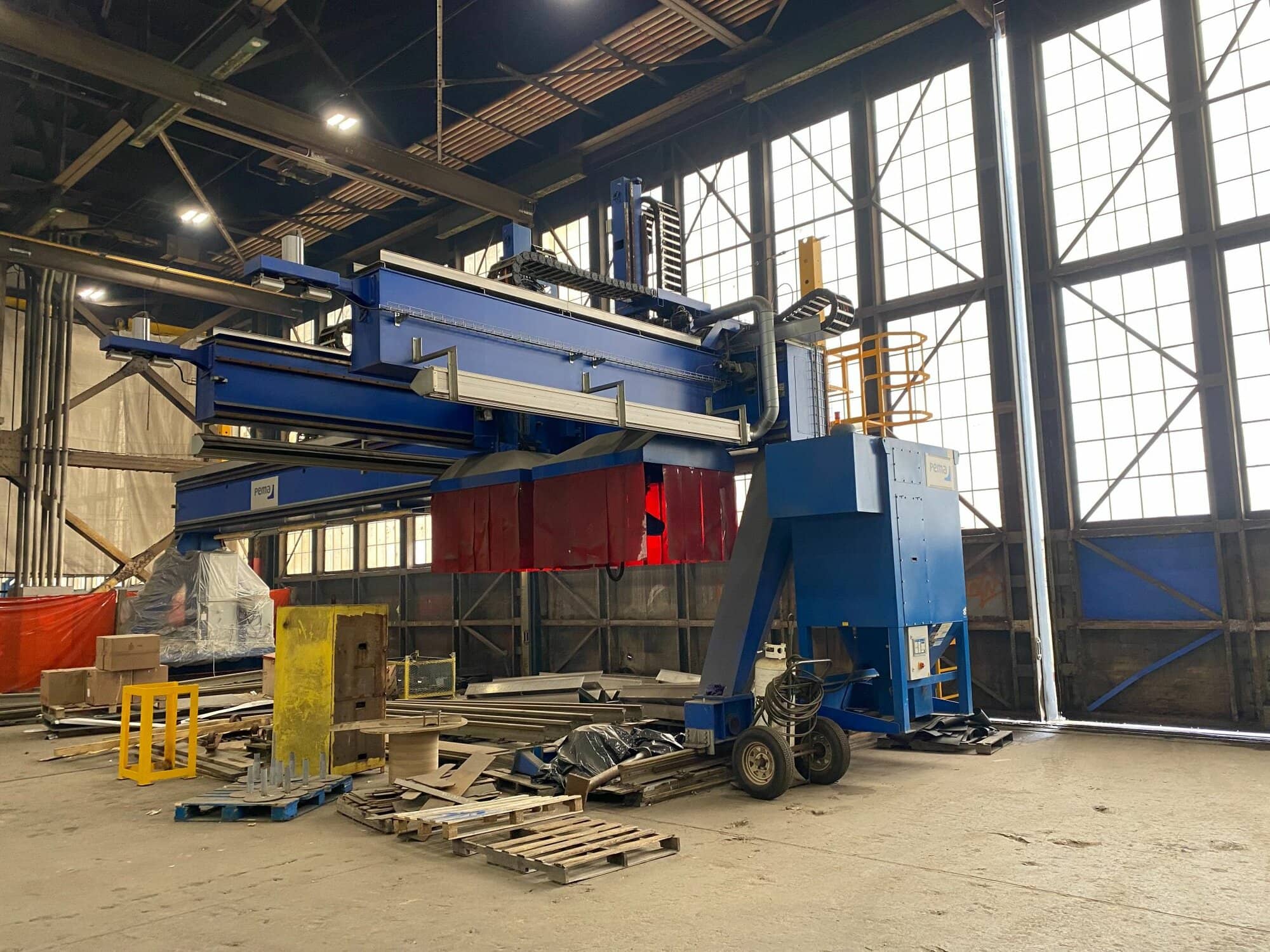

Pema VRWP 12200/2 Robot Welding Gantry System, 2015
$274,350.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

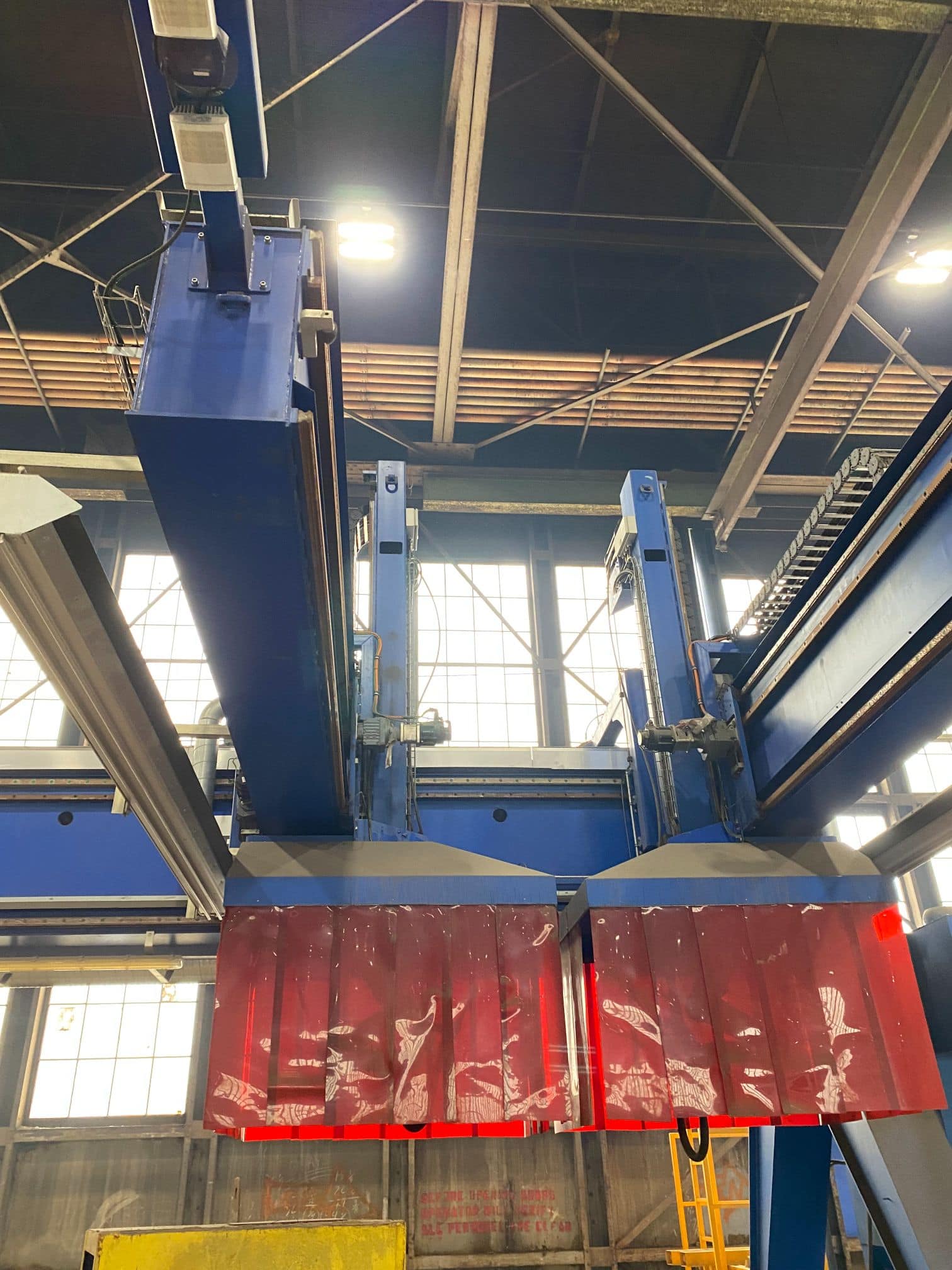

Pema VRWP 12200/2 Robot Welding Gantry
-Electrical Requirements: 400V, 3P, 60Hz, 16A
Abicor Binzel W500 Welding System
-Cooling: Liquid-Cooled
-Rating: 550 A CO2, 500A Mixed Gases M 21
-Duty Cycle: 100%
-Wire: 0.8-1.6mm
AutoDrive 19 Controller
-Operating Temp: 14°F to 104°F
-Dimensions: 8.8″ x 10.38″ x 3.12″
-Electrical Requirements: 40VDC
Abicor Binzel CR1250 Coolant Recirculator
-Heat Exchangers: 3-Raw
-Cooling Capacity: 1250 W with H2O
-Q=1 l/min at +25°C: 1050 W with BTC-15
-Max Pump Capacity: 7.0 l/min
-Max Coolant Outlet/Pump Pressure: 3.5 bar
-Pump Type: Centrifugal
-Coolant Tank Capacity: 6.0 l
-Coolant: BTC-15 + BTC-50
-Torit Total Control Board
-Electrical Requirements:
115/230V, 50/60Hz
-Dimensions: 27.17″ x 9.84″ x 13.39″
-Weight: 36.81 lbs

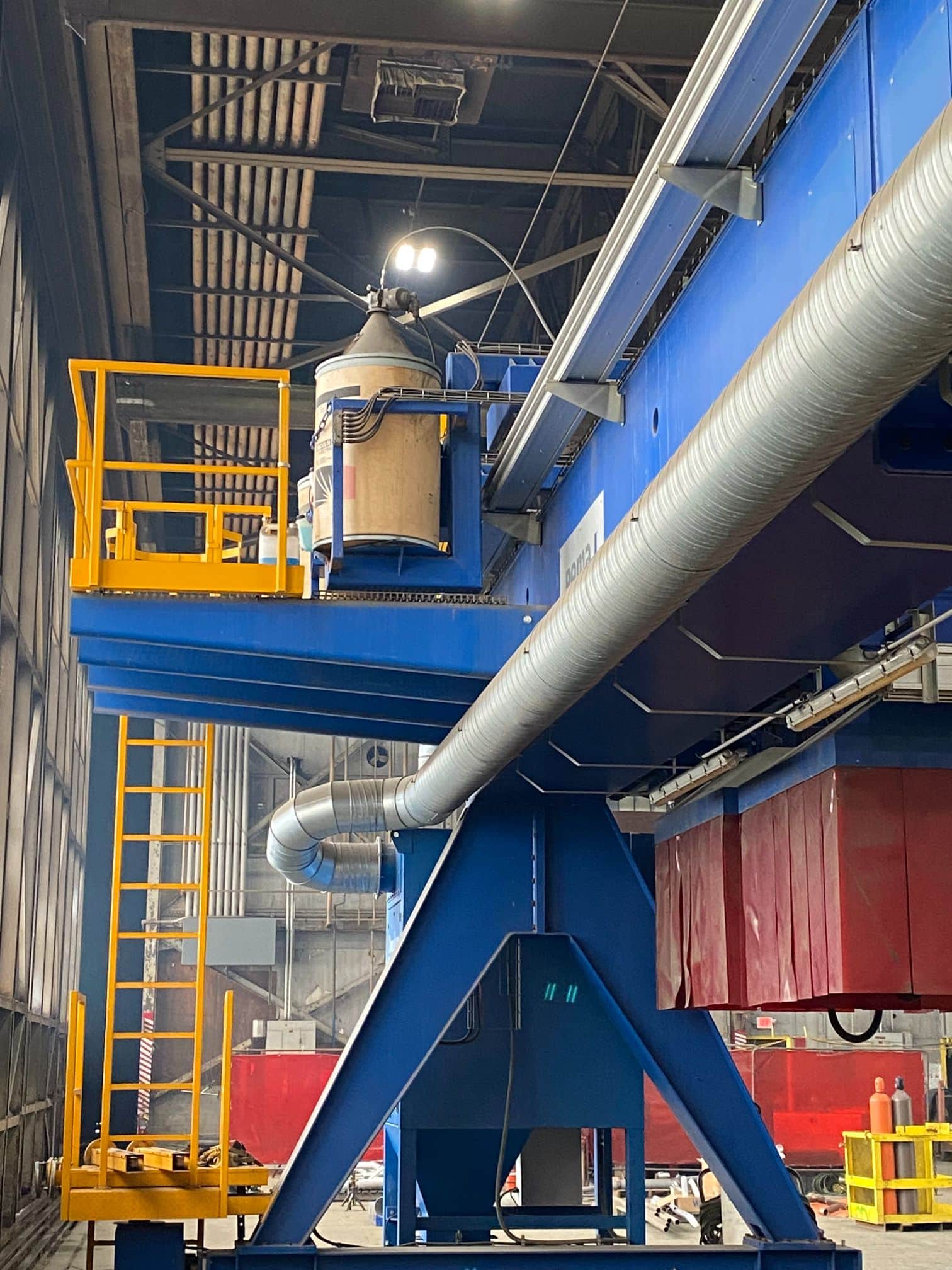

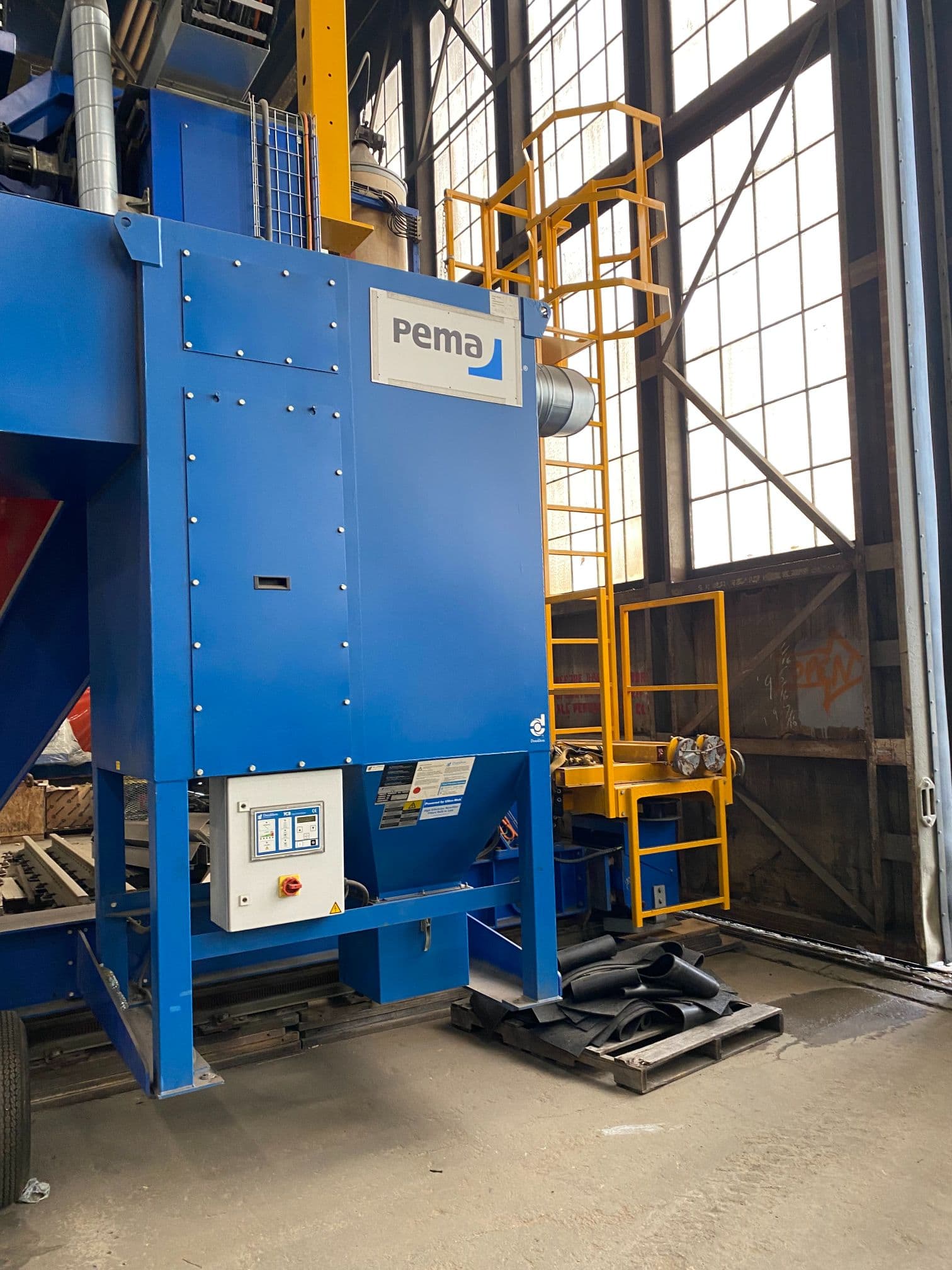

Donaldson Torit DFPR06 Dust Collection System
-Filtration Area: 106 m2
-Operating Temp: -10°C to 65°C
-Max Pressure Range +-5 kPA
-Wind Load Rating: 160 km/h
-Dimensions: 43.31″ x 59.06″ x 90.35″

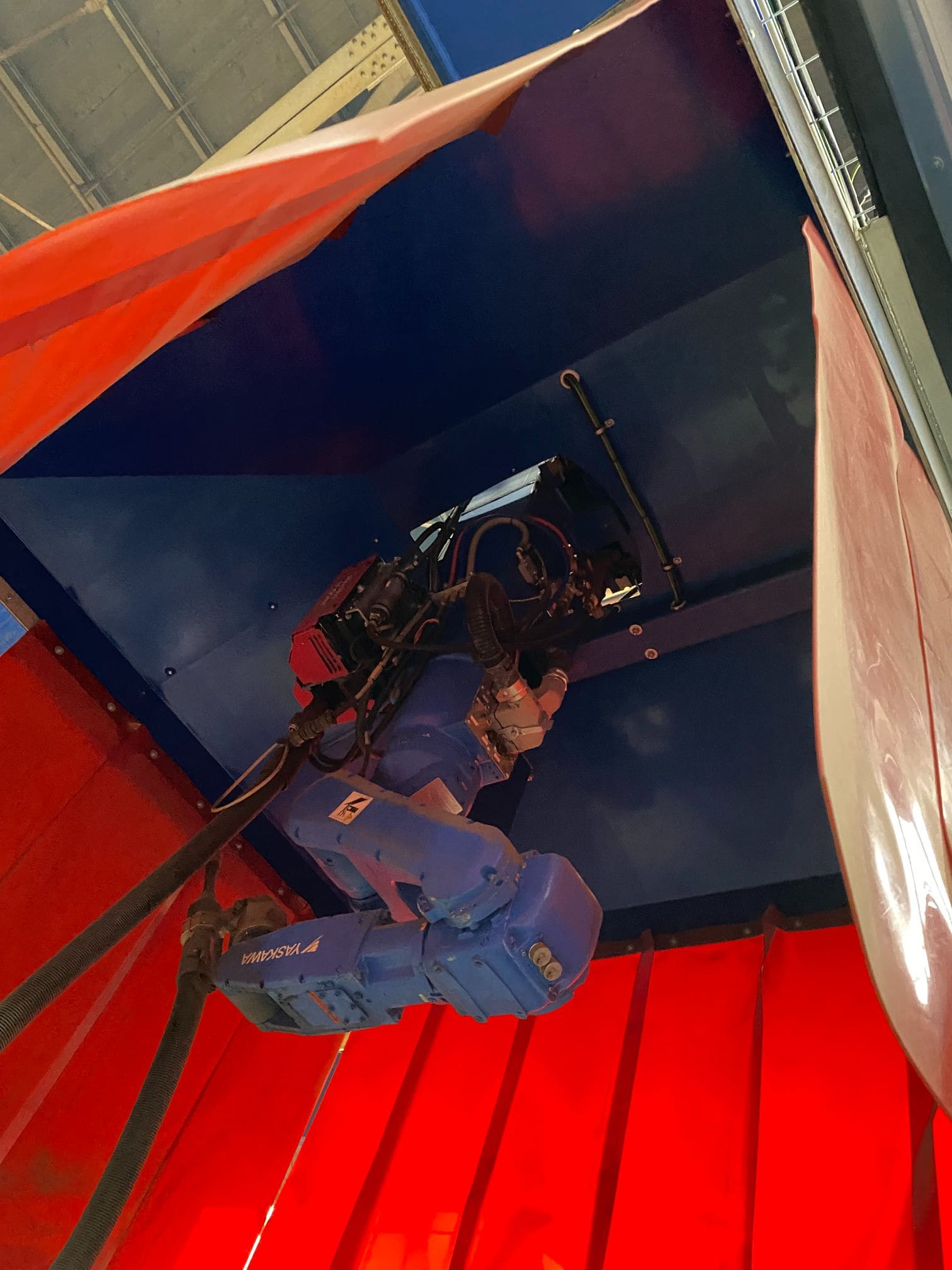

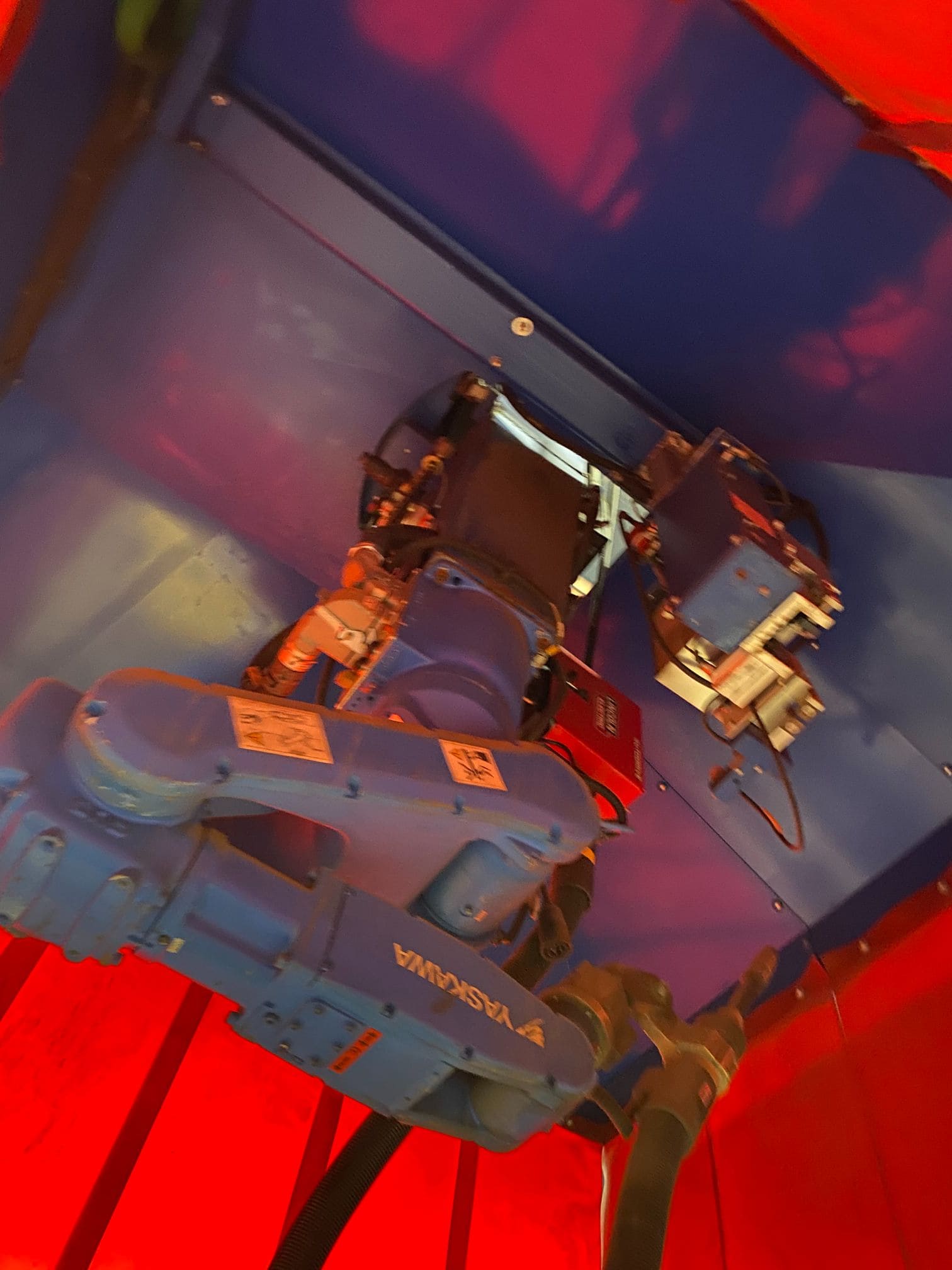

Yaskawa DX200 Robot System
-Robot Type: YR-MH005LS-J10
-Structure Vertically: Articulated
-Degree of freedom: 6
-Payload: 2.2 lbs
-Max Reach: 35.24″
-Range of motion:
S Axis: -170° to +170°
L Axis: -65° to +150°
U Axis: -138° to +255°
R Axis: -190° to +190°
B Axis: -135° to +135°
T Axis: -360° to +360°
-Electrical Requirements: 400/440V, 50/60Hz
-Weight: 63.93 lbs
Lincoln Electric Powerwave S500
-Electrical Requirements: 208/575V, 50/60Hz
-Dimensions: 14″ x 14.8″ x 22.45″
-Weight: 150 lbs
