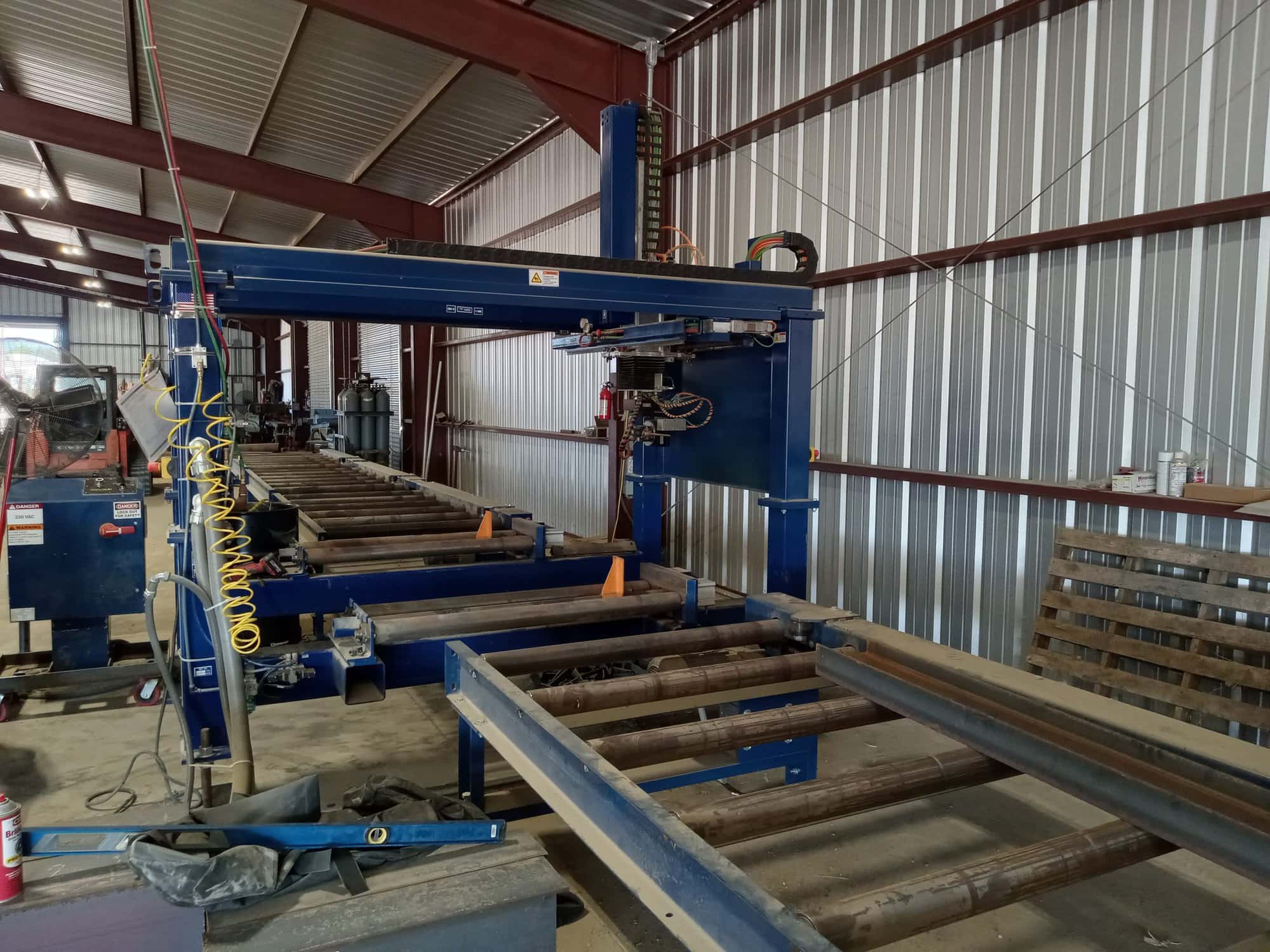

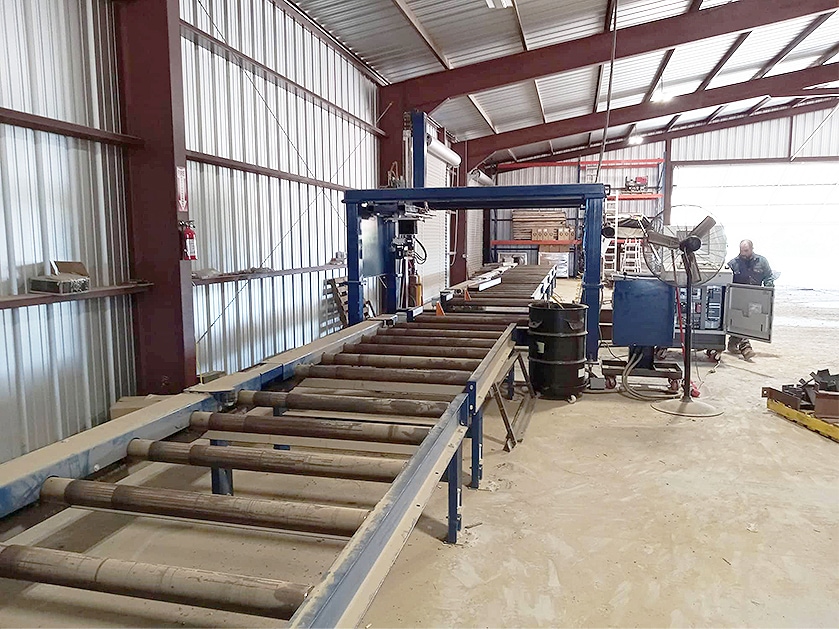

Peddinghaus Ocean Liberator 5-Axis Oxy Fuel Beam Coping Line, SACM-1250/A, 2021, Available for Immediate Sale.
$130,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
5-axis CNC robotic oxy-fuel cutting beam coper that will enable you to make any type of cut on beams, channels, angels, plates, and rectangular tubes.
Maximum Profile Size 44″ x 24″
Maximum Plate Width 48″
Flange Bevels +/- 45 degrees
Web bevels +/- 45 degrees (external only)
Maximum Material Thickness 6″
Type of Cuts Programmed All cuts are programmable
Travel Speeds
Traverse Speed 100 – 400 in/min
Cutting Speed 7 – 30 in/min
Travel Dimensions
“X”-axis (direction of flow) 46″
“Y”-axis (cross travel) 76″
“Z”-axis (vertical travel) 30″
“B”-axis (bevel angle) 270 degrees
“C”-axis (torch rotation) 270 degrees
Accuracy
Repeatability of X, Y & Z +/- 0.001″
Cutting with Oxy-Fuel +/- 0.0625″
