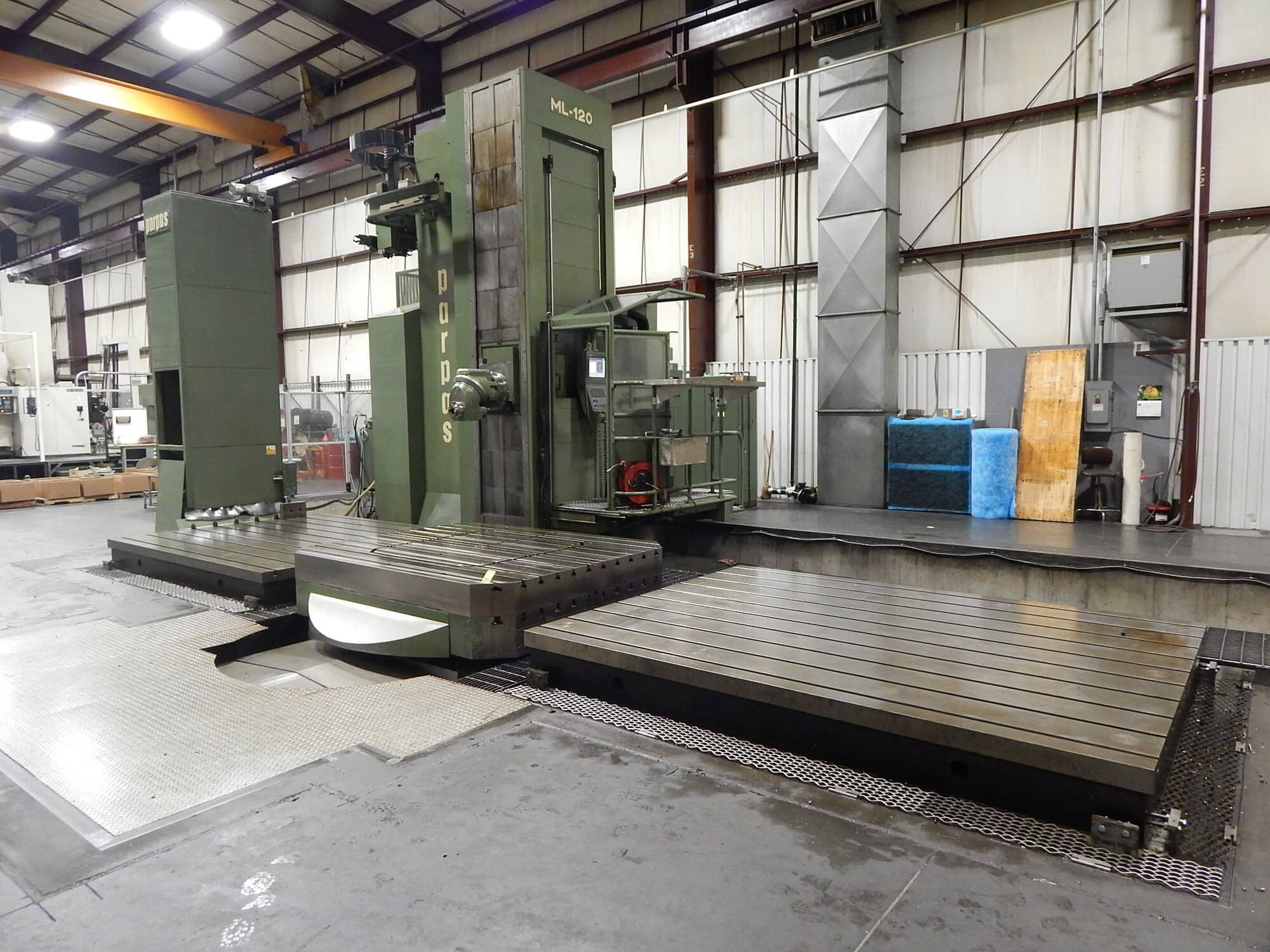

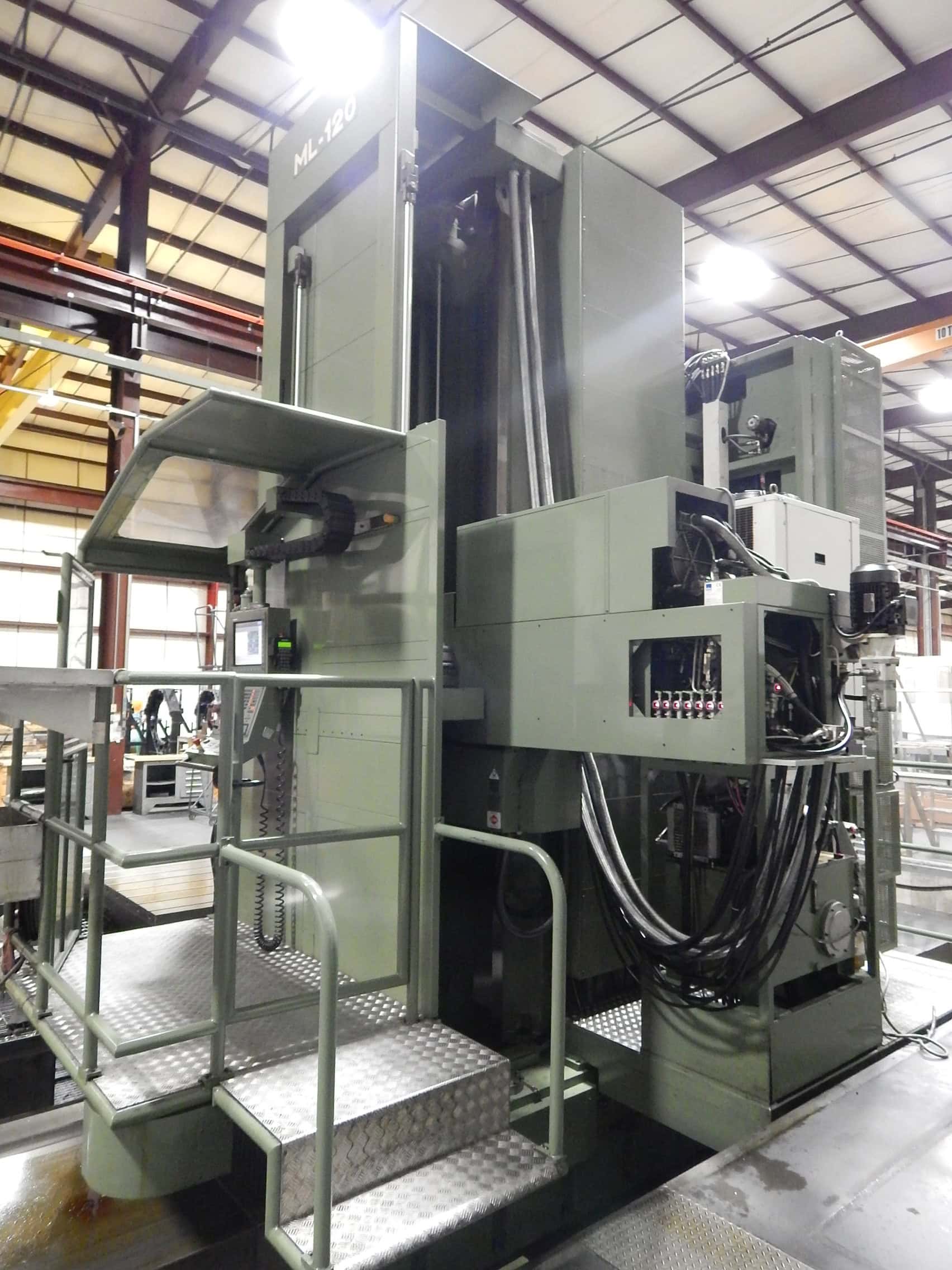

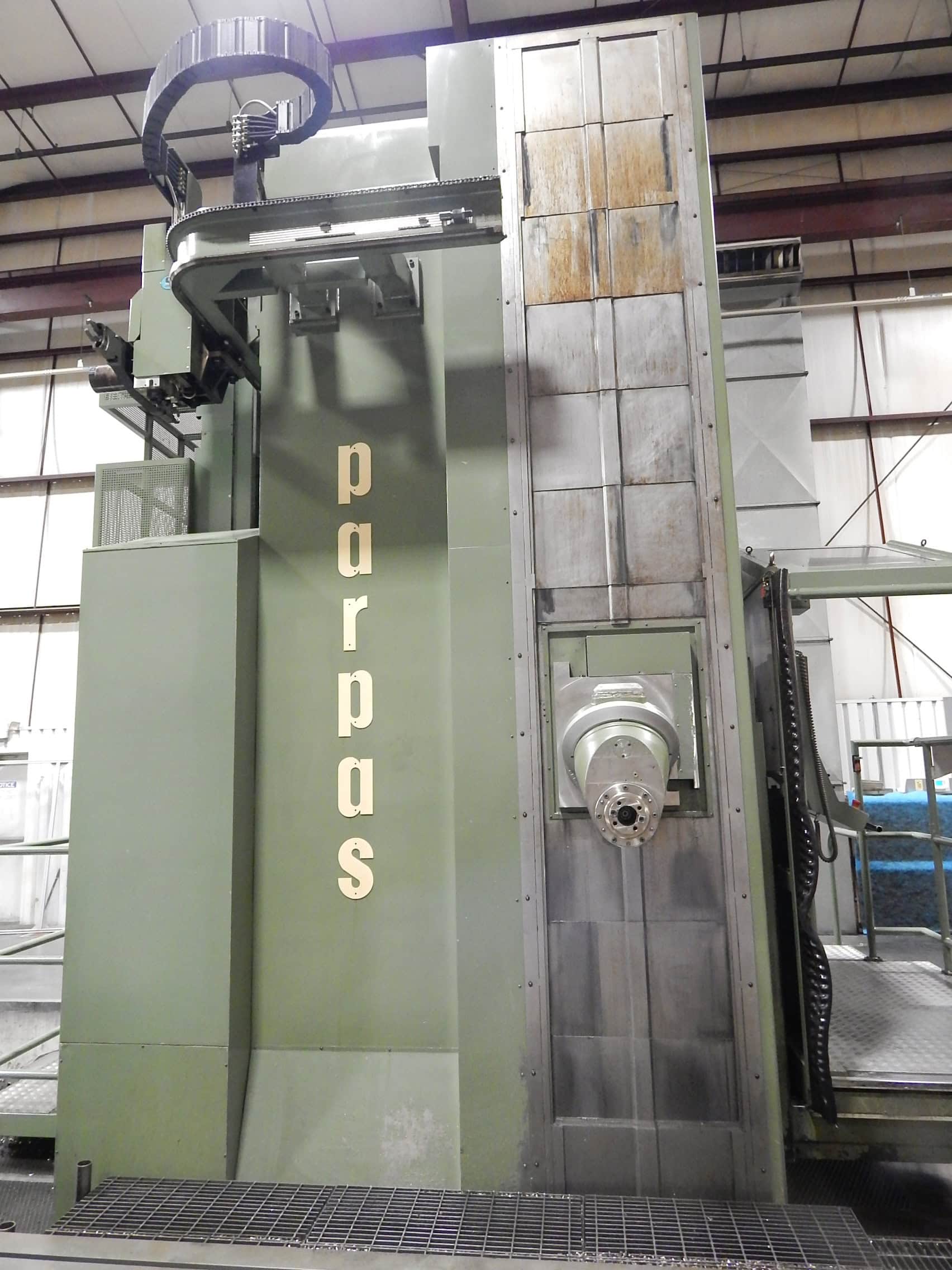

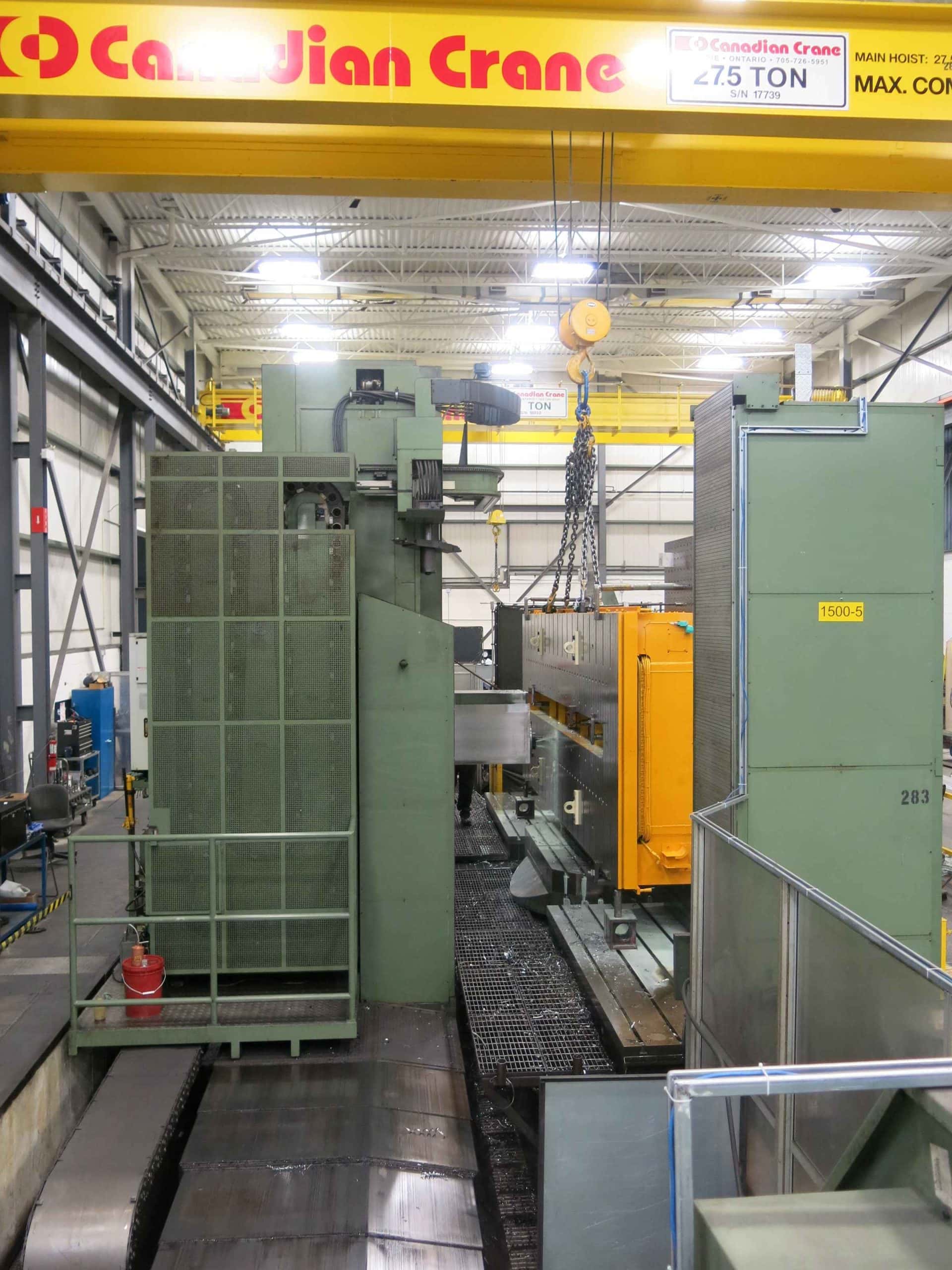

Parpas ML-120 CNC Floor Type Boring Mill, 2007 – 7 Axis, 5″ Spindle, Universal Head, 90 Degree Head, Under Power

Name: Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power
SKU: 56179198262

$410,900.00

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 2

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 3

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 4

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 5

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 6

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 7

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 8

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 9

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 10

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 11

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 12

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 13

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 14

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 15

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 16

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 17

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 18

Parpas ML-120 CNC Floor Type Boring Mill, 2007 - 7 Axis, 5" Spindle, Universal Head, 90 Degree Head, Under Power - Image 19

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Model………………………………………………..ML-120
Manufacturing Year……………………………….2007
Installed Year………………………………………2009

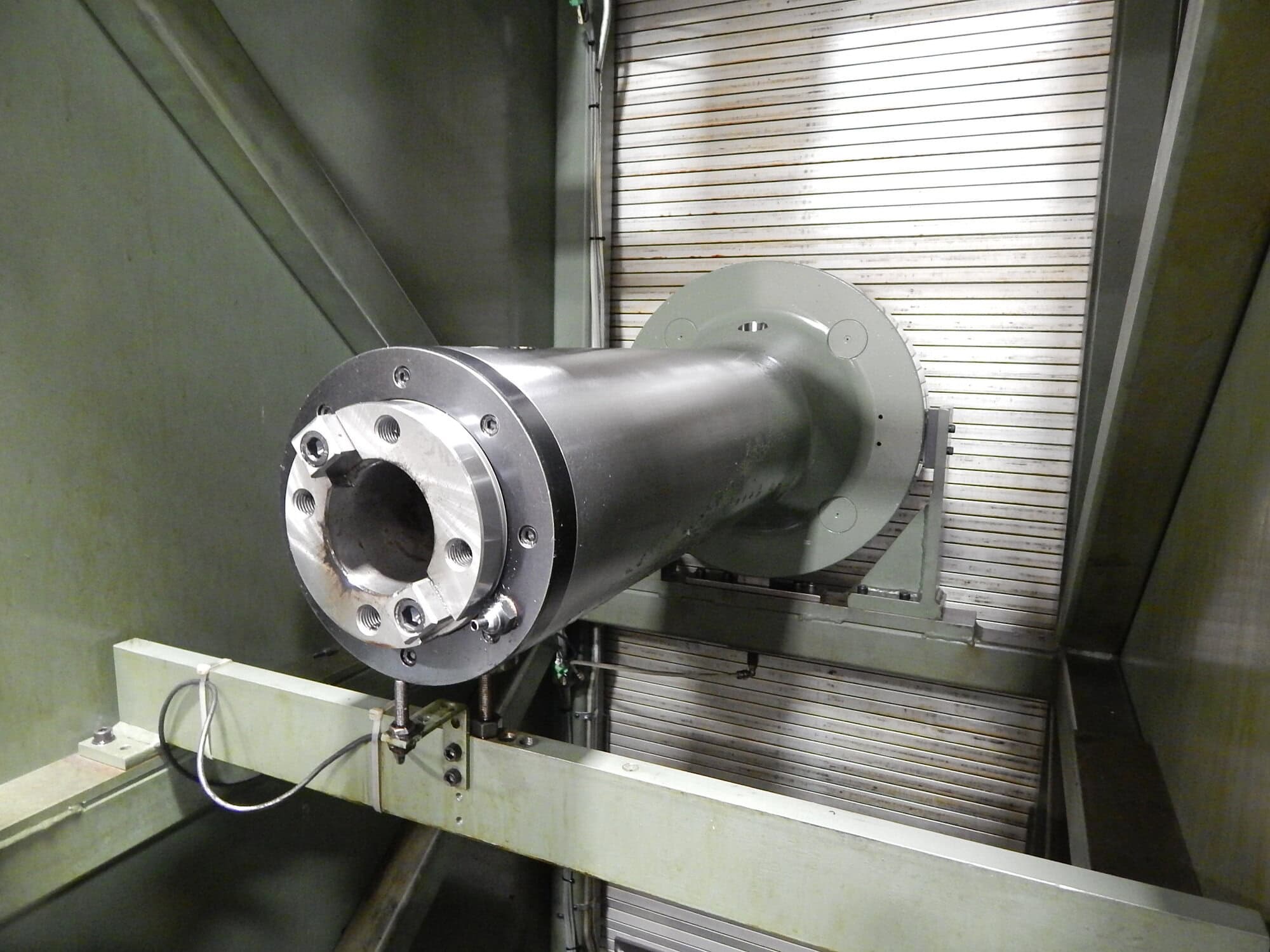

Spindle Diameter………………………………….5.11”
Cross Travel (X Axis)…………………………….400”
Vertical Travel (Y Axis)…………………………..138”
Spindle Travel (W Axis)………………………….26”
Spindle Ram Travel (Z Axis)…………………….49”

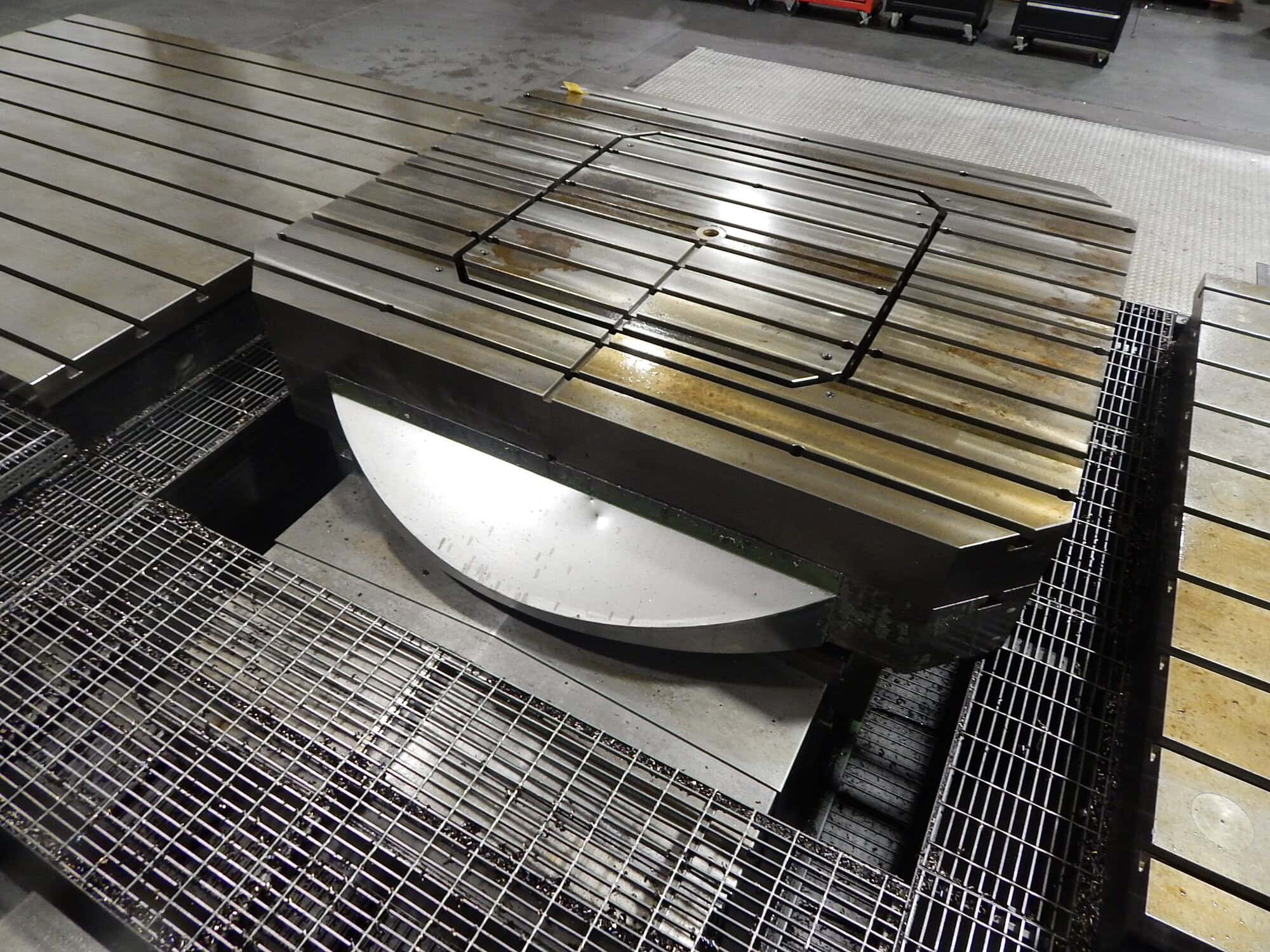

Rotary Table Travel (C Axis)……………………59”
Rotary Table Rotation (B Axis)…………………360°
Index Head Milling Head………………………….2.5°
Orthogonal Milling Head…………………………(+/-)120°/(+/-)180°

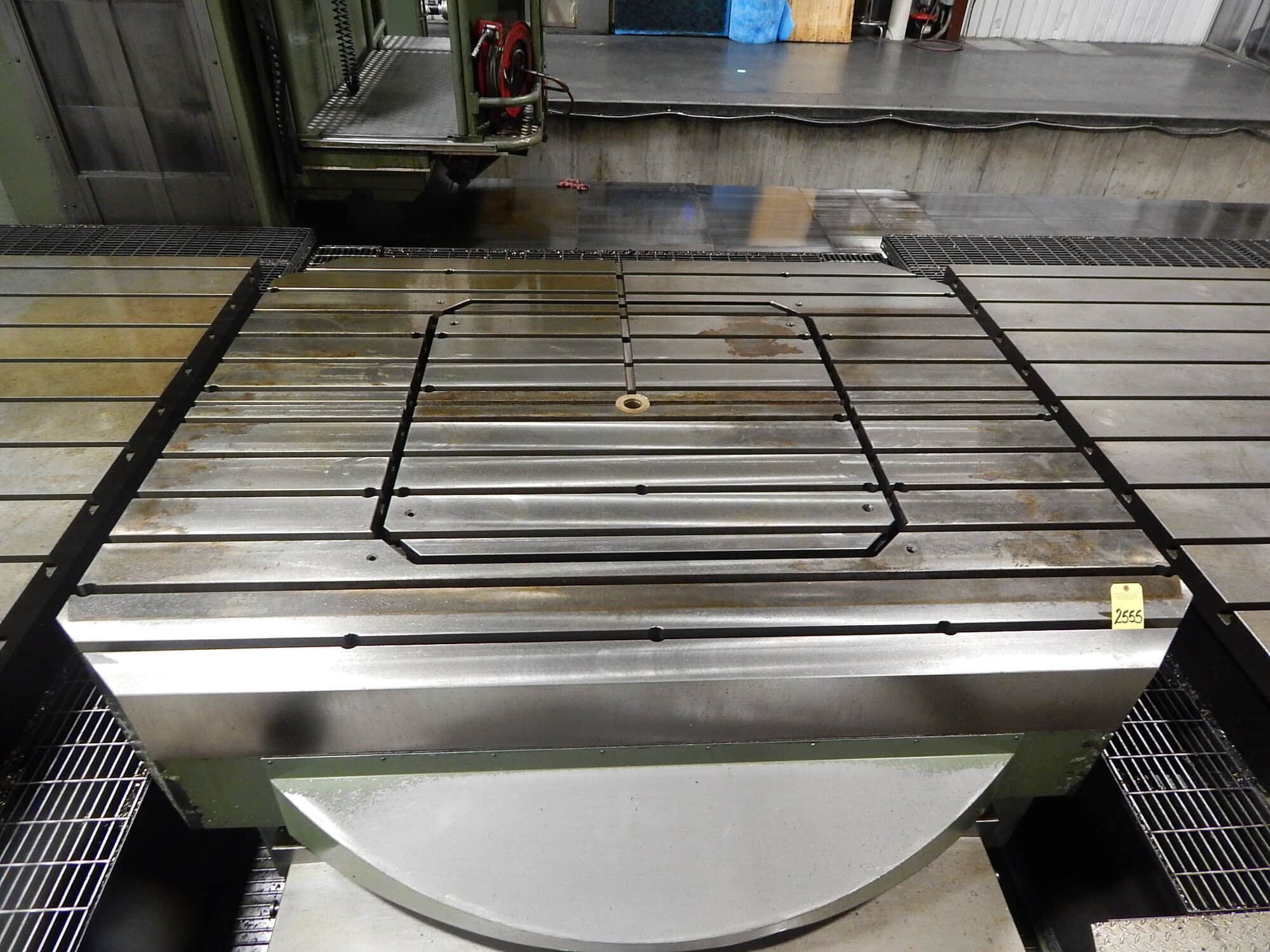

Rotary Table Size………………………………….98.5” x 78.7”

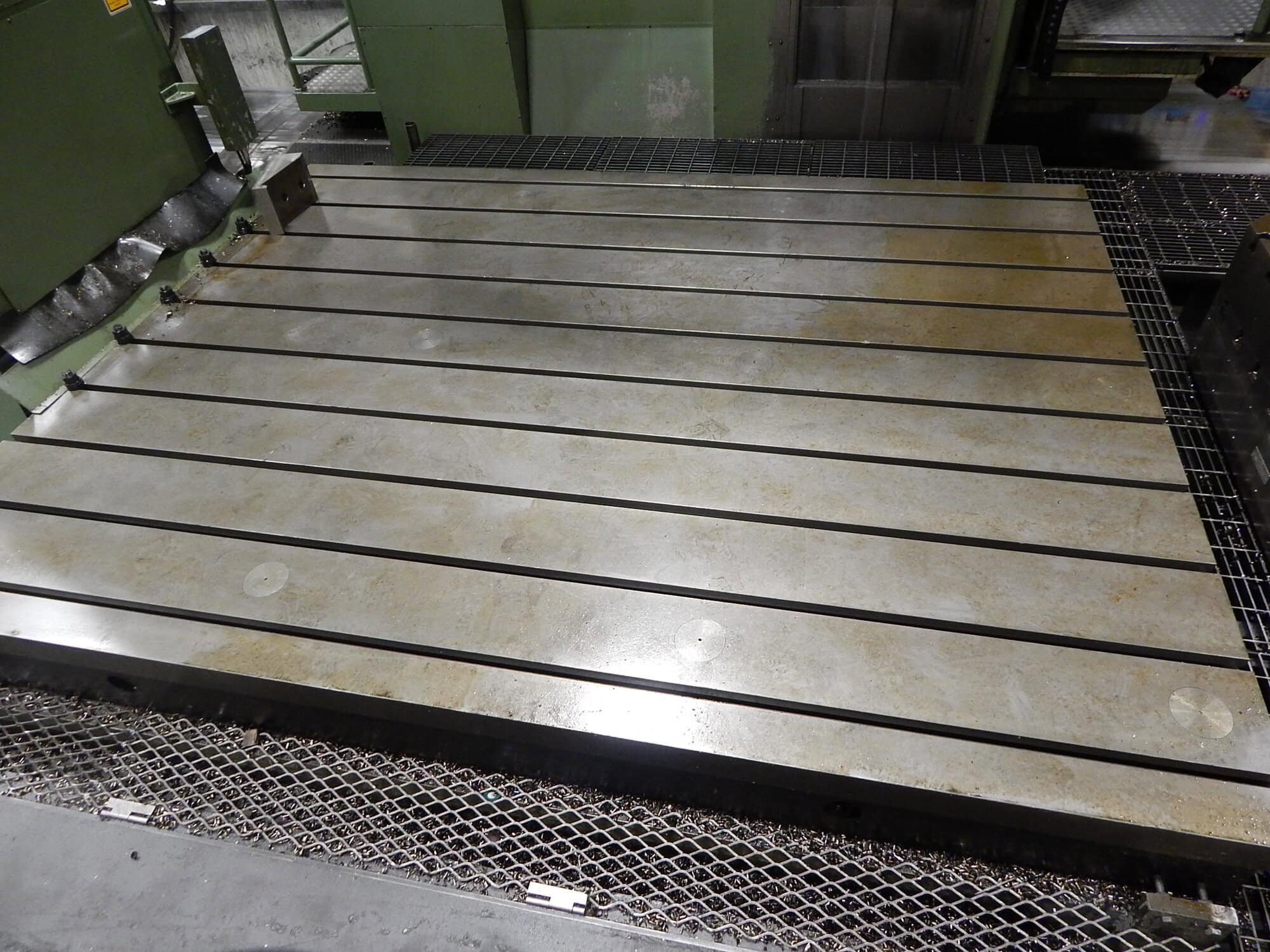

Floor Plate Dimension (1)………………………..98.5” x 128”
Floor Plate Dimension (2)………………………..98.5” x 128”
Spindle Taper………………………………………ISO 50/40
Max Spindle Speed………………………………..4000 RPM
Automatic Tool Changer…………………………120
Max Weight Rotary Table…………………………88,000 LBS
Max Weight Floor Plate……………………………200,000 LBS

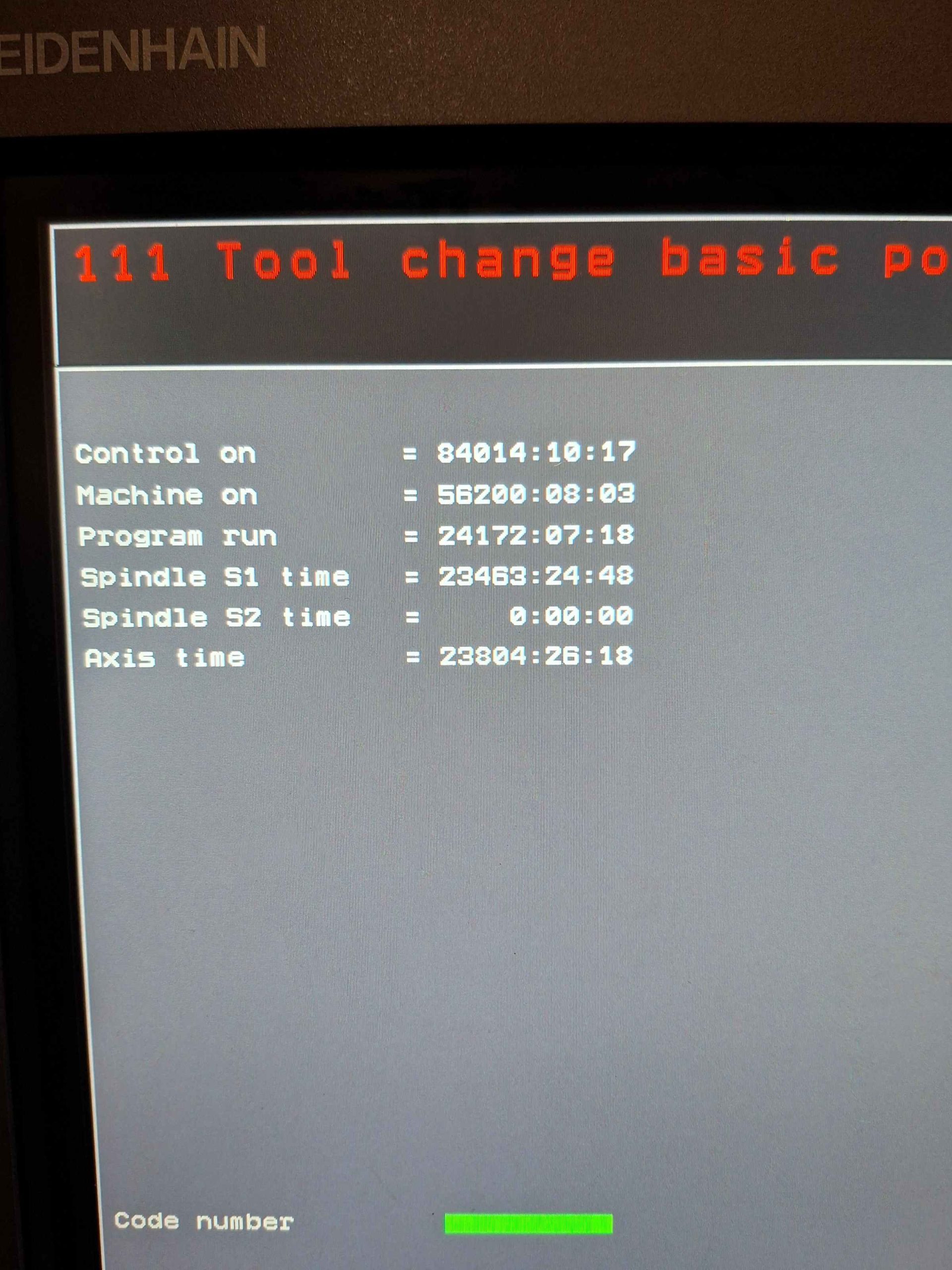

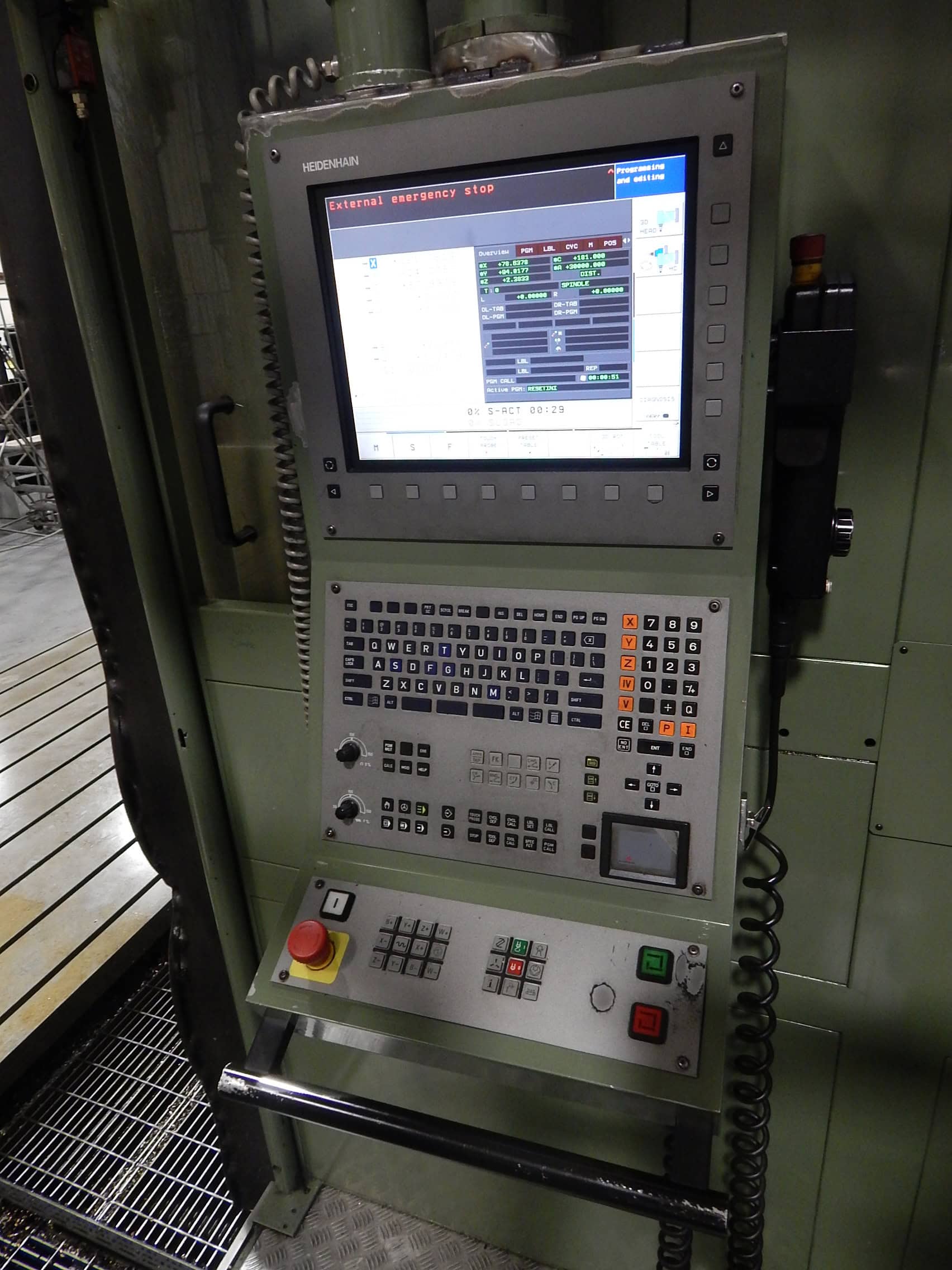

Control………………………………………………Heidenhain

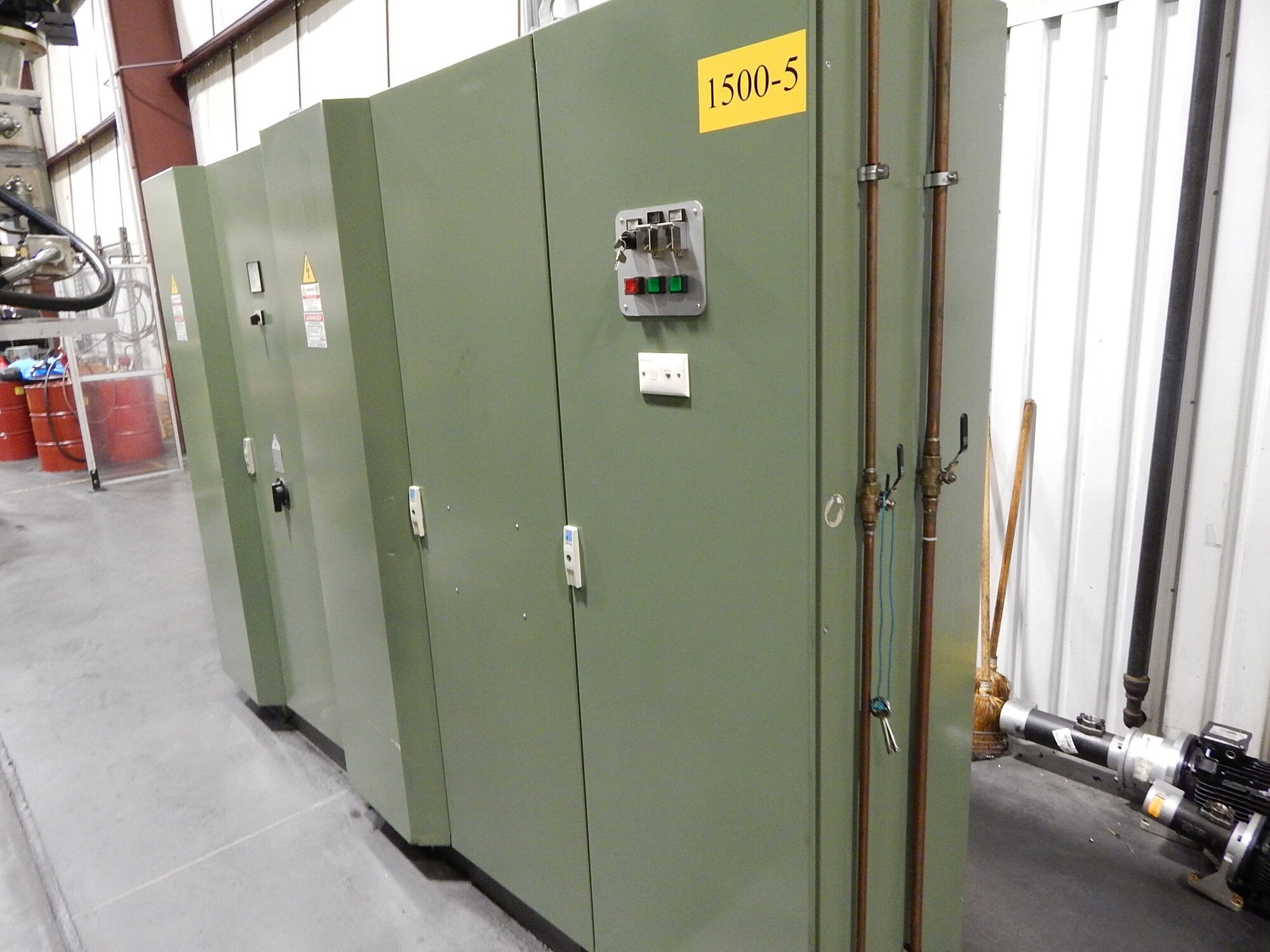

Electrics…………………………………………….480V/3PH/60HZ
Made In………………………………………………Italy
Approximate Weight………………………………135,000 LBS
Approximate Overall Dimension………………..675”L x 445”W x 265”H

Equipped With:

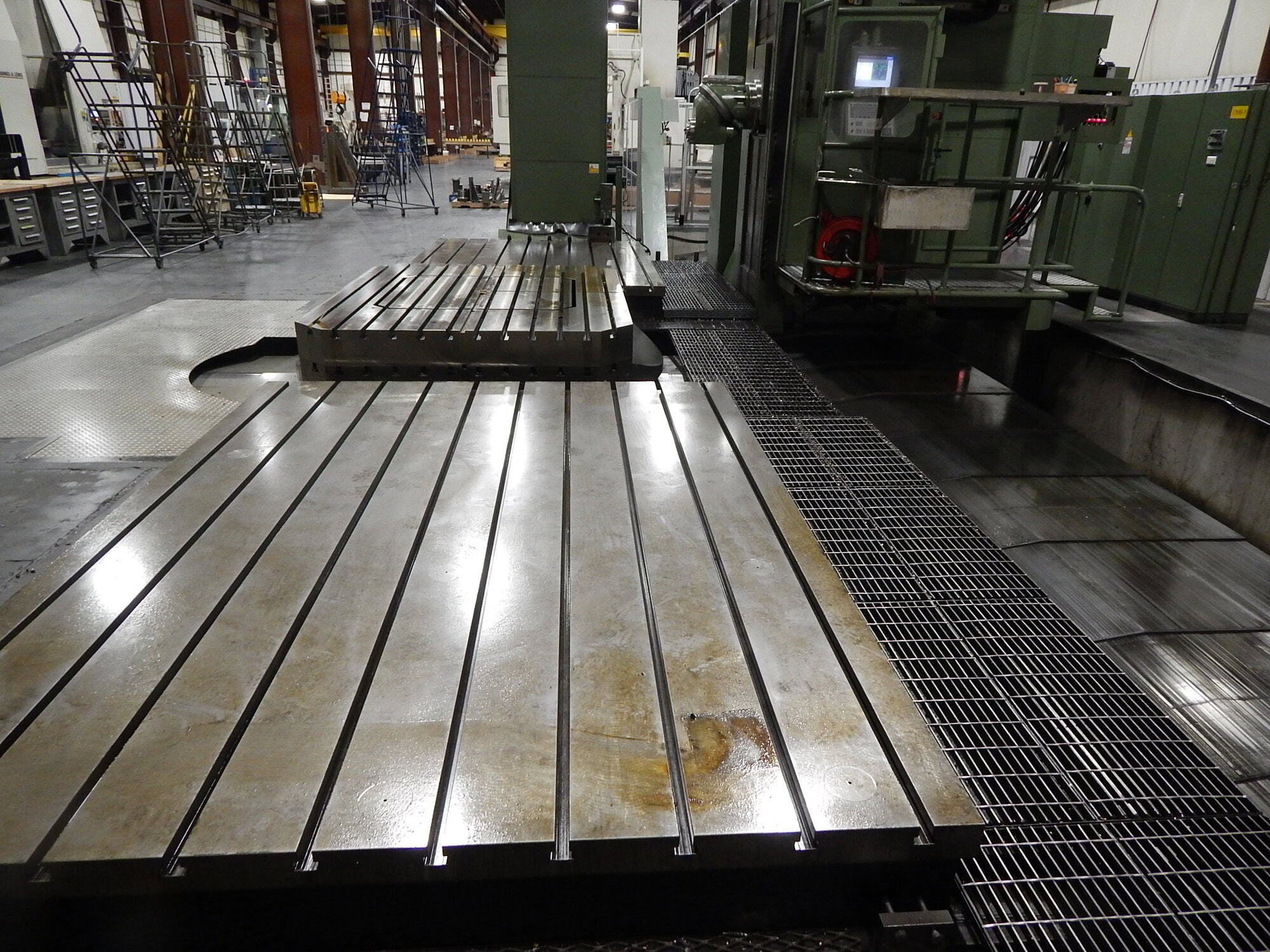

Heidenhain 7 Axis CNC Control, Heavy Duty CNC Rotary Table, (2) Floor Plates,

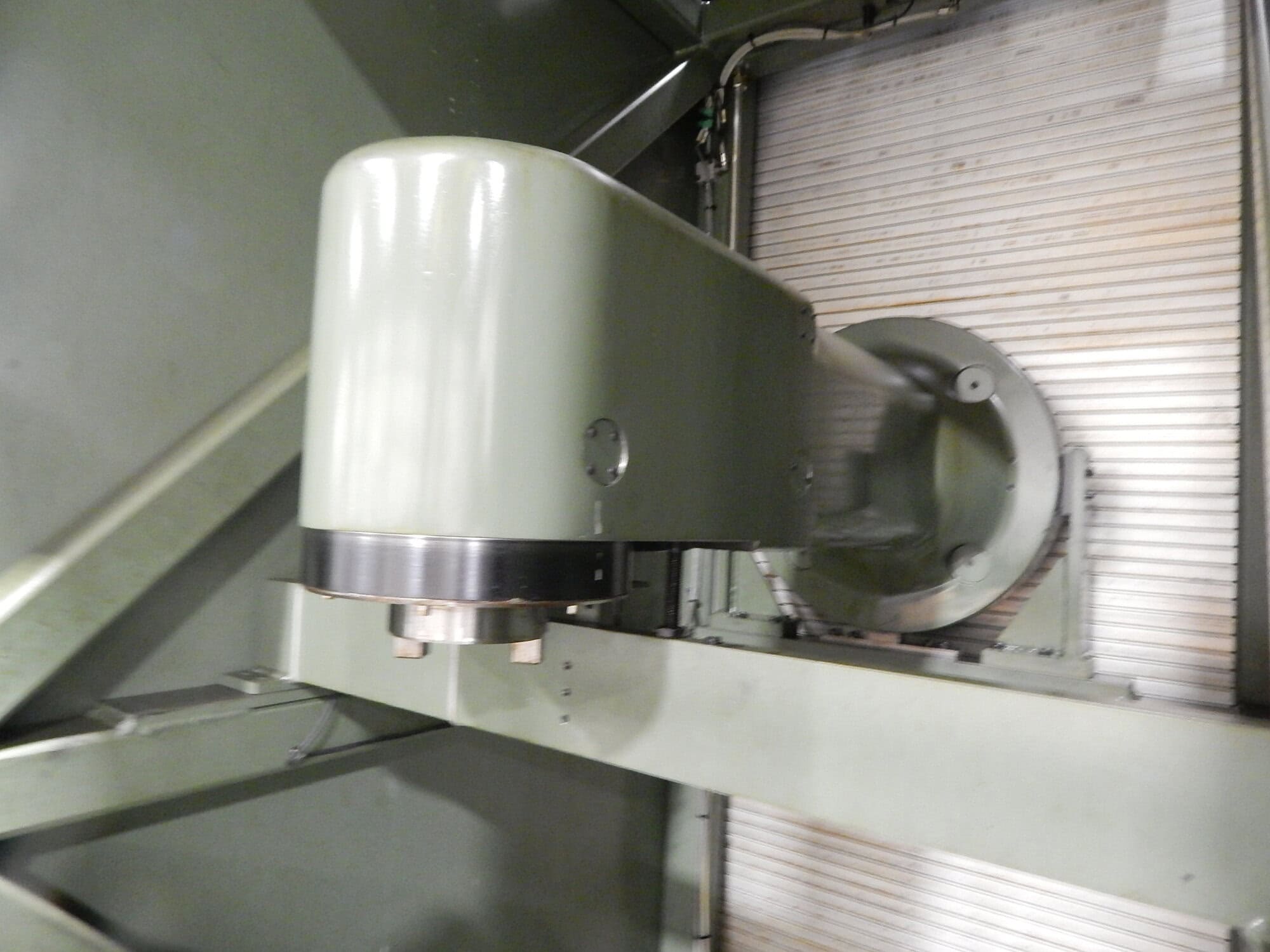

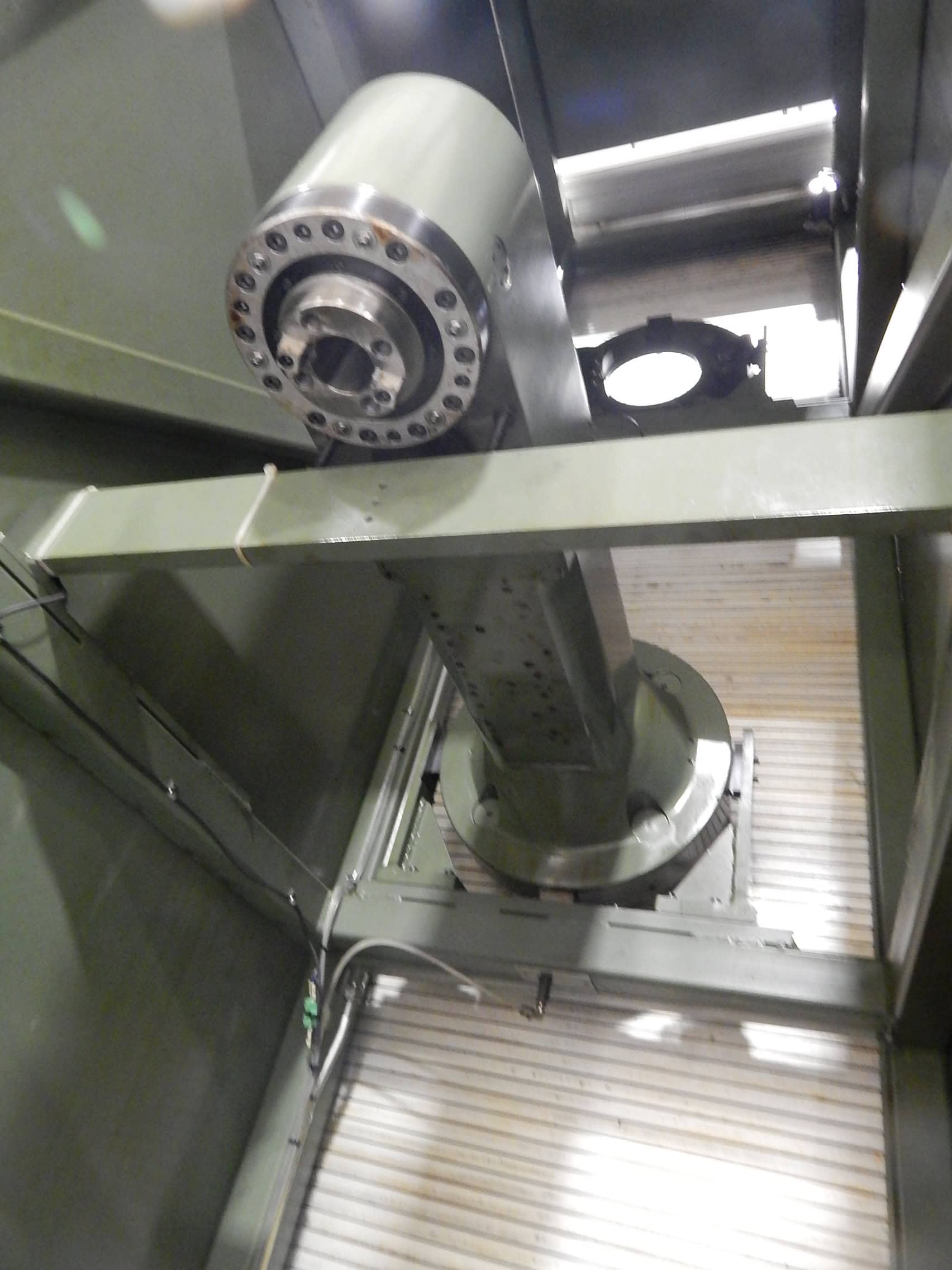

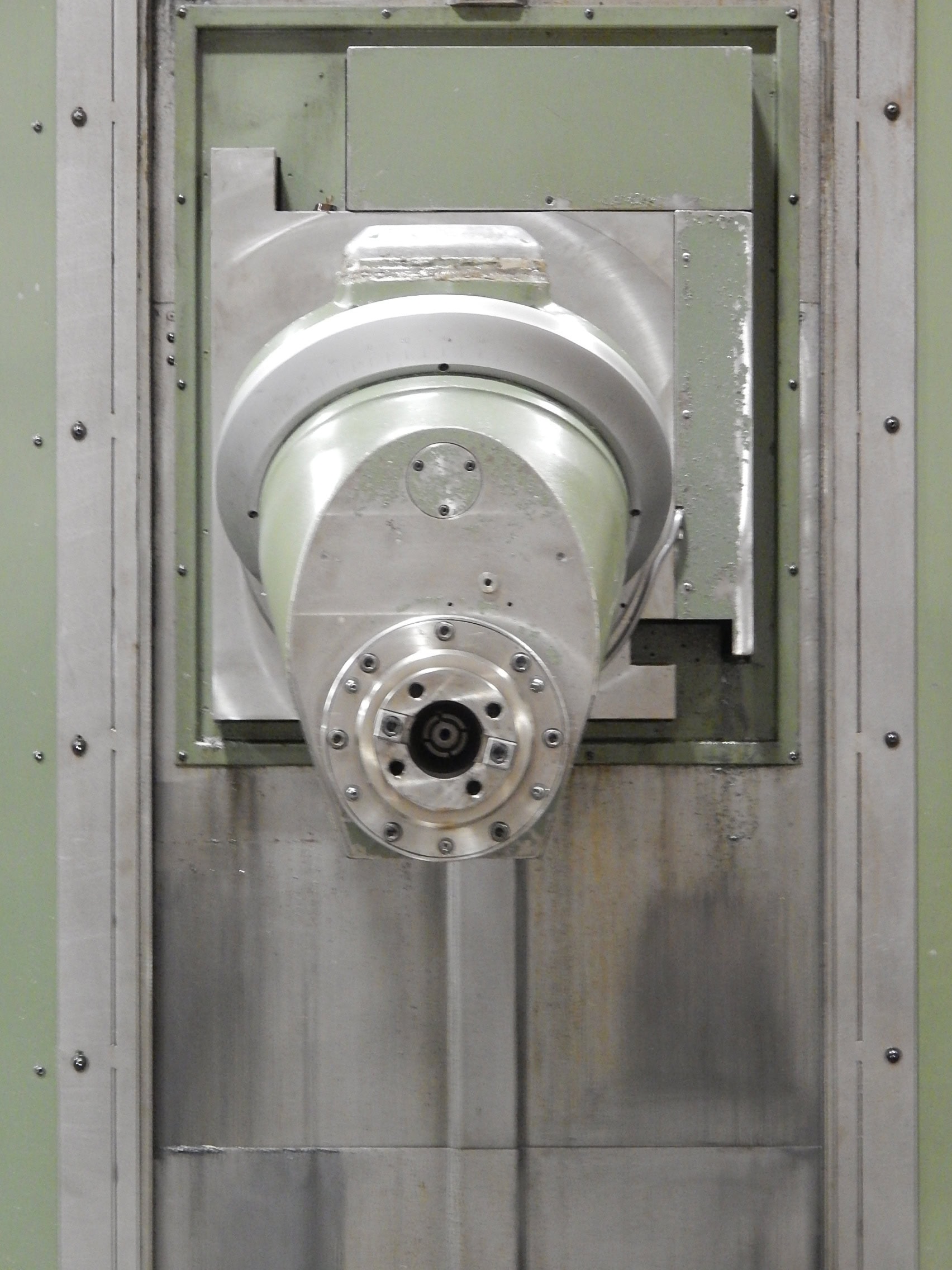

Universal Head, 90 Degree Head, Standard Boring Head, Remote Hand Pendant,
Head Changer Storage Tower, 120 Automatic Tool Changer, Coolant System,

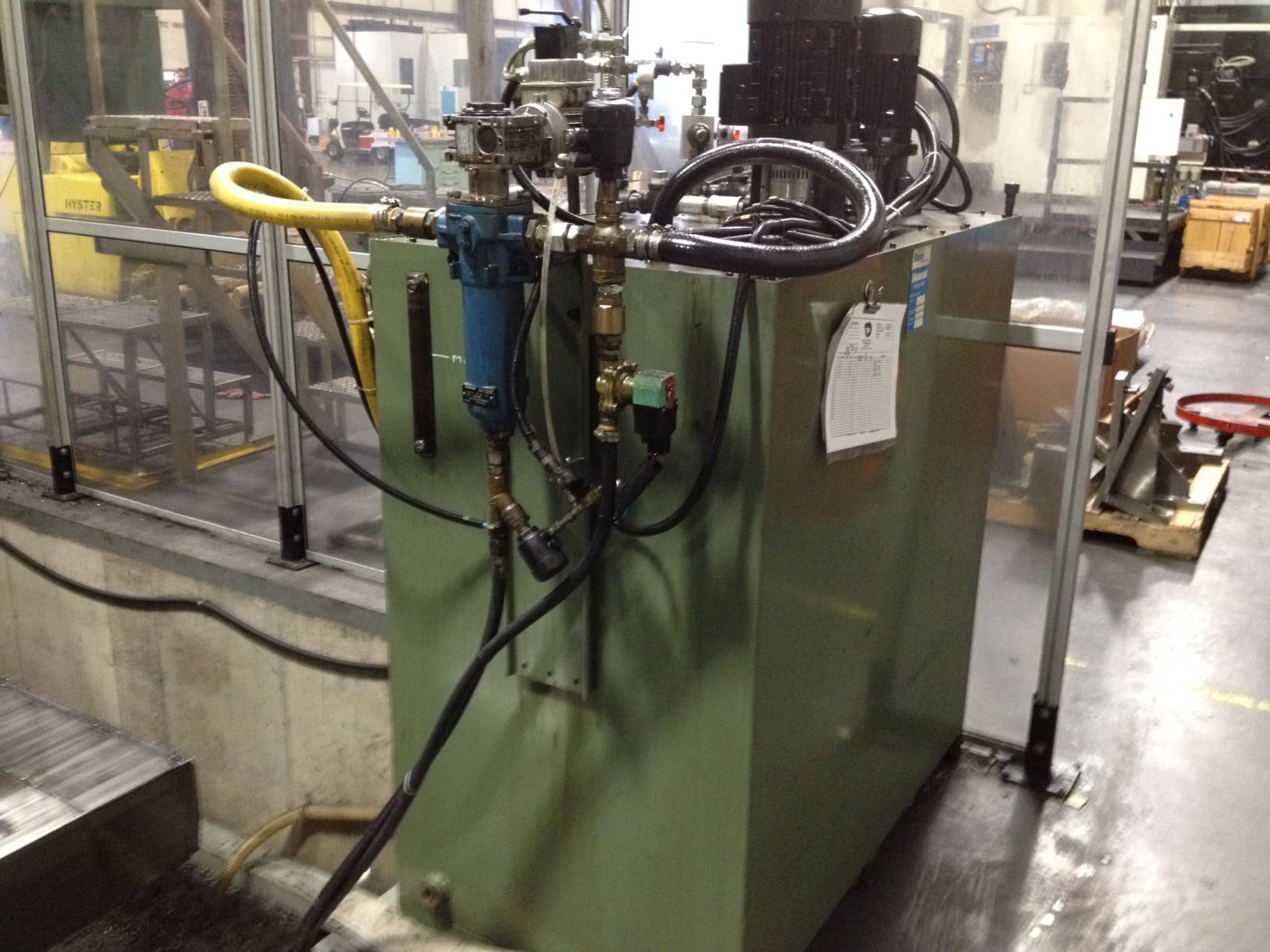

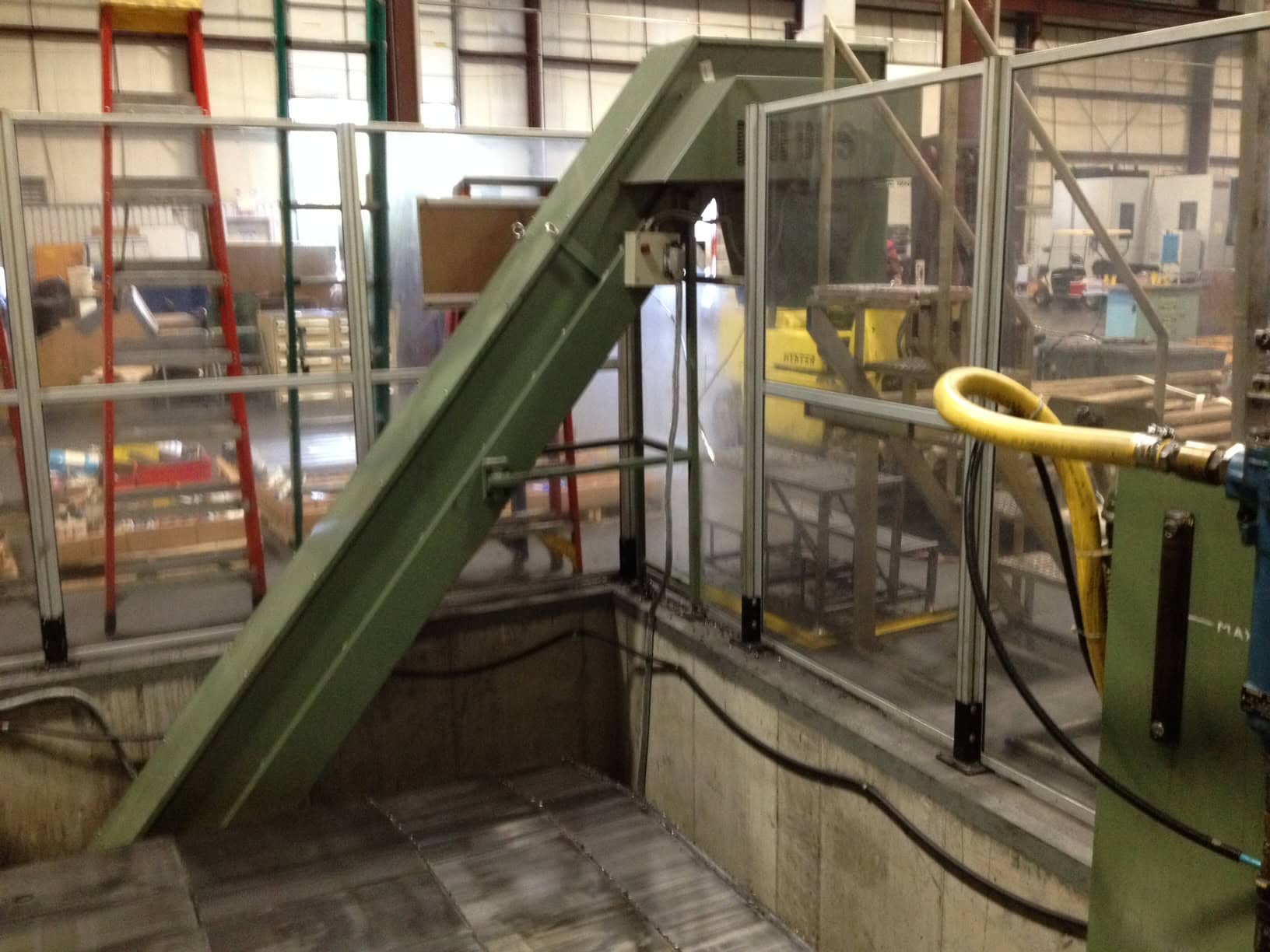

Hydraulic System, Chip Conveyor, Chillier Unit, Manual Books & Drawings,
