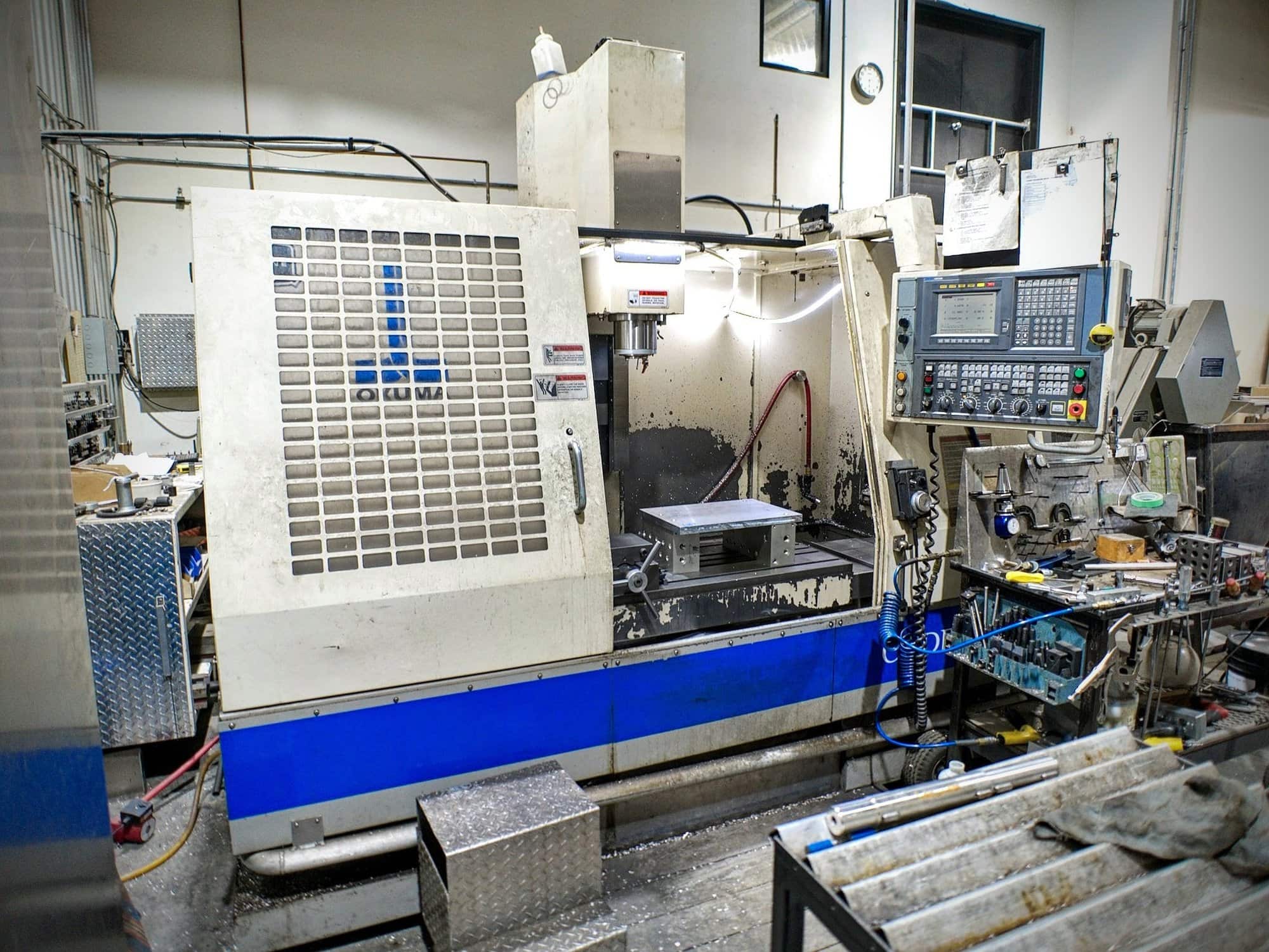

Okuma Cadet Mate 4020 CNC VMC, 1998 – Kitagawa Rotary, Tooling at Addt’l Cost
$15,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels:
X-Axis: 40.1″
Y-Axis: 20.3″
Z-Axis: 20.8″
Rapid Traverse Rates: 941 Inch Per Minute
Cutting Feed Rates: 475 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″
Table:
Length: 47″
Width: 20″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1100 lbs
Spindle:
Taper Size: 40
Speed Range: 40 – 8,000 RPM
Spindle Power: 15 HP
Max Torque: 90ft-lb @ 2000RPM
Automatic Tool Changer:
Capacity: 20
Max Tool Weight: 13.2 lbs
Max Tool Dia: 5.90 ”
Max Tool Length: 12″
Tool Changing Time: 3.6 Seconds
General:
Air Required: 80 psi, 4 scfm
Power: 240v / 35 KVA / 3-Phase
Overall Dimensions: 150″ x 92″ x 99″ High
Weight: 11000 lbs
Equipped With:

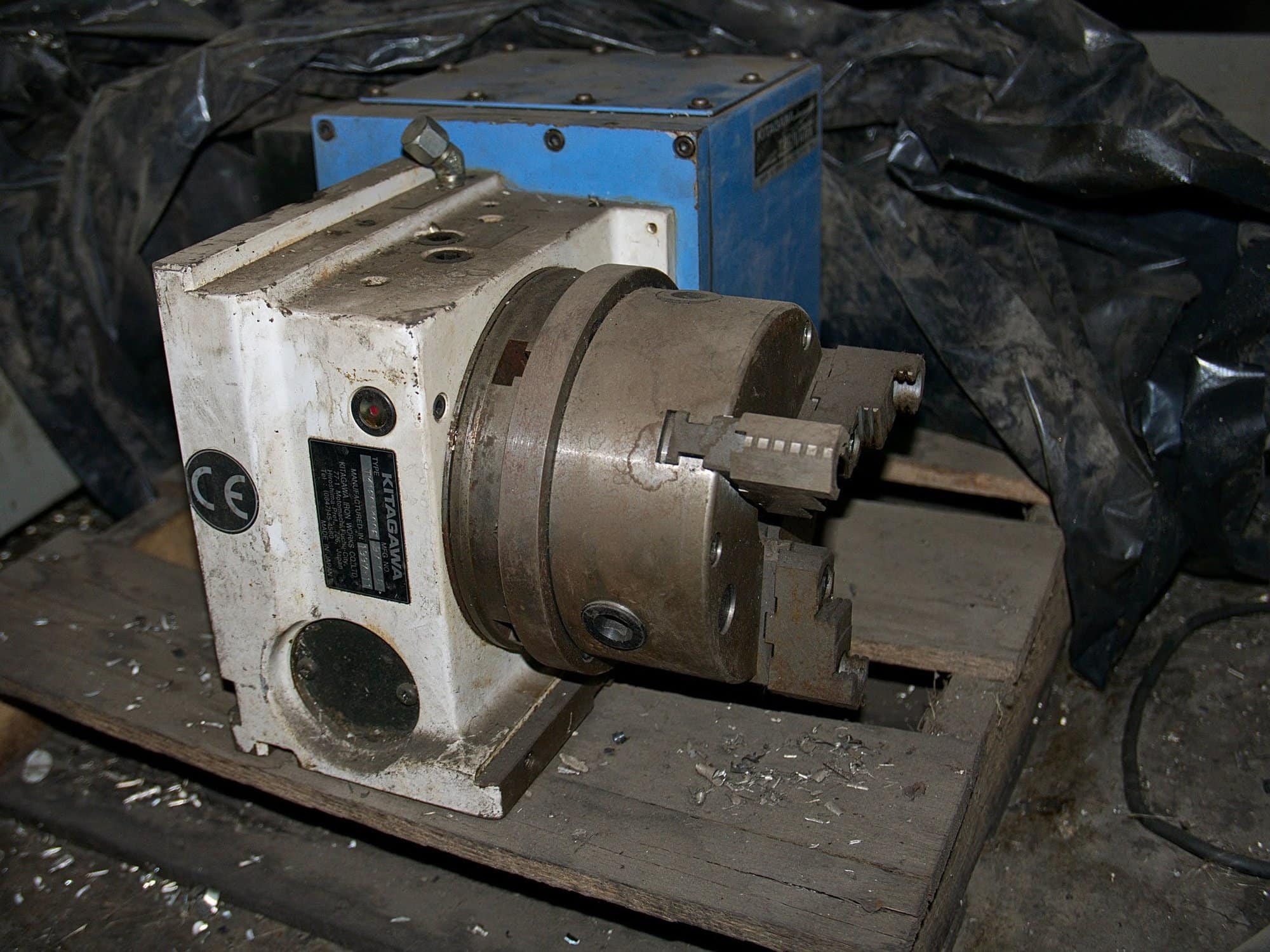

Kitagawa Rotary Table
Tooling Available at Additional Cost – Ask for More Info
