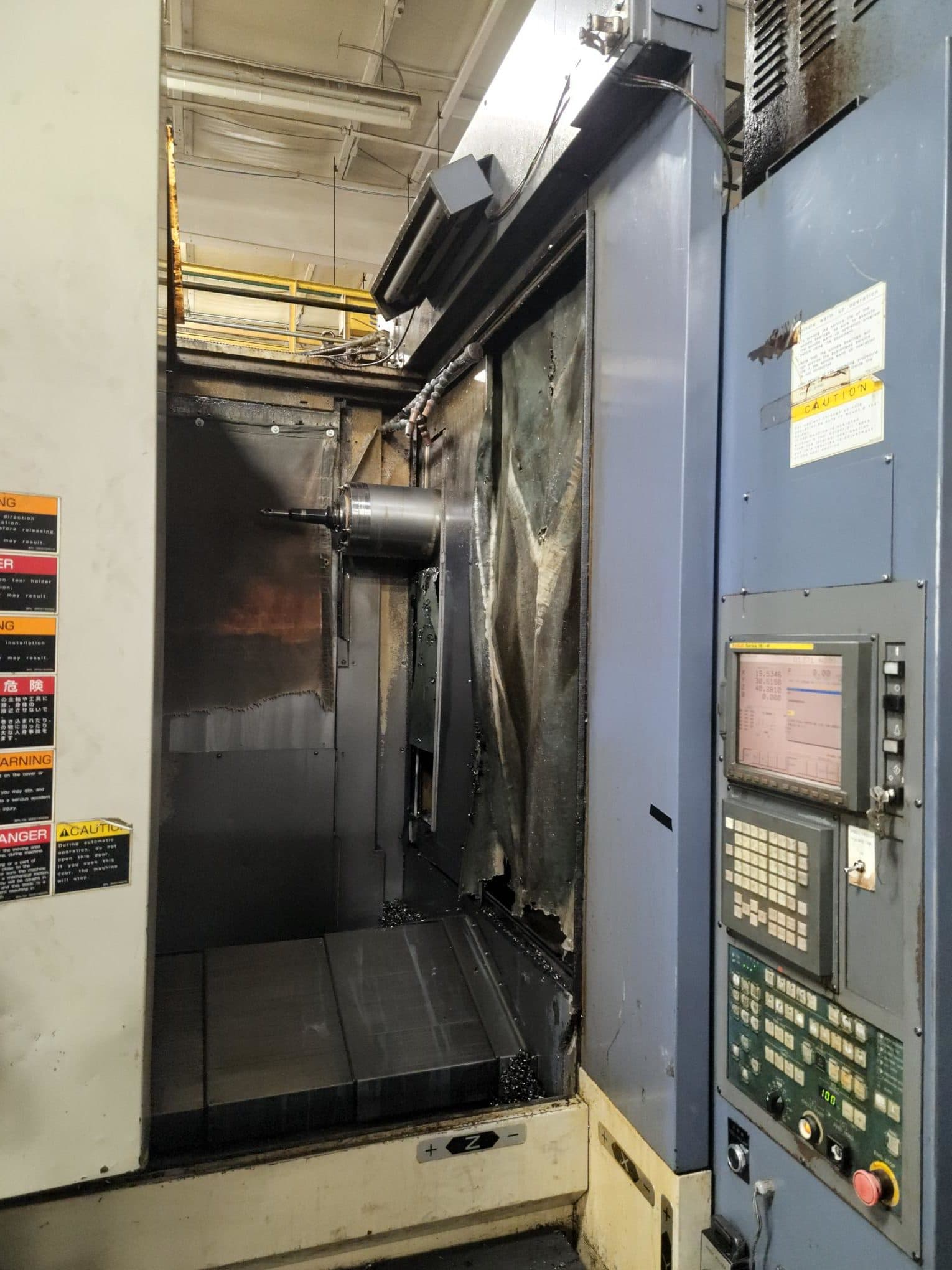

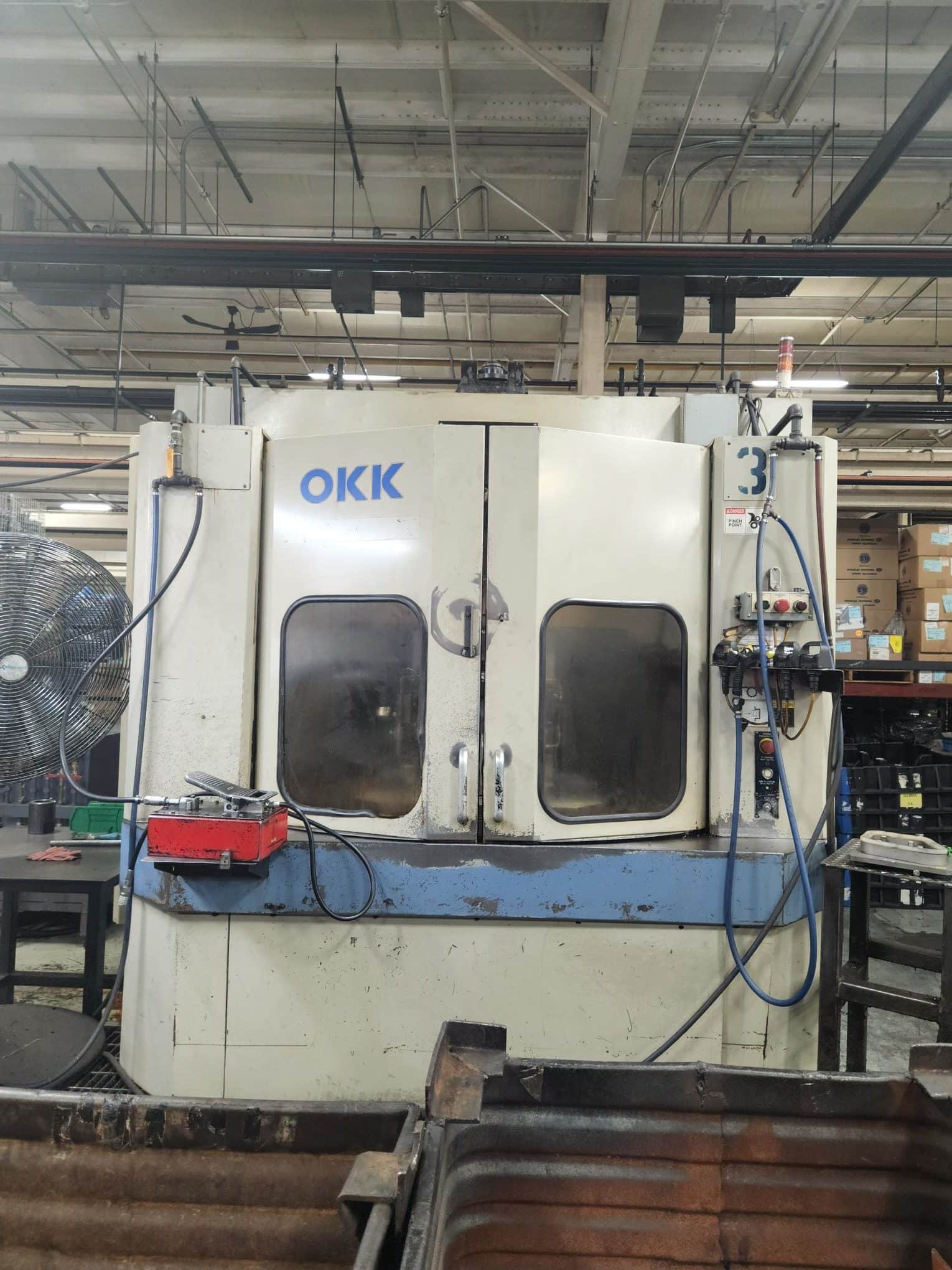

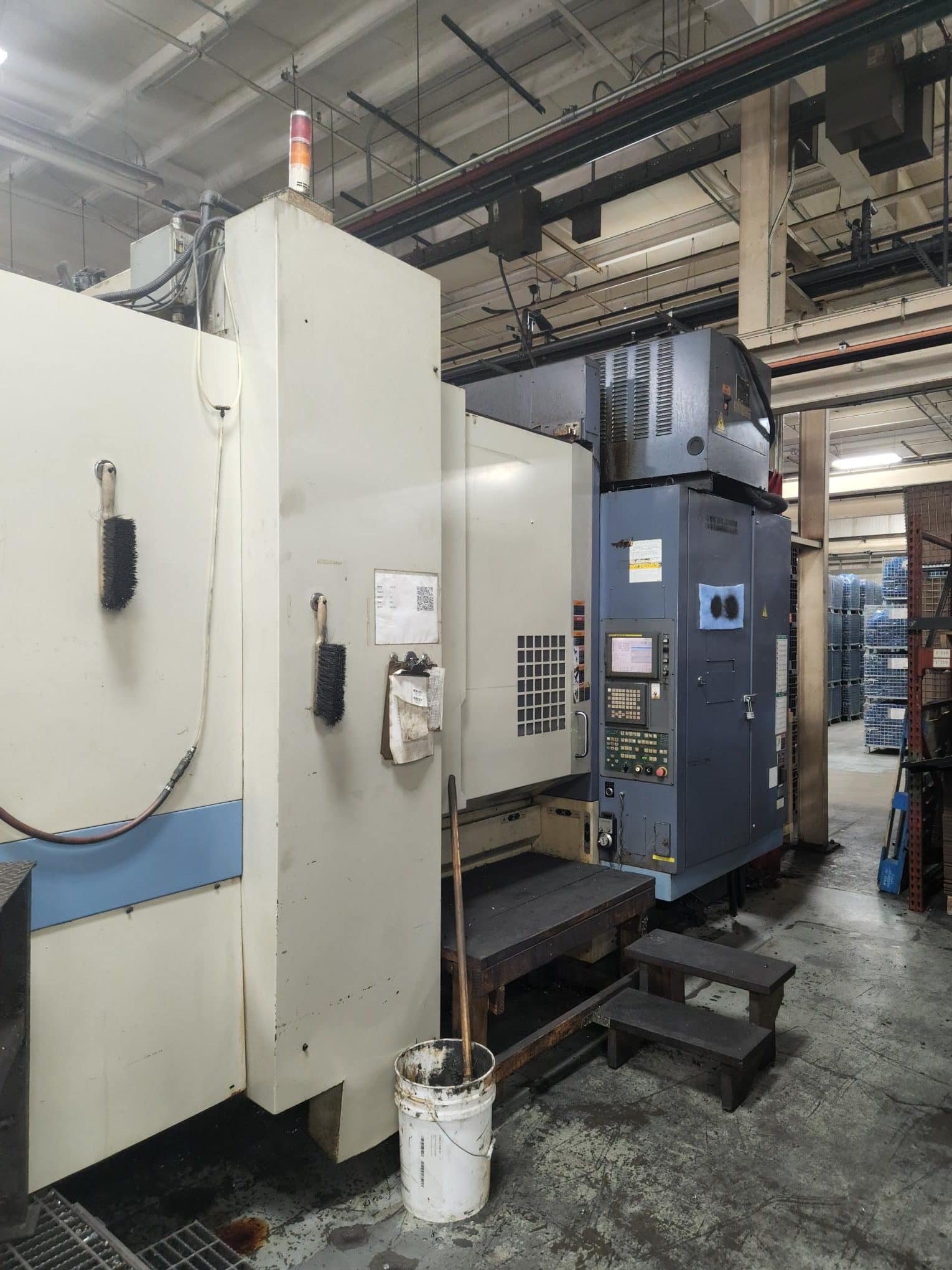

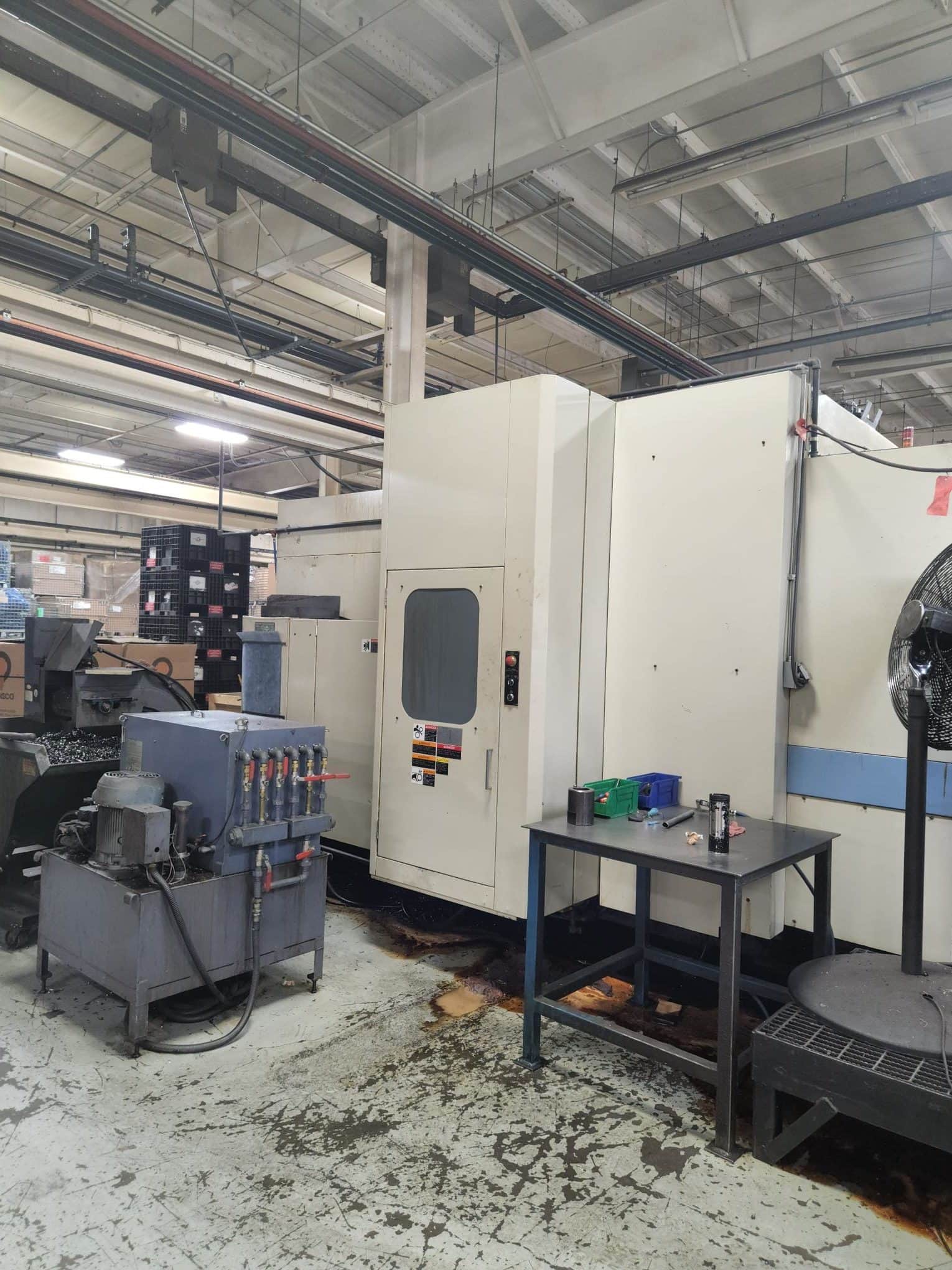

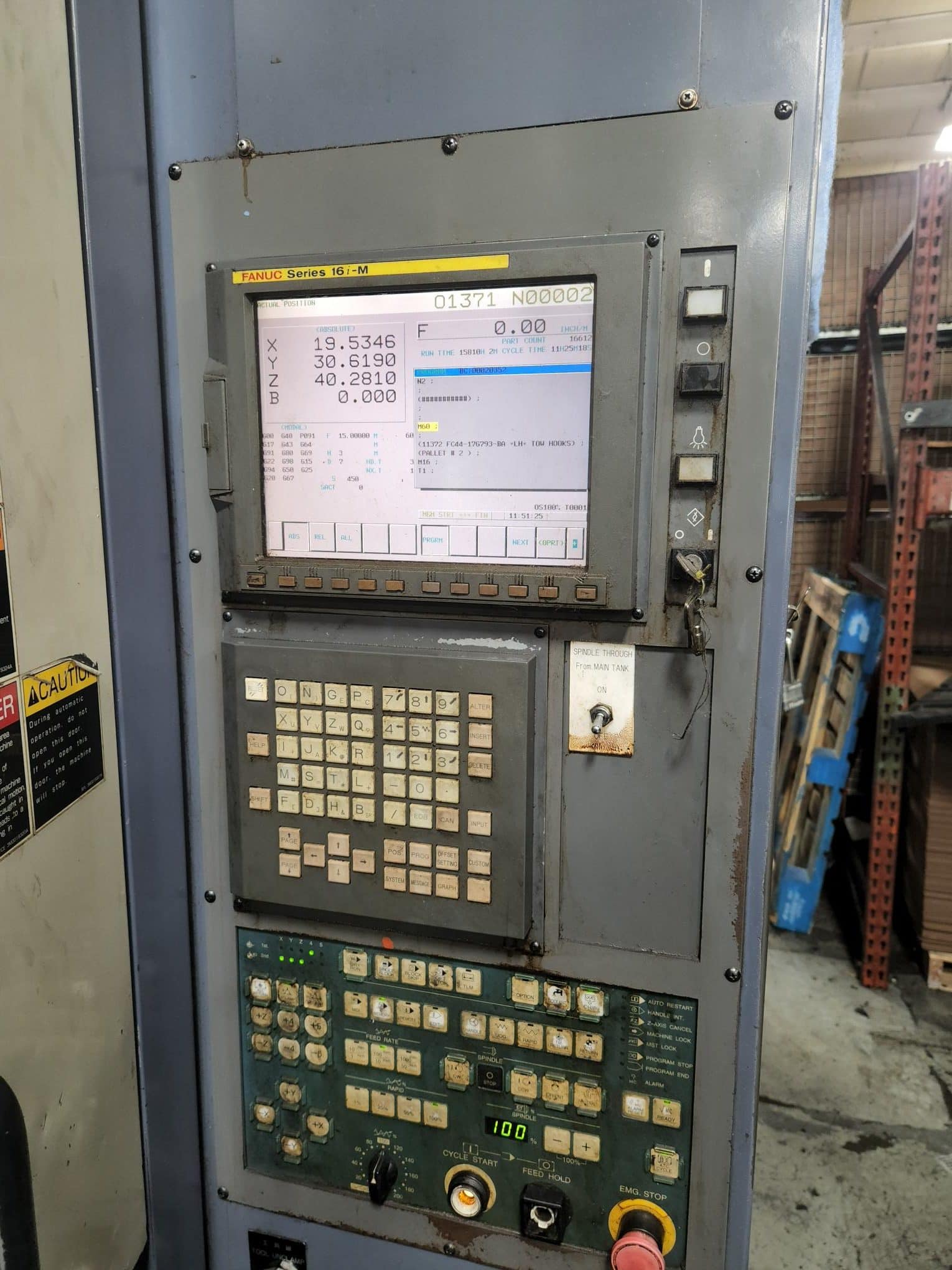

OKK HM-80S 800MM HMC, 1999 – TSC, Fanuc Control, Chip Conveyor
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Pallet Size: 31.5″
Pallet Load Capacity: 2,424 lbs.
X – Axis: 39.37″
Y – Axis: 33.46″
Z – Axis: 32.29″
Pallet Axis: 1 Degree
Spindle Speeds: 35 – 12,000 RPM
Spindle Taper: Cat 50
Spindle Center to Table Top: 1.18″ – 34.65″
Spindle Nose to Table Center: 7.87″ – 40.16″
Max. Tool Diameter:4.53″/9.06″
Max. Tool Length: 17.72″
Max. Tool Weight: 55.12 lbs.
Spindle Torque: 310 ft. lbs.
Approximate Dimensions: 205″ x 130″ x 133″
Approximate Weight: 39,500 lbs.
EQUIPPED WITH:
Extra Spindle
2x Extra Pallets
Through Spindle Coolant
Chip Conveyor
Notes:
– Spindle has chipped key drive
– Tool changer door and x-travel cover missing; replaced with canvas
