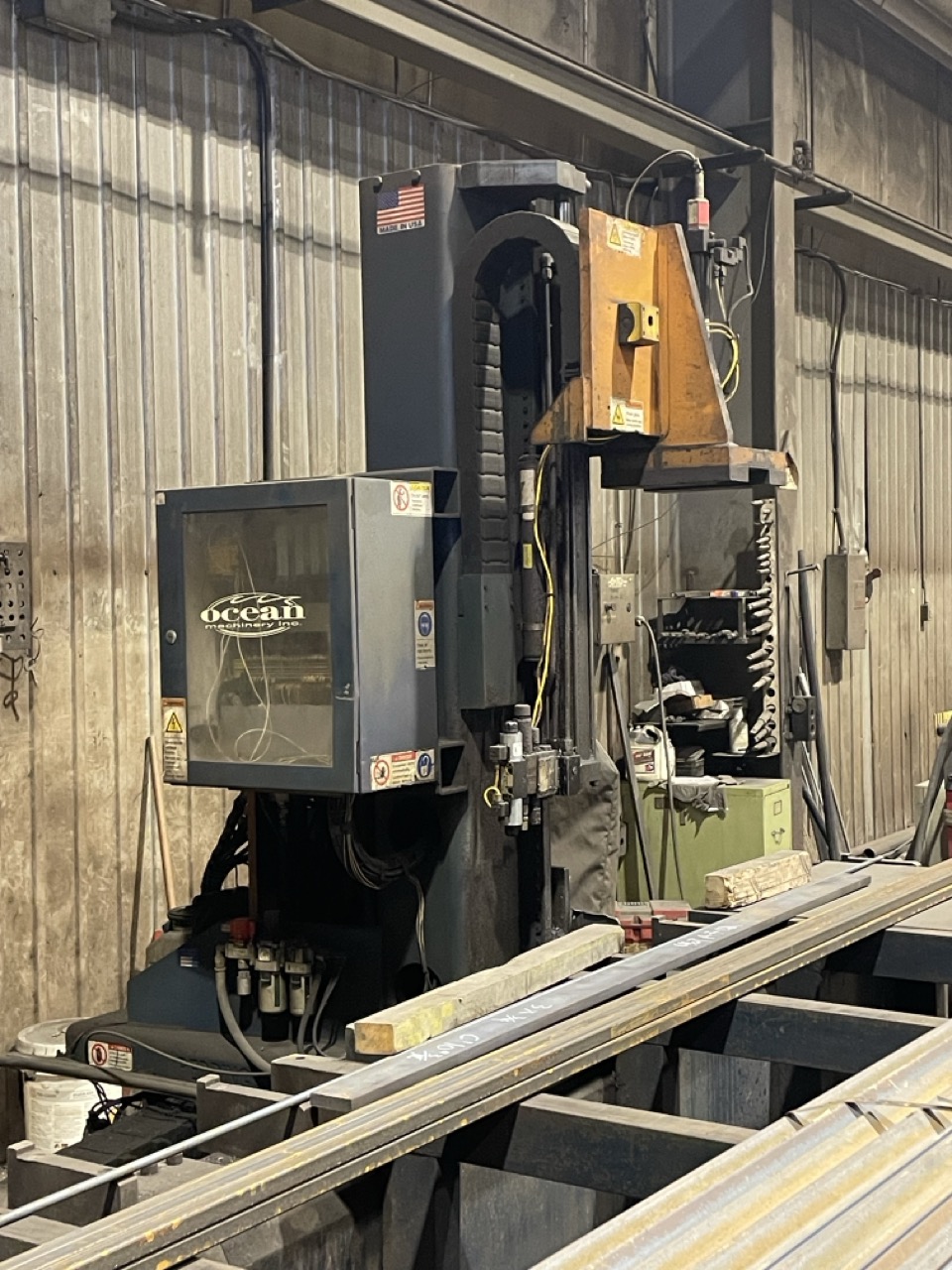

Ocean Avenger MDL-1000/1B CNC Beam Drill Line, 2007
$59,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Maximum Beam Size: 40″ x 60′ (1,016 mm x 18.3 m)
Maximum Profile Weight: 730 lbs/ft (1,088 kg/m)
Maximum Material Thickness: Up to 10″ (250 mm)
Floor Space Required: Approximately 71′ x 12′
Spindle Motor Power: 13.5 HP
Drill Diameter Range: 5/16″ to 1-9/16″
Spindle Stroke: 13″ (330 mm)
Spindle Speeds: 200 – 850 RPM
Drilling Feed Rate: 2″ – 10″ per minute
X-Axis Speed: Up to 120 FPM (37 m/min)
Y-Axis Speed: Up to 120 FPM
Positioning Accuracy: +/- 1/32″ over the 60′ length
Equipped With:

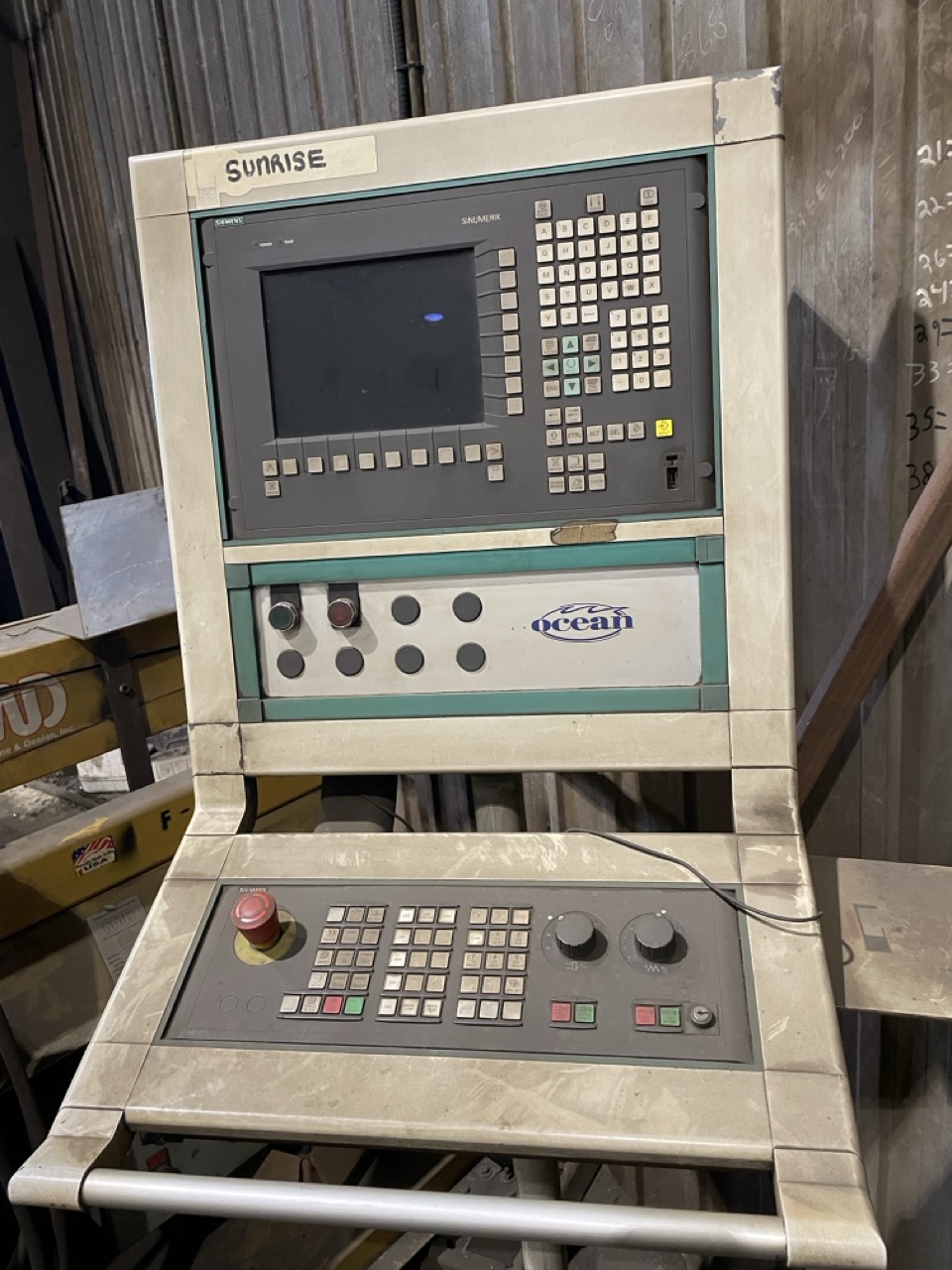

Siemens 840D Control
