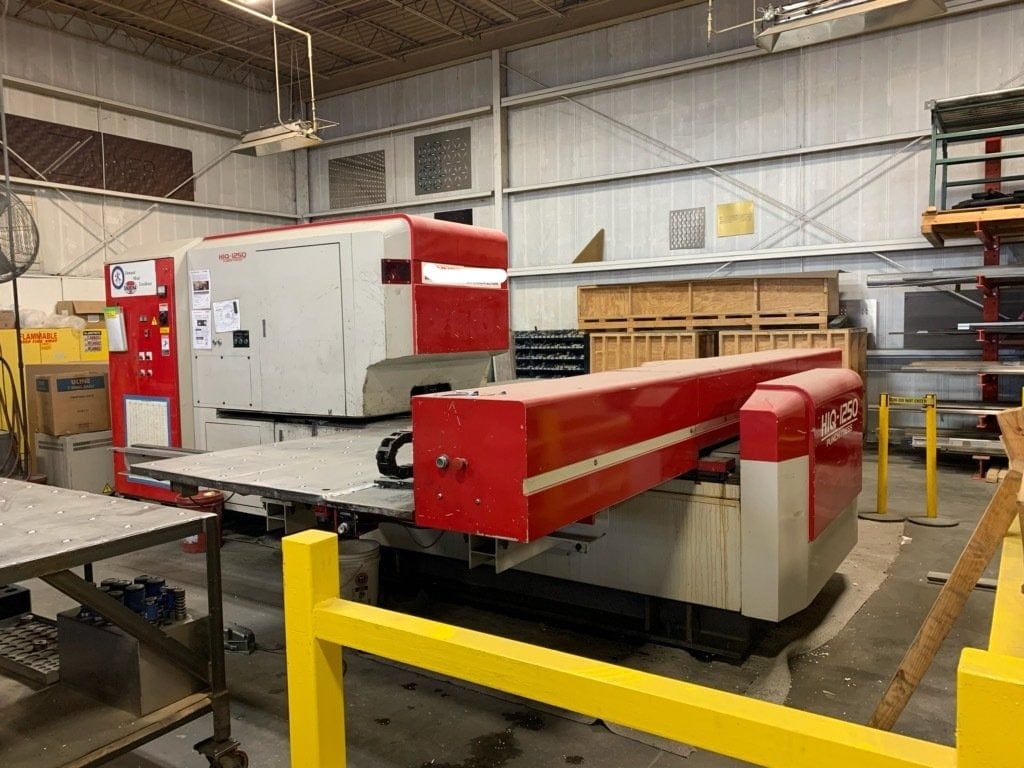

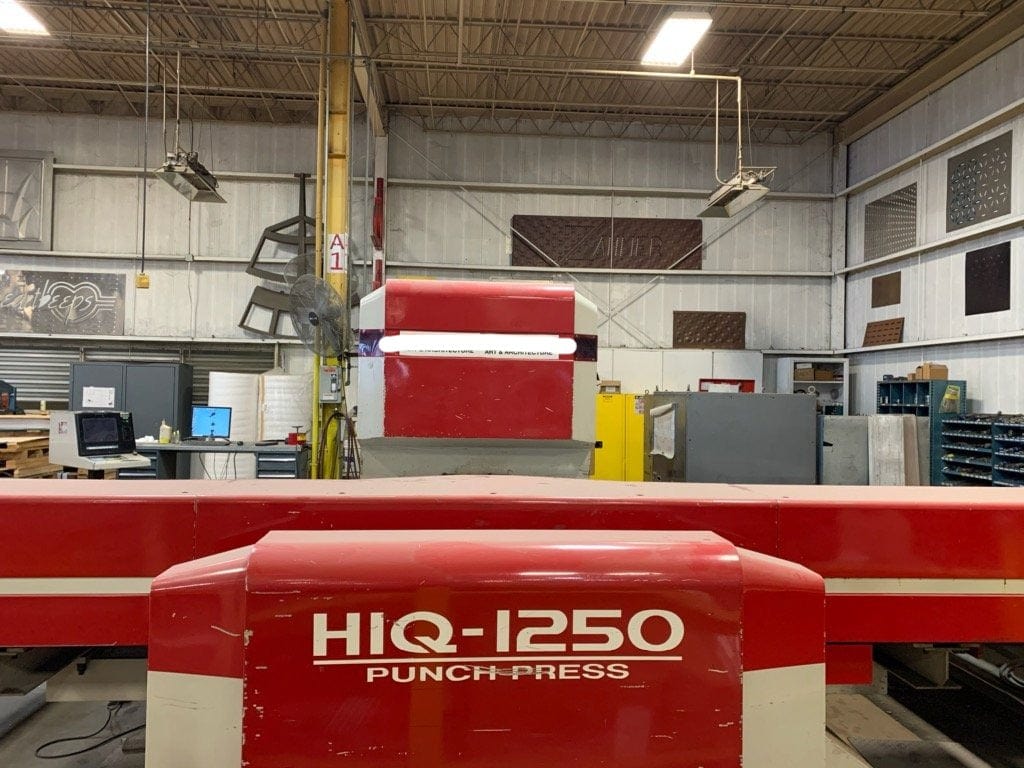

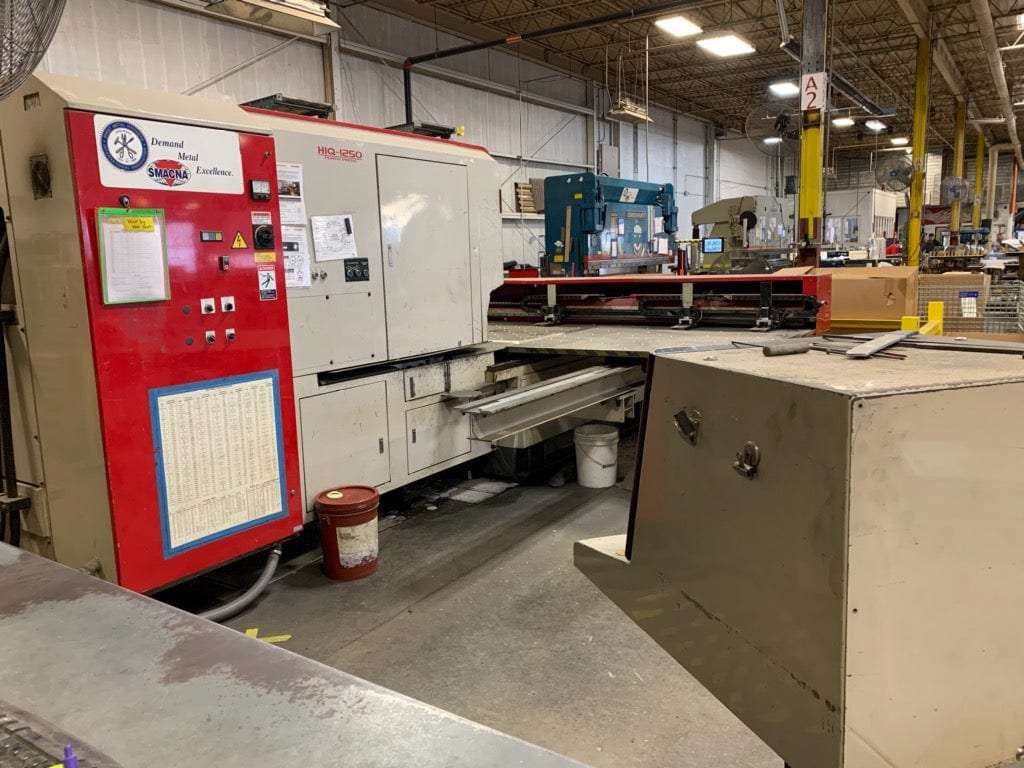

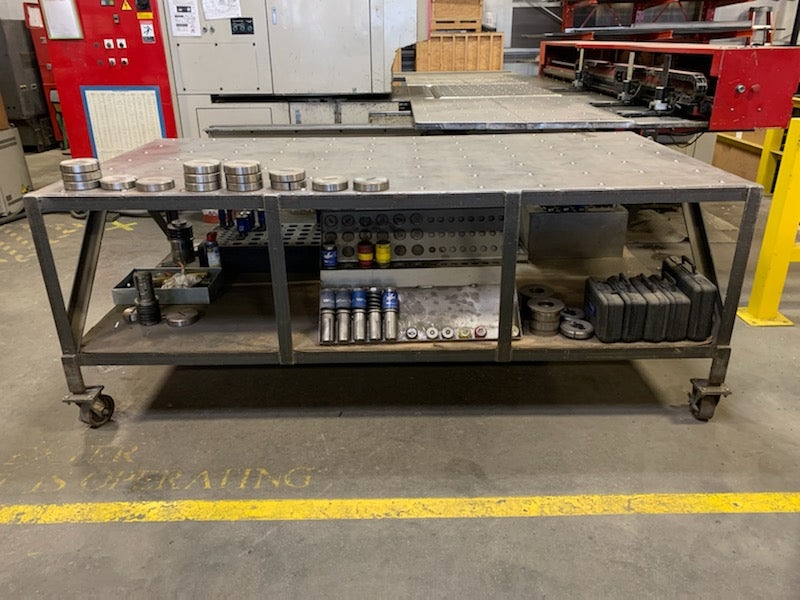

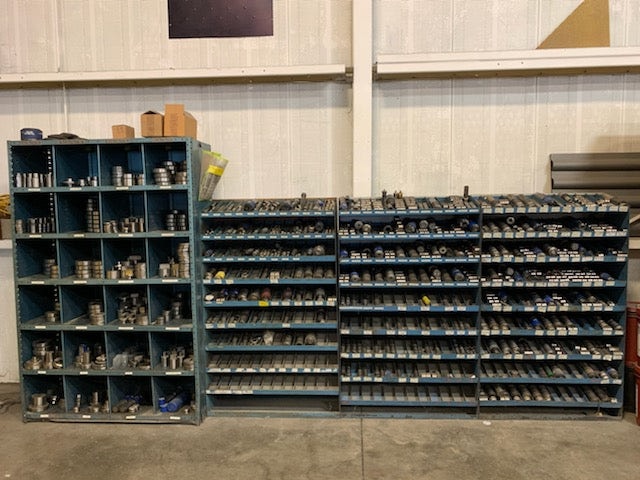

Nisshinbo Turret Punch *Tooling ONLY* 33 Ton, $100k+ in Tooling & Parts
$11,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Frame Type: “J” frame
Max Tonnage: 33
Actuation Type: Hydraulic
Tool Type: Turret

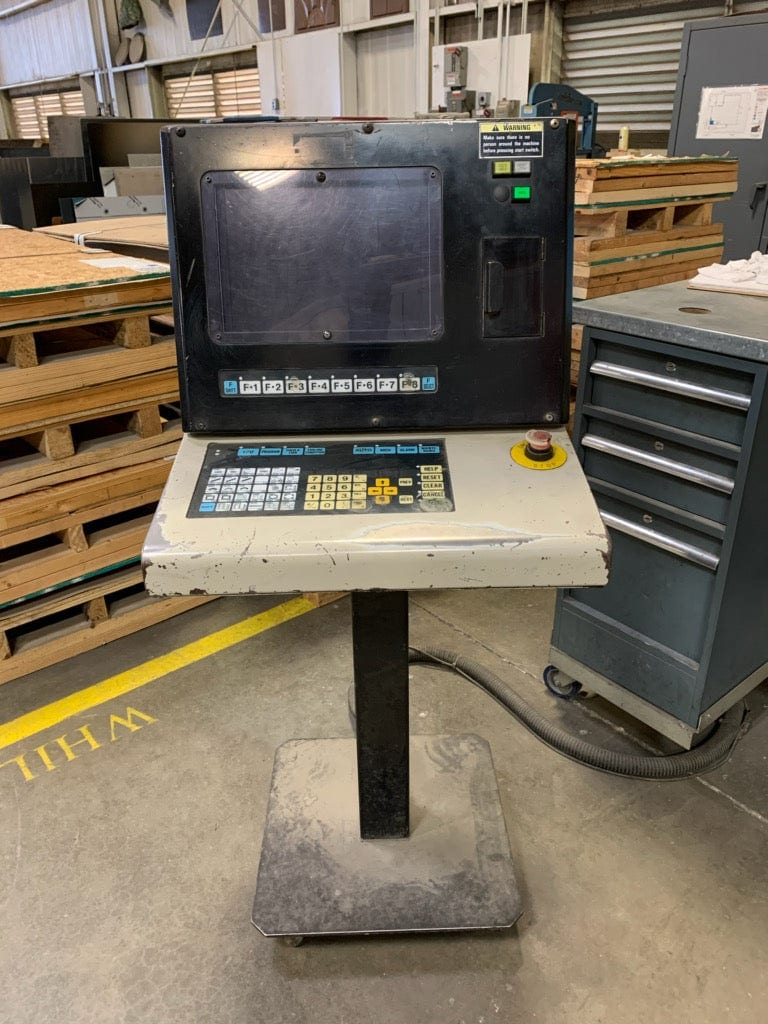

CNC: Nisshinbo PAL-510T
Manufacture Date: June 1998

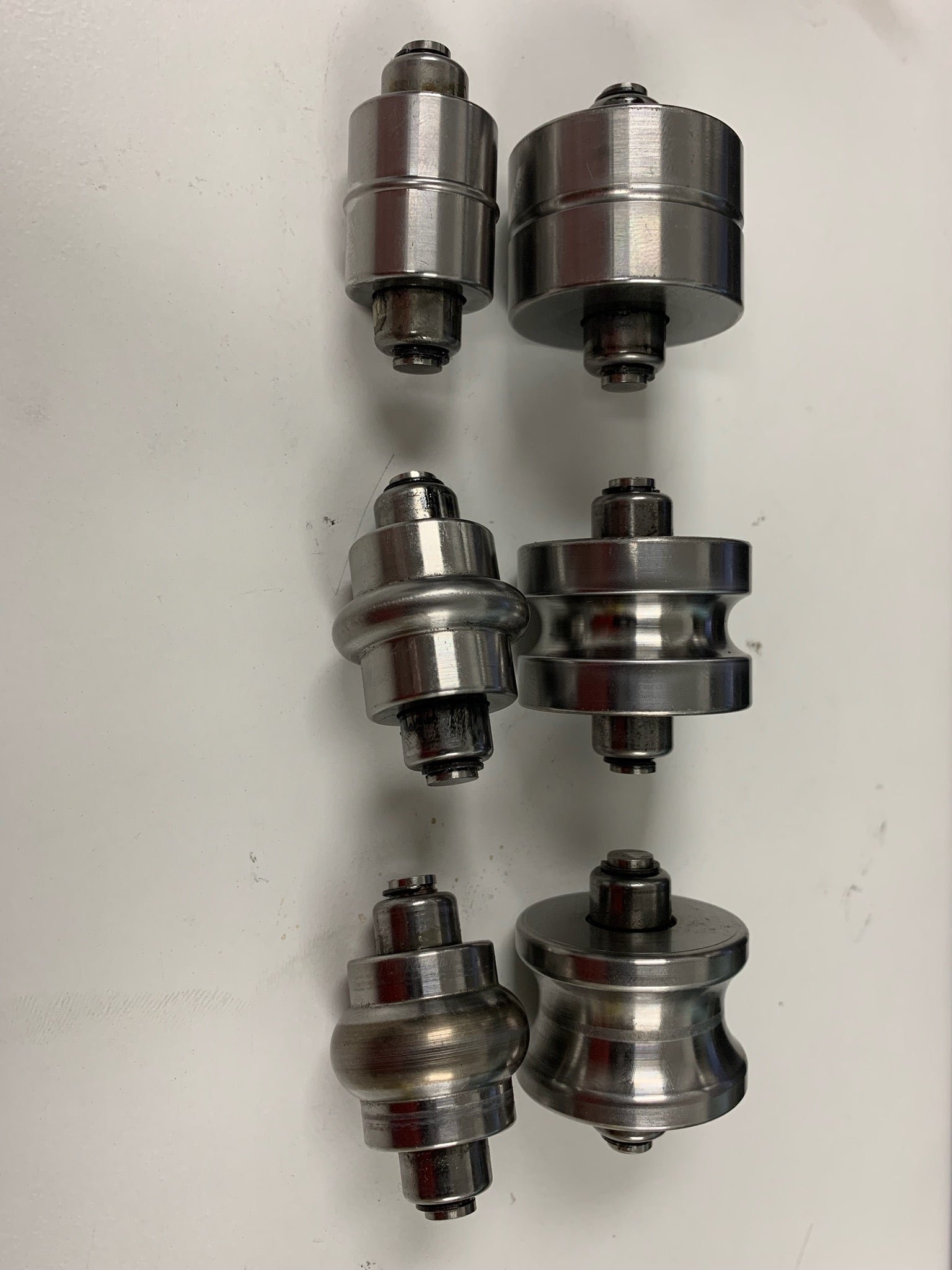

Auxilary Functions: Wilson Wheel : Standard
Max Sheet Size (inch): (L) 98.000 x (D) 49.000″
W/1 Repositioning (inch): (L) 197.000 x (D) 49.000 (Opt. (L) — x (D) 60.000 )
Hit Rate (1″ centers): 220 str/min
Nibble Rate: 450 str/min
Max Hole Diameter: 3.500 Inches
Punching Accuracy: +/-0.004 Inches

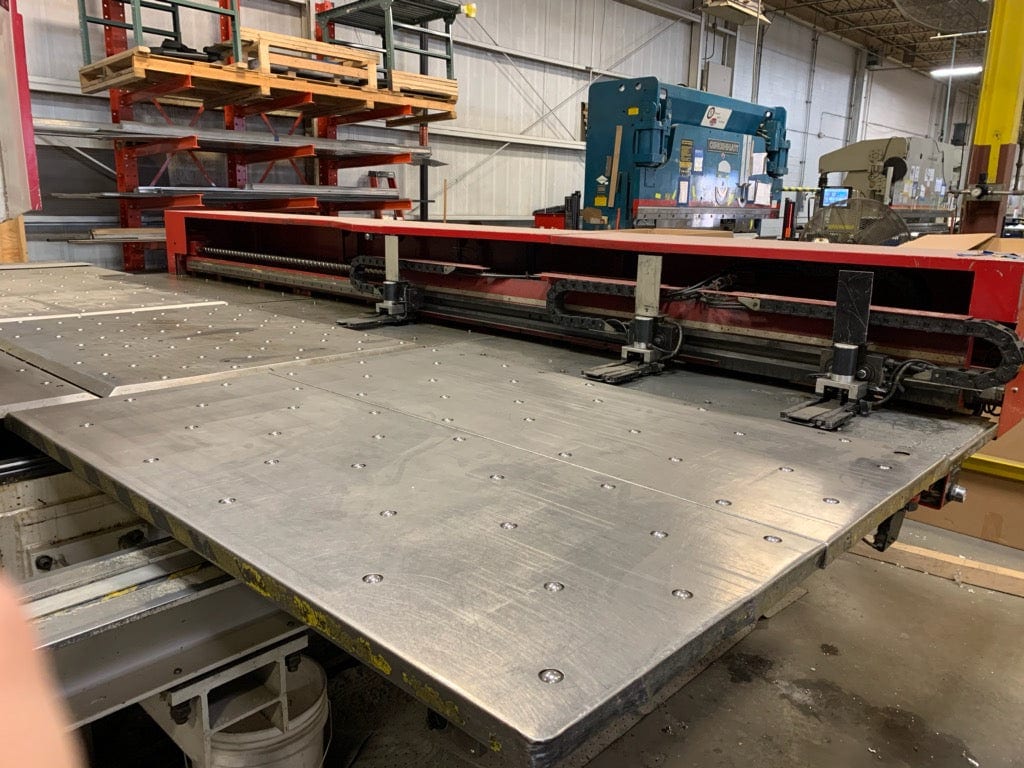

Table Size (inch): (L) 100.000 x (D) 50.000
Table Travel (inch): X: 98.400 Y: 49.200
Table speed (Max) X: 2,400 ipm Y: 2,400 ipm
Throat Depth: 49.00 Inches
Material Reposition: Roller ball
Number of Stations: 37 (Opt. 50)
Number of Tools: 52

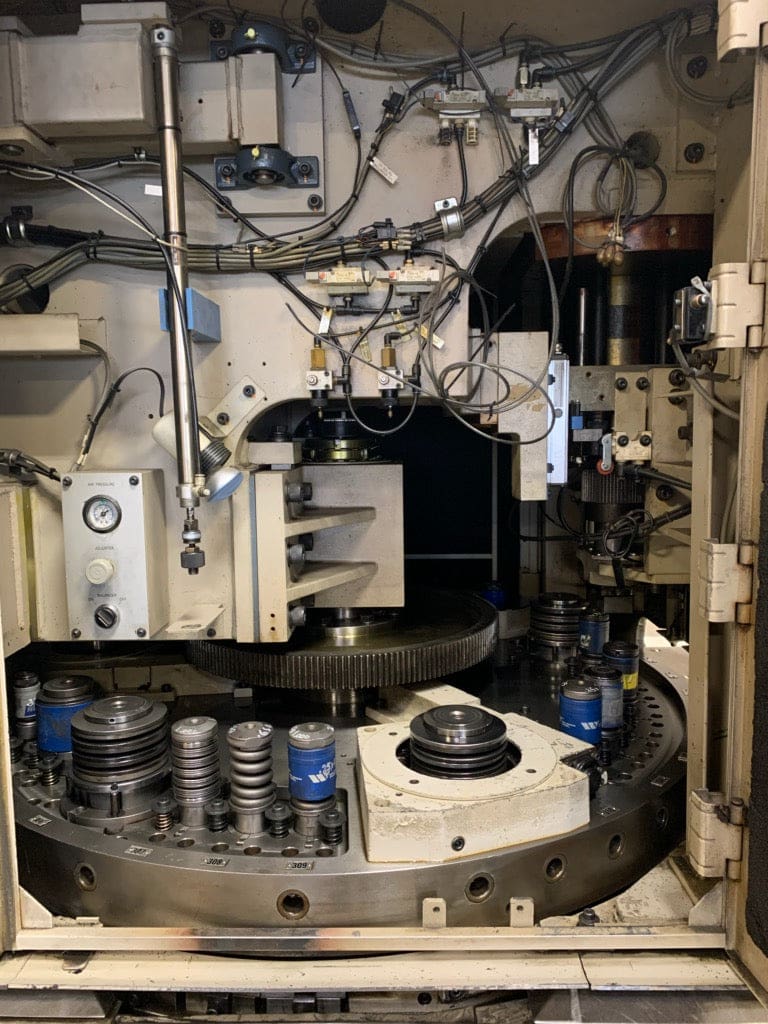

Turret Style: Thick
Auto Index: Standard
Turret Index Speed: 30 RPM
Machine Dimensions: (L) 208.00″ x (D) 179.00″
Machine Weight: 42,000 LBS
STD: 3 Auto-Indexing Stations
