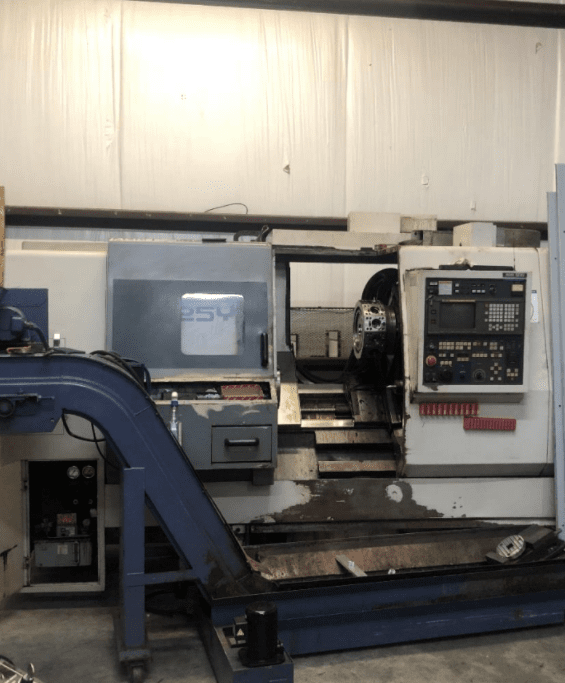

Mori-Seiki SL-25Y CNC Lathe, 1998- Live Tools, T/S, Barfeed Interface, Final Price Drop
$22,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X travel: 7.7 “ <5.1” + 2.6”>
Z travels: 23.2”
Y travels: 3.9”
Swing: 32.1”
Swing over cross slide: 26.73”
Max. diameter of part: 10.24”
Max. distance between centers: 24.41”
Max. turning length: 20.87”
Spindle nose: A2-8
Spindle rpm: 35-3,500
Spindle HP: 20/15
Spindle positioning: 0.001”
Bore thru spindle: 3.1”
Max. bar capacity: 2 5/8”
Traverse rates:
X: 472 ipm
Z: 590 ipm
Y: 236 ipm
Rotary HP/RPM: 5/3 HP and 100 to 2,000 rpm
Tail stock spindle travels: 4.33”
Tail stock taper: #5MT
Machine KVA rating: 36
Dimensions: 125.3” x 70.8” x 81” high x 11,880 lbs.
Equipped with:
Live Tooling
10″ chuck
Tailstock
2-Live milling heads
6-Static holders
4-Stick tooling
LNS Turbo CC
bar feed interface
3.1″ hole thru spindle
Fanuc Moric T6F Big Screen FABT Conversational controls.
