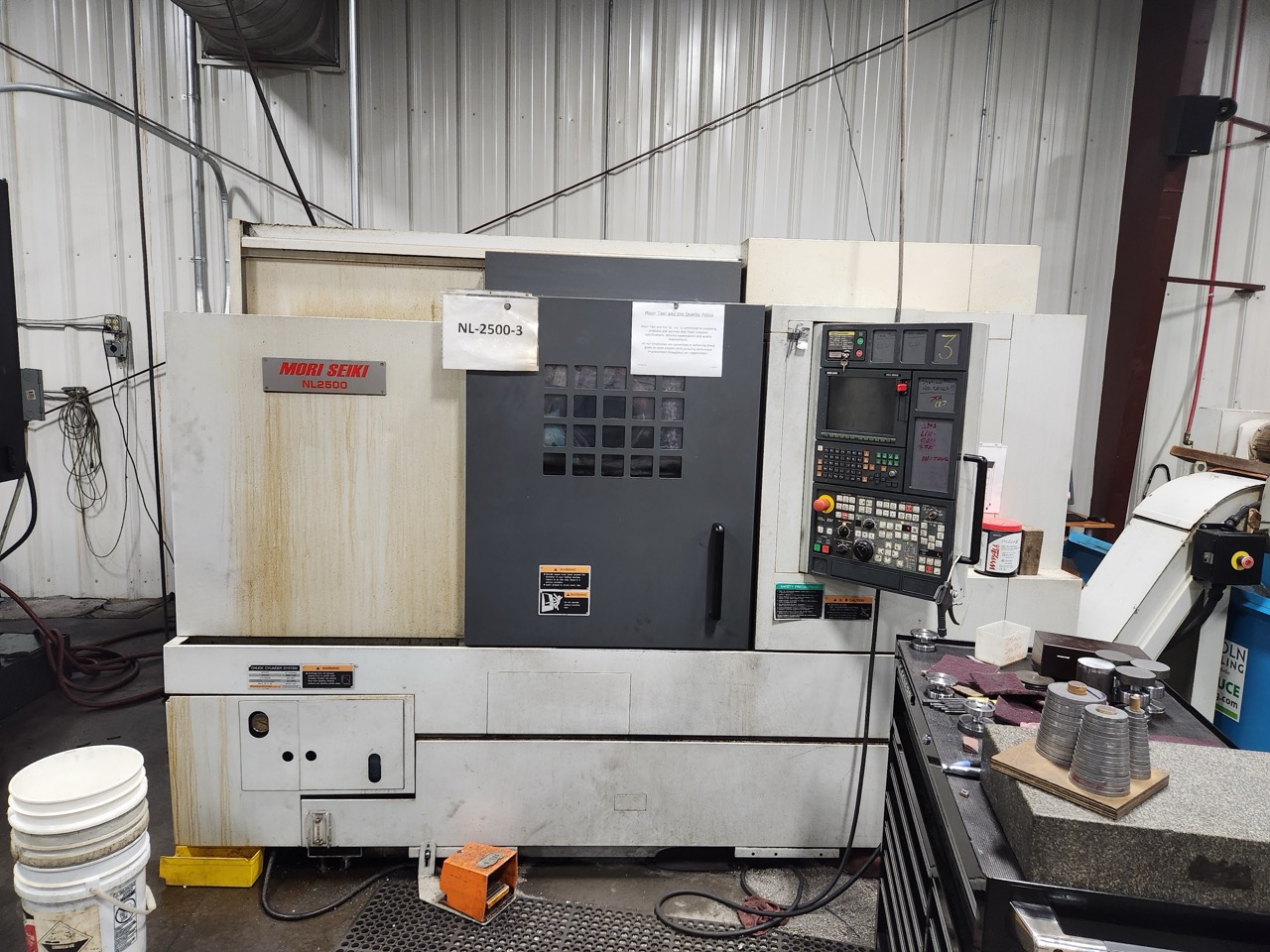

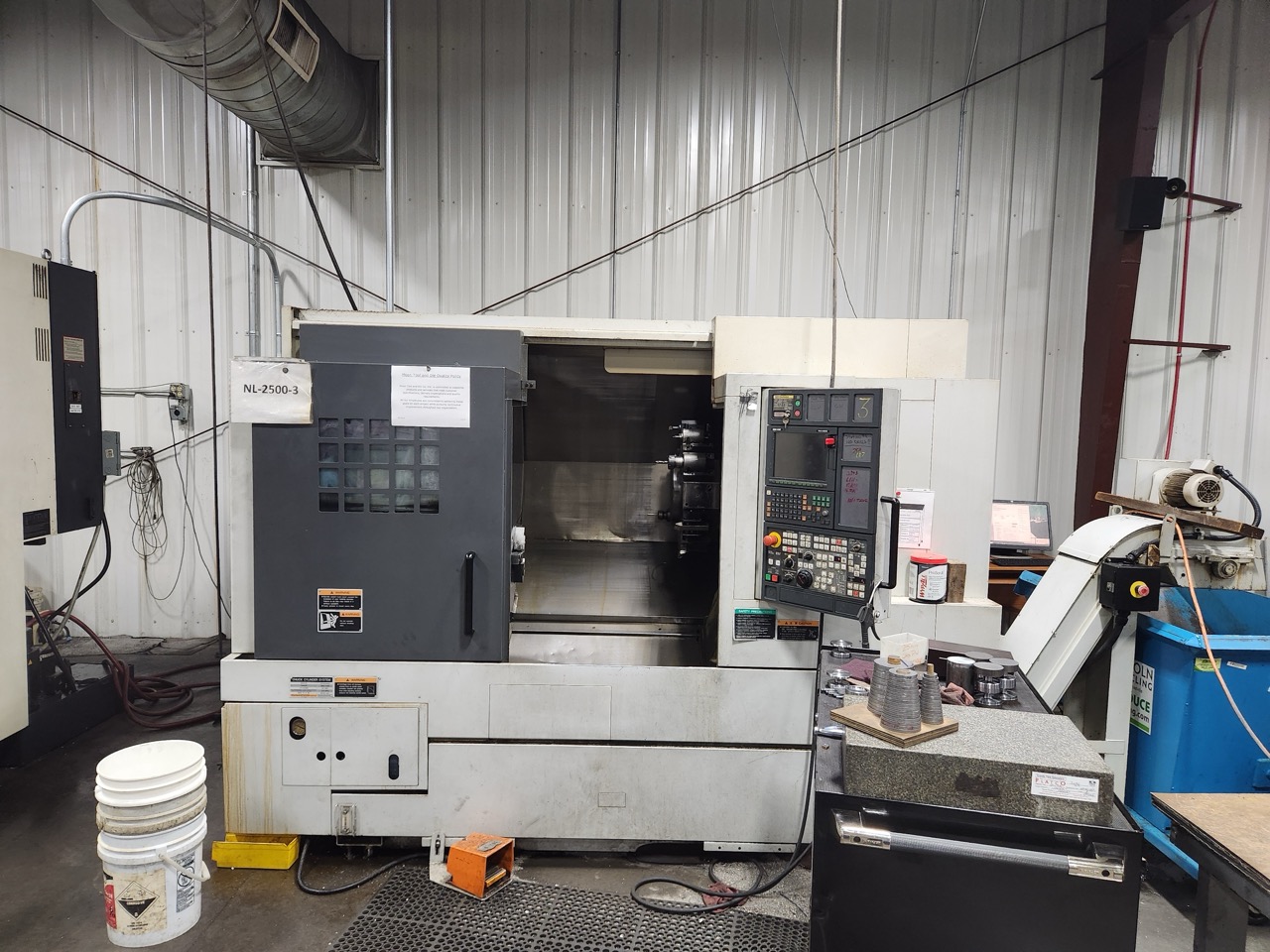

Mori Seiki NL2500MC/700 CNC Lathe, 2008
$10,000,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
B Axis Travel (Sub Spindle): 28.9″
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM
Max Turning Diameter: 14.0″
Max Turning Length: 27.7″
Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
Sub Spindle Nose: A2-5
Sub Spindle Bore: 1.7″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 15 HP
Turret Capacity: 12 Stations
Approx. Overall Dimensions: 122″ x 78.7″ x 83.5″
Approx. Weight: 13,200 lbs
