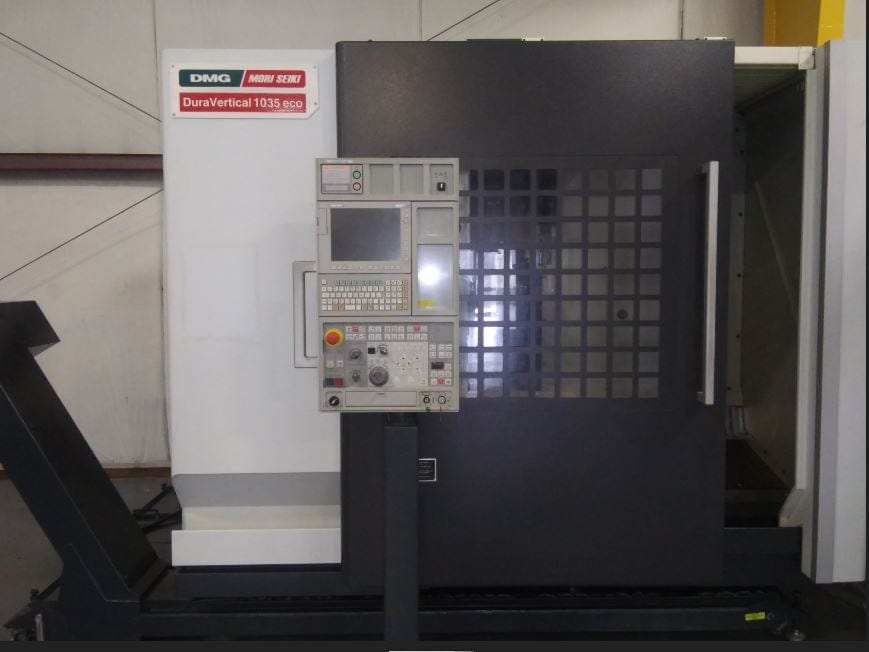

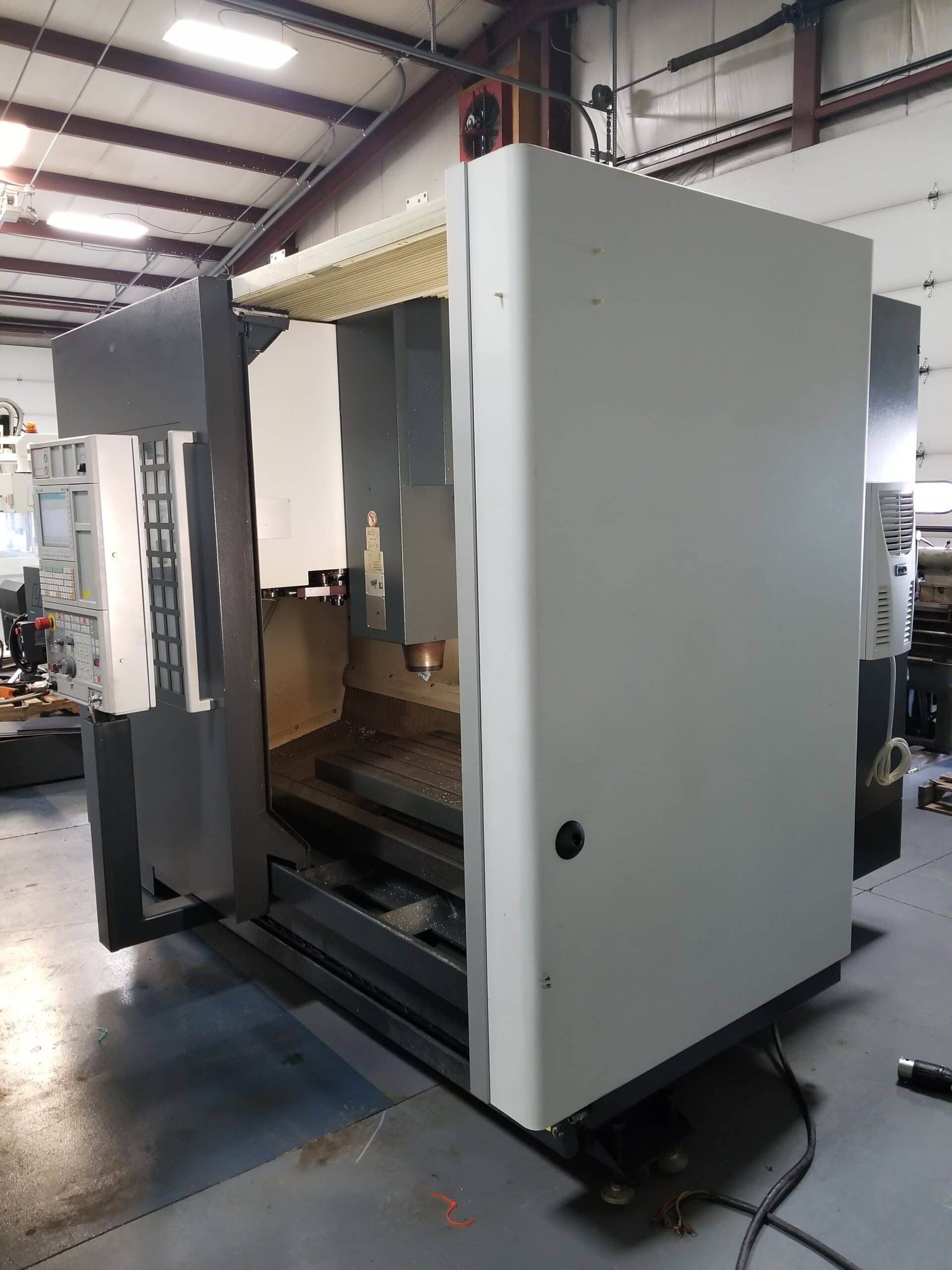

Mori Seiki Dura Vertical 1035 Eco, 2012
$35,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travel
X Axis Travel: 1,035 mm
Y Axis Travel: 560 mm
Z Axis Travel: 510 mm
Distance from table surface to spindle gauge plane: 120-630 mm

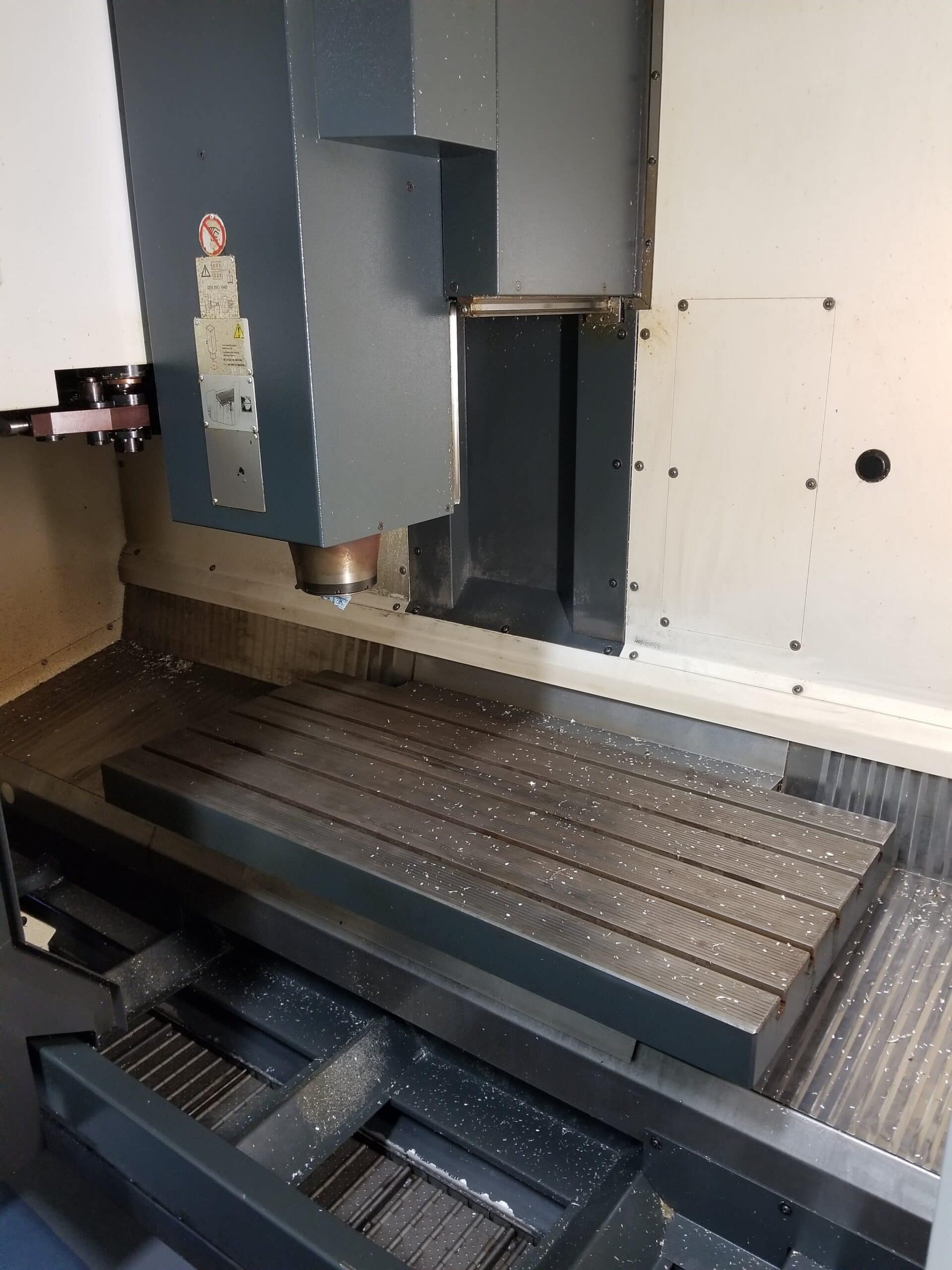

Table
Table working surface: 1,200X560 mm
Table loading capacity: 1,000 kg
Spindle
Maximum Spindle Speed: Min -1 12,000 RPM
Speed Range: 2 Stage
Type of spindle Taper Hole: No. 40
Spindle Torque<40%ED> N.m(ft.lbf) 100 (73.8)
Feed Rate
Rapid Traverse rate(X,Y,Z-axis) 30,500 mm/min
Cutting Feedrate:
Standard 15,000 mm/min
When using high-precision control 25,000 mm/min
Jog Feedrate 5,000 mm/min
ATC
Type of tool shank CAT40 [BT40} [DIN40]
Type of retention knob DIN
Tool storage capacity 30
Maximum tool dia.
Maximum tool dia.
Maximum tool length 300 mm
Maximum tool mass 6 kg
Tool Changing time:
-Tool-toTool 1.6 sec
-Cut-toCut
Equipped with:
12,000 RPM motor spindle
Tool storage capacity, 30 tools
Through spindle coolant system interface (4.0 MPa)
Full cover
Direct scale feedback for X, Y, Z-Axis
Temperature compensation V2
Signal tower, 4 layers
Heat exchanger
Coolant-air blast change-over
Coolant gun
Additional axis DDRT interface
Chip conveyor interface
CAT40
Coolant pumps and wiring
Machine Size
Machine height 2,700 mm
Floor space
Mass of machine
220 volt
