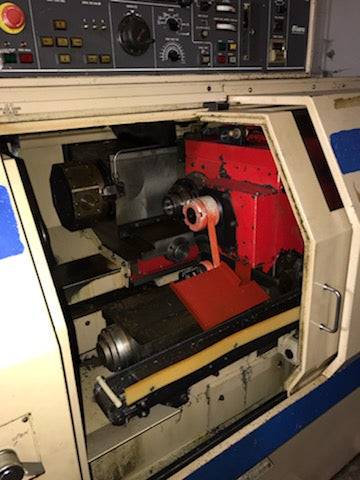

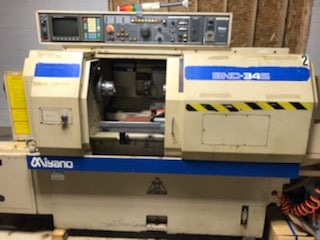

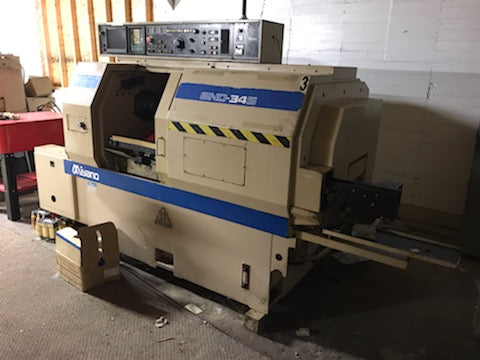

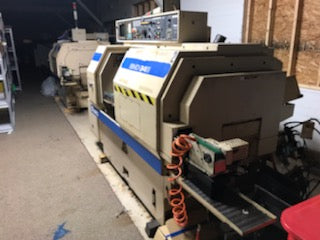

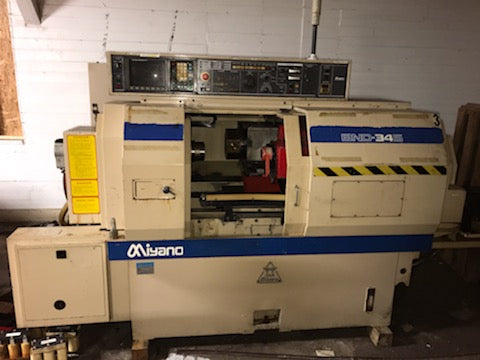

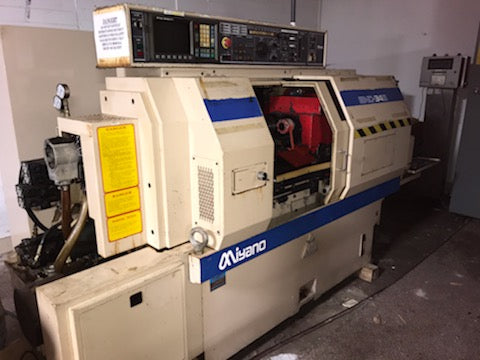

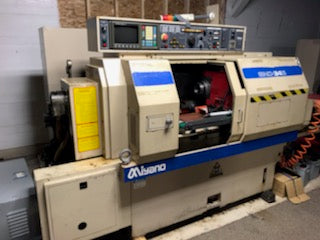

Miyano BND-34, 1994 – Live Tooling, B-Axis
$12,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Bar Capacity (Main Spindle) 1.34″
Max Bar Capacity (Sub Spindle) 1.34″
Work Length Capacity 4.92″
X-Axis Travel 5.5″
Z-Axis Travel 11.02″
B-Axis Travel (Sub Spindle) 12.8″
Rapid Traverse X-Axis 472 IPM
Rapid Traverse Z-Axis 472 IPM
Main & Sub Spindle Speeds 170-5,000 RPM
Spindle Nose (Main & Sub) Flat Nose
Main Spindle Motor 10 HP AC
Sub Spindle Motor 5 HP AC
Live Tooling Motor 3 HP
Live Tool Speeds 203-4,050 RPM
Turret Capacity 12 Station
Approximate Dimensions 100″ x 59″ x 69″H
Approximate Weight 7,800 Lbs.
Equipped With:
CNC (Fanuc 0TC)1991 Miyano BND 34-S
​Live Tool CNC Turning Center​​
Live Tooling
Sub Spindle
