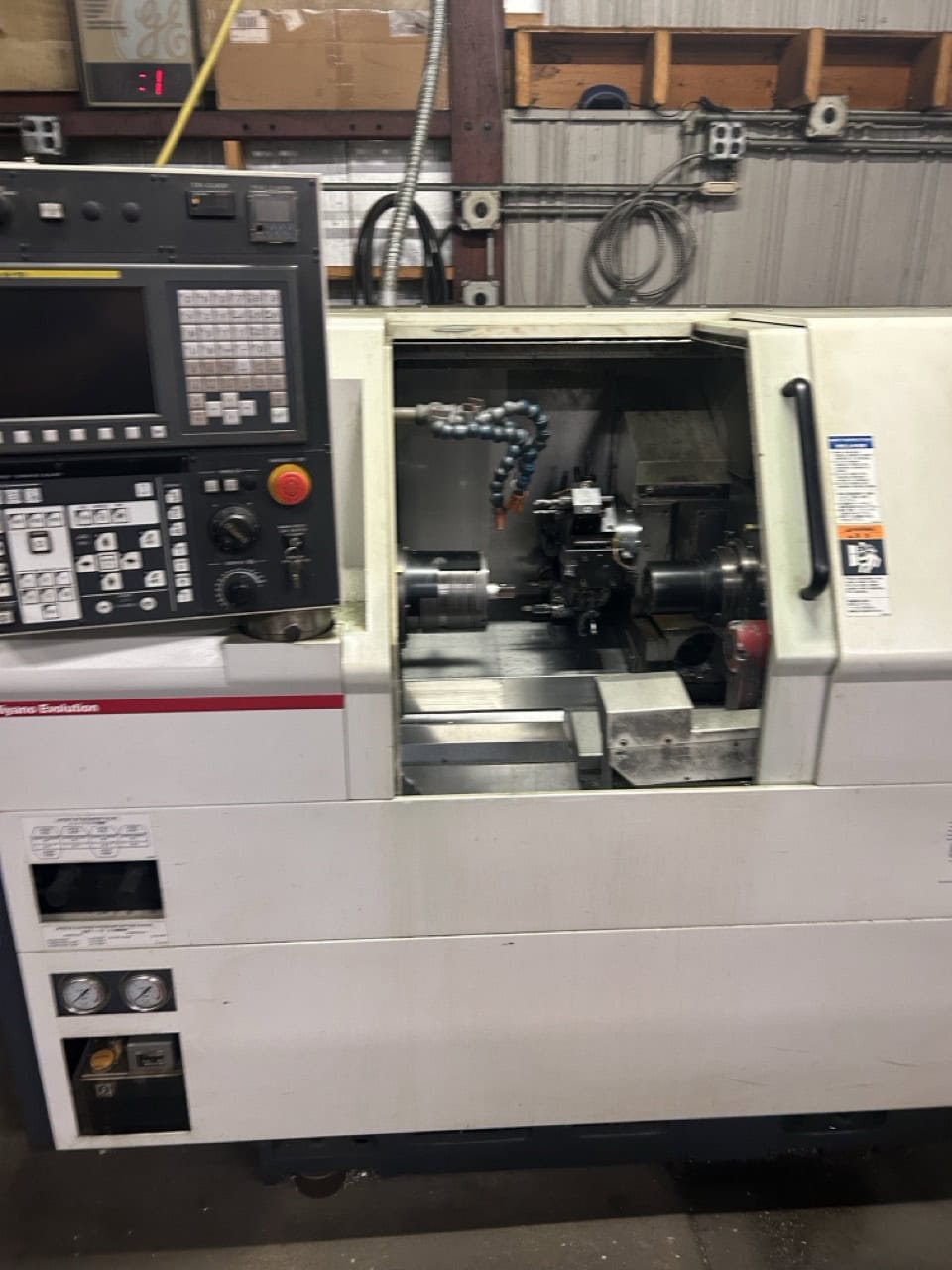

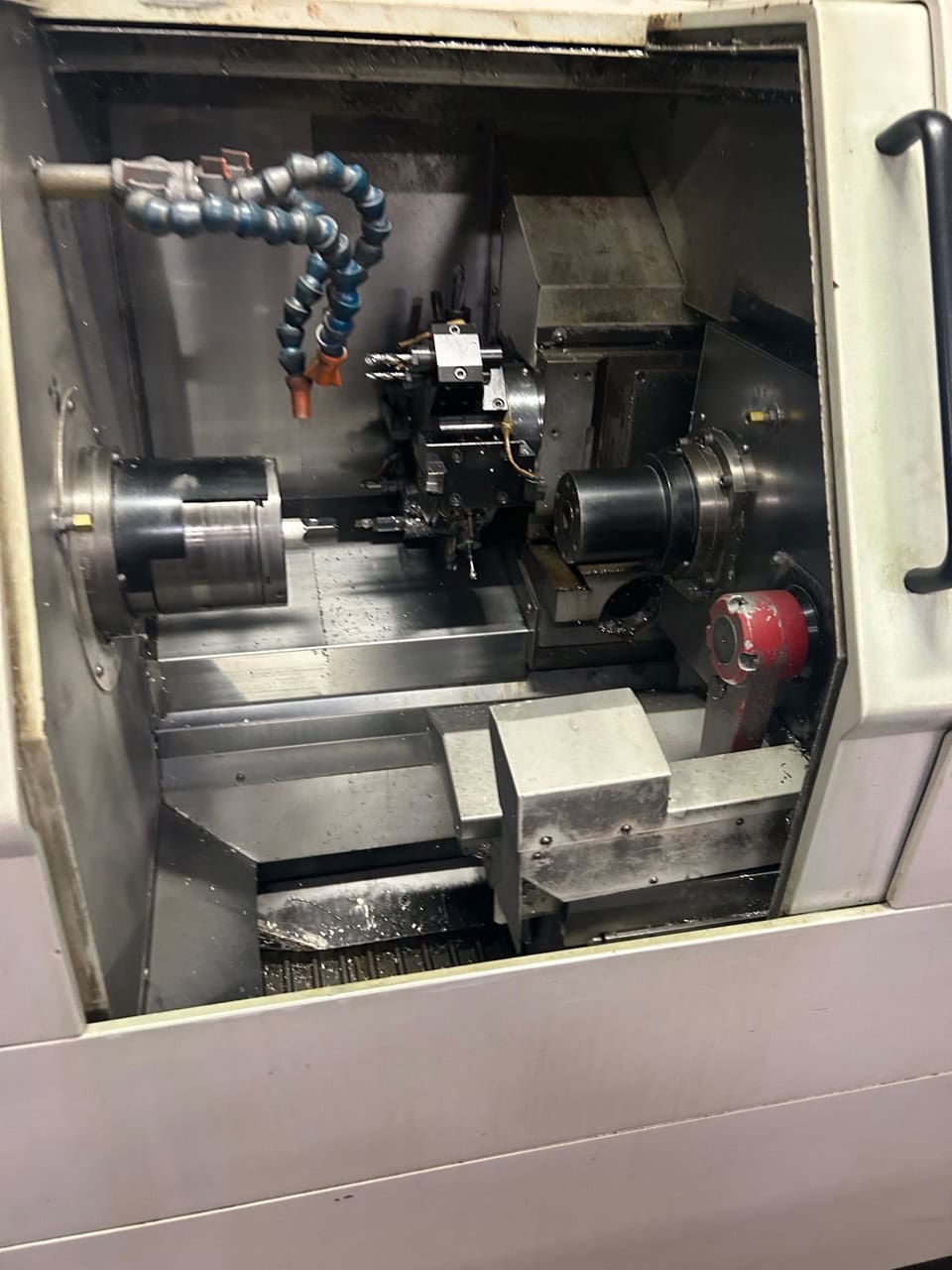

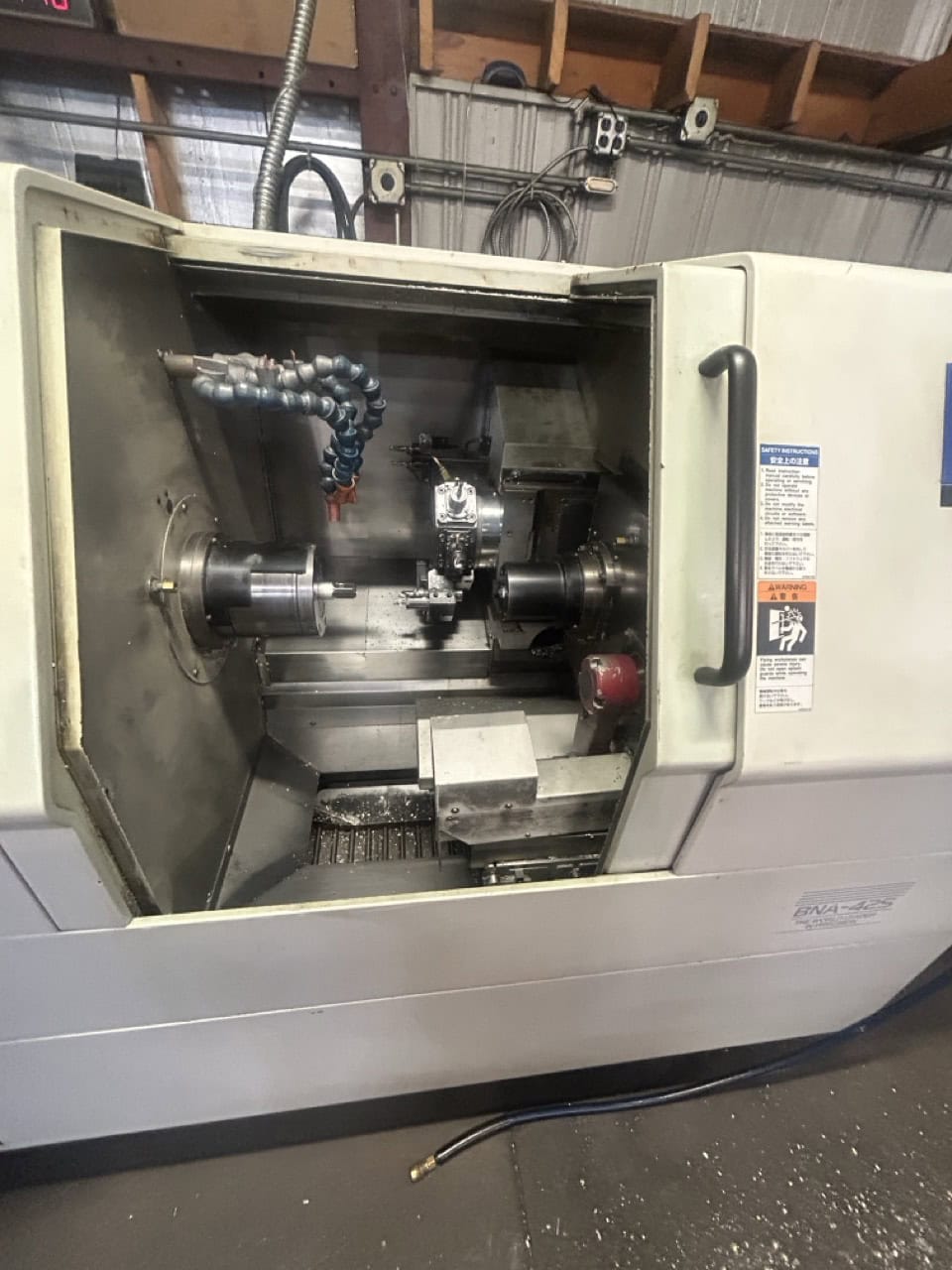

Miyano BNA‑42S CNC Lathe, 2013 – Sub Spindle, Live Tooling, Bar Feeder
$44,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Machining Diameter (Main Spindle): 1.65″
Max Machining Diameter (Sub Spindle): 1.65″
Max Machining Length: 3.93″
X Axis Travel: 5.31″
Z Axis Travel: 9.25″
B Axis Travel: 12.20″
Inner Diameter of Draw Tube (Main): 1.69″
Inner Diameter of Draw Tube (Sub): 1.18″
Main Spindle Speed: 6,000 RPM
Sub Spindle Speed: 5,000 RPM
C axis – spindle 1: 0.001°
C axis – spindle 2: 0.001°
Turret Stations: 8
Number of rotary tools: Max 8
Rotary tool speed: 5,000 RPM
Max. drilling diameter: 0.39″
Machine Weight: 6,500 LBS
Machine Dimensions: 84.65″ x 51″ x 65.40″
Equipped With:

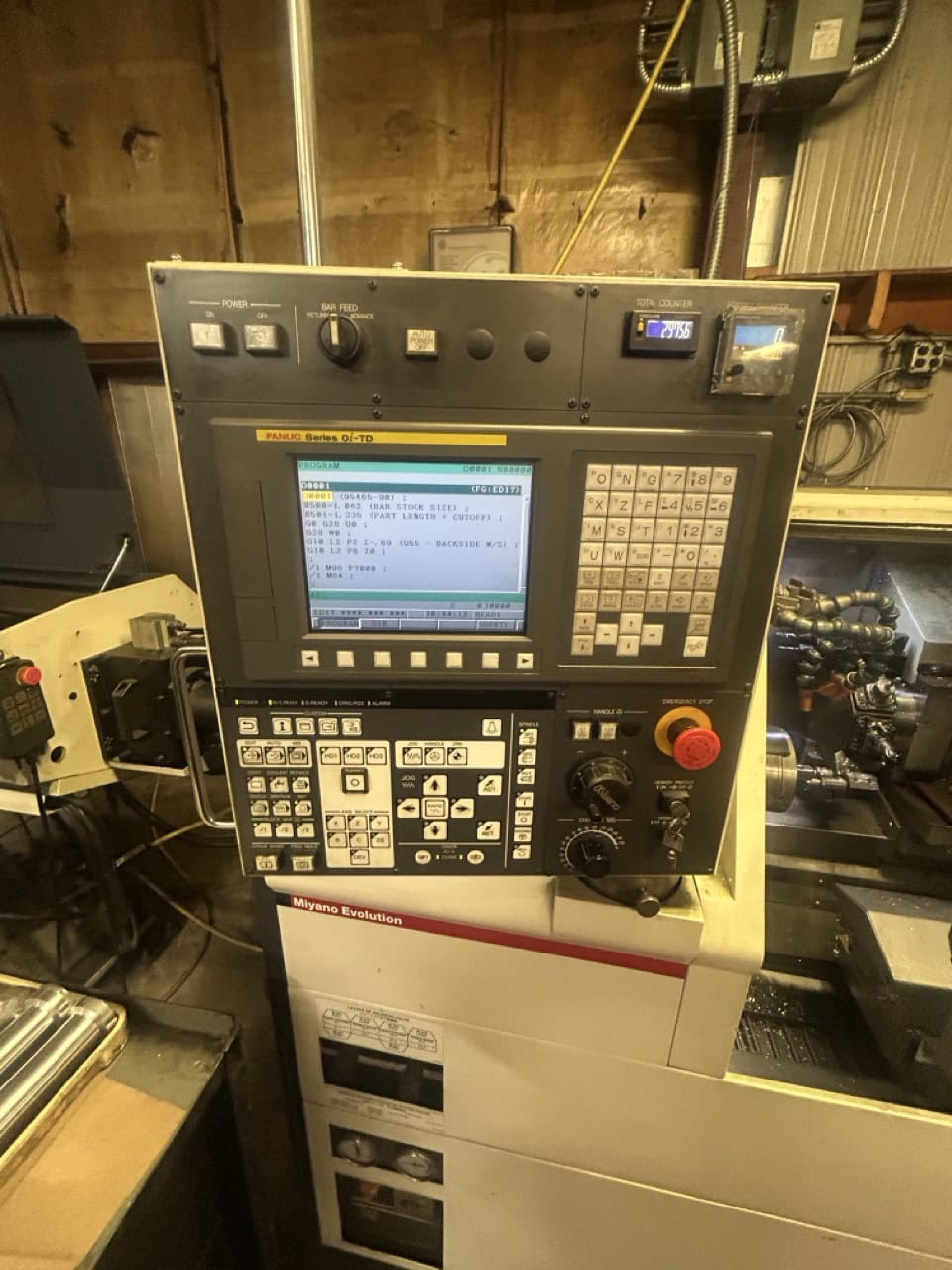

Fanuc Oi-TD Control
Sub Spindle
Live Tooling

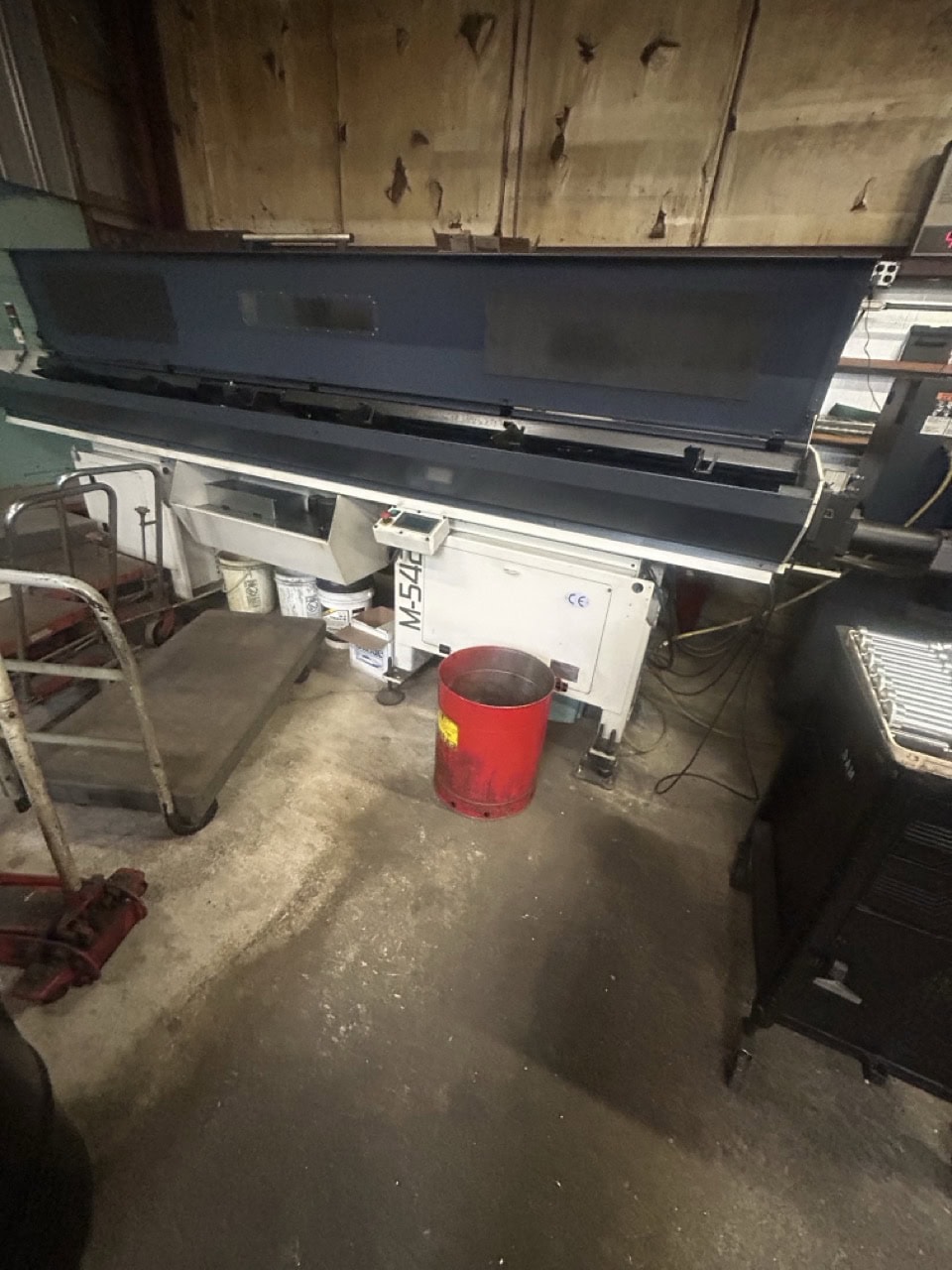

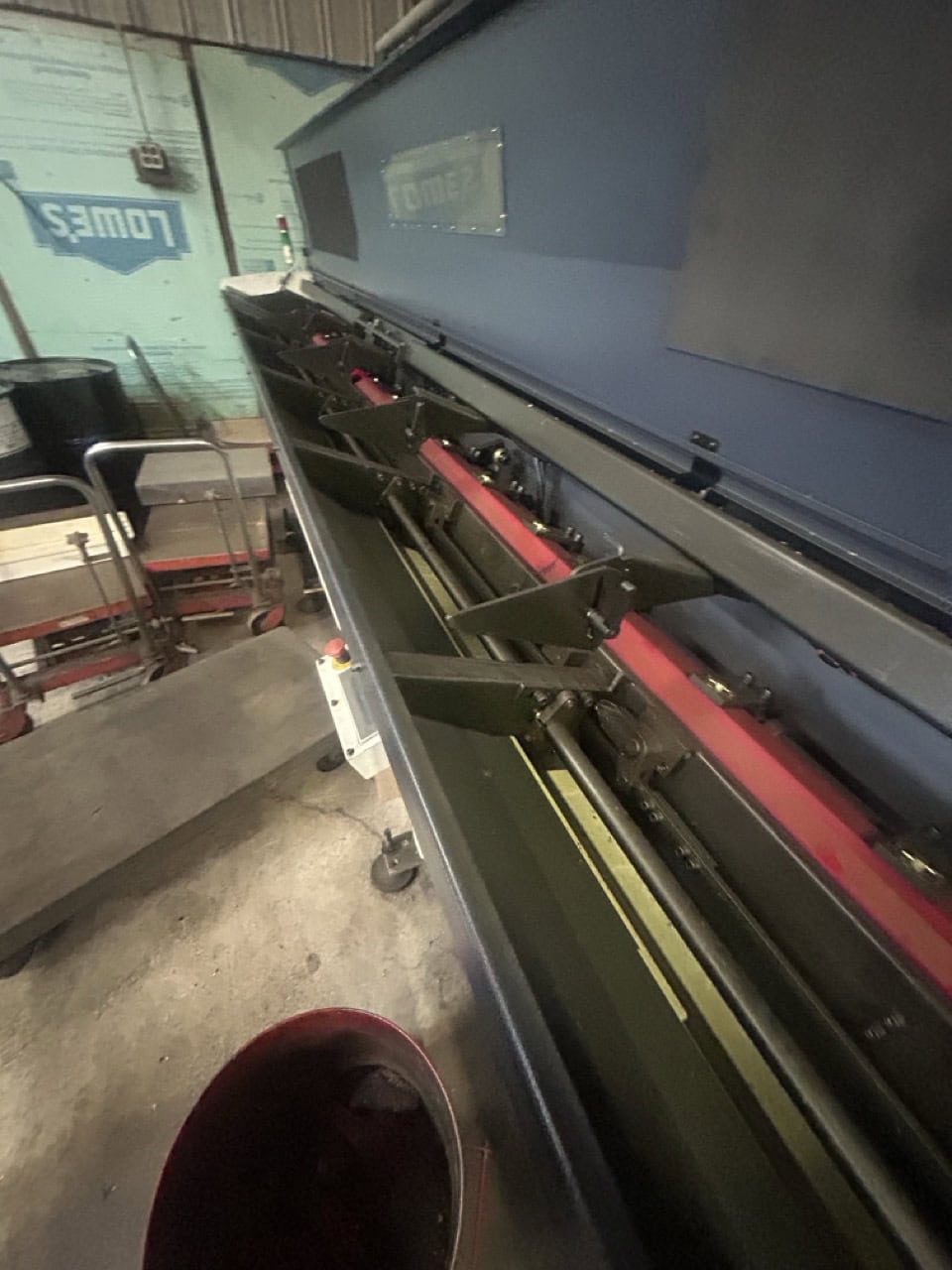

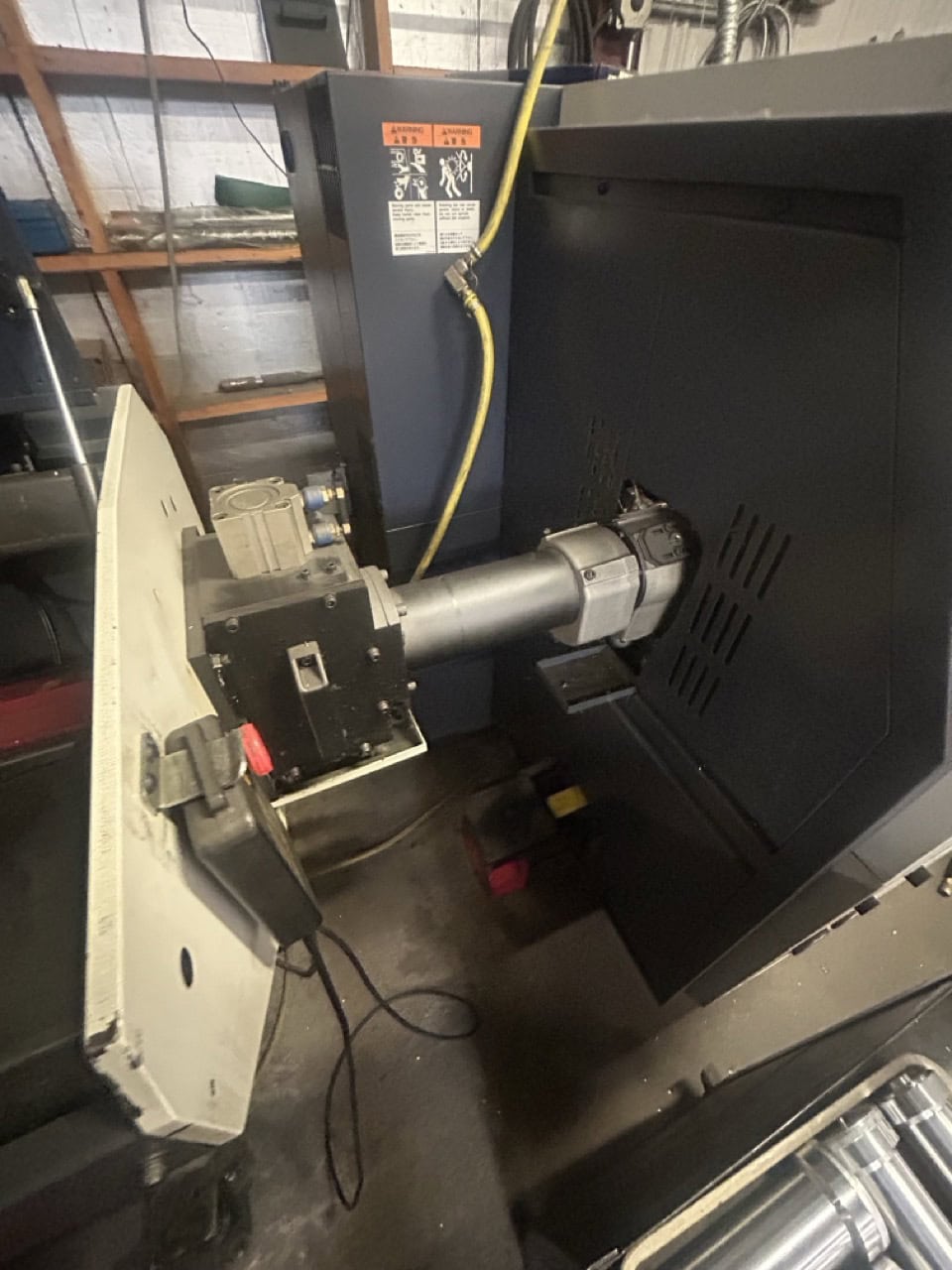

Edge M-542 Bar Feeder

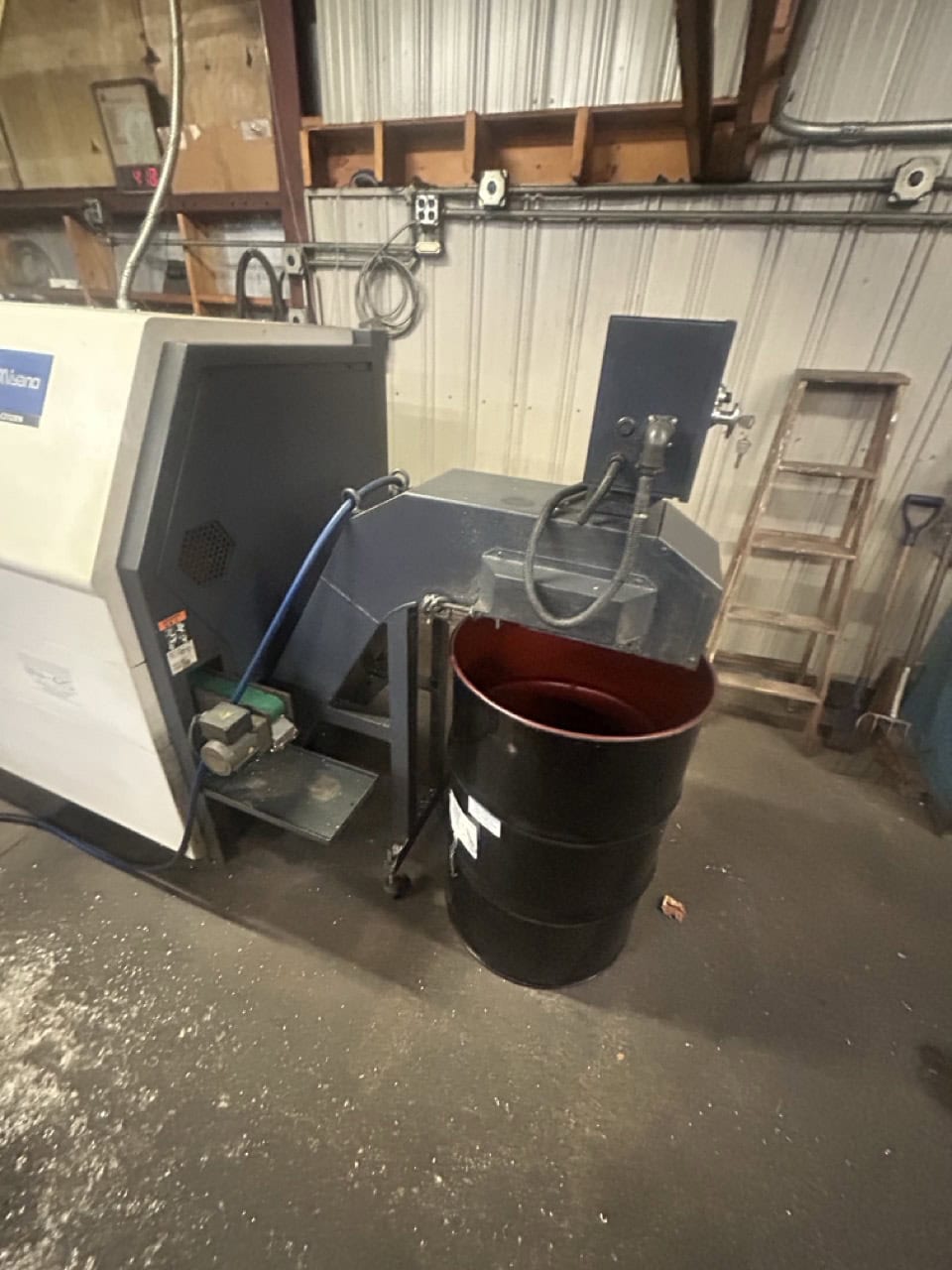

Chip Conveyor
Parts Catcher
*Note: Spindle bearings need to be replaced on the Sub Spindle
