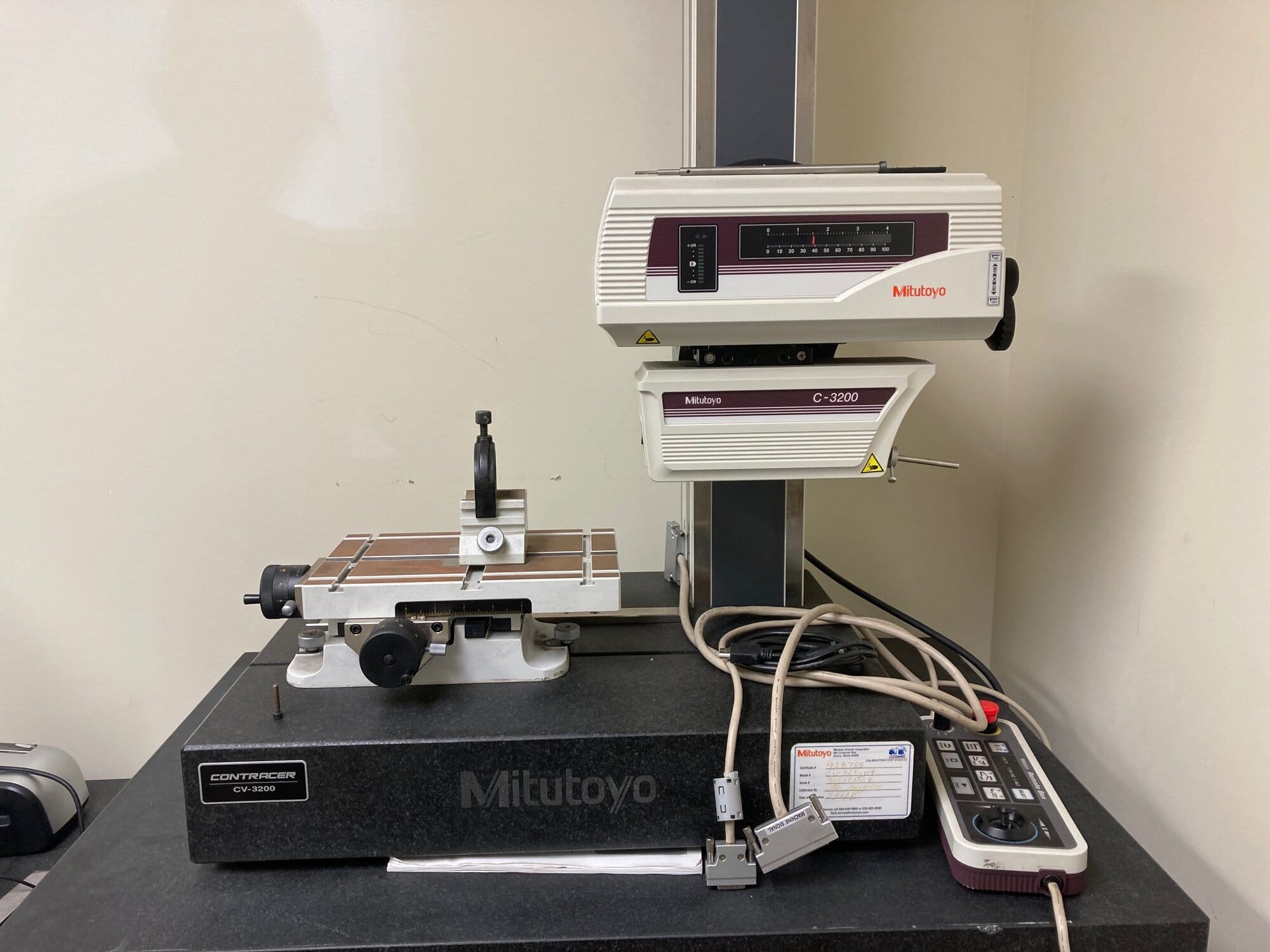

Mitutoyo CV-3200 H4 Contracer CMM, 2015
$8,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Measuring Range:
X-axis Travel Range: 100mm (4″)
Z2-axis (column) travel range 3: 60mm (±30mm in horizontal situation) (2″)
Z2-axis (column) travel range 3: 500mm (19″)

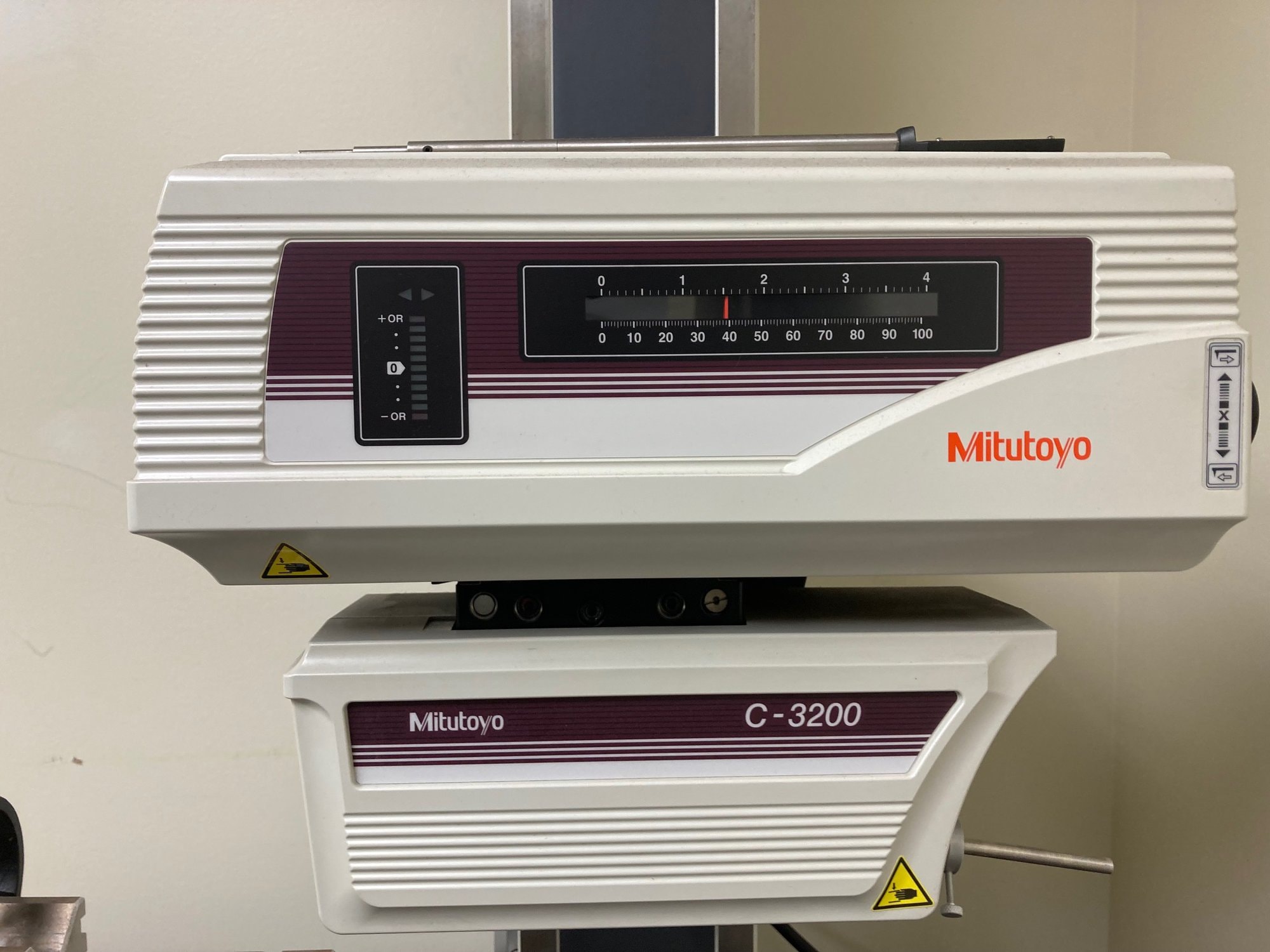

Detector Z1-axis (detector unit):
Scale Unit: Arc scale
Resolution: 0.04µm
Stylus up/down motion: Arc movement
Measuring Direction: Both pulling and pushing directions
Measuring Face Direction: Downward or upward
Measuring Force: 30mN
Stylus Traceable Range: Ascent 77°, Descent 83°
Scale Unit X-Axis: Separate type linear encoder
Scale Unit Z2-Axis: ABS Encoder
Resolution X-Axis: 0.05µm
Resolution Z2-Axis: 1µm
Drive Speed X-axis: 0 – 80mm/s and manual operation
Drive Speed Z2-axis: 0 – 30mm/s and manual operation
Measuring speed X-axis: 0.02 – 20mm/s
Straightness (when the X axis is horizontal) X-axis: 0.8µm/100mm
X-Axis Inclination Angle X-axis: ±45°
External dimensions (W×D×H)
Main unit: 756 × 482 × 1166mm (29″ x 18″ x 45″)

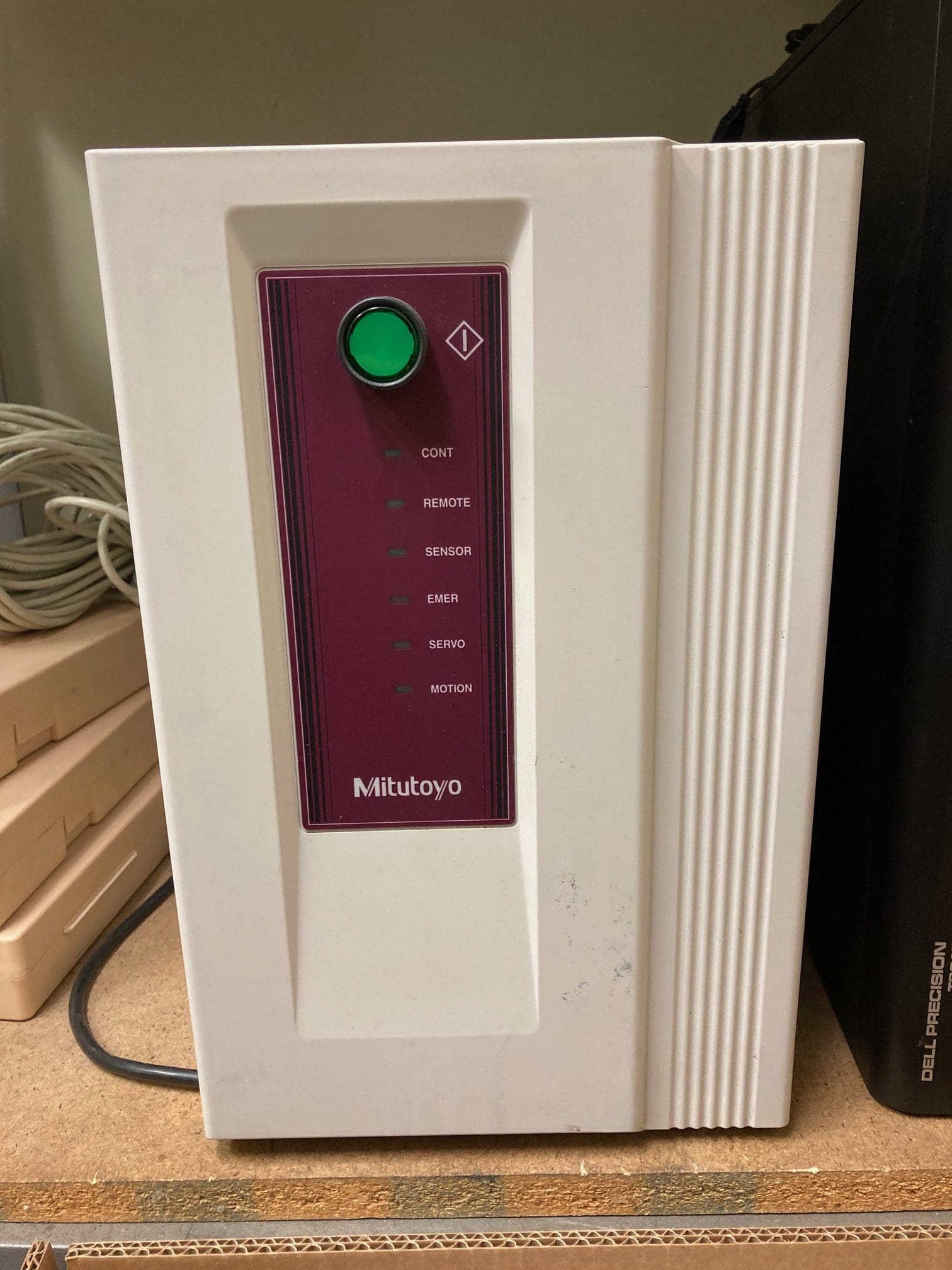

Controller: 221 × 344 × 490mm (8″ x 13″ x 19″)

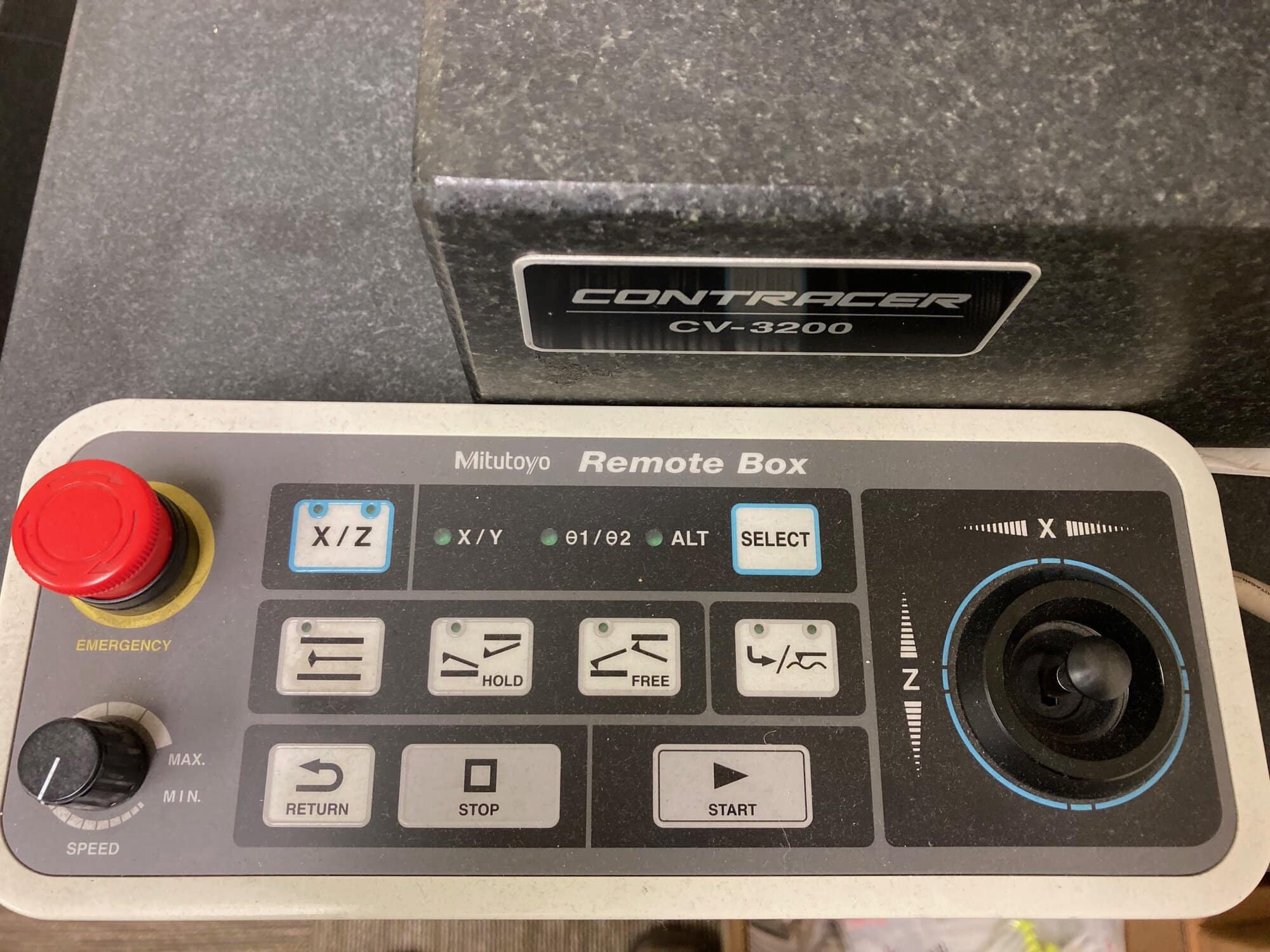

Remote box: 248 × 102 × 62.2mm (9″ x 4″ x 24″)
