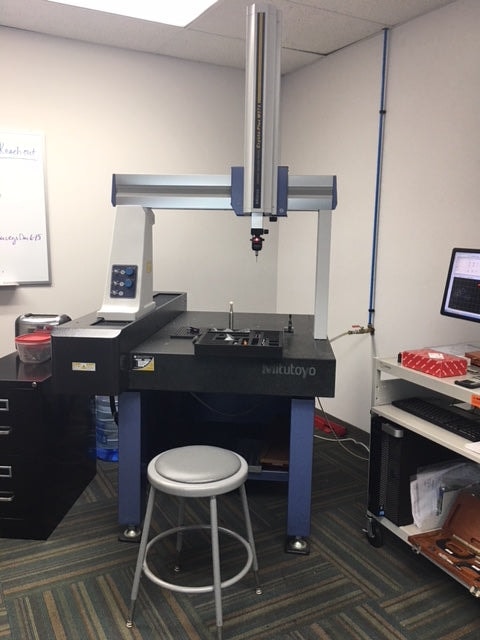

Mitutoyo Crysta-Plus M574 CMM, 2015
$17,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Axis: 19.69″
Y Axis: 27.56″
Z Axis: 15.75″
Resolution: 0.00002″
Working Area: 25.12″ x 45.67″
Tapped Insert: M8 x 1.25
Workpiece Max Height: 20.08″
Workpiece Max Weight: 396 LBS
Machine Weight: Approximately 1400 LBS
Dimensions: 42.60″ x 57.40″ x 89.96″
Equipped With:
Indexable Head Probe System (MH20i)

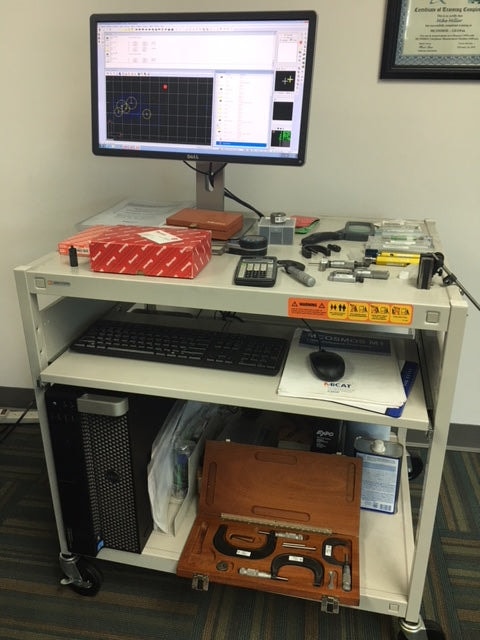

Computer/Monitor
Available Manuals
