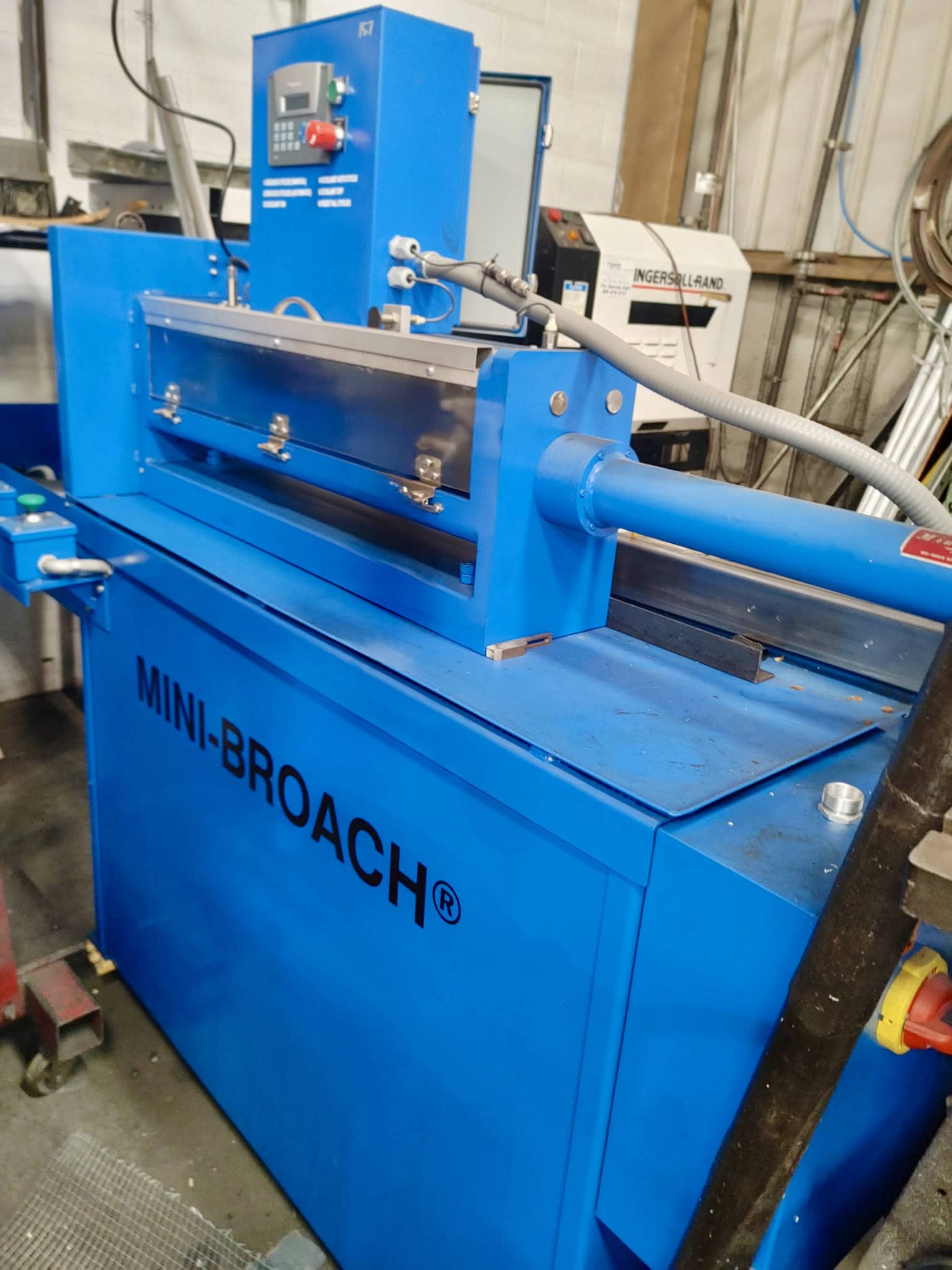

2.5 Ton Mini Broach 3A Broaching Machine, 2019
$12,800.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity: 2.5 Ton
Stroke: 28.0″
Broaching Speed: 0–65.0 FPM
Return Speed: Fixed 50.0 FPM
Max Spline Capacity: 0.75″
Max Hex Capacity: 0.875″
Max Square Capacity: 0.75″
Hydraulic System: Pressure Compensated, 40.0 Gallon Capacity
Guiding: Three-Point Guiding System

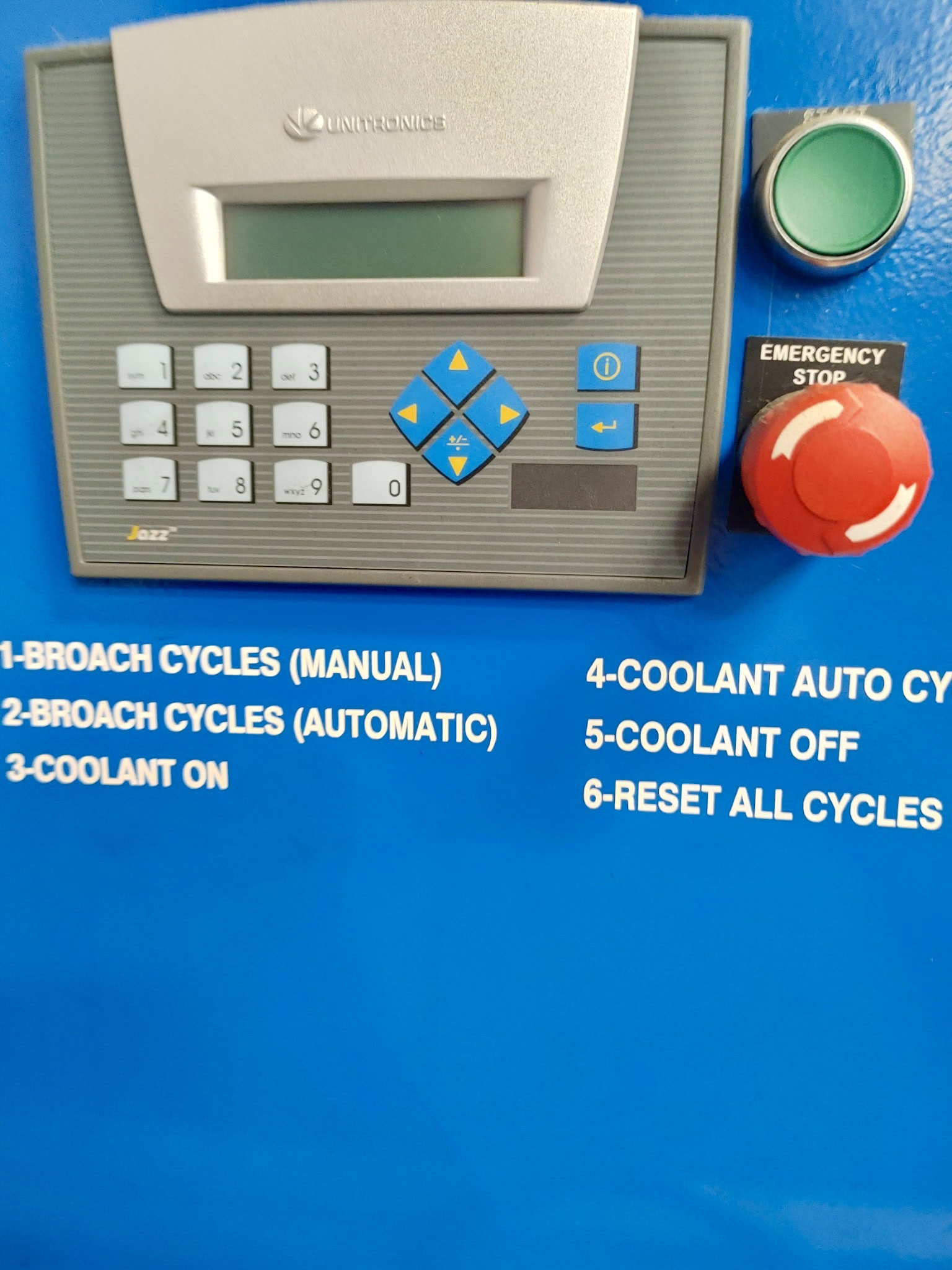

Control: PLC Controlled
Coolant System: 0.125 HP
Controls: Dual Palm Button
Footprint: 18.0″ × 90.0″
Height: 54.0″
