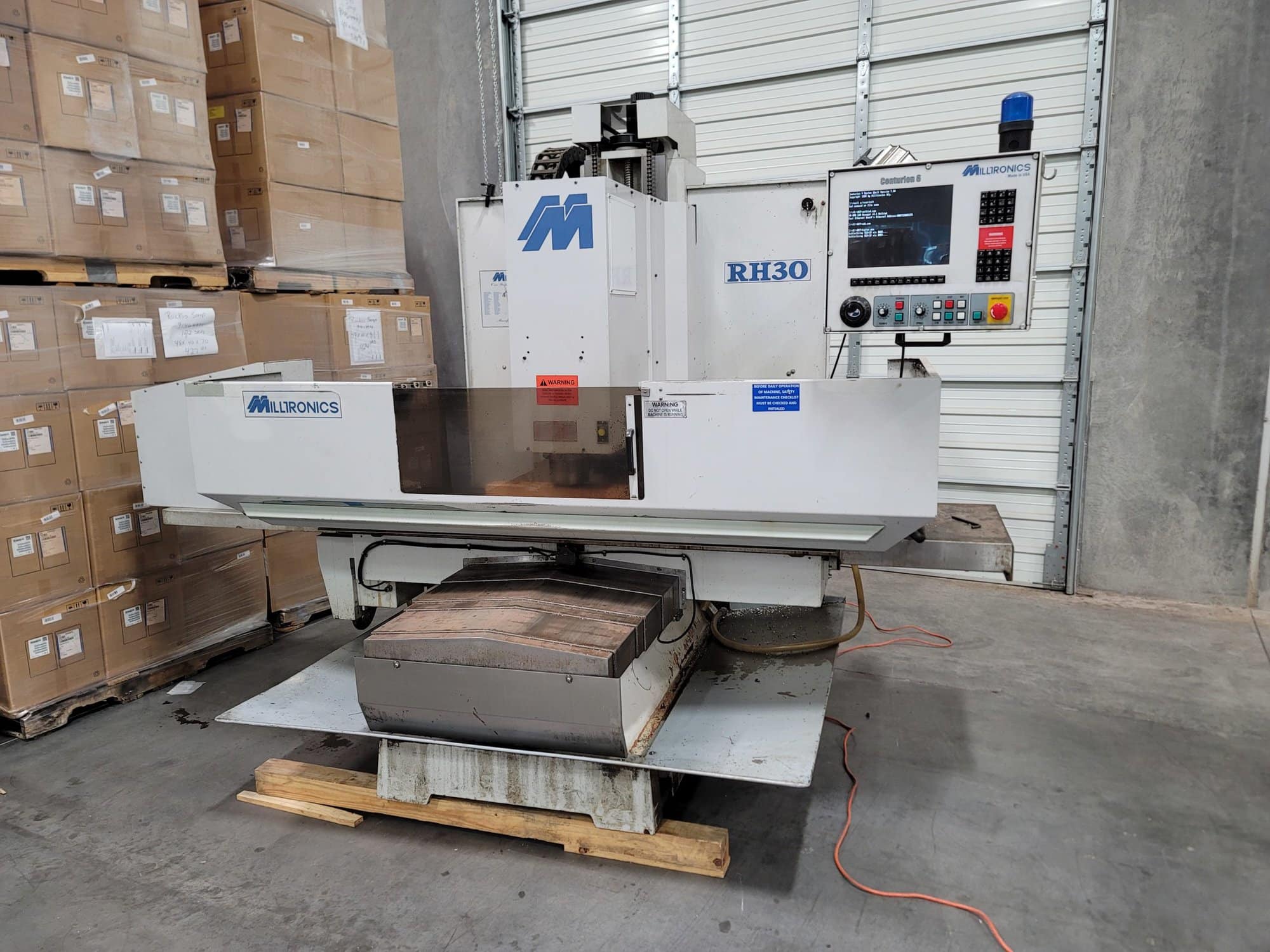

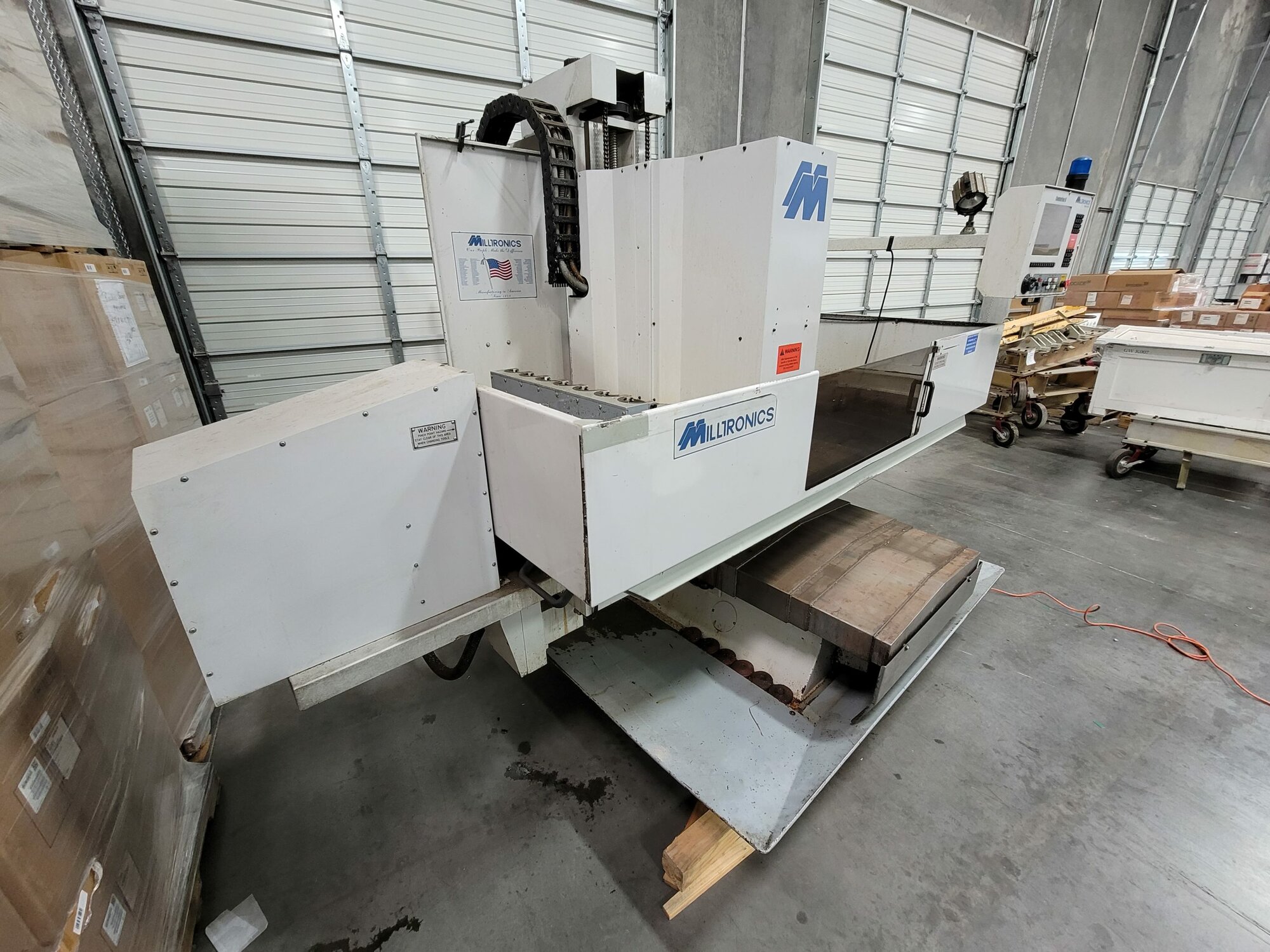

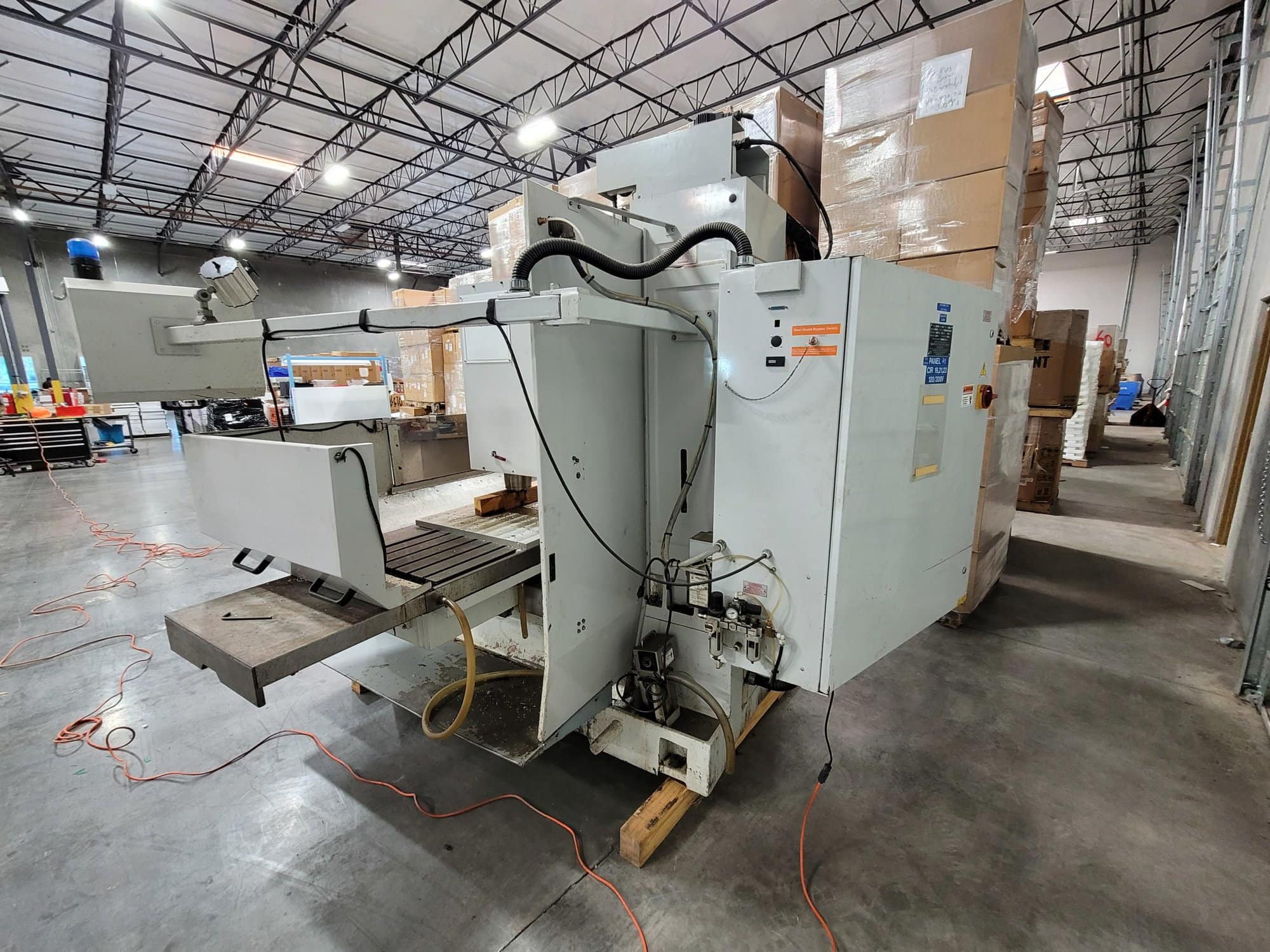

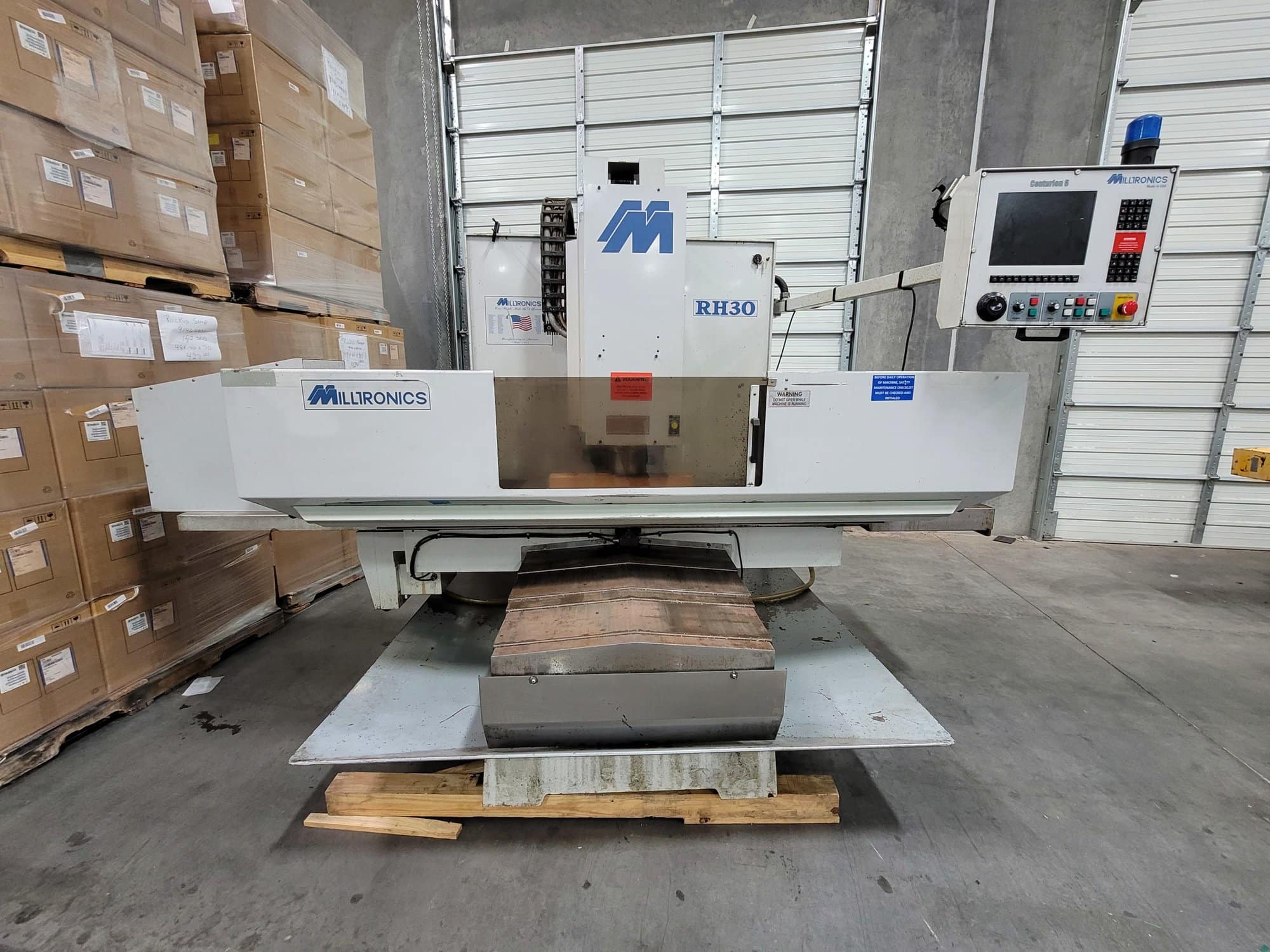

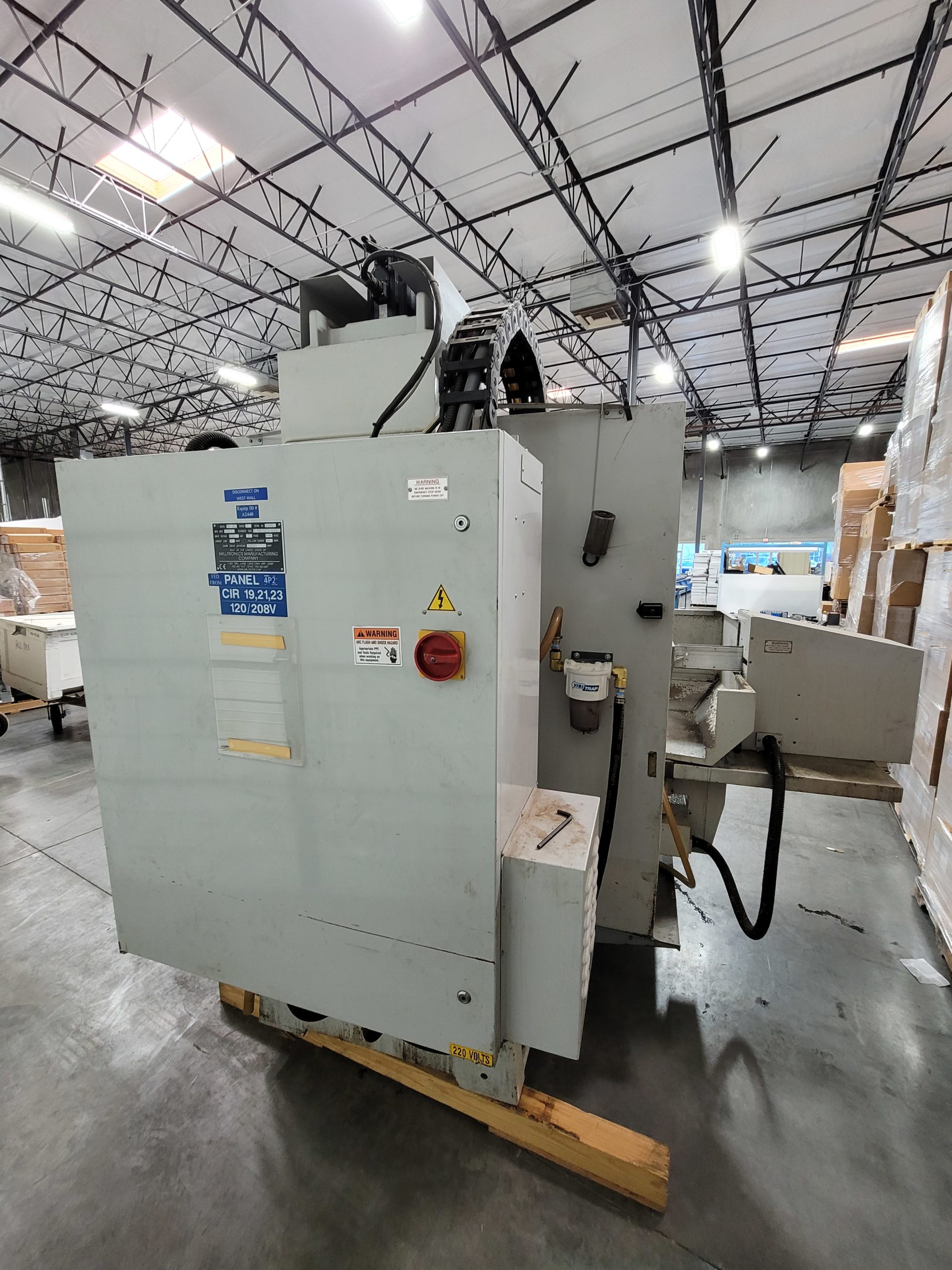

Milltronics RH-30 VMC, 2002-Series F- Centurion 6, 8,000RPM
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Input Voltage: 220V
Phase: 3
Hertz: 50/60Hz
Largest Load: 50 Amps
Full-Load Current: 24 Amps
Short Circuit Withstand 10,000 Amps
X Travel: 60″
Y Travel: 30″
Z Travel: 28″
Num. of Axes: 3
Work Support: Bed
Table Size L x W (in.): 73.000 x 24.000
Max. Workpiece Weight (Lbs.): 3,000
Rotary Table: Optional
Spindles:
Num. Main Spindles: 1
Orientation: Vertical
Taper: ISO 40
Top RPM: 8,000
Horse Power (30 min rating): 15.00
# Speed Ranges: 2
Type: Fixed
The RH30 is a Massive Rigid Way Frame with a 70 mm Spindle. With 60″ x 30″ Travels and Weighing 11,000 Pounds, this Machine is an Excellent Fit for Those Needing a Larger Travel Tool Room Machine.
