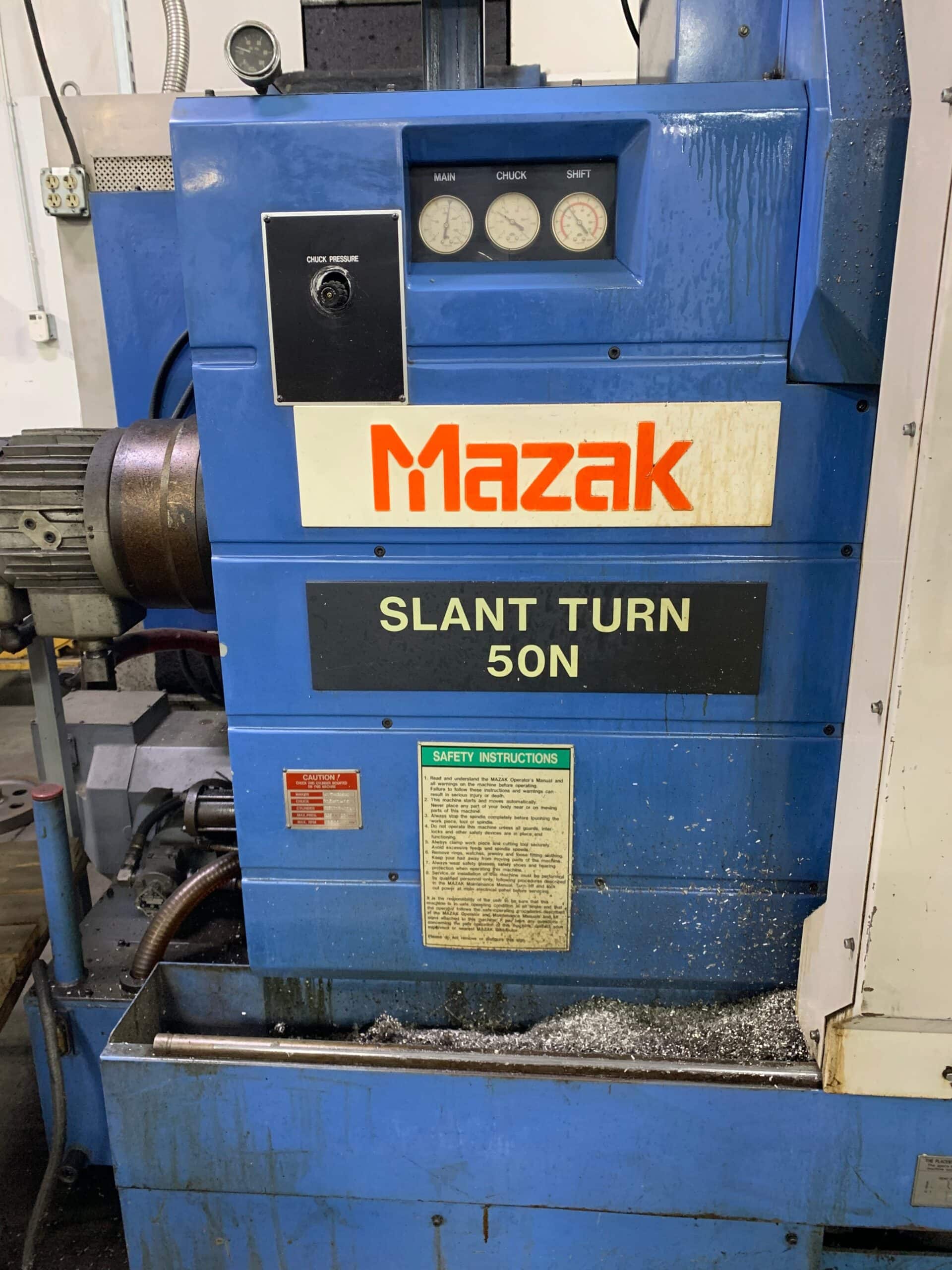

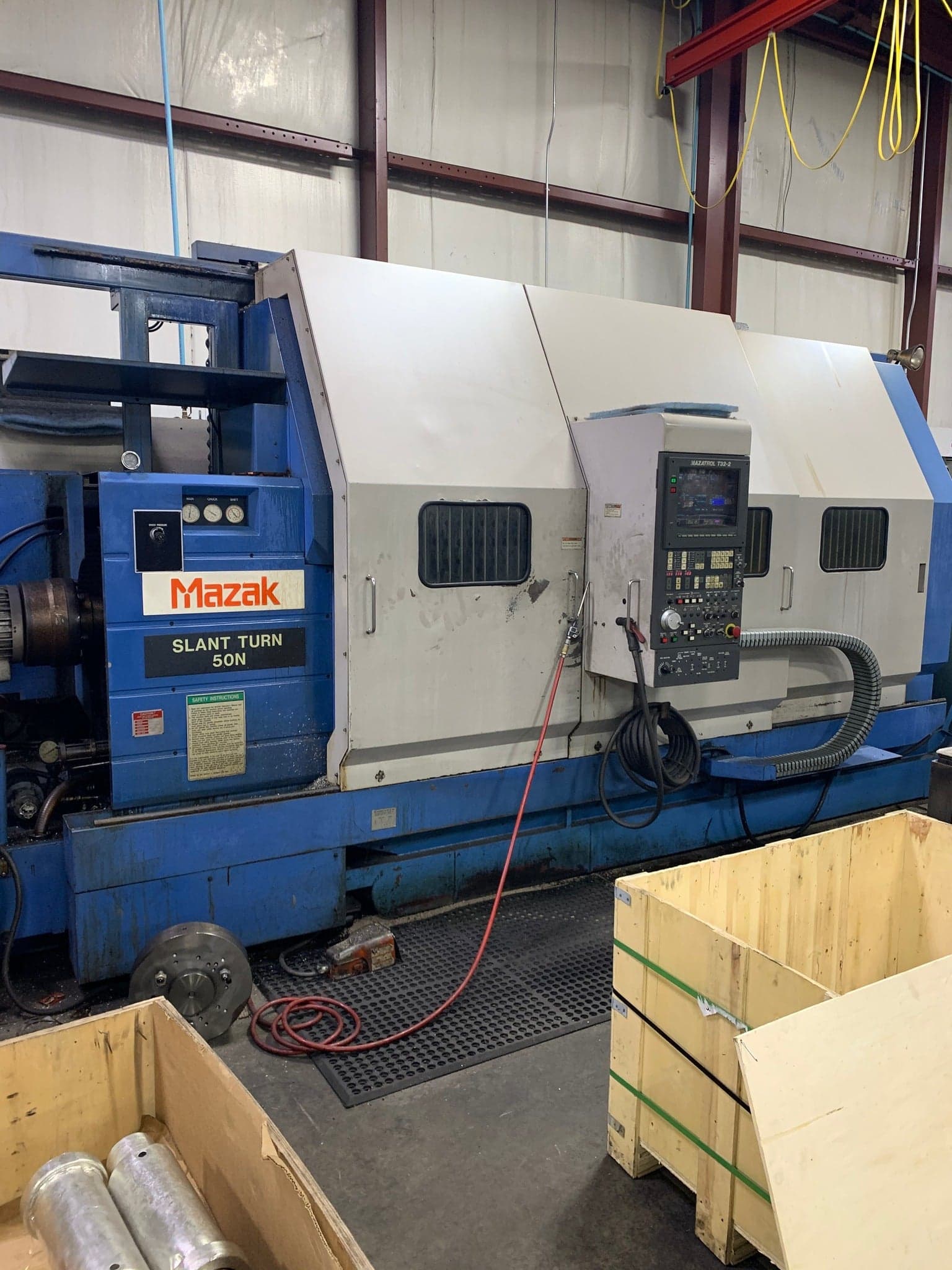

Mazak Slant 50N/2000U CNC Lathe, 1998 – 28″ Hydraulic Chuck
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Maximum Swing Over Bed: 31.7″
Swing Over The Carriage: 22″
Maximum Distance Between Centers: 82″
Number Of Gear Ranges: 3
Spindle Nose: A2-15″
Spindle Bore: 4″
Spindle Speed: 2-1000 RPM
X- Axis Travel: 22.64″
Z- Axis Travel: 81.9″
Rapid Traverse Rate: X-394 IPM/Z-472 IPM

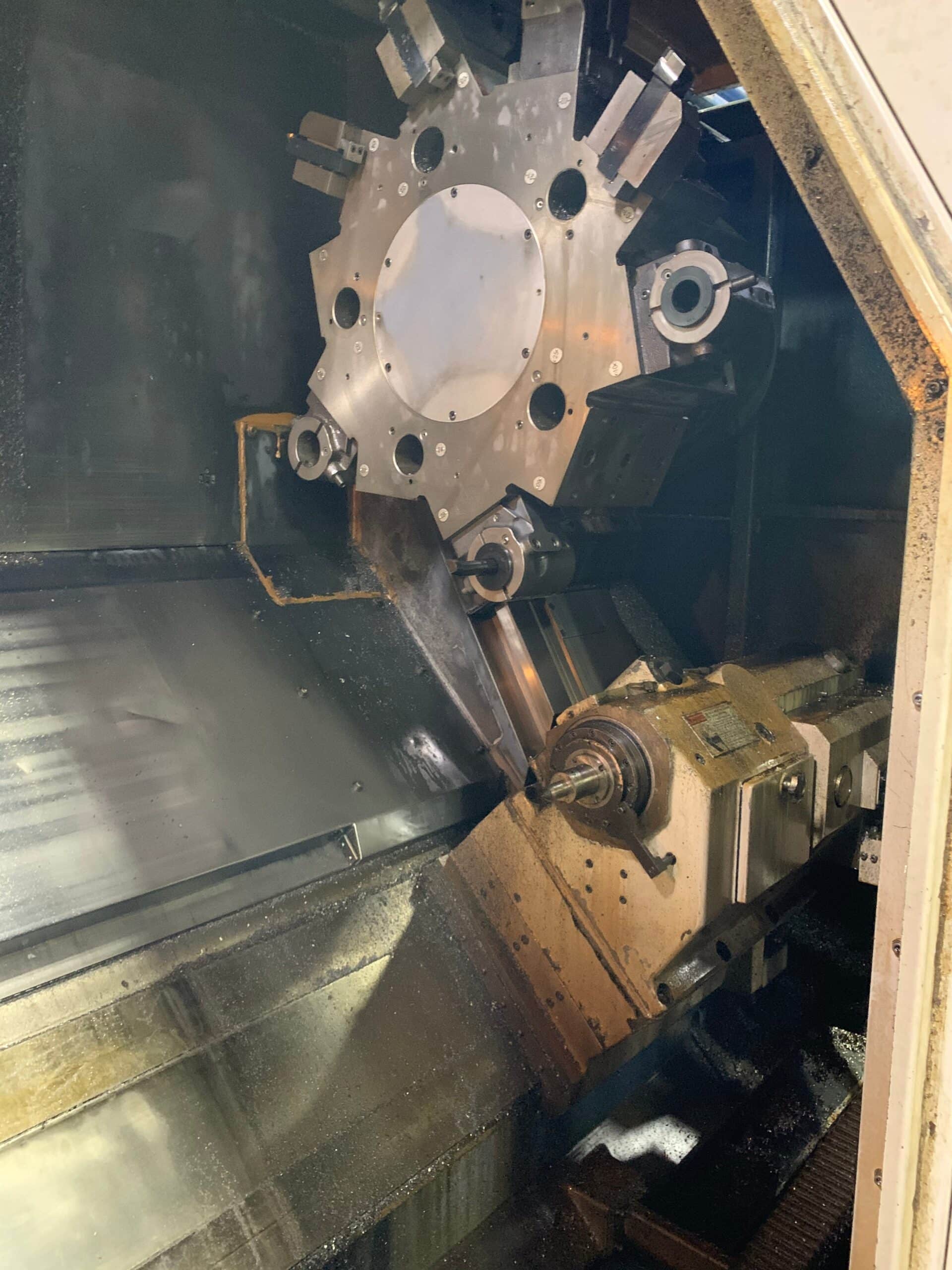

Turret Positions: 15
Turret Index Time: 1.3/4.2″ Sec.
Tailstock Body Travel: 61″
Tailstock Quill Travel: 5.9″
Tailstock Quill Diameter: 4.9″
Main Motor: 50/40 HP AC
Approx. Machine Weight: 25,000 LBS.
Equipped With:
Mazatrol T32-2 Cnc Conversational Control

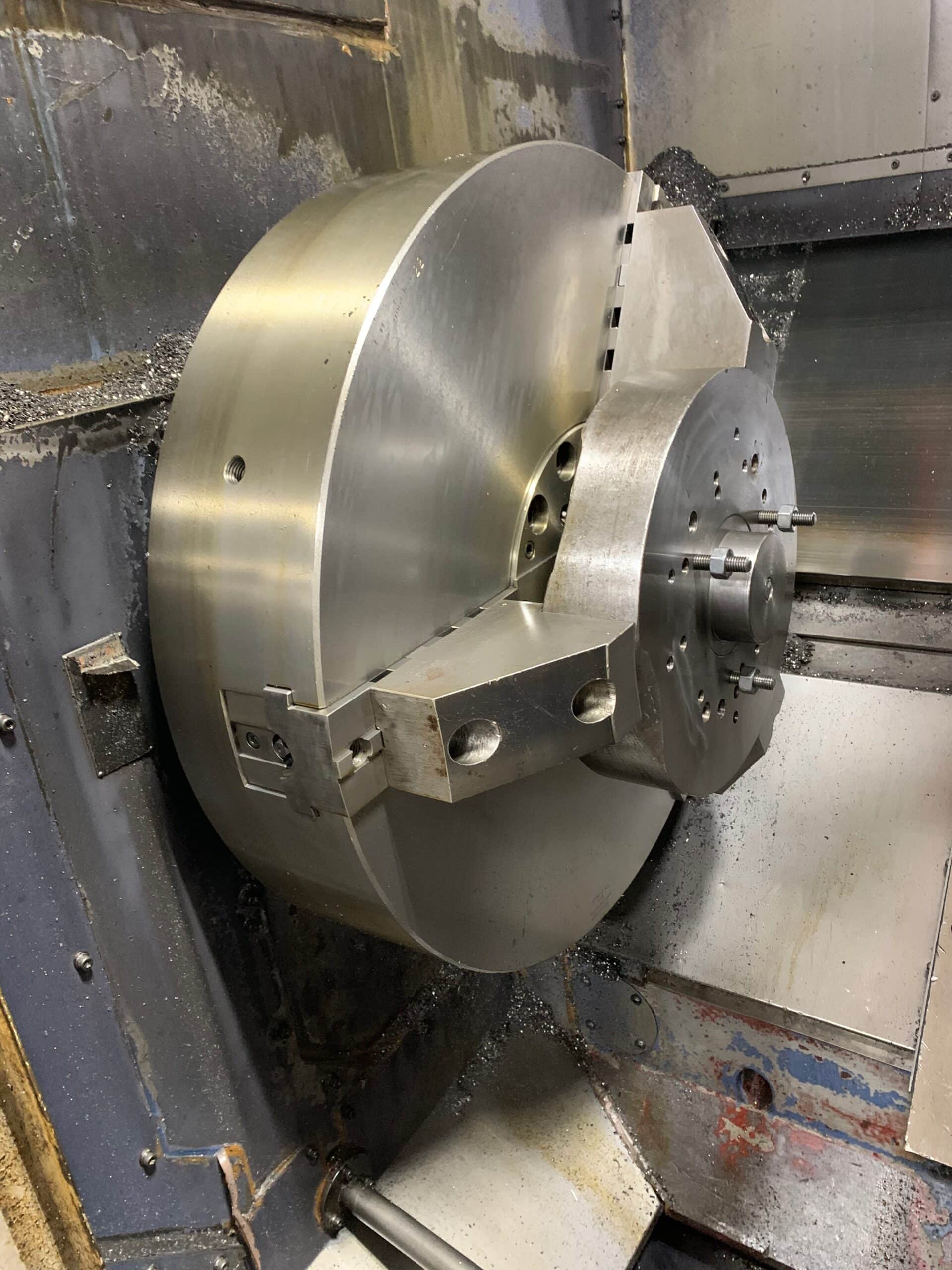

28″ 3-Jaw Hydraulic Chuck
Tailstock
Chip Conveyor
All Available Manuals
All Available Tool Holders
