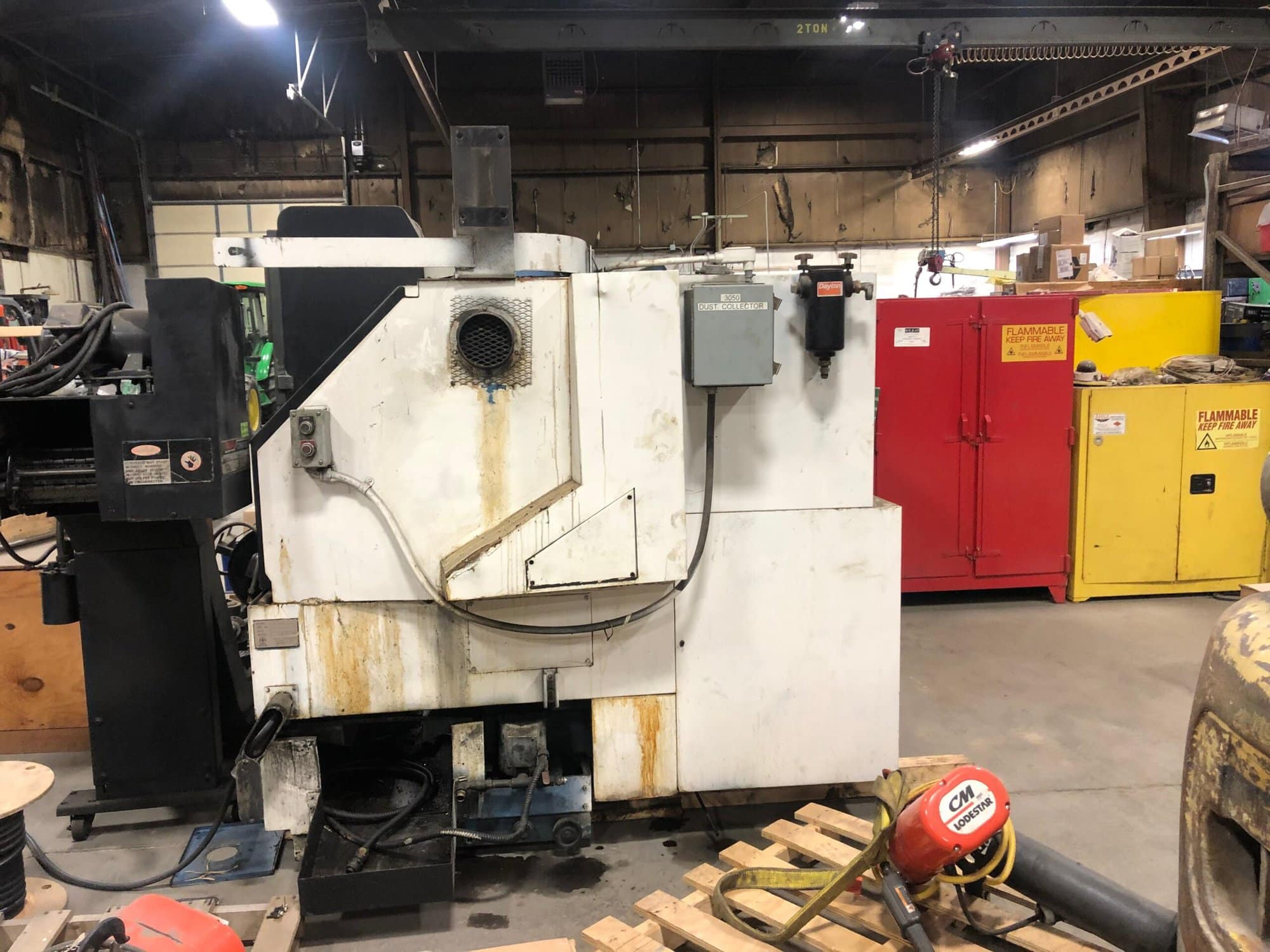

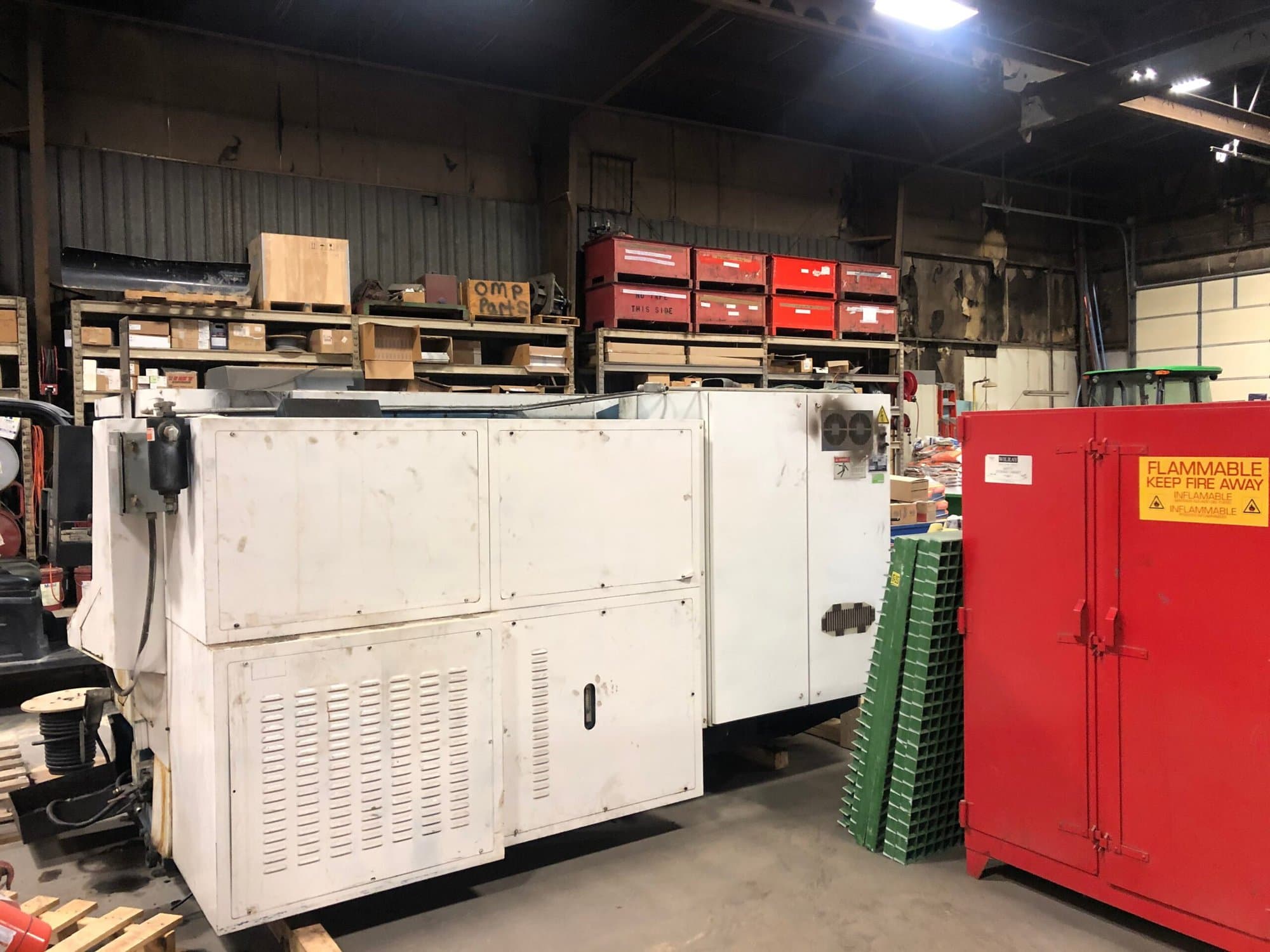

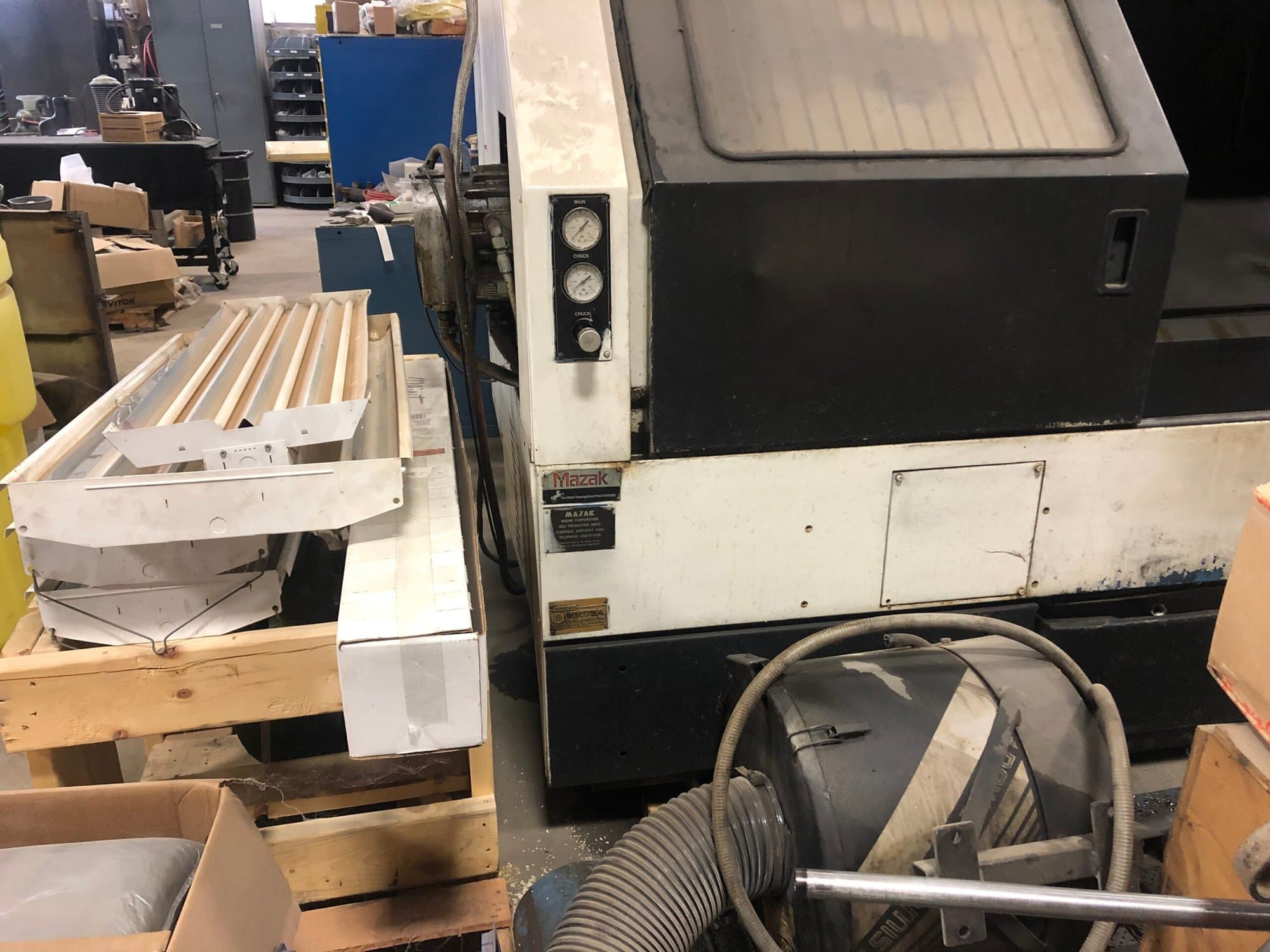

Mazak Quick Turn 28 QT 28 CNC Lathe, 1992 – 12″ Chuck
$12,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Bed: 20.08″
Standard Cutting Dia: 12.6″
Maximum Cutting Length: 39.76″
Spindle Nose: A2-8
Spindle Bore: 3.15”
Bar Capacity: 2.75”
Spindle Speeds: 3000 Rpm
Rapid Traverse X/z: 472/945 Ipm
Axis Travel X/z: 7.9″/40.1″
Turret Positions: 16 Positions
Tailstock Stroke: 32.9″
Quill Stroke: 5.1″
Main Motor: 30 Hp Ac
Floor Space: 135.04″ X 72.79″ X 72.8″
Machine Weight: 12,100 Lbs
EQUIPPED WITH:

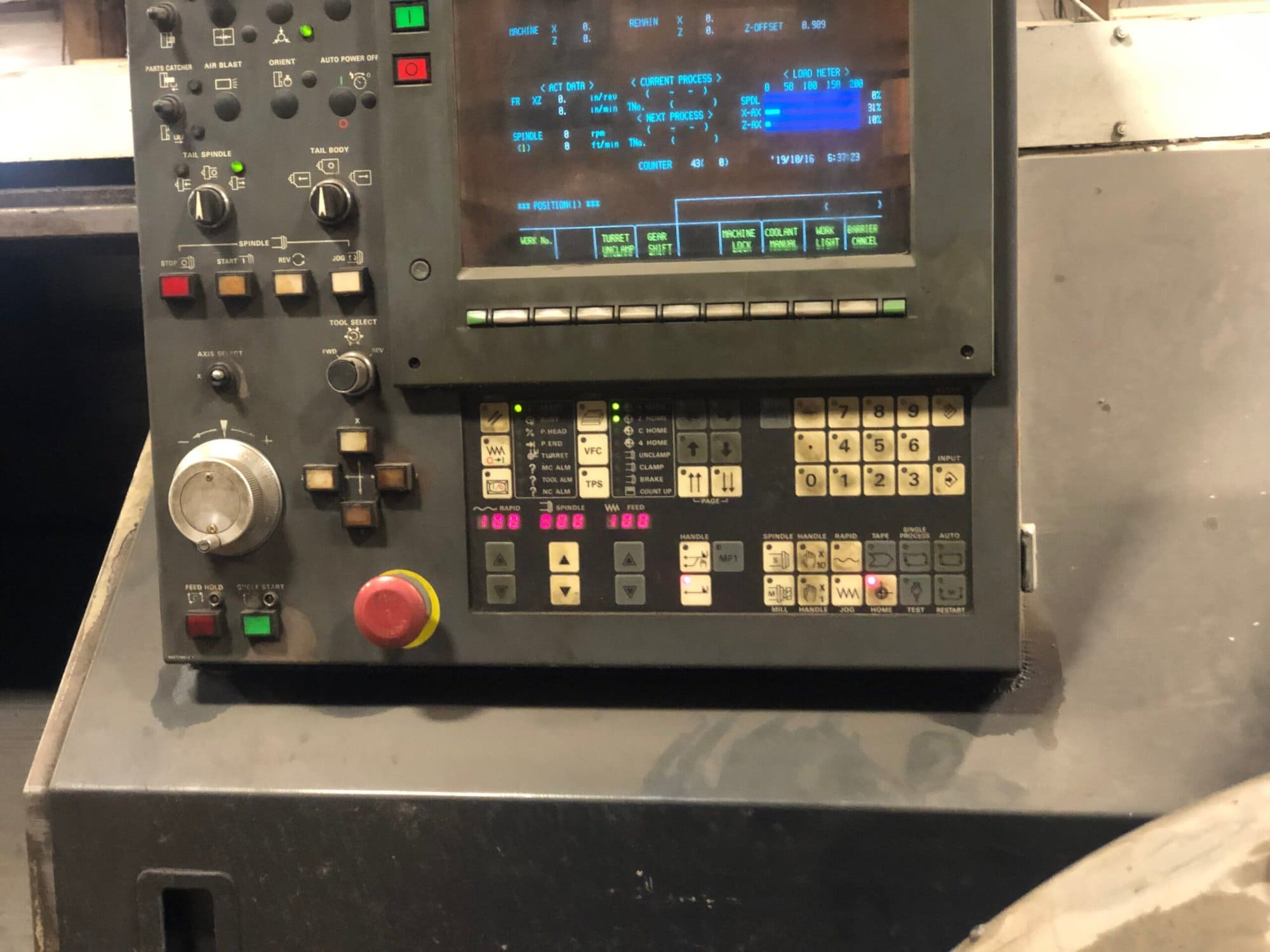

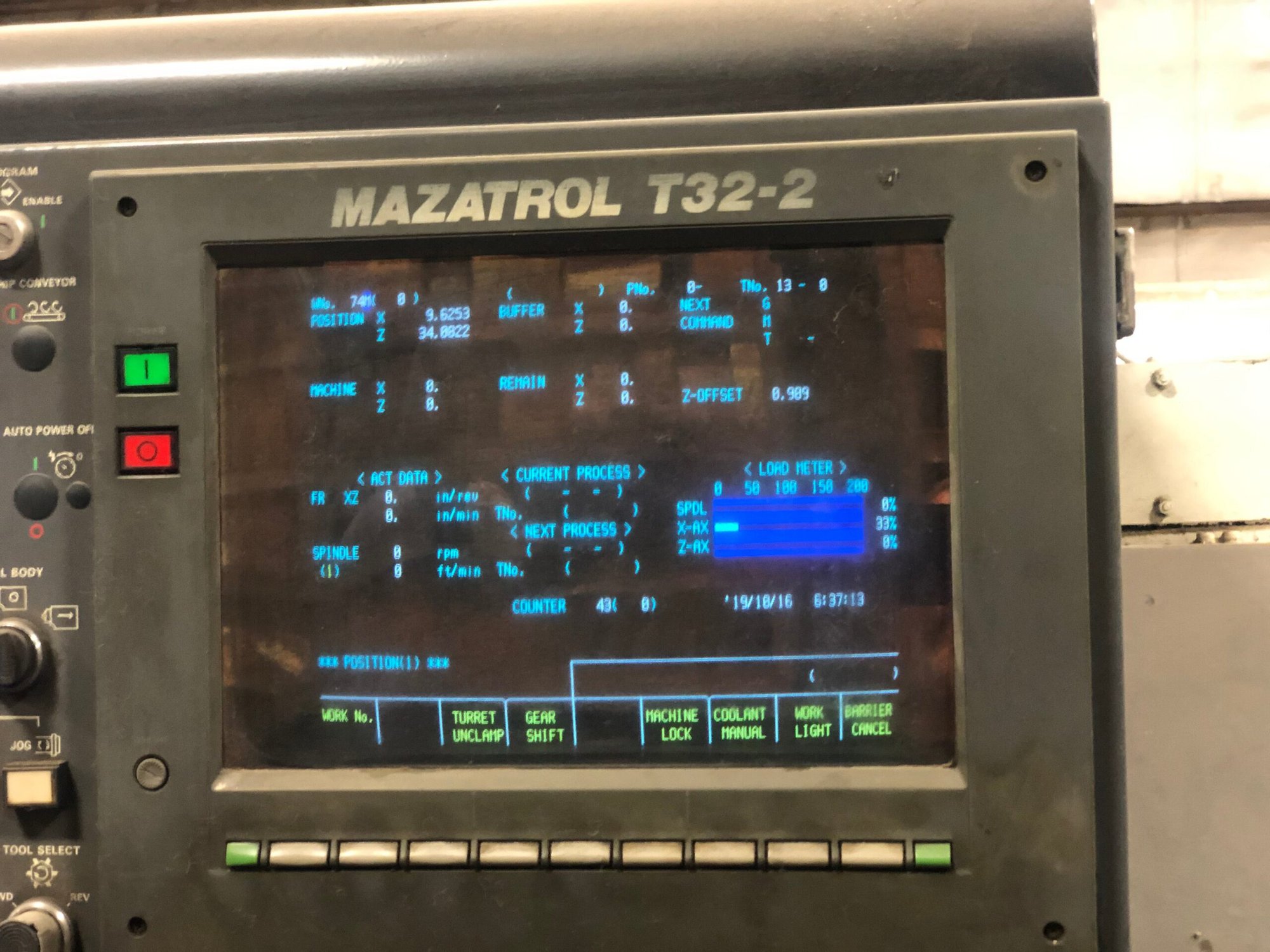

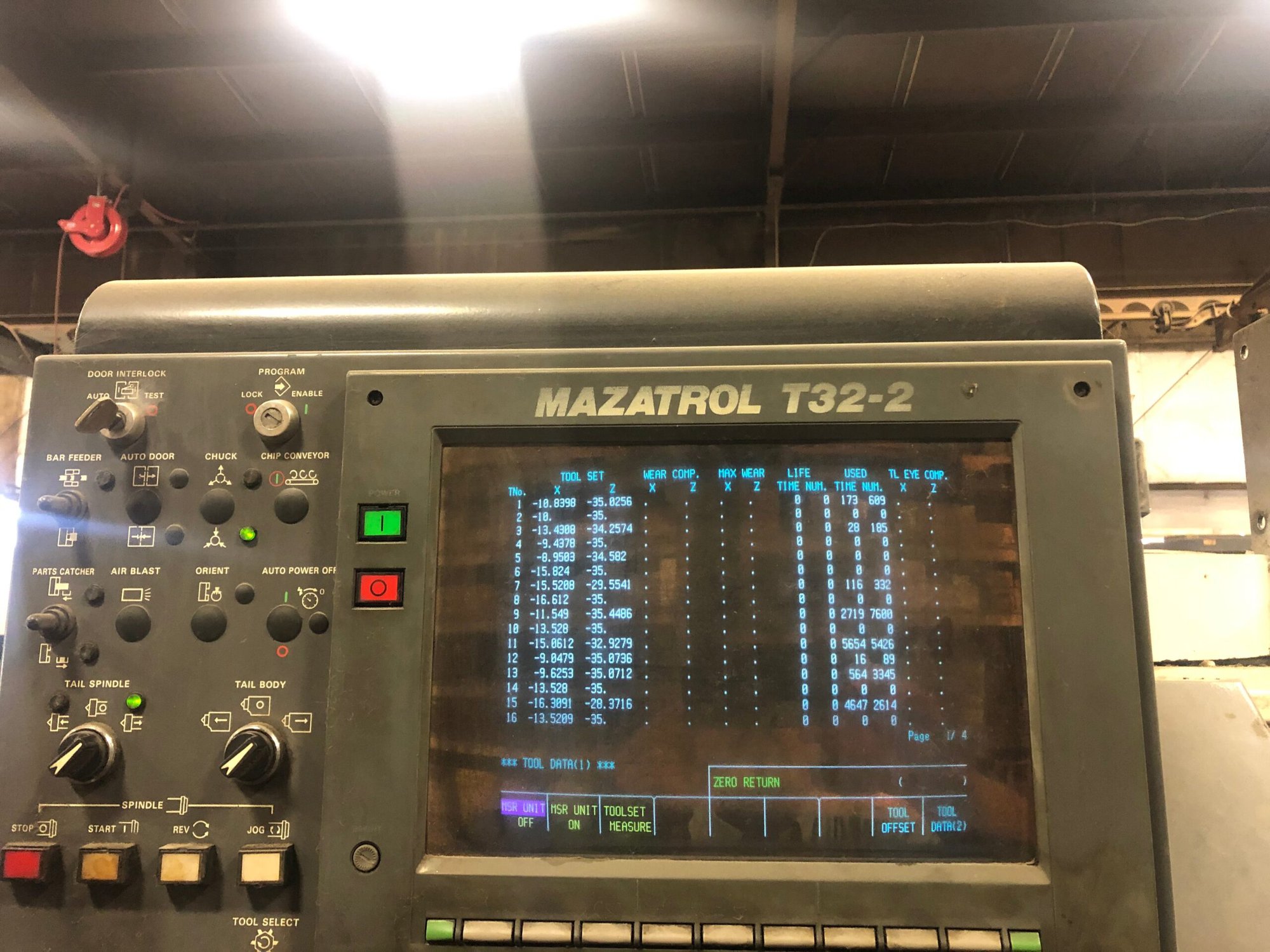

Mazatrol T32-2 Cnc Control

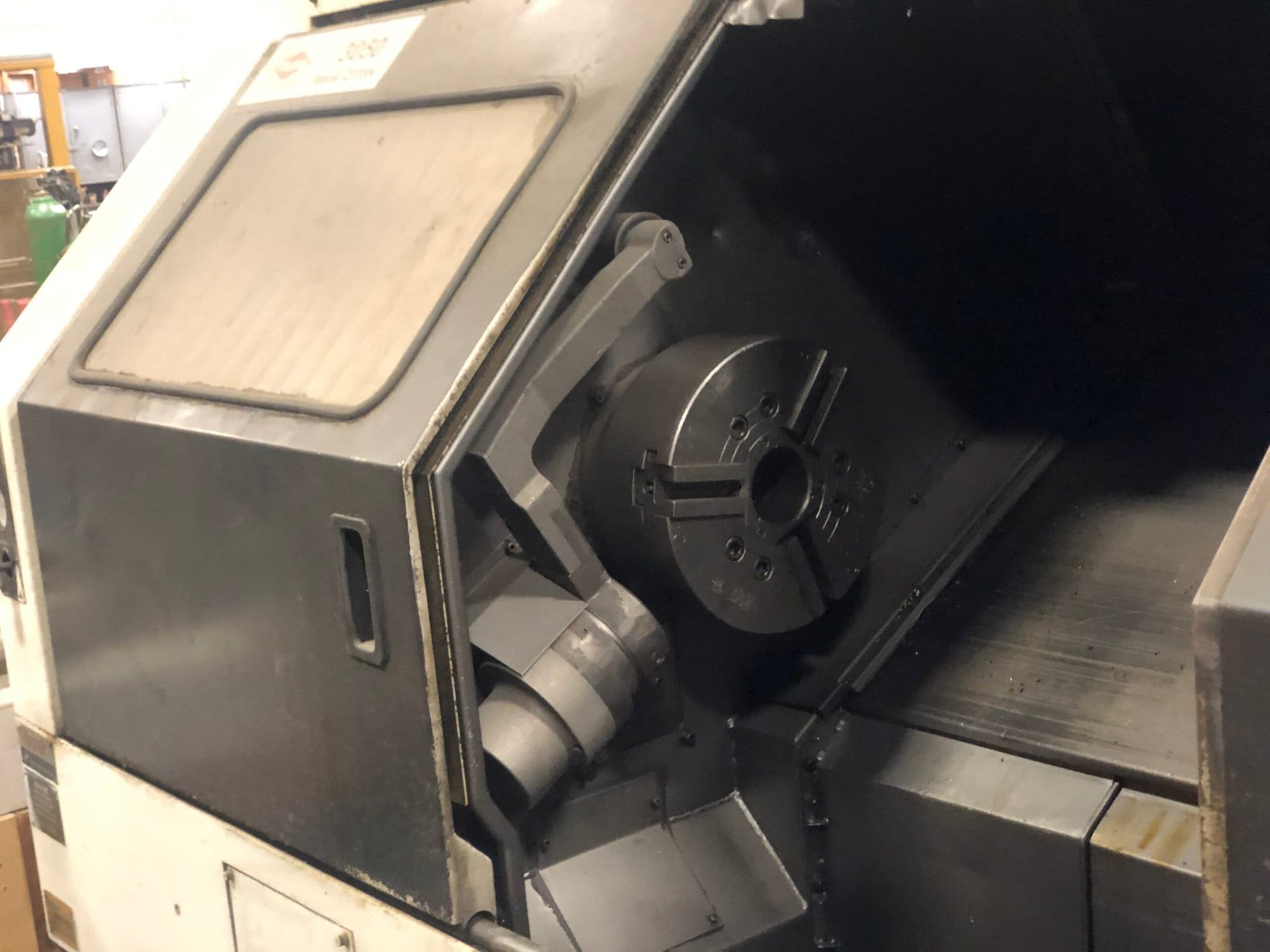

12″ Chuck

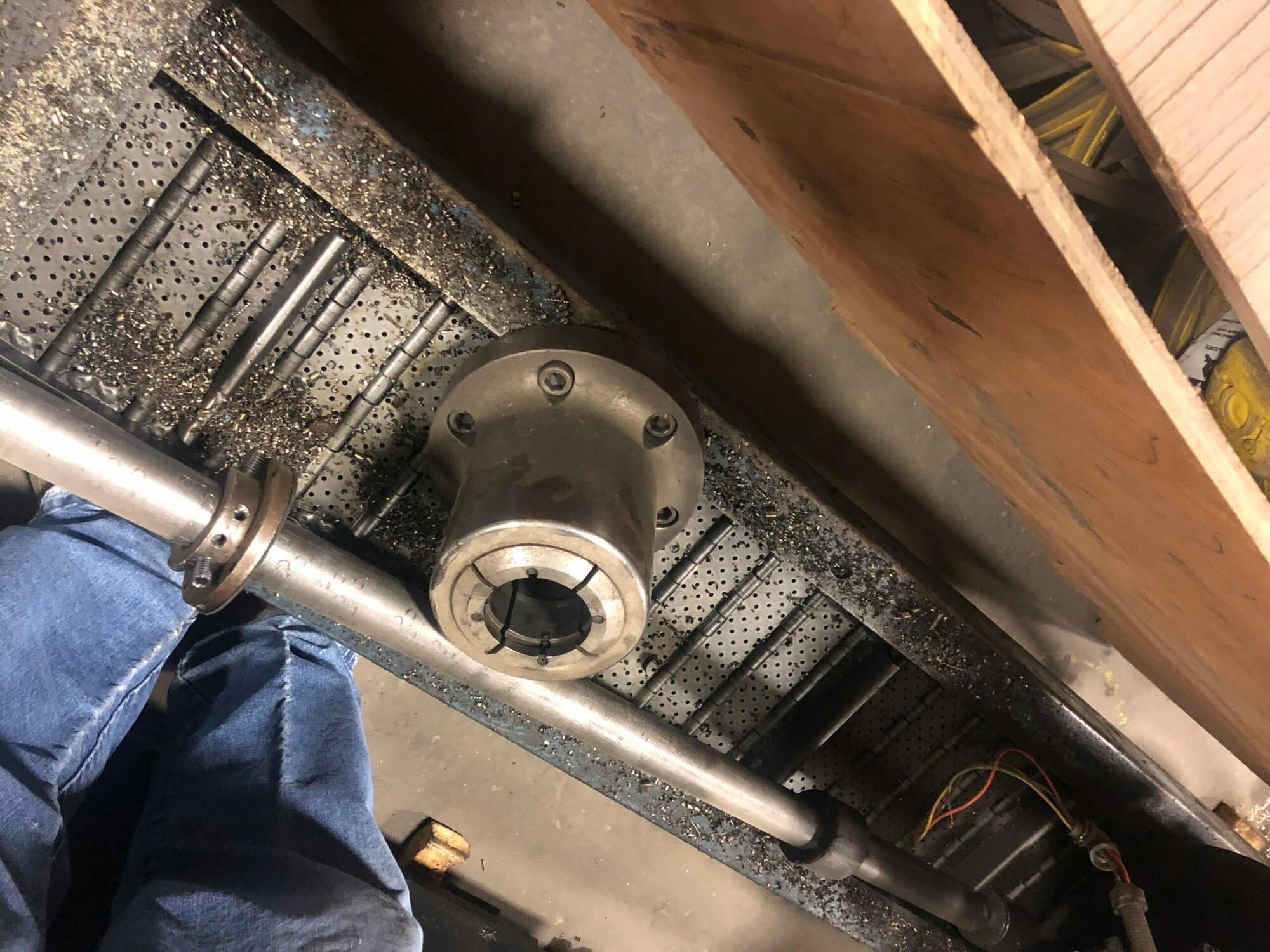

Collet Chuck
Tool Eye

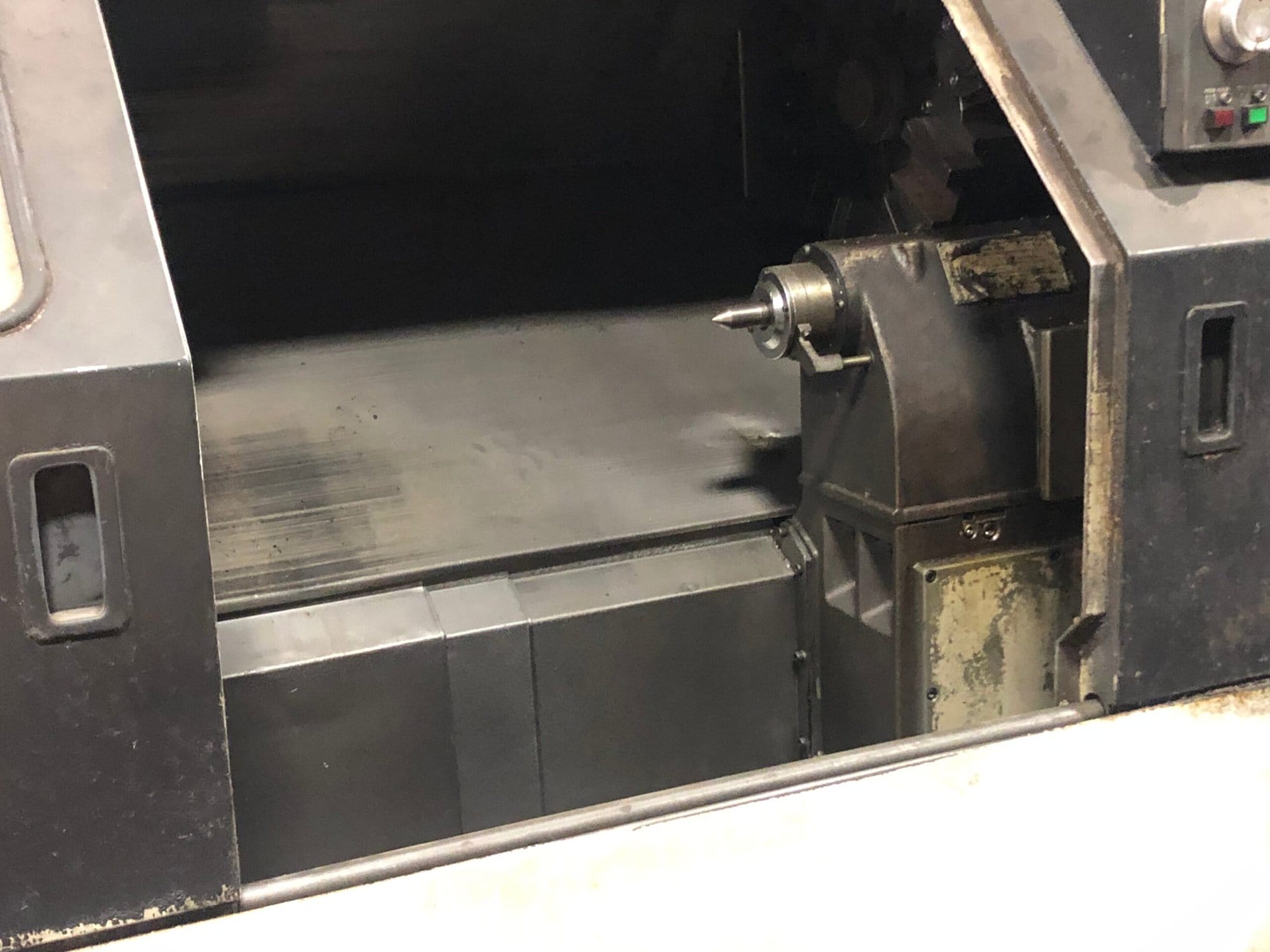

Tailstock

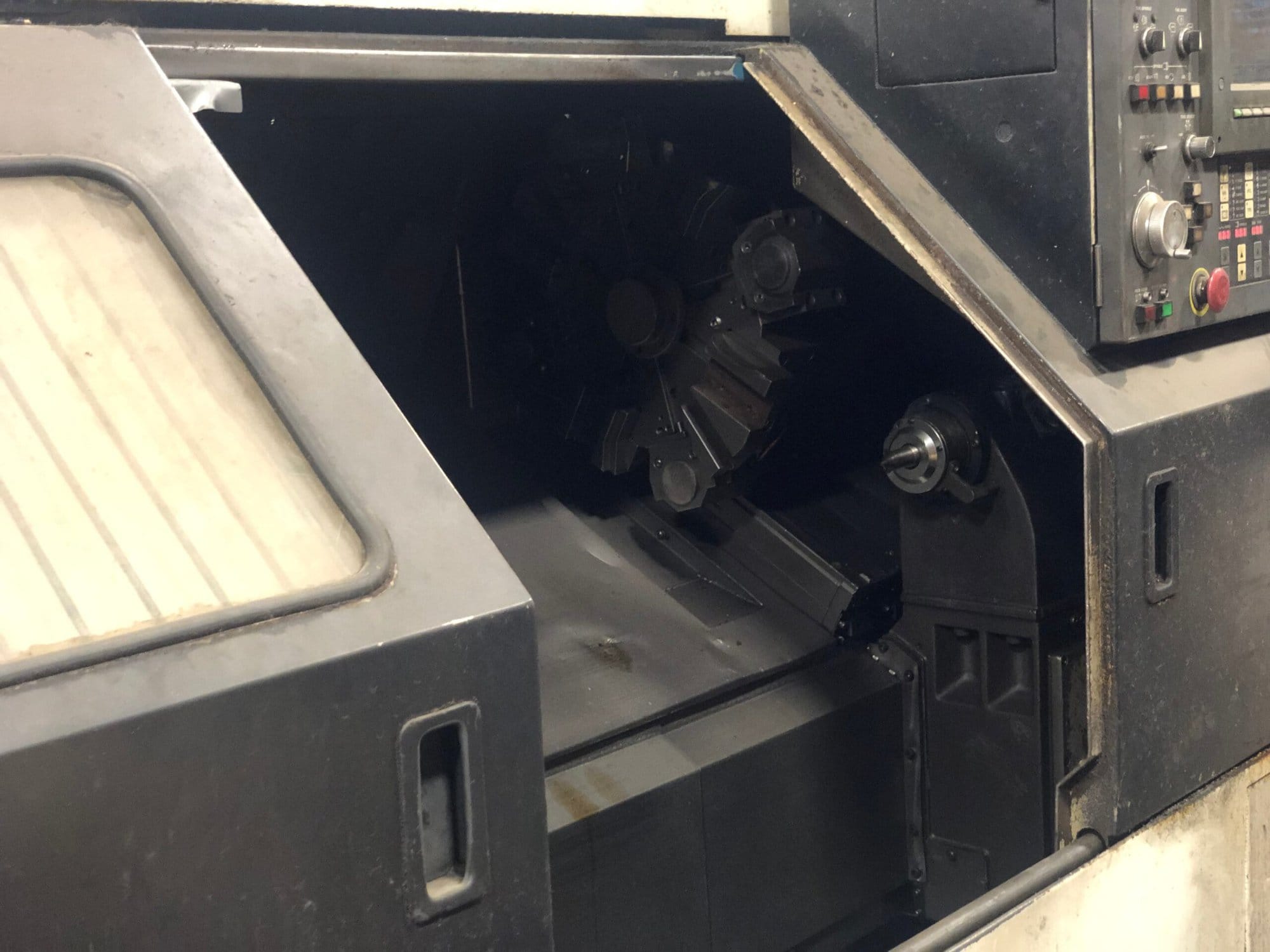

16 Station Turret
Chip Conveyor
