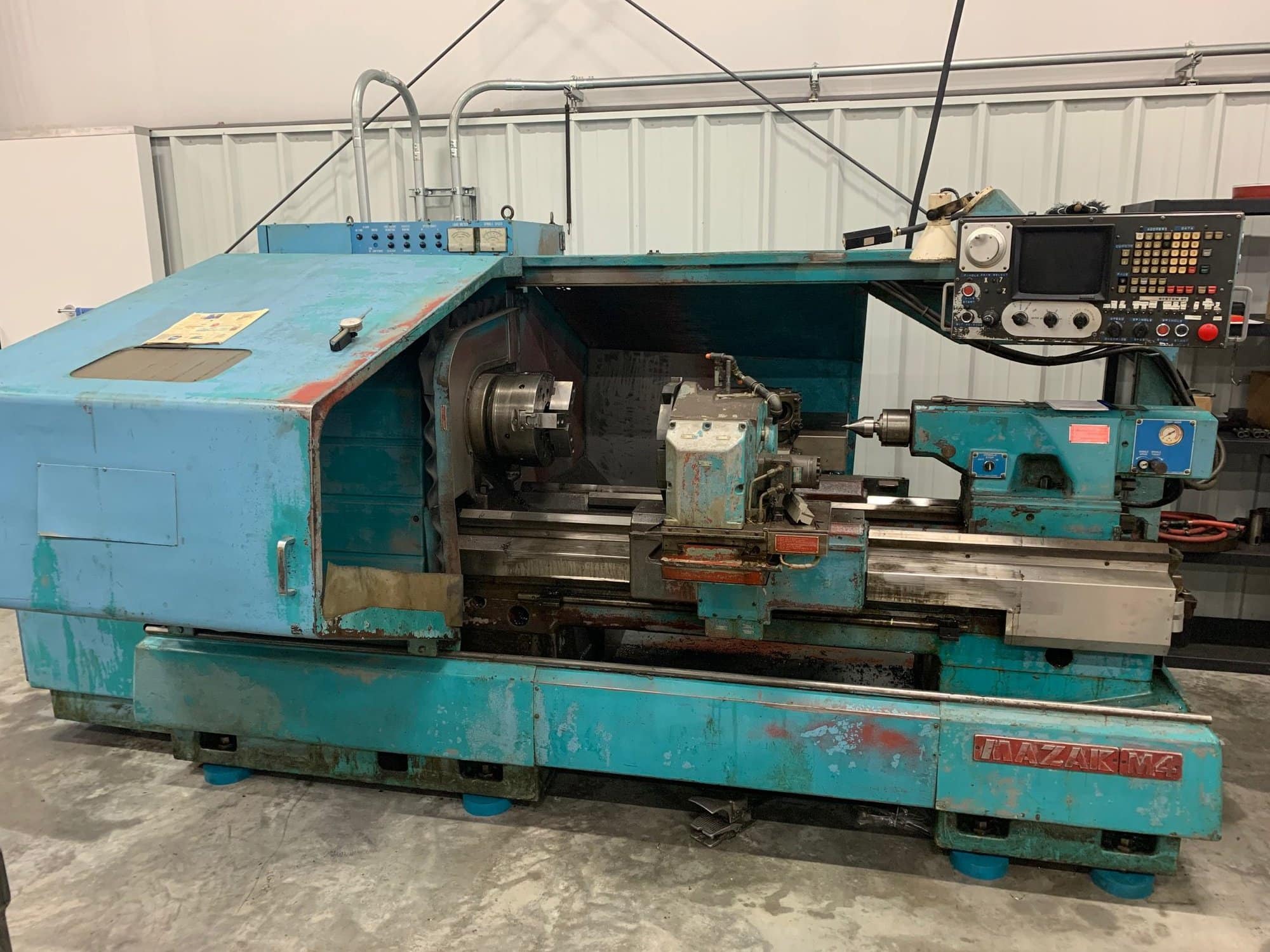

Mazak M4 1000 CNC Lathe, 1984 – Known Issues, Available Immediately
$6,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Bed: 22″
Swing Over Carriage: 21″
Swing Over Cross Slide: 11″
Distance Between Center:M 1000mm 40″ 1500mm 60″
Turret Travel
X-axis: 14-3/8″ Single turret
21-21/32″ Dual turret
Z-axis: 1020mm 40-5/16″ 1530mm 60-5/16″
Hole through spindle: 3-1/8″
Spindle nose: ASA-A2-8″
Internal taper of spindle: =350 Amer. Std.
Spindle Center M.T. No. 5
Single tool turret: 4 QC or 8B (interchangeable)
Dual tool turret: 4QC + 4B
4QC +6B
8D + 6B
Range of spindle speed: 5 to 2,200 rpm
L: 5 to 423 rpm
M: 10 to 935 rpm
H: 22 to 2,200 rpm

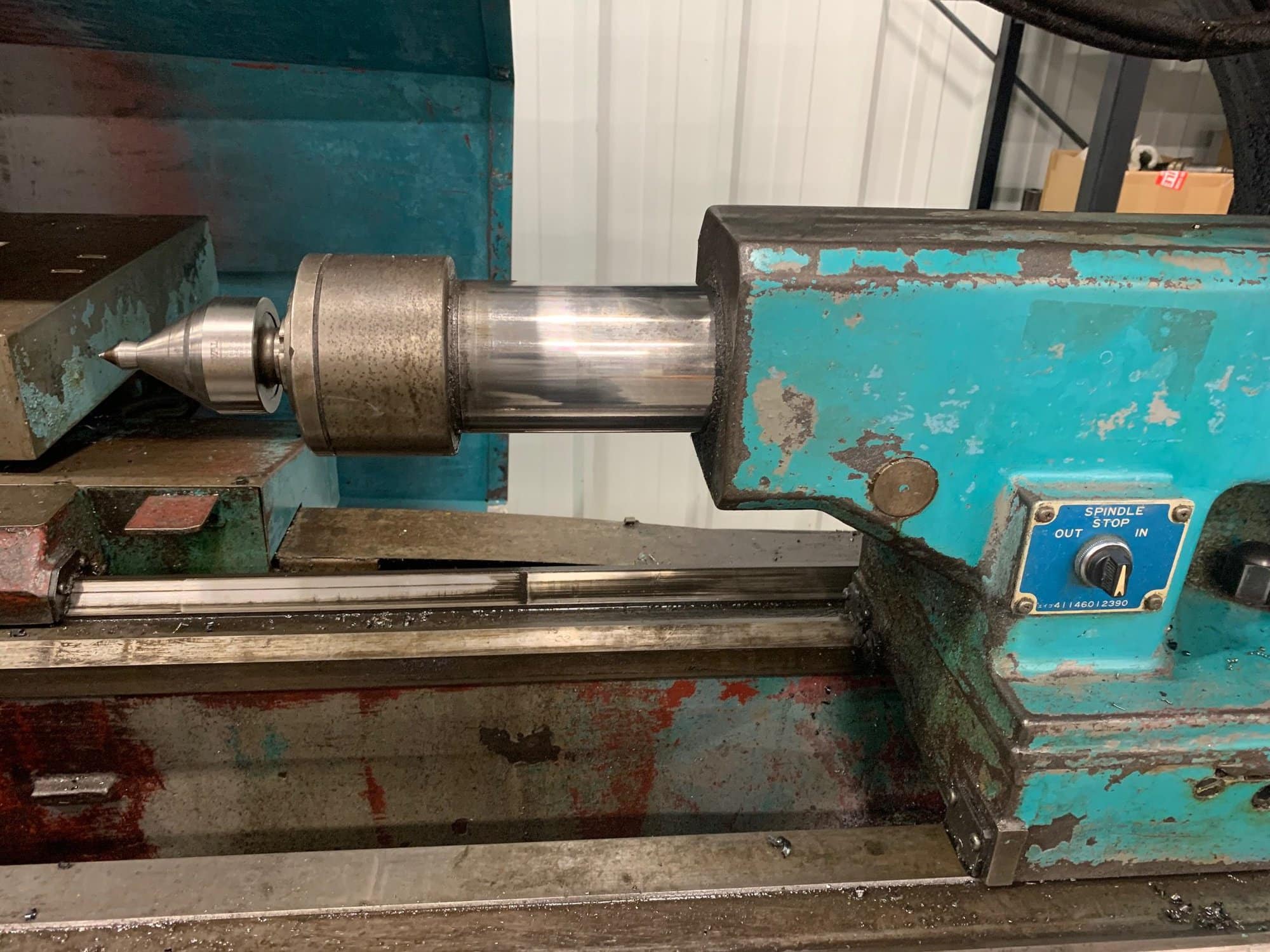

Stroke of Tailstock Spindle: 5″
Diameter of Tailstock Spindle: 3-11/32″
Center of Tailstock Spindle: M.T. No. 4 (build in Center)
Max Thrust of Tailstock Spindle: 1,320 lbs
Rapid Traverse Speed: X-Axis 400 Ipm
Z-Axis: 470 Ipm
Main Drive Motor: 18 Kw
Controlled Axes: 2 Axes (x and Z)
Simultaneously Controllable Axes: 2 Axes
