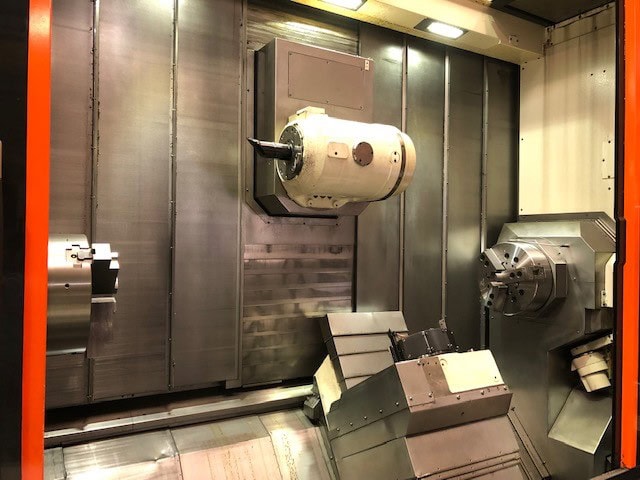

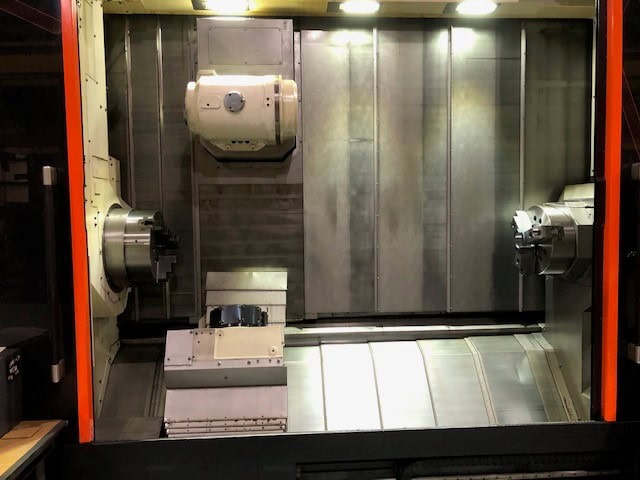

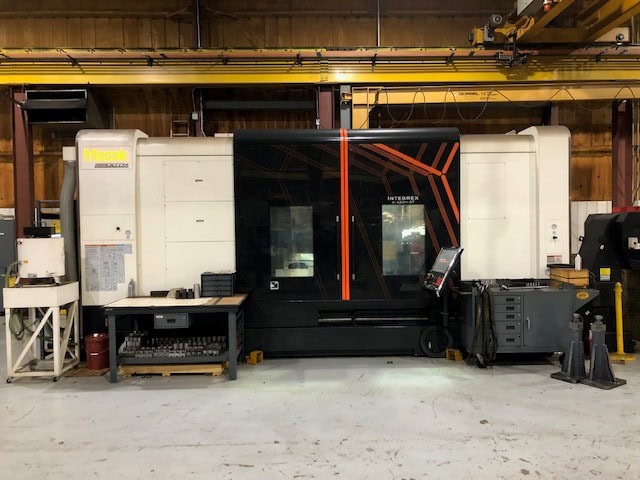

Mazak Integrex e-420H-ST, Multi Axis Lathe, 2016 – 15″ Kitagawa Chucks, 5.19″ Bore, Lower Turret, Chip Conveyor, Mist Collector, Through-Spindle Coolant, Renishaw Probe, 80 ATC
$510,600.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Turning Length: 80″
Max Turning Diameter: 26.3″
Main Spindle Bore: 5.19″
Sub Spindle Bore: 5.19″
Travels:
X-Axis: 33.27 inches (Upper) / 14.25 inches (Lower)
Y-Axis: 16.54 inches
Z-Axis: 82.2 inches (Upper) / 74.53 inches (Lower)

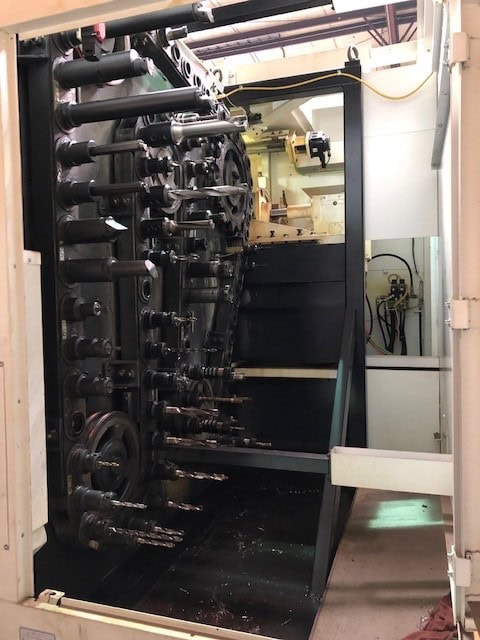

Tooling: 80 ATC Capto C6

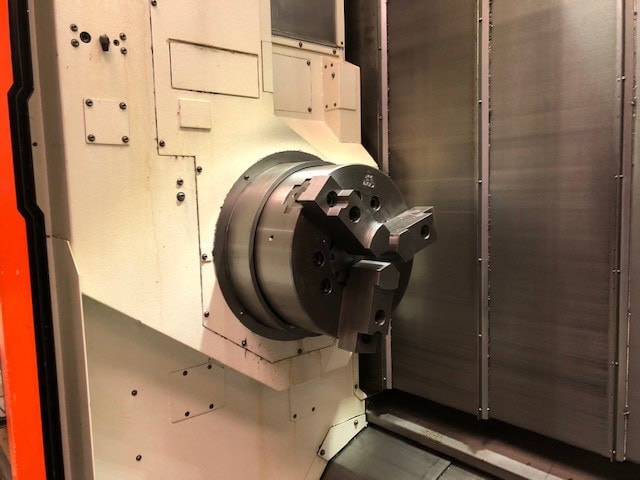

Main Spindle:
Chuck: 15″ (Kitagawa B-15A11)
Speed: 2,500 RPM
Power: 40HP
Nose: A2-11

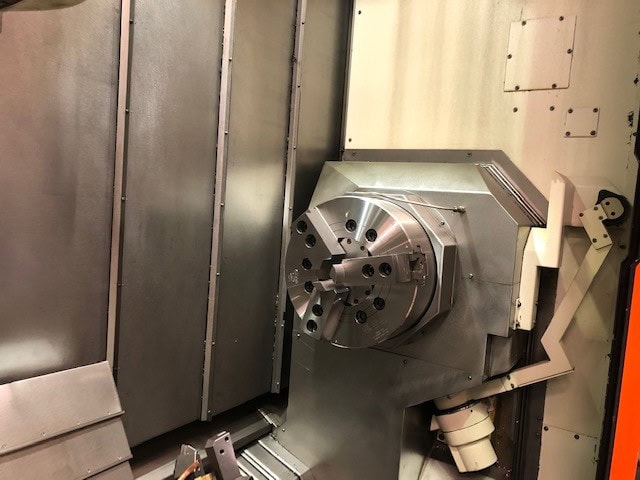

Sub Spindle:
Chuck: 15″ (B15)
Speed: 2,500 RPM
Power: 40HP
Nose: A2-11

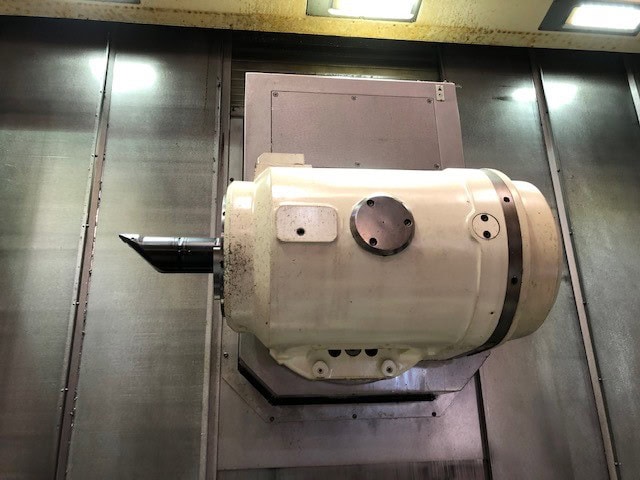

Milling Spindle:
B-Axis: 240º programmable
Speed: 12,000 RPM
Power: 30HP
Approx Footprint: 210″ x 115″ x 115″
Approx Weight: 48,000 lbs
Equipped with:

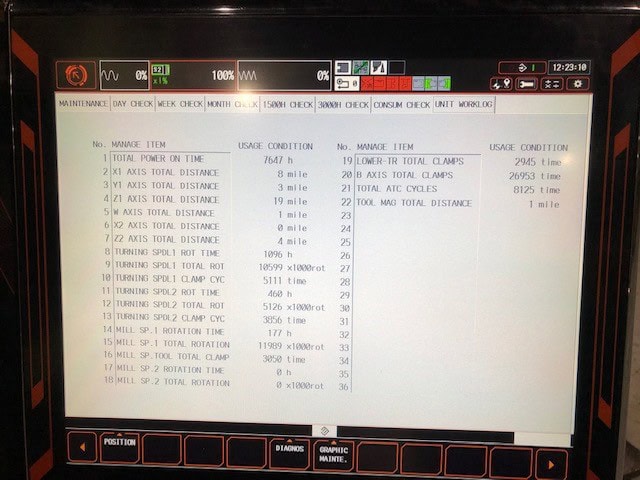

Mazatrol SmoothX Control
B-Axis Milling Spindle

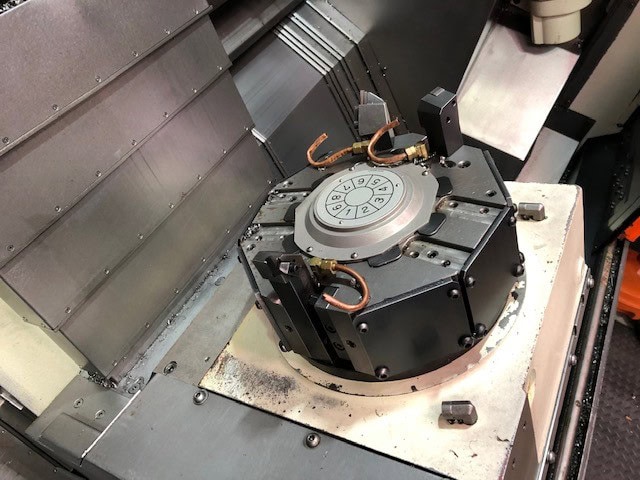

9-Station Lower Turret
Mazak Super Flow V8M Variable 1,000 PSI TSC
C1/C2 Spindle Sync
Renishaw RMP600
Tool Setter

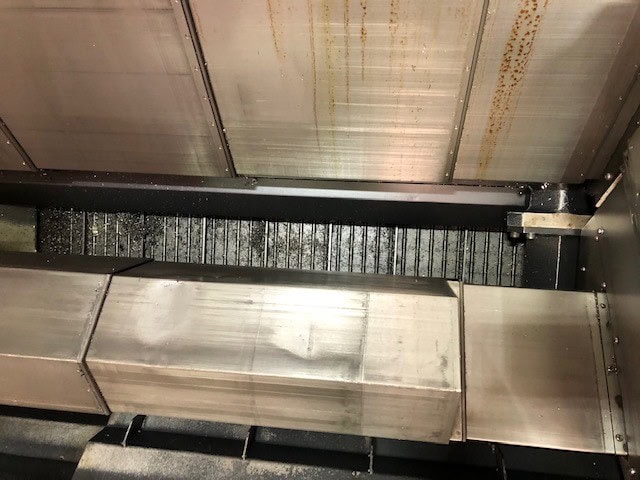

Chip Conveyor
Mist Collector
All Available Manuals
