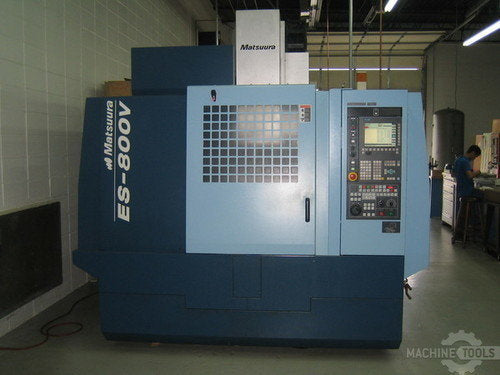

Matsuura ES-800V, 2006 – 4th Axis, 12K RPM
$69,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size
45.27″ x 21.65″
Table Load Capacity
1,100 lbs.
X-Axis Travel: 31.49″
Y-Axis Travel: 21.65″
Z-Axis Travel: 19.68″
Spindle Taper: BT #40
Spindle Speed: 40 – 12,000 RPM
Spindle Motor 30 minutes/continuous: 30 HP / 20 HP
Spindle Nose to Column: 23.23″
Spindle Nose to Table: 5.9″ – 25.59″
Side Mount: 30 Position ATC
Max. Tool Diam./Length/Weight: 6.88″/13.7″/22 lbs.
Machine Dimensions: 152″x116″x112″
Machine Weight:15,800 lbs.
Equipped with
30 Position Side Mounted Tool Changer
4th Axis Drive & Wiring
10″ Diameter Tsudakoma RN-200R Rotary Tbl
RS 232 Port Interface
Spindle Oil Cooler
Rigid Tapping
High Efficiency Tool Path
Tool Length Measurement
Tool Life Management
Status Light

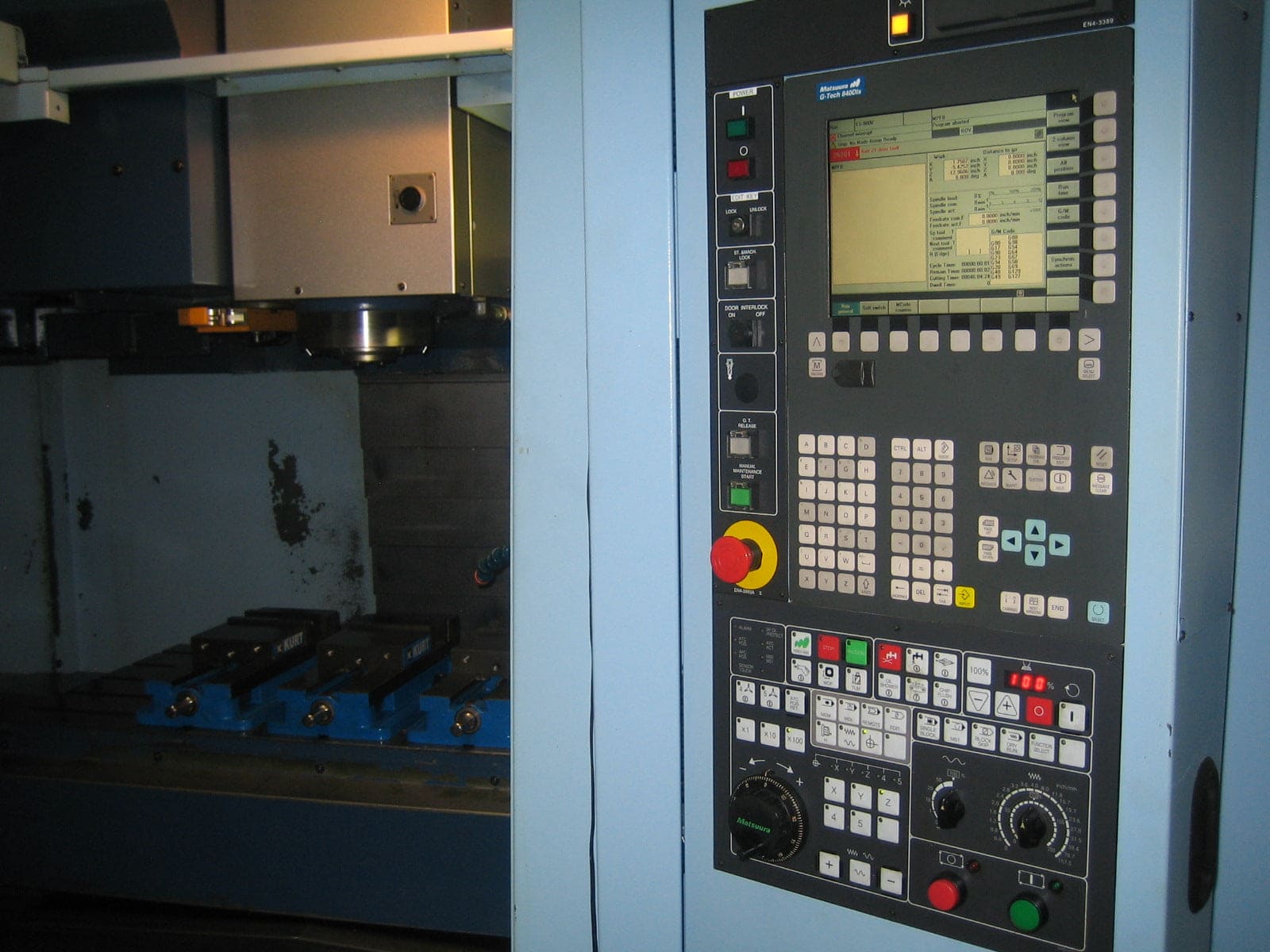

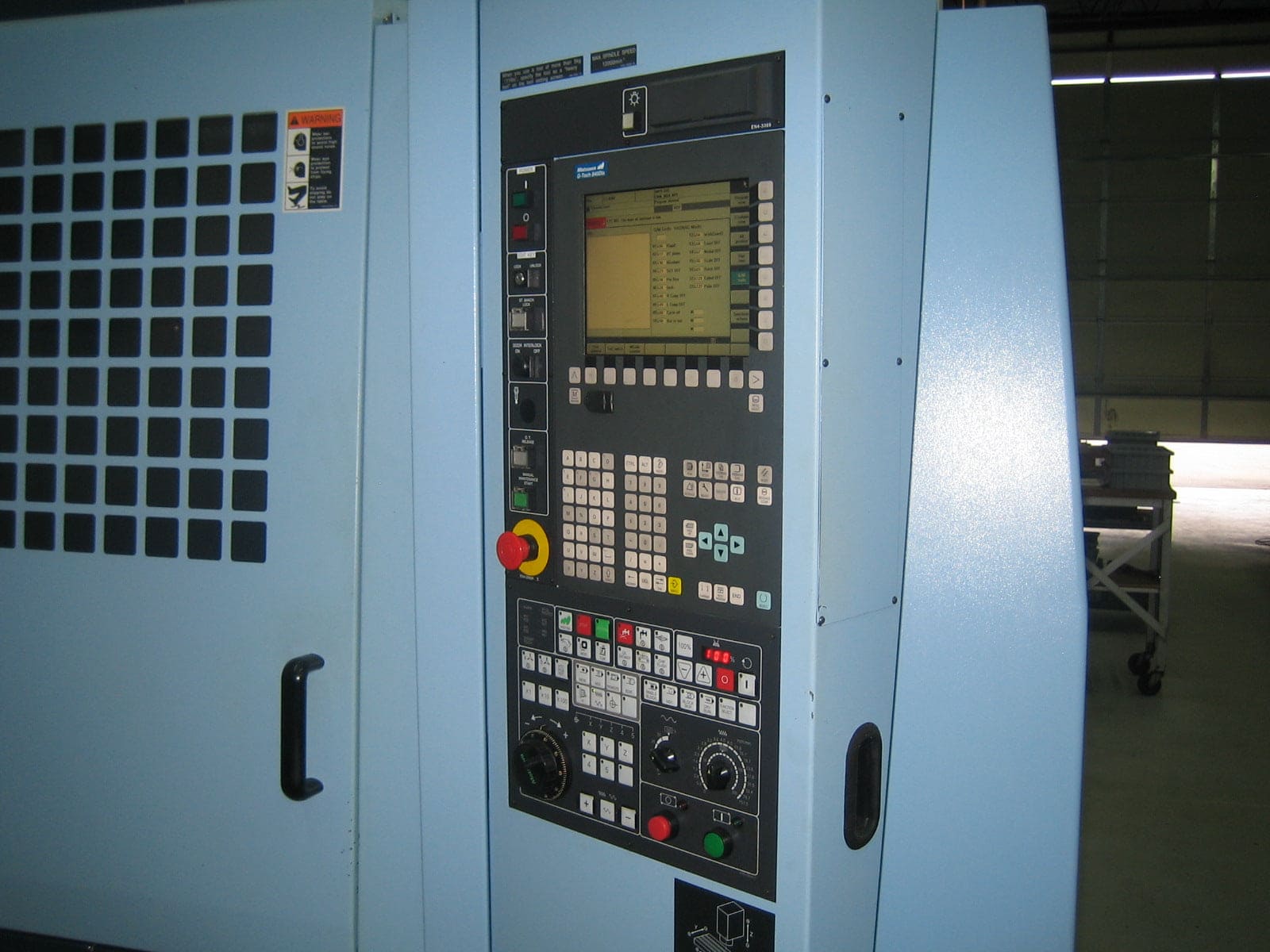

Siemens Control System
Complete Coolant System with Tank & Pumps
All Available Manuals
