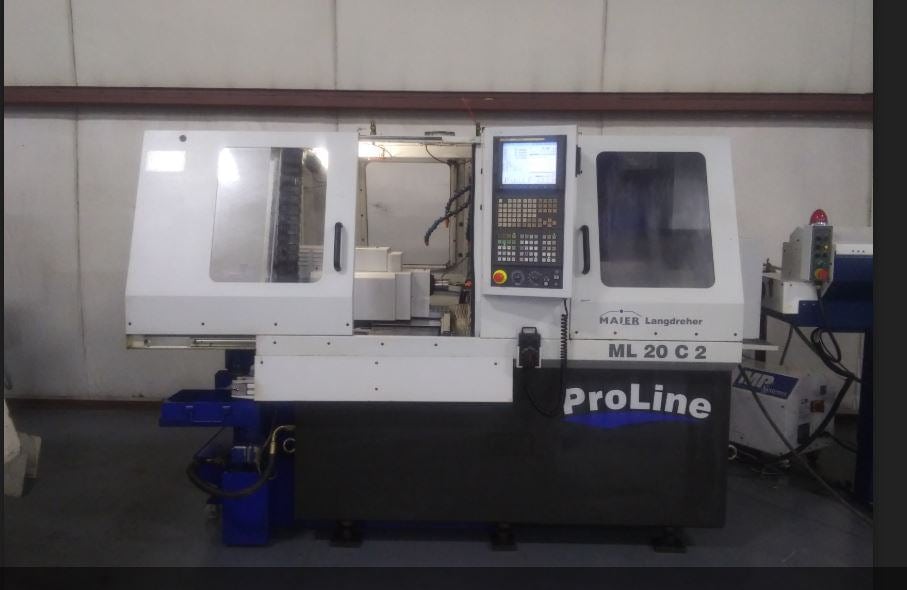

Maier Swiss Machine ML20 C2, 2004
$25,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
2 System Control, 7 Axes
Simultaneous Machining With 2 Tools
Up To 19 Tool Positions
Simultaneous Machining on Main and Opposed Spindle
System 1: 6 Turning Tool Positions
12x12MM or 15x15mm (5 off)
Crossdrilling/Milling x 3
Cranked Drill Bracket For Front and Back Machining
System 2: 4 Position Backworking Station
Tool Reception Bore 30mm
Guide Bush: 22.001
Rapid Speed: 32m / min
Coolant Capacity: 240 L
Main Spindle
Spindle Bore: 20 mm
Head Stock Stroke: 220 mm
Spindle Speed: 8000 U/min
Power Rating: 3,7 / 5,5 kw
Driven Tools: 3
Driven Tool Positions 6pcs 12 x 1
Collet: 45E

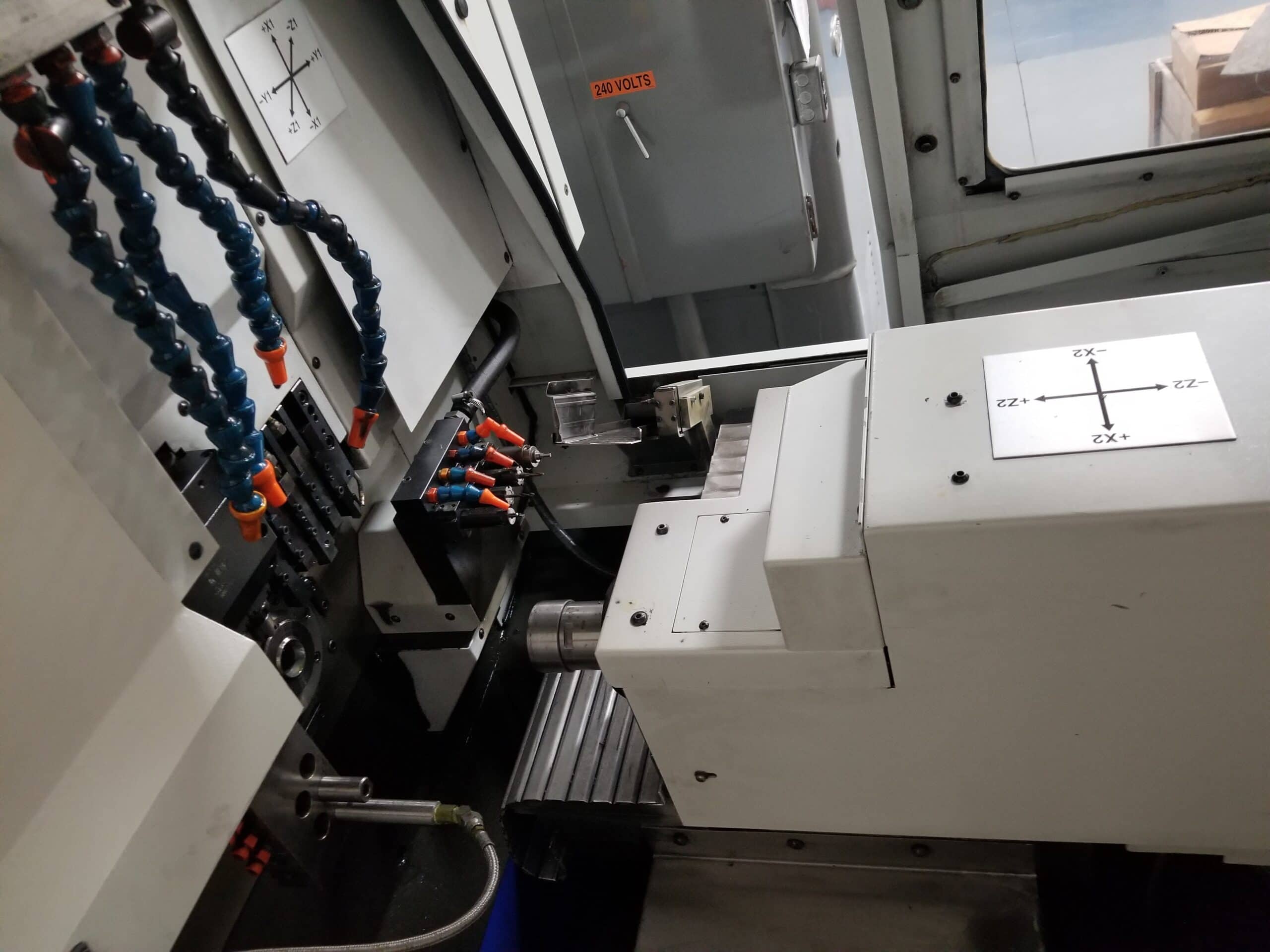

Opposed Spindle
Spindle Bore: 20 mm
Head Stock Stroke: 230 mm
Spindle Speed: 8000 U/min
Power Rating: 2,5 kw
Driven Tools: 1
Collet: 145E
Equipped With:

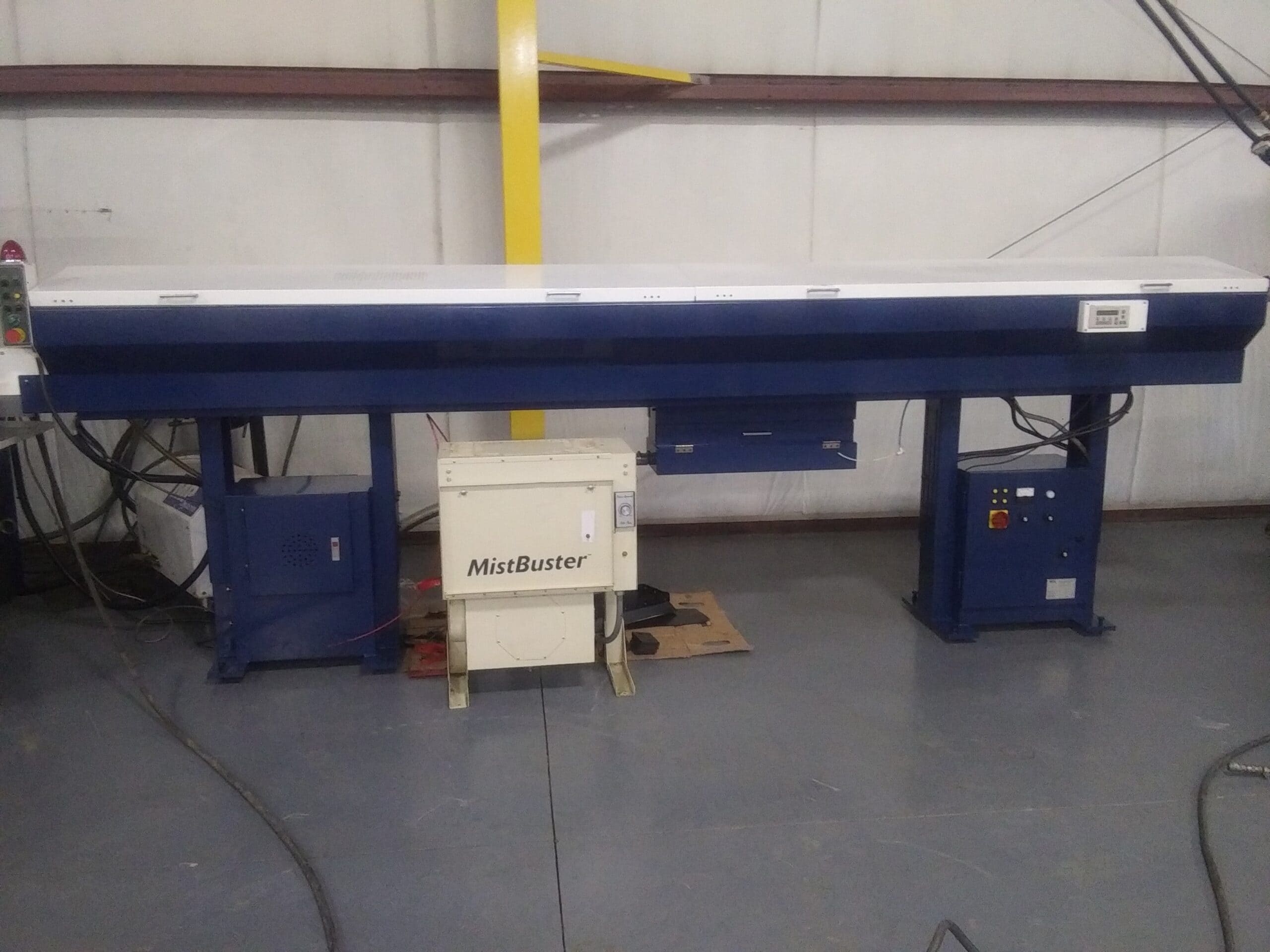

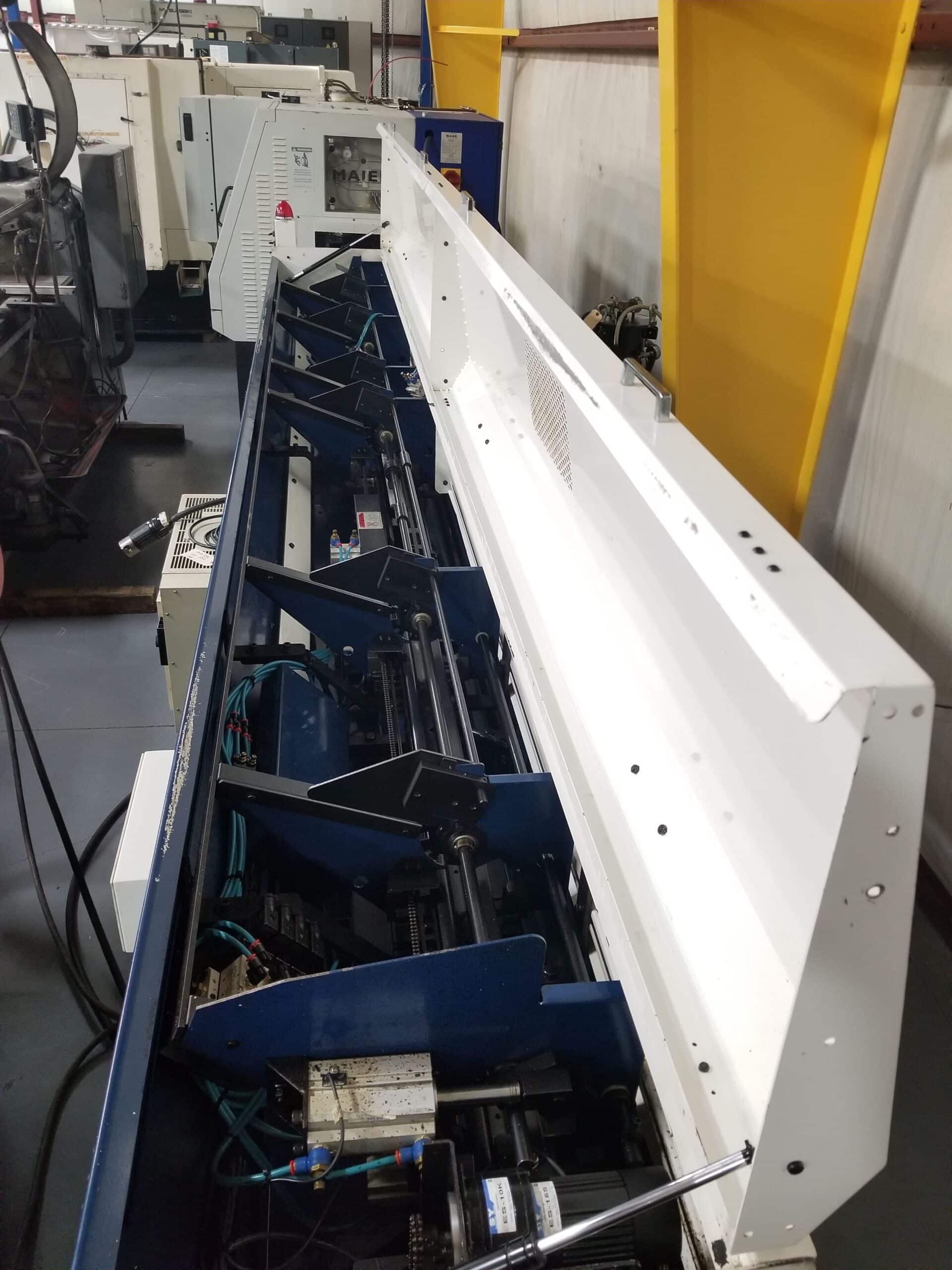

Bar Feeder
Coolant Tank

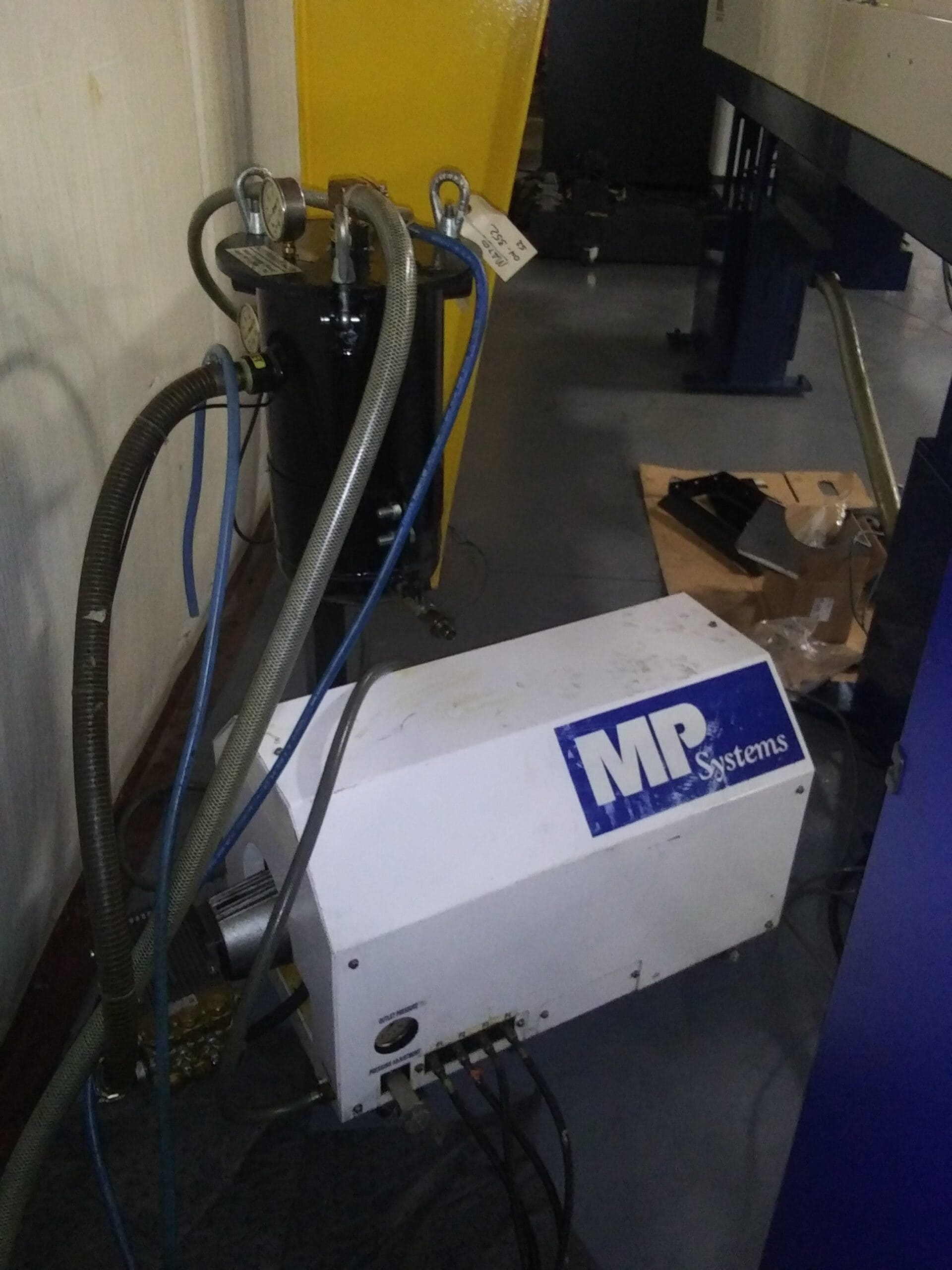

High Pressure Pump
Weight: 8378 Lbs
Size: L 91” x W 60” x H 75”
