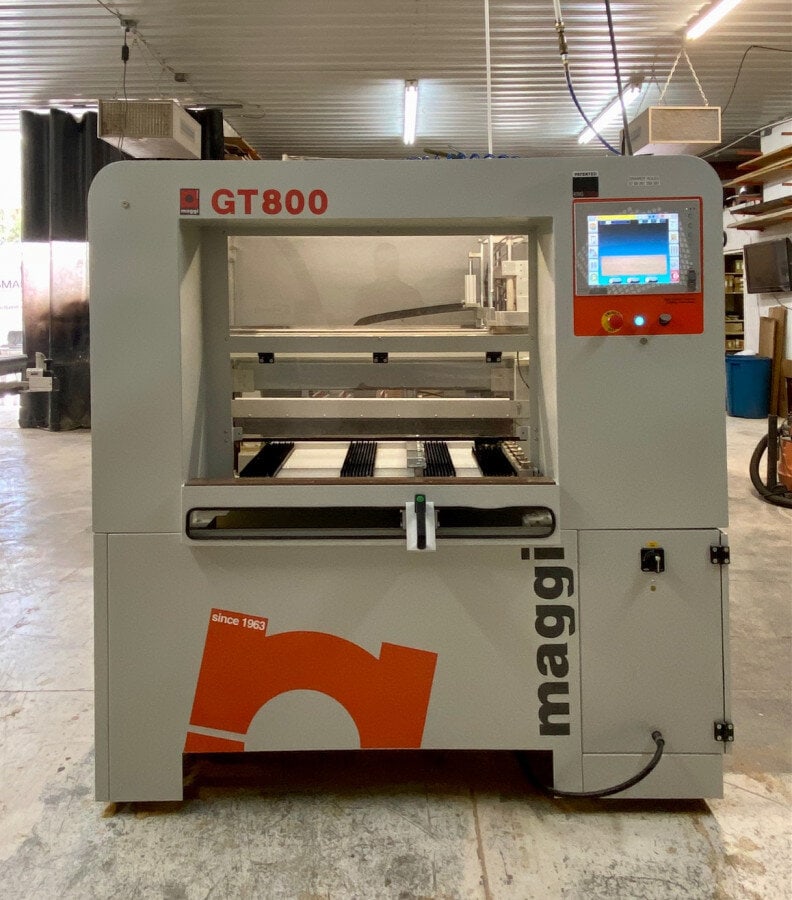

Maggi GT800 CNC Boring and Grooving Center, 2020
$29,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Very Simple and Fast Programming
Extremely Intuitive User Interface
Importable and Text Format Exportable Working Programs
Up To 1,000 Programs Can Be Stored
Machines Panels From Above
Suitable For Drilling On Face and Sides Of Panels, Including Holes For Dowels, Hinges, KD Fittings And Shelf Holes
(9) Vertical Spindles (6 In X Axis And 4 In Y Axis)
Saw Blade Unit In X Axis
(2) 1 + 1 Horizontal Spindles In X Axis
(1) 1 + 1 Horizontal Spindle In Y Axis
Spindles Rotations Speed: 3,400 RPM
Axis Speed 25 Meters/min | 82 Feet/min
Panel End Edge Reader For Perfect Panel Assembly
Max. Panel Dims: Y – 800 Mm (31.5″), X – Unlimited, Z – 50 Mm (2″)
Min. Panel Dims: Y – 100 Mm (3.93″), X – 250 Mm (9.84″), Z – 10 Mm
Boring Capacity 0 To 800 Mm (31.5″) With Any Spindle
Ability To Execute All Drilling Operations In A Single Working Cycle

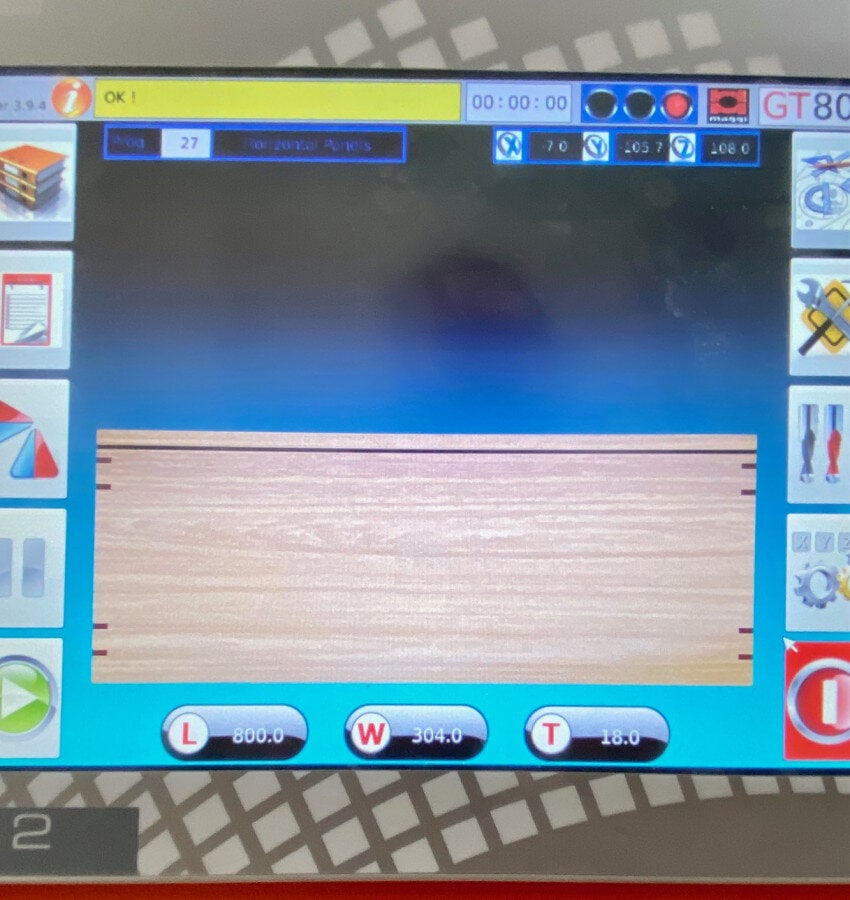

CNC Programming With 12″ Touchscreen
Automatic Panel Cleaning With Brushes
Teleservice Software
TECHNICAL DATA:
Total Power: 2.5 KW
Air Pressure: 6 Bar
Air Consumption: 5 CFM @ 6 Bar
Dust Collection: 1,200 CFM (6″ Outlet)
Dimensions: 68″ W X 72″ D X 68″ H
Weight: 2,205 Lbs.
