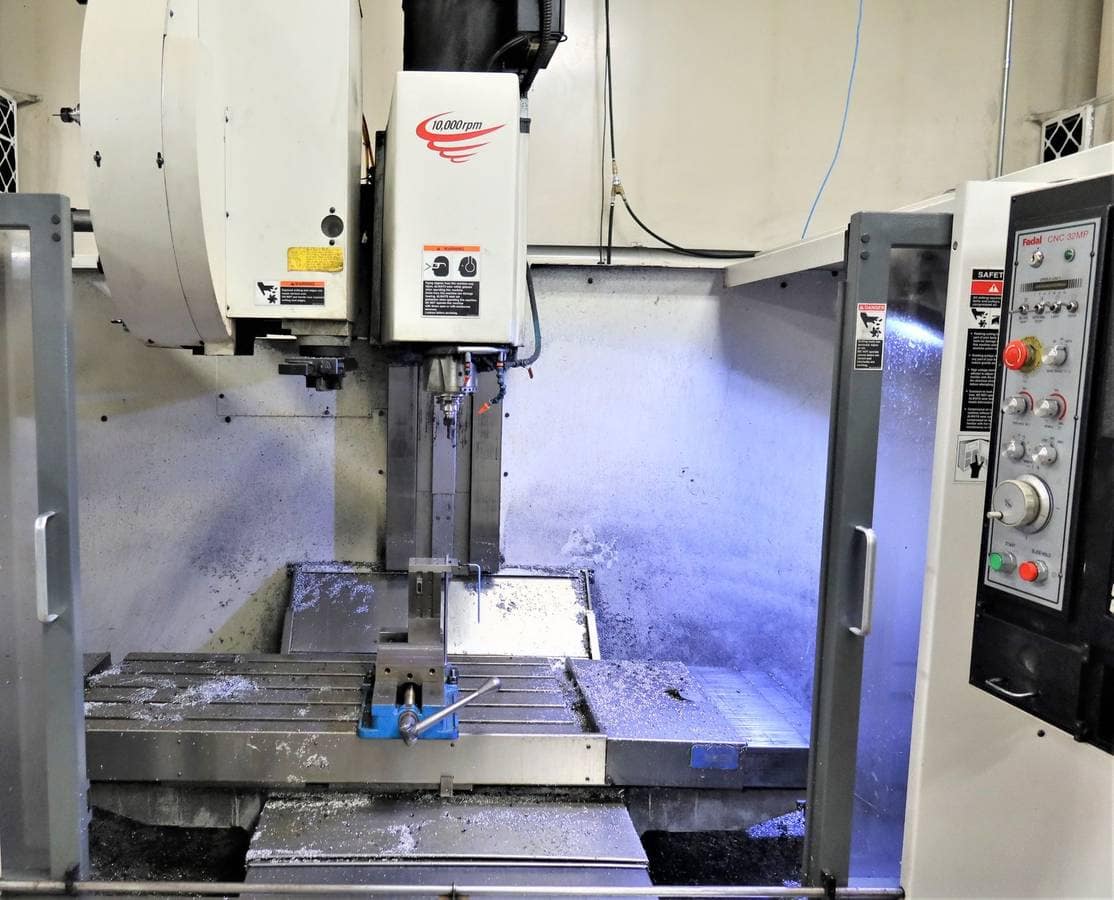

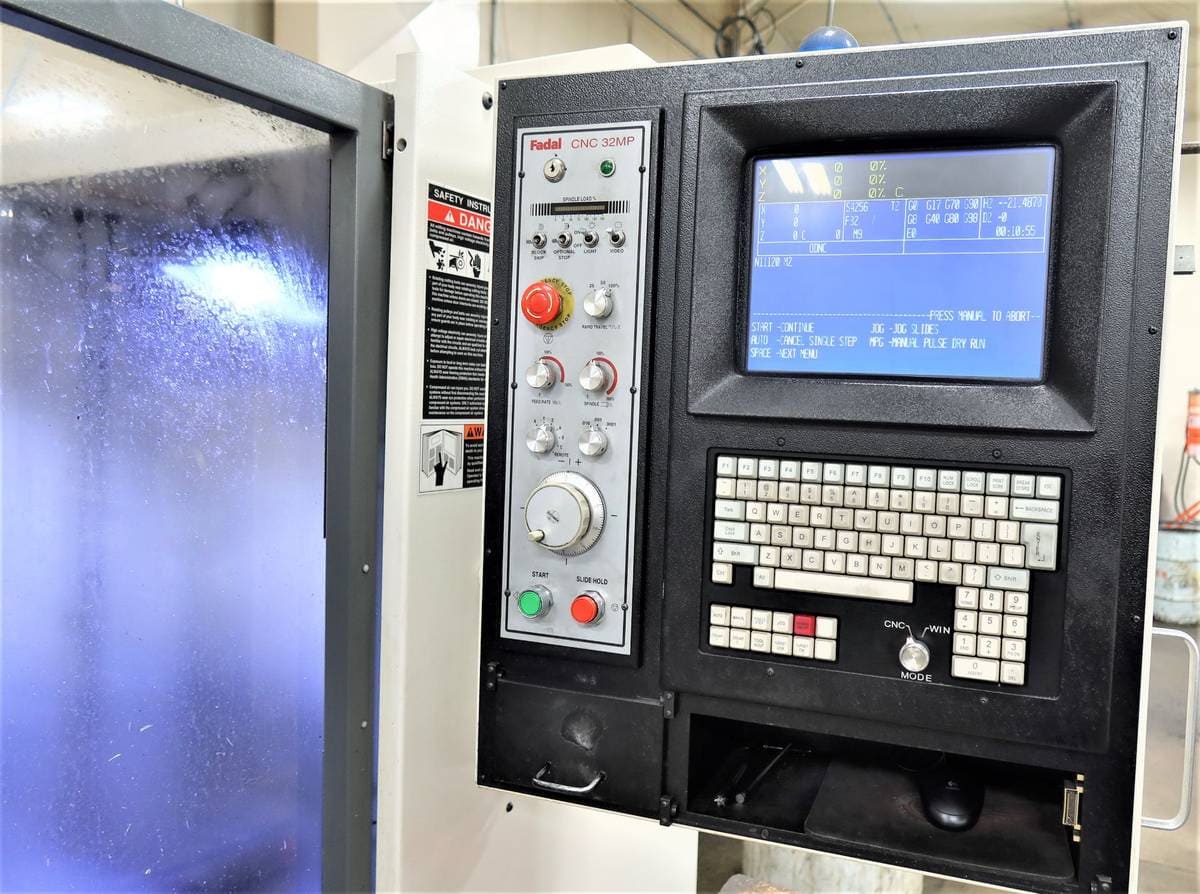

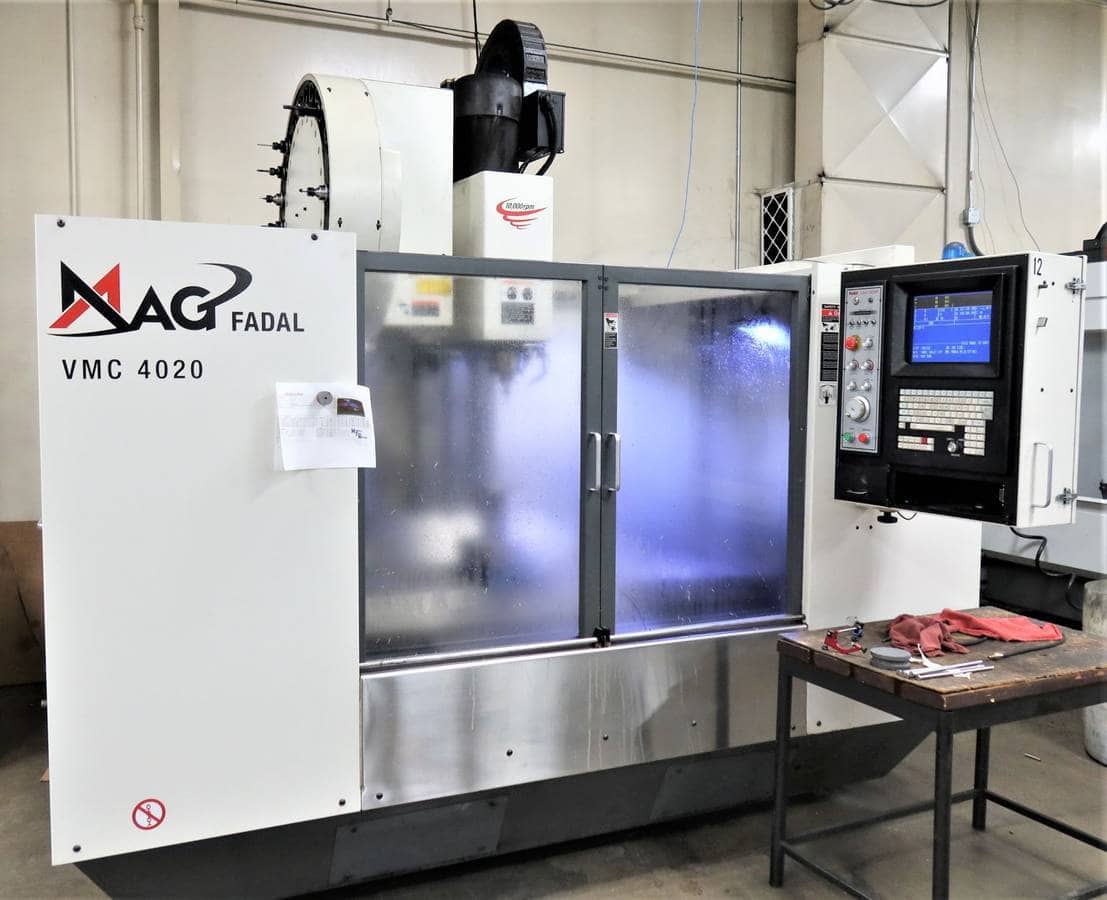

MAG Fadal VMC 4020 HT, 2007 – 10,000 RPM, CNC 32MP
$24,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 20″
Rapid Traverse Rates: 900 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

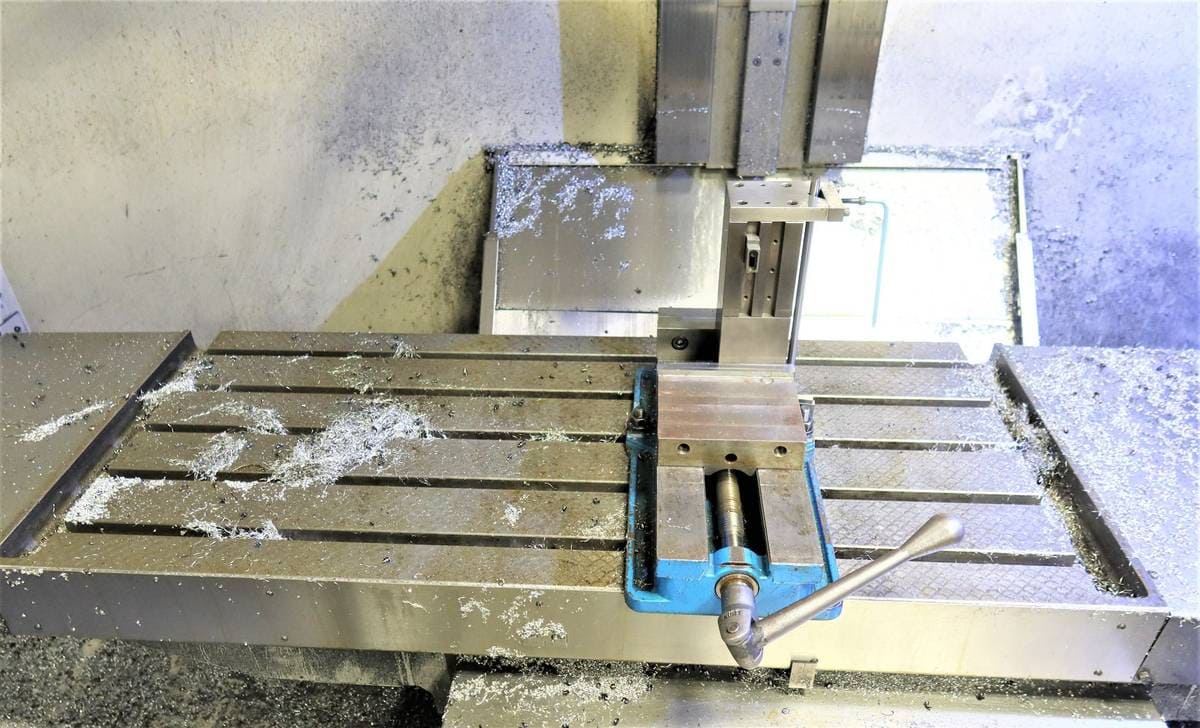

Table:
Length: 48″
Width: 20″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 3500 lbs

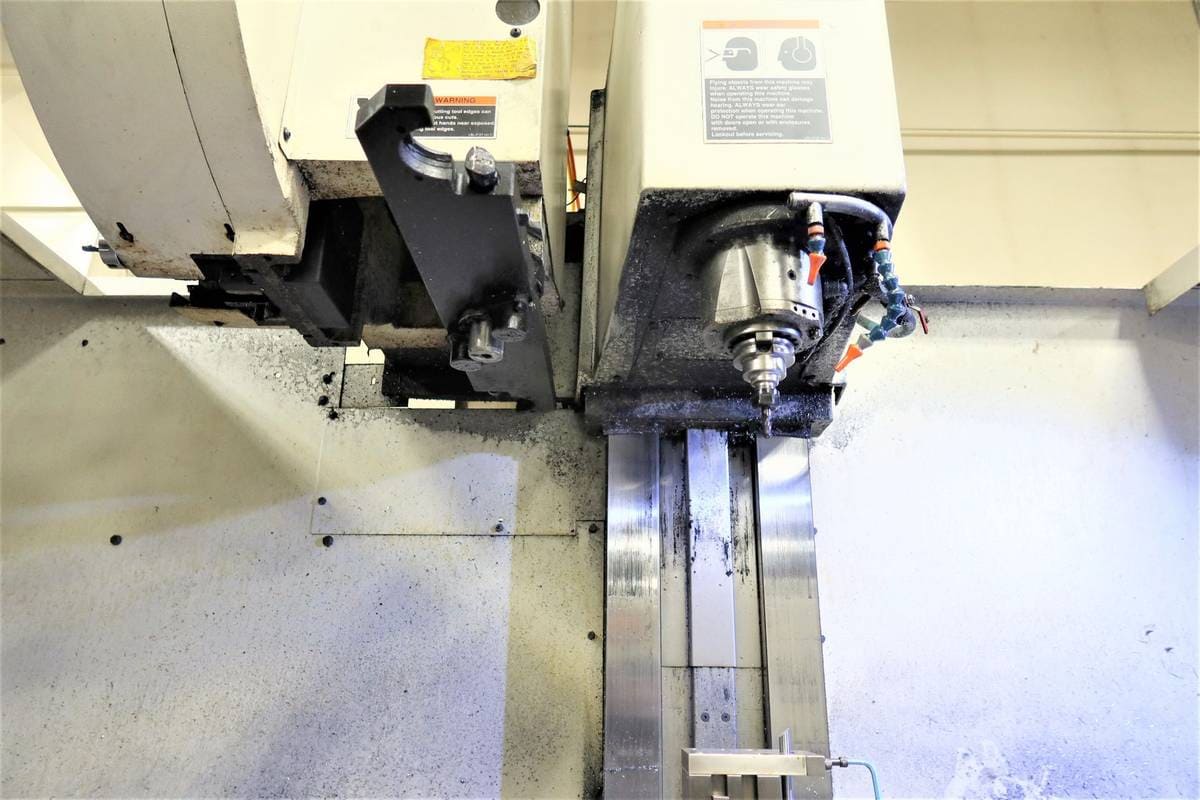

Spindle:
Taper Size: CAT 40
Speed Range: 0 – 10,000 RPM
Spindle Power: 20 HP
Max Torque: 230ft-lb @ 500RPM

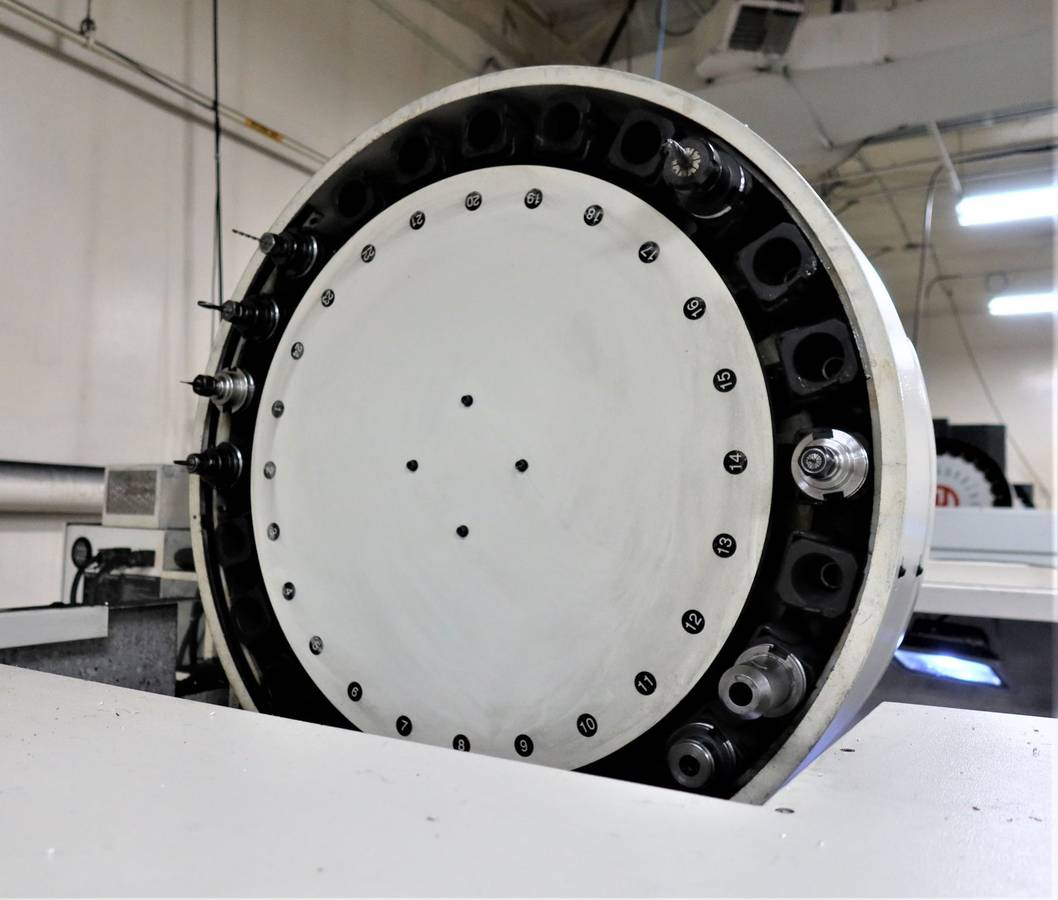

Automatic Tool Changer:
Capacity: 30 + 1
Max Tool Weight: 15 lbs
Max Tool Dia: 6″
Max Tool Length: 15″
Tool Changing Time: 4.2 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 480v / 1 kva / 3-Phase
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12500 lbs
Equipped With:
20HP High Torque Spindle Motor

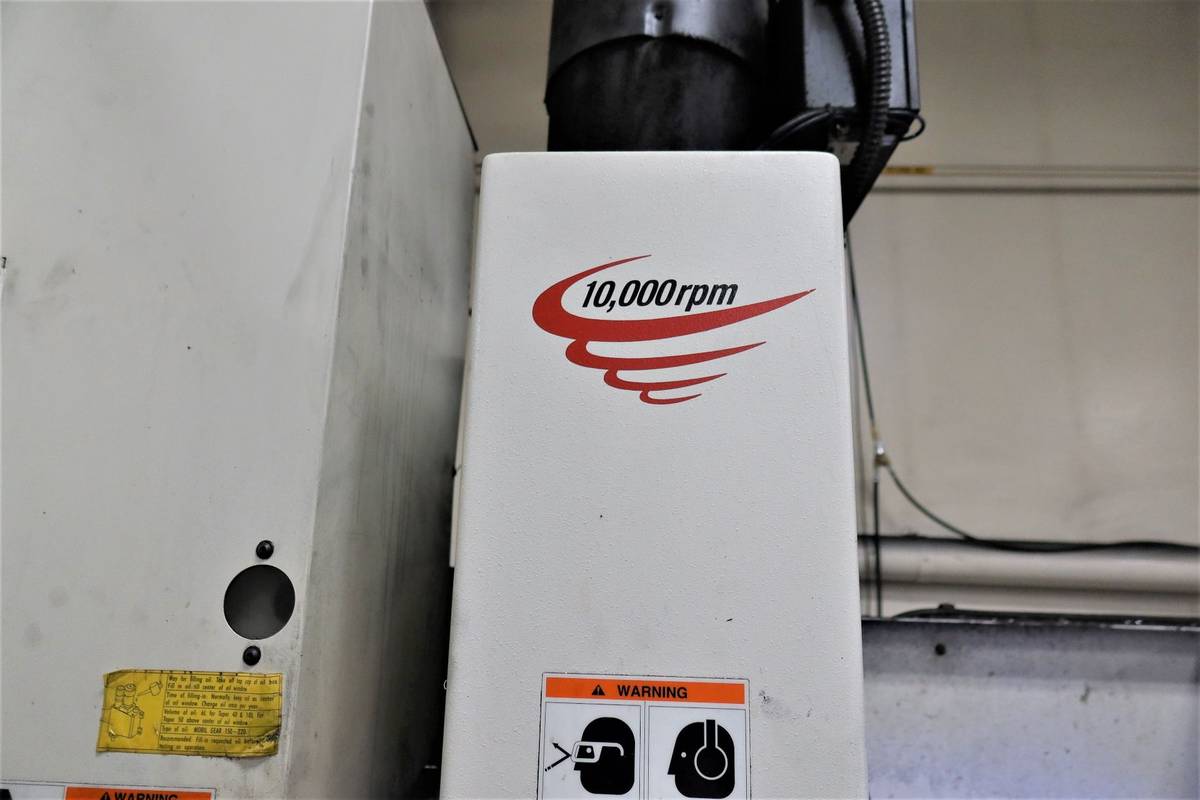

10,000 RPM High Precision Spindle
21 Station Automatic tool changer
Telescopic way covers
Chip auger
Flood Coolant
