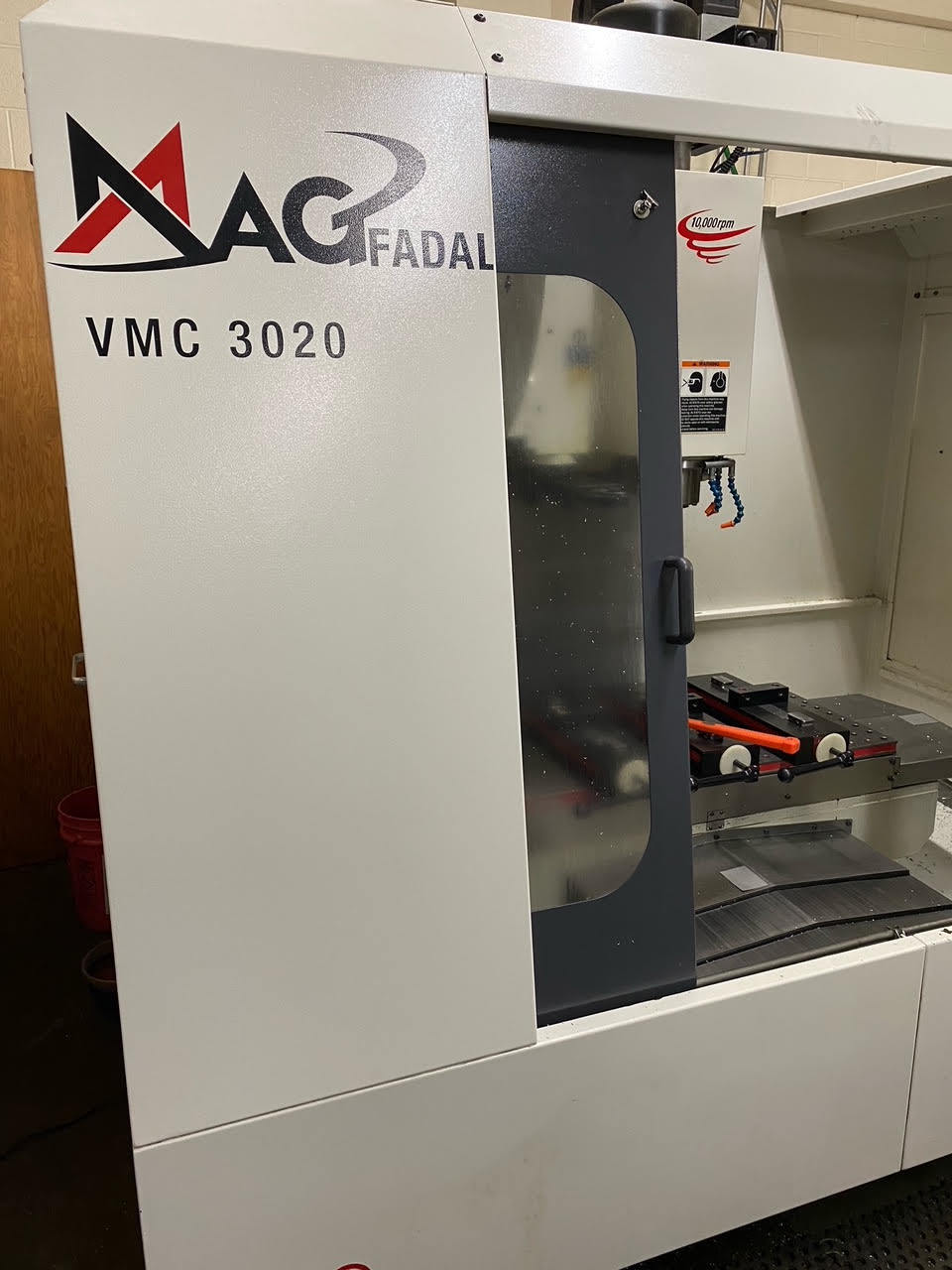

Mag Fadal 3020 HT VMC, 2008 – 10K Spindle, 24 SMTC, Clamps
$16,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel: 30″
Y-Axis Travel: 20″
Z-Axis Travel: 20″
Table Size: 40.5″ x 20″
Floor to Table: 31″
Spindle Nose to Table: 4″-24″
Spindle Center to Column Ways: 22.875″
Rapid Feed Rate: 900 ipm (X/Y) 700 ipm (Z)
Max. Weight on Table: 4,250 lbs
Axis Drive Motor (X/Y/Z) AC 3,800 lbs peak thrust
Spindle Speed: 10,000 rpm
Main Motor: 22.5 HP
Spindle Taper: 40
Auto Tool Changer: 24 + 1
ATC, Tool Selection Random, Bi-directional
Power Reqs: 240 VAC, 3 Ph, 50/60 Hz
Machine Dimensions (l x w x h): 106″ x 85″ x 102″ (max height)
Approx Machine Weight 12,400 lbs
EQUIPPED WITH:

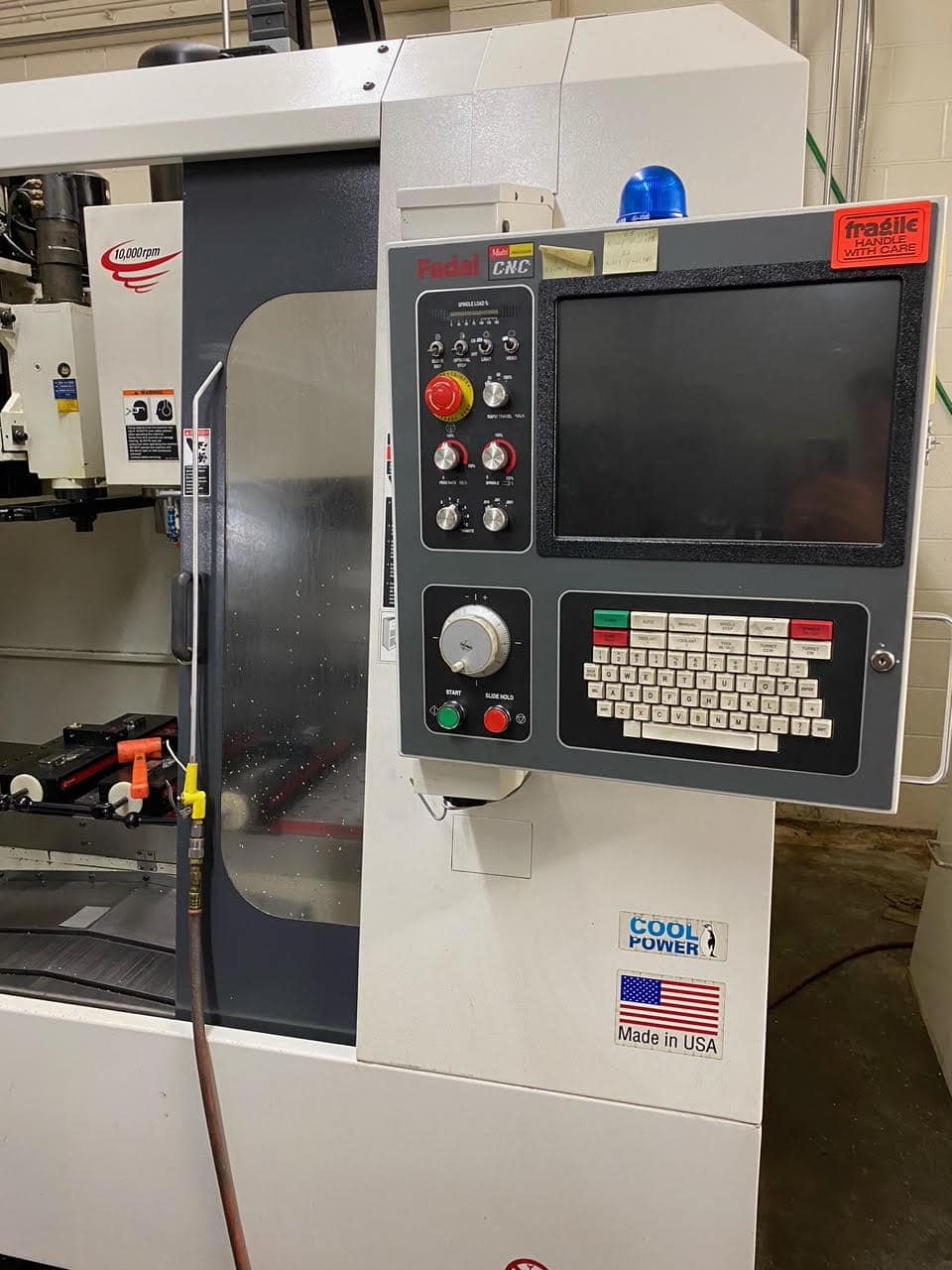

Fadal CNC Control

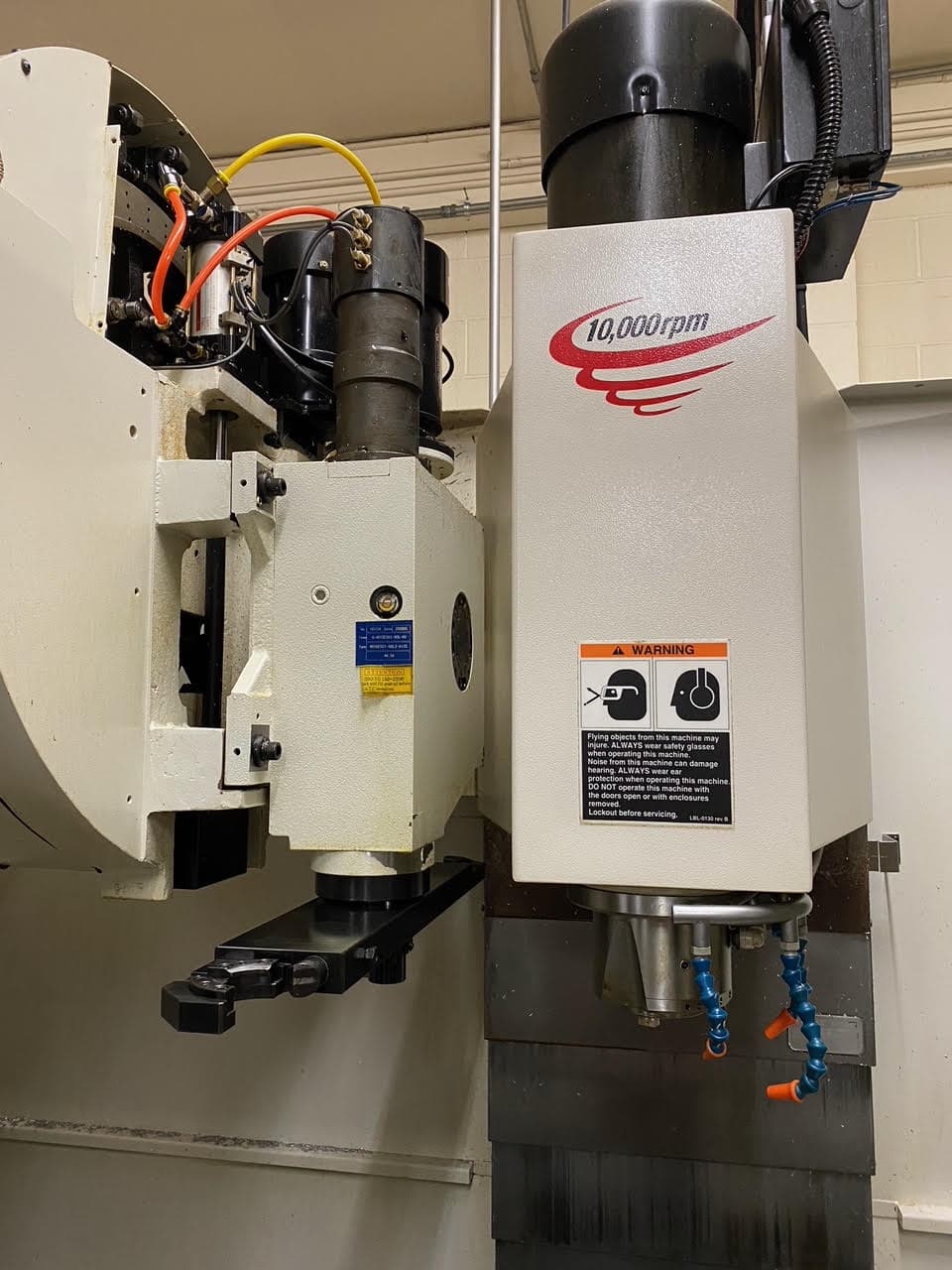

24 + 1 Side Mount Automatic Tool Changer
High Torque Option
3x Available Table Clamps
