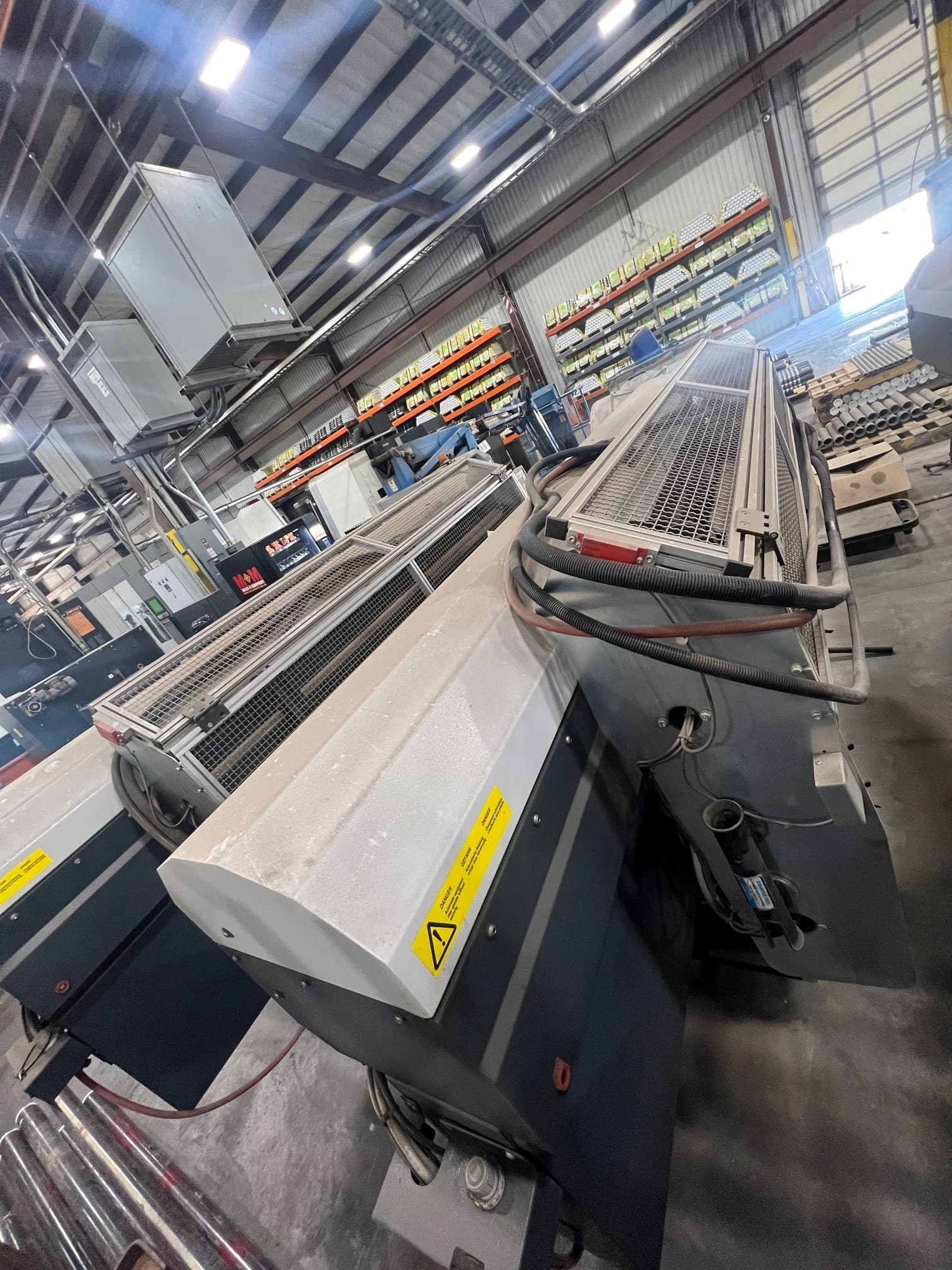

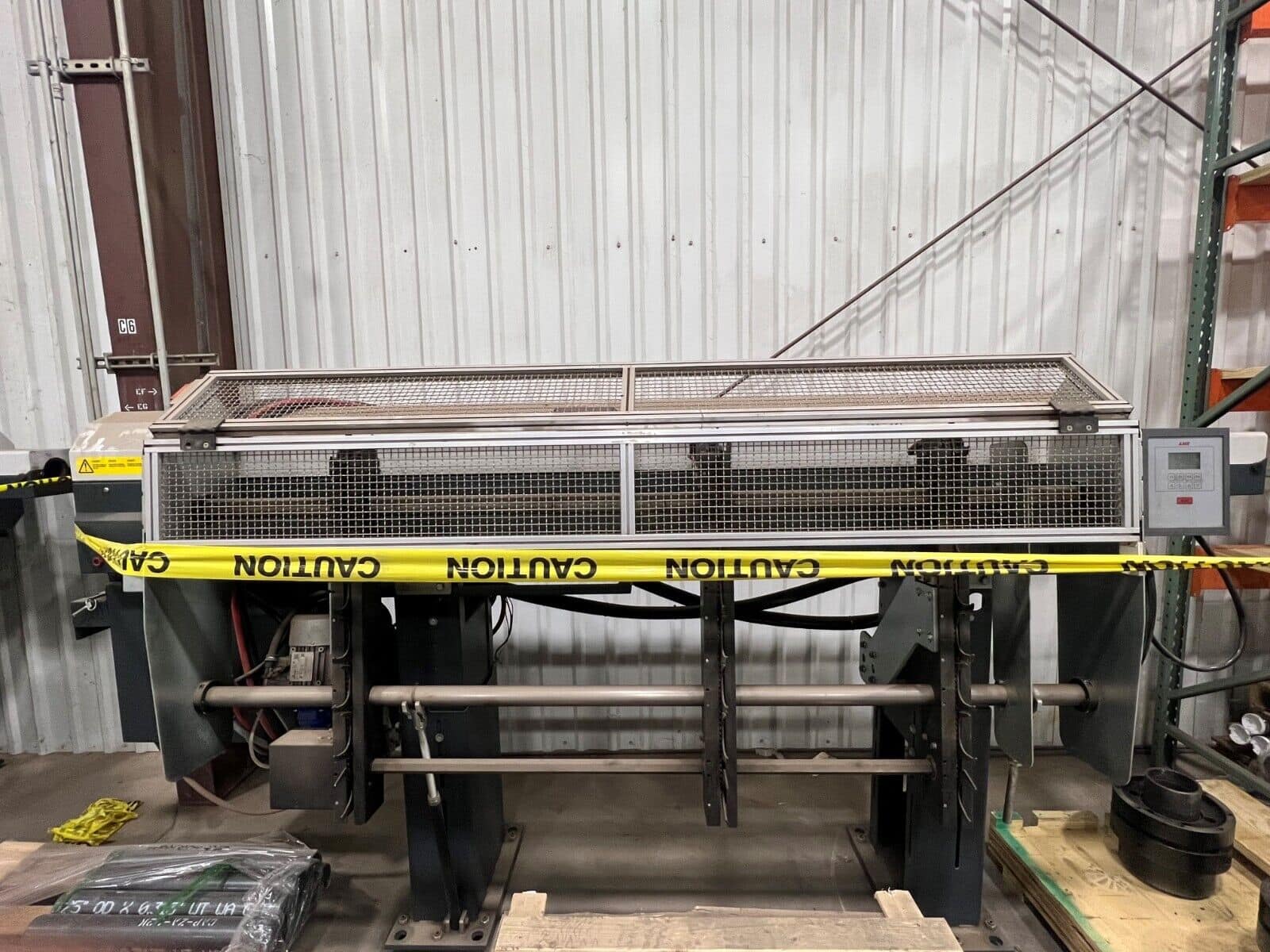

LNS Quick 6 S2 Bar Feeder, 2018 #2
$15,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Overall length: 131″
Overall width: 34″
Spindle axis height: 35″-47″
Z-axis retraction system: 18″
Minimum diameter: .31″
Maximum diameter
(profiled: on flats)
ø3.1″
hex: 1.8″
square: 1.49″
Min. bar stock length: 27″
Max. Bar stock length: 74″
Main electrical power (Volt) 3x 200-480 V,
50 Hz/60 Hz
Air pressure: 5 bar
Air consumption: 100 m/min
Loading cycle time: 30-40 sec.
Hydraulic oil ISO VG 100
