Lithium Battery Production Line
$39,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Xiamen Automatic Shear Cutting Machine, 2022
-Max Electrode Width: 500mm
-Cutting Length: 0.25-10m
-Cutting Thickness: 80-300um
-Cutting Speed: 1-8m/min
-Electrical Requirements: 110/220V, 50/60Hz
-Dimensions: 47” x 40” x 43”
-Weight: 880 lbs

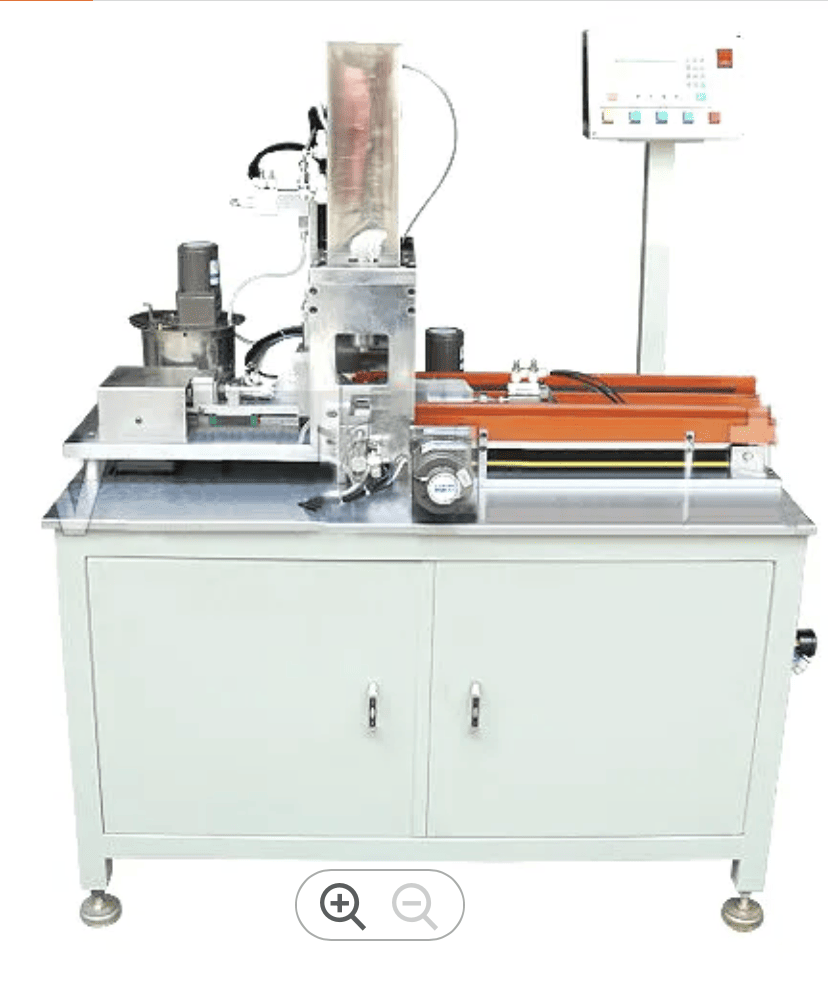

Xiamen Battery Shell Grooving Machine, 2022
-Compatibility: Standard grooving capability for 18650 case
-Control: User friendly HMI with PLC Touch Screen
-Grooving Dimensions: Depth 1-2mm, Width 1-1.5mm
-Grooving Force: 6kgf/cm^2
-Capacity: 30 pieces per minute
-Pneumatic Requirements: 0.5-0.8Mpa
-Electric Requirements: 110/220V, 50/60Hz
-Dimensions: 43” x 26” x 47”
-Weight: 1000 lbs

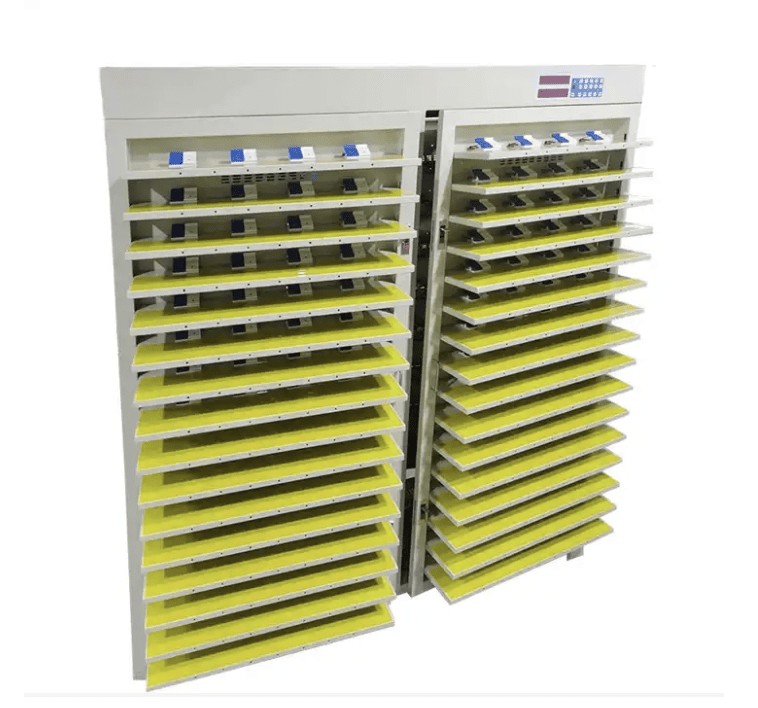

Xiamen Cell Capacity Grading Machine, 2022
-Battery Types: Cylindrical cell 18650, 21700, 26650, 32700, 32650
-Supported Battery Height: 10-100mm
-Electrical Requirements: 380V, 50Hz
Xiamen Cylindrical Cell Crimping Machine, 2022
-Controls: Mitsubishi PLC
-Workable Battery Shell Types: 18650, 21700, 26650, 32650, AA, AAA
-Max Material Height: 910mm
-Pneumatic Requirements: 0.5-0.6MPa
-Electrical Requirements: 220V, 1P
-Dimensions: 46” x 28” x 66”
-Weight: 1480 lbs

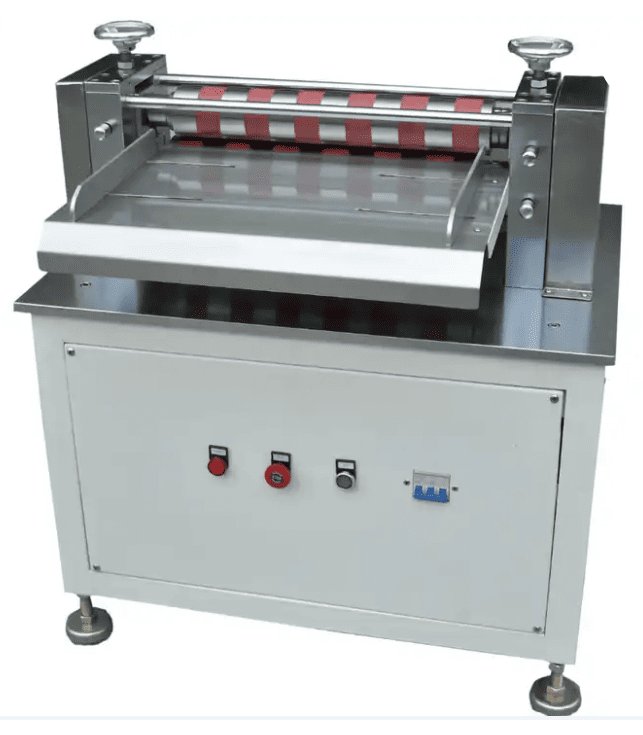

Xiamen Electrode Slitting Machine, 2022
-Slitting Mode: Single Knife Hobbing
-Knife Type: Upper and lower round knife
-Slitting Width: 20-500mm
-Slitting Thickness: 100-300um
-Hob Diamter: 80mm
-Slitting Speed: 10m/min
-Electrical Requirements: 110/220V, 50Hz
-Dimensions: 24” x 24” x 43”

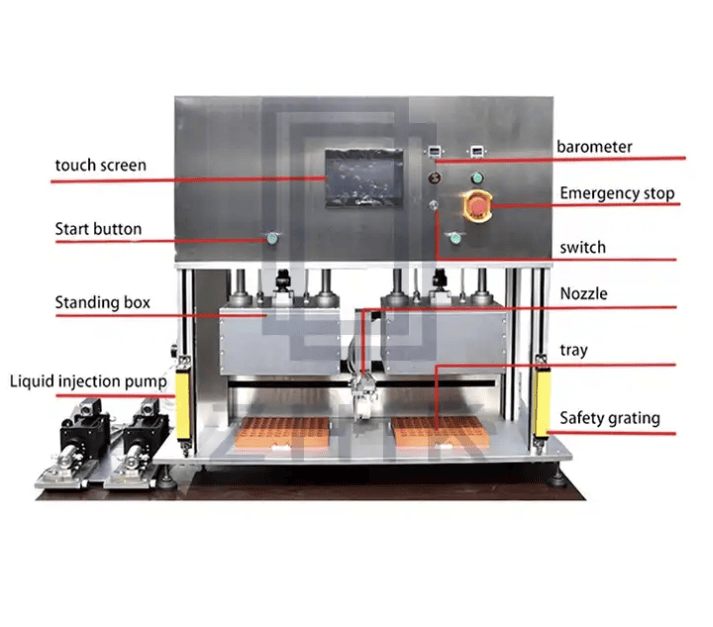

Xiamen Liquid Vacuum Filling Machine
-Vacuum Degree: -0.1MPa
-Capacity: 2 Trays, 80 batteries each, 160 total
-Electrical Requirements: 110/220V, 50/60Hz
-Dimensions: 59” x 20” x 43”
-Weight: 265 lbs

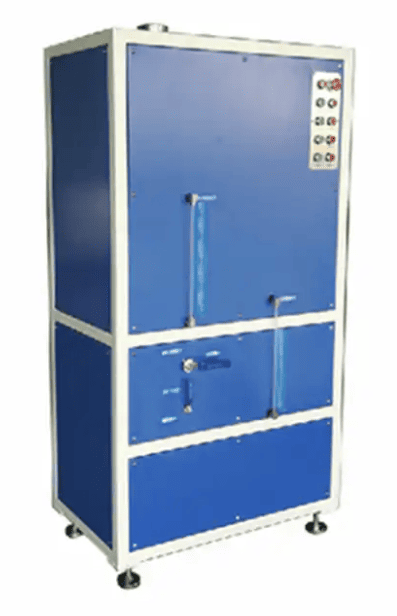

Xiamen NMP Solvent Processing Machine
-Capacity: 600m^3/h
-Inlet Temp: =80%
-Access Volume: 600m^3/h
-Temperature: 0-40°C
-Electrical Requirements: 380V, 50Hz

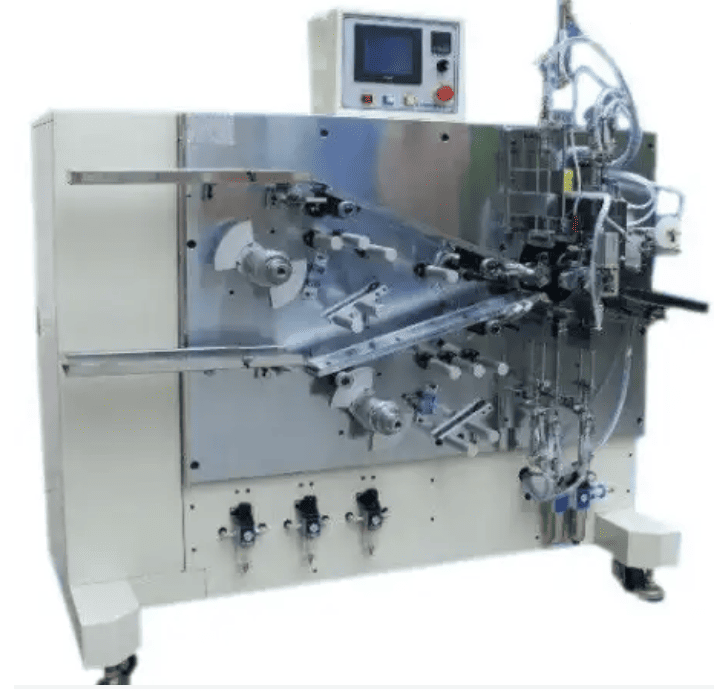

Xiamen Automatic Precision Winding Machine
-Tension: 0-4 N
-Workable Battery Types: 18650, 21700, 26650, and 32650
-Workable Battery Dimensions: 14-32mm D x 25-70mm L
-Cathode/Anode Feeding Dimensions: <1200 mm L x 25-70mm W x 100-300um Thickness
-Separator Feeding: <250mm L x 25-70mm W x <100um Thickness
-Winding Needle Size: 3.5mm Diameter
-Electrode Winding Size: 14-32mm D x 25-70mm L
-Pneumatic Requirements: 0.7MPa
-Electrical Requirements: 220V, 50/60Hz
-Dimensions: 40” x 28” x 35”
-Weight: 331 lbs

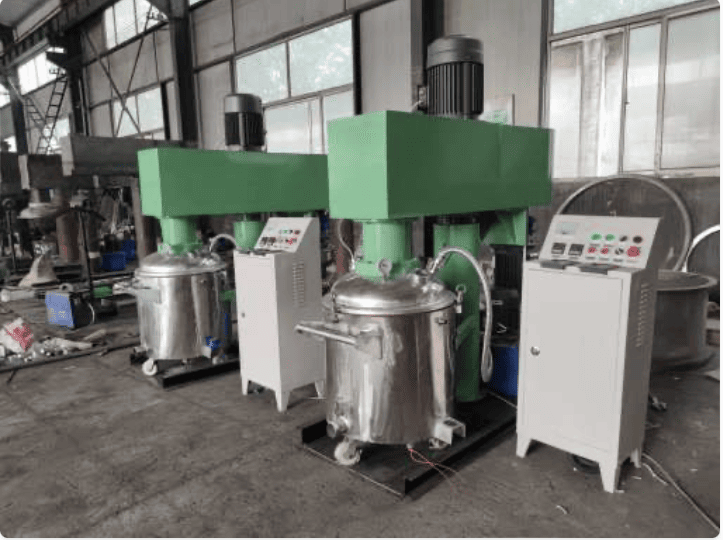

Two Xiamen Vacuum Mixers
