AL
3153850835

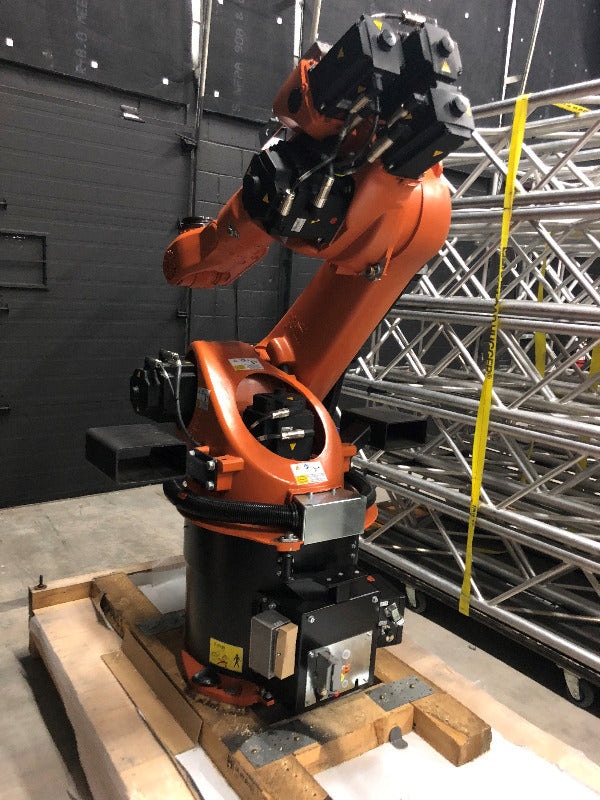

KUKA KR 60-3 – Medium Payload Industrial Robot, 2015
$58,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
VERY LOW HOURS – 4,433 (1/3 of those are for industrial testing)

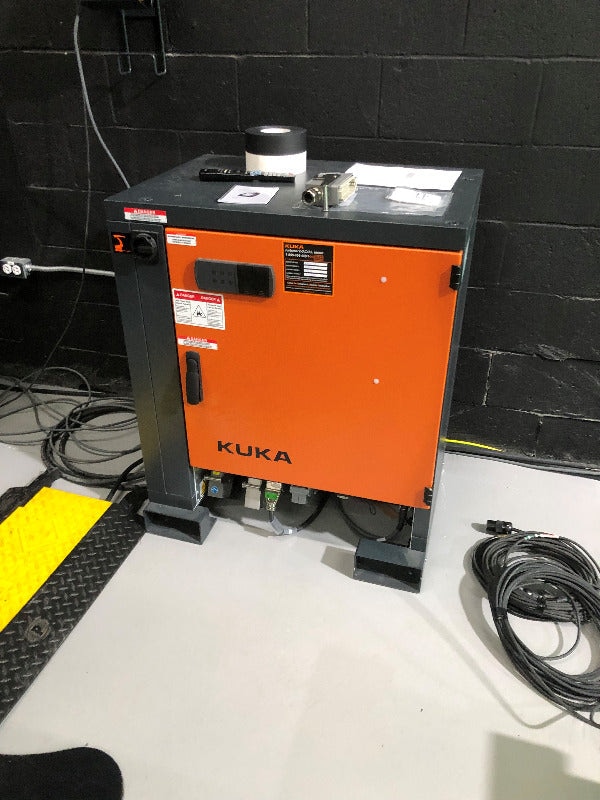

KUKA KR C4 CONTROL
ROBOT SPECS
Axes: 6
Payload: 60.00kg
H-Reach: 2033.00mm
Repeatability: ±0.0600mm
Robot Mass: 665.00kg
Structure: Articulated
Mounting: Floor, Inverted
ROBOT MOTION SPEED
J1 128 °/s (2.23 rad/s)
J2 102 °/s (1.78 rad/s)
J3 128 °/s (2.23 rad/s)
J4 260 °/s (4.54 rad/s)
J5 245 °/s (4.28 rad/s)
J6 322 °/s (5.62 rad/s)
ROBOT MOTION RANGE
J1 +185° – 185°
J2 +35° – 135°
J3 +158° – 120°
J4 +350° – 350°
J5 +119° – 119°
J6 +350° – 350°
Equipped With:
Robot Arm
Controller
Remotes
Transformer
